The KingsBottle 72-Inch Upright Triple-Zone Wine & Beverage Center provides dedicated refrigerated storage for wine and beverages in a full-height configuration. With three independently controlled temperature zones, it offers flexibility for organizing different types of wine and chilled beverages while keeping them accessible and visible through Low-E glass doors.
The system consists of two matching units designed to be used side-by-side or separately, providing a total storage volume of 30 cubic feet (850 liters). It is suitable for residential and light commercial applications where expanded wine and beverage storage is needed.
Key Features
- Triple-zone temperature control
- 159-bottle capacity
- 630-can capacity
- 30 cu. ft. (850 L) total volume
- Two-unit configuration for side-by-side or separate installation
- Low-E glass doors
- Adjustable shelving system
- Embraco inverter compressor
- Compressor cooling with forced-air convection
- Automatic defrost
- Front-venting design
- Built-in or freestanding installation
- 110–115V / 60Hz electrical requirement
Triple-Zone Temperature Control

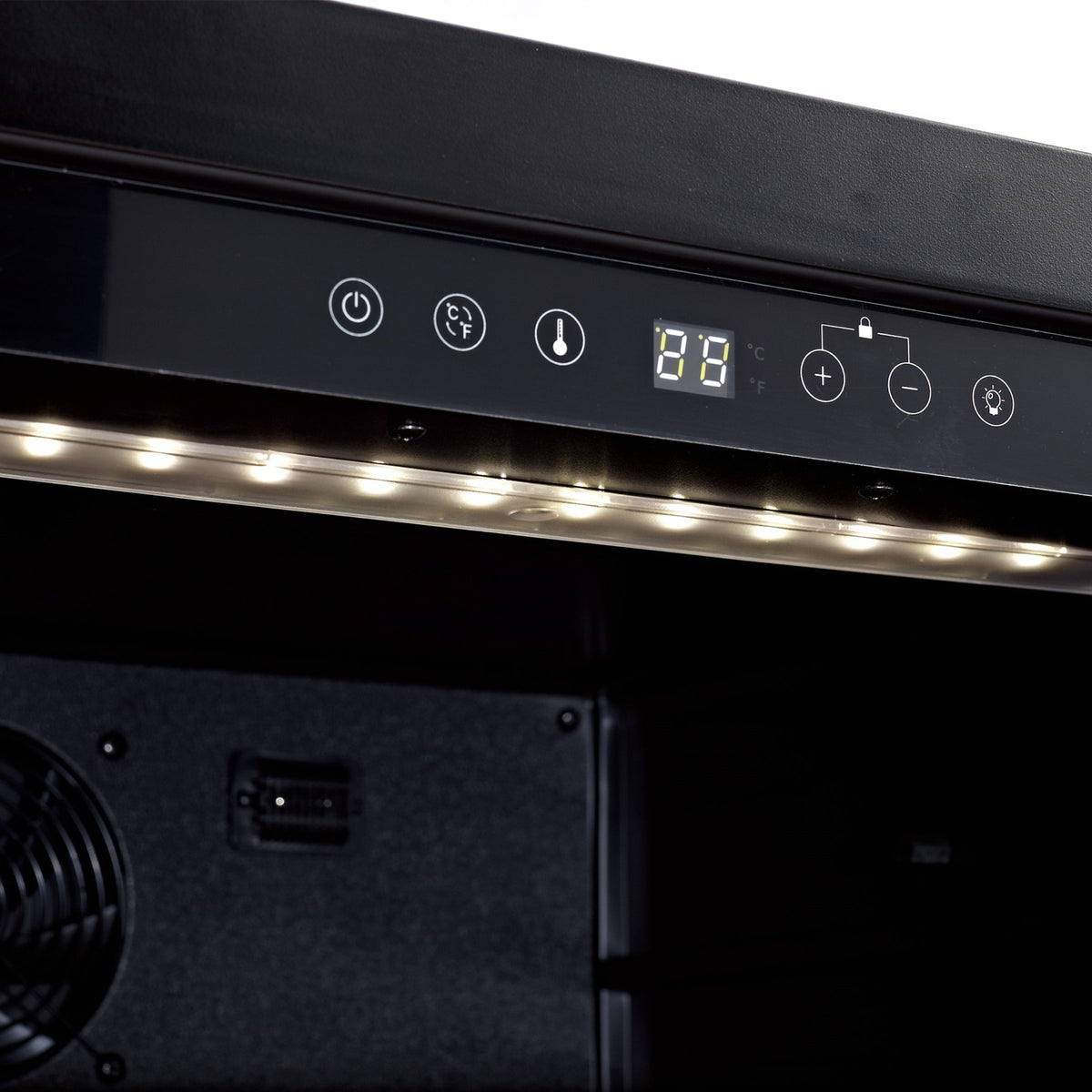

The three independently controlled temperature zones allow wine and beverages to be organized according to their individual storage requirements. The system provides an overall temperature range of 35°F to 68°F (2°C to 20°C).

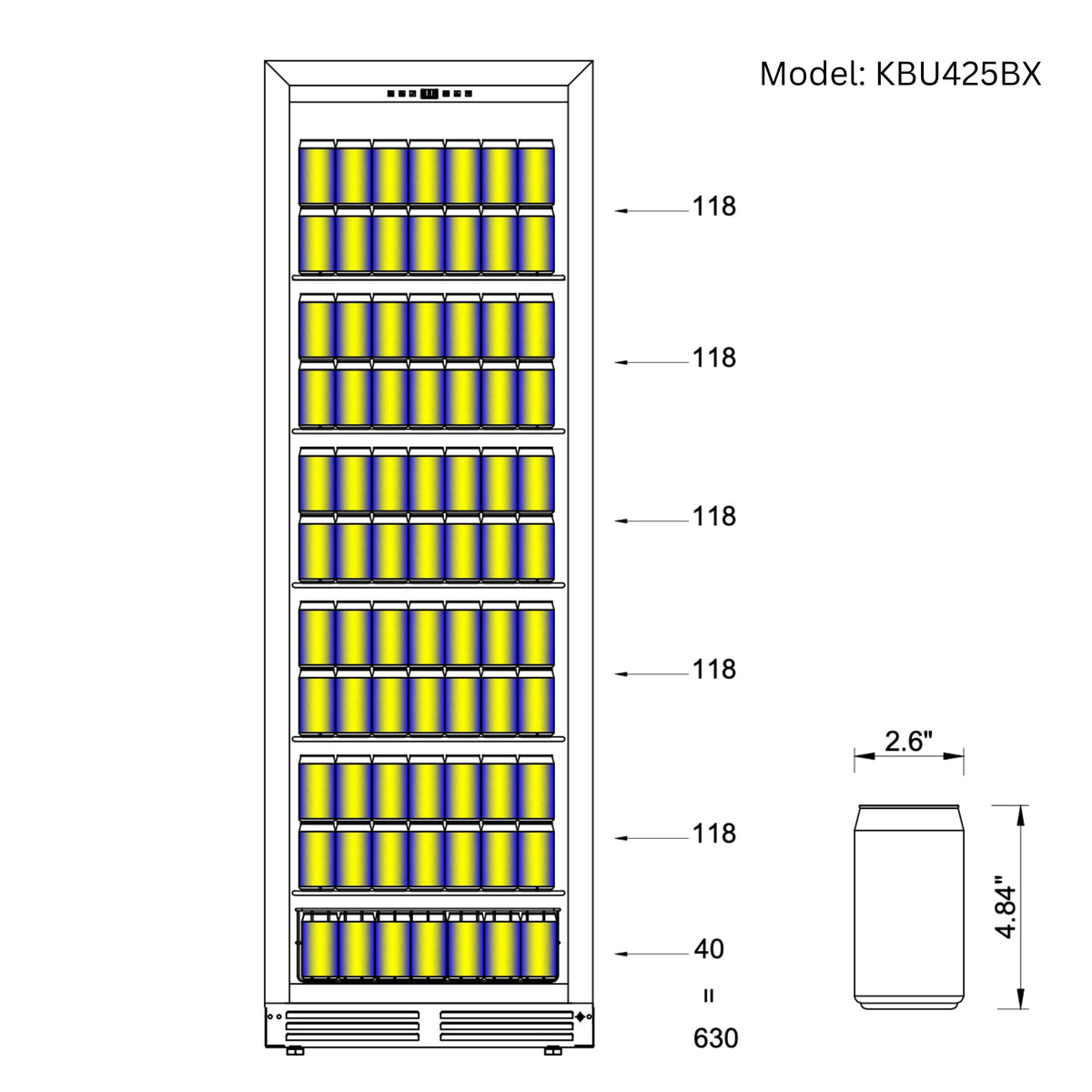

Wine & Beverage Storage

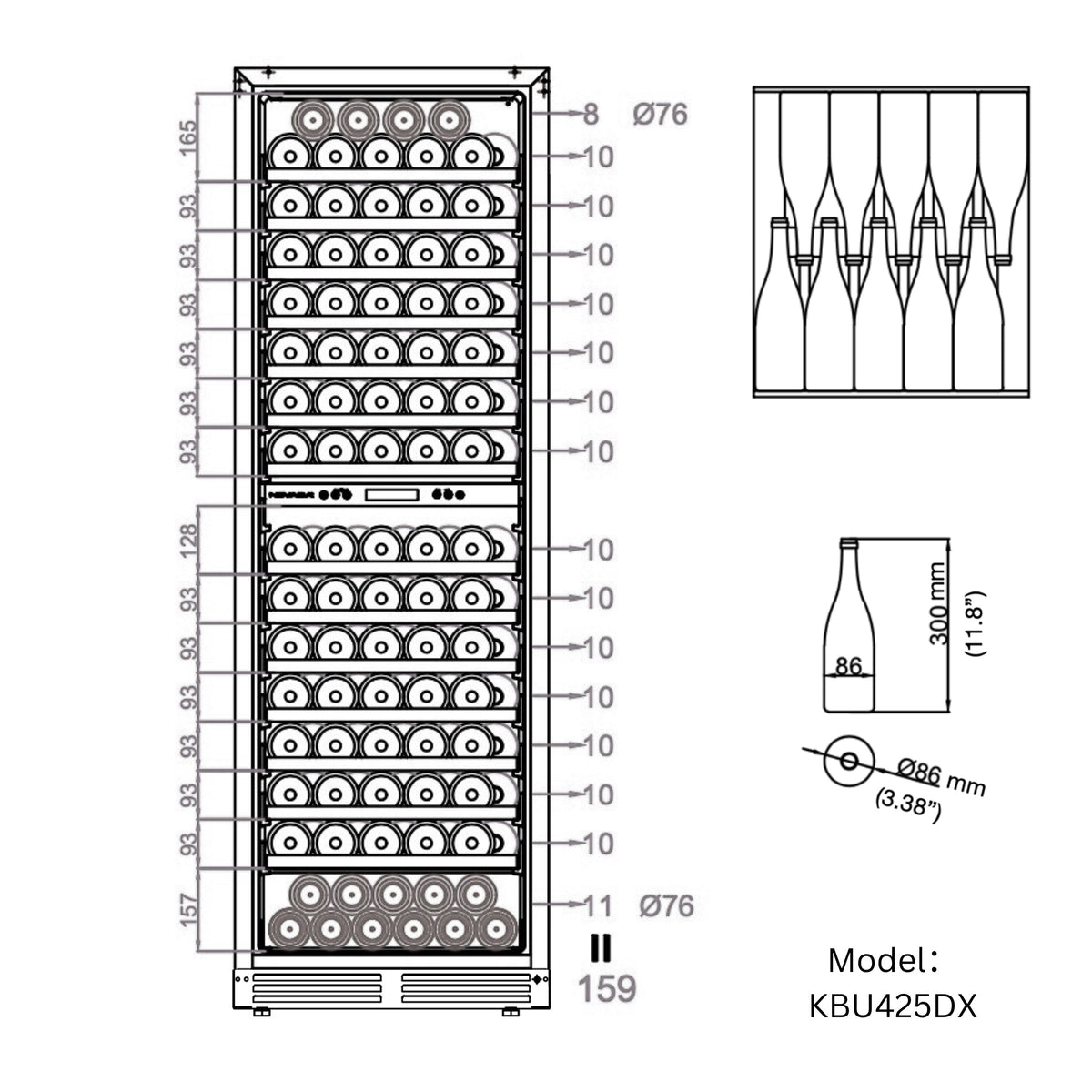

The center provides storage for up to 159 bottles and 630 cans. The combination of bottle and beverage storage makes the system suitable for entertaining areas, wine rooms, hospitality spaces, kitchens, and other dedicated refrigeration areas.

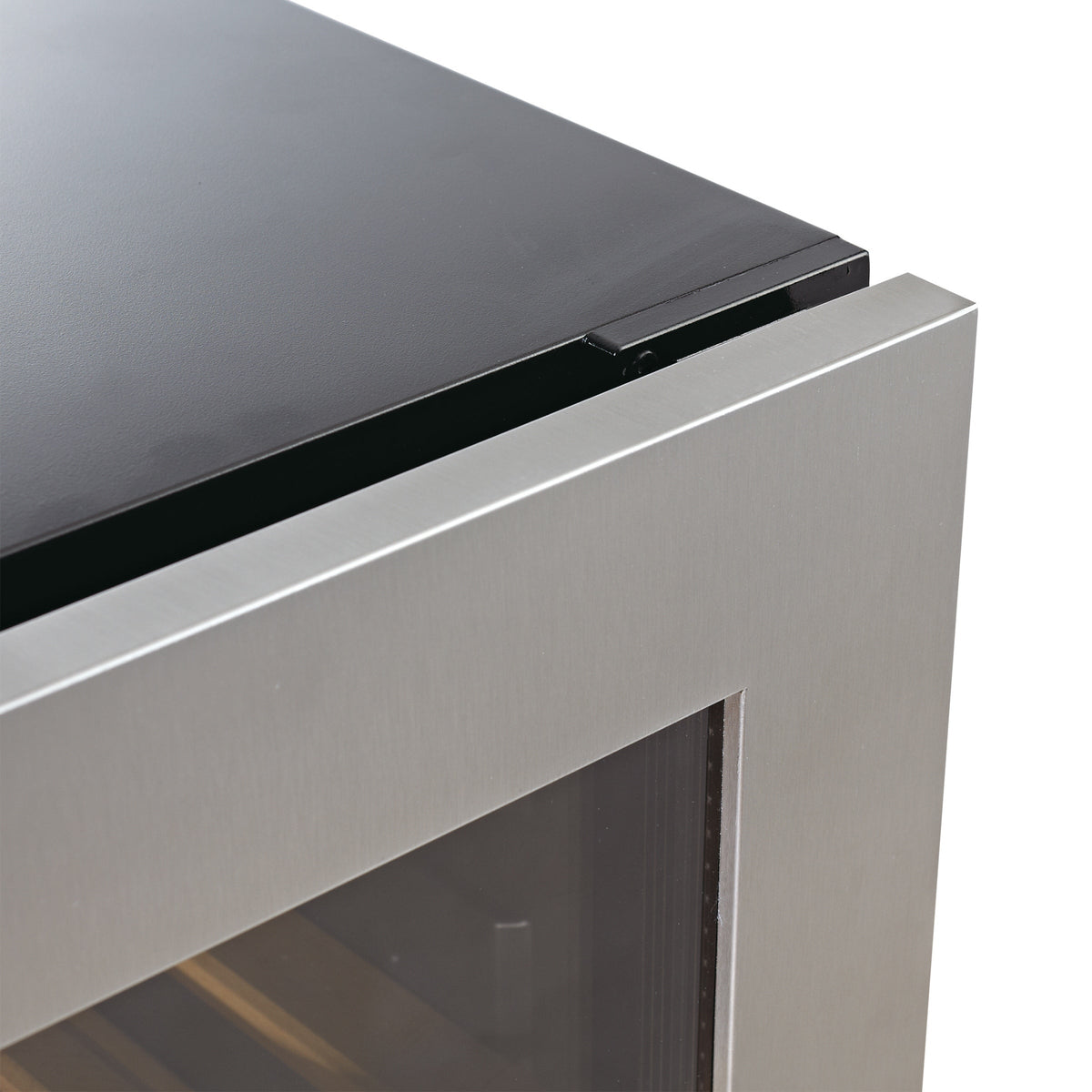

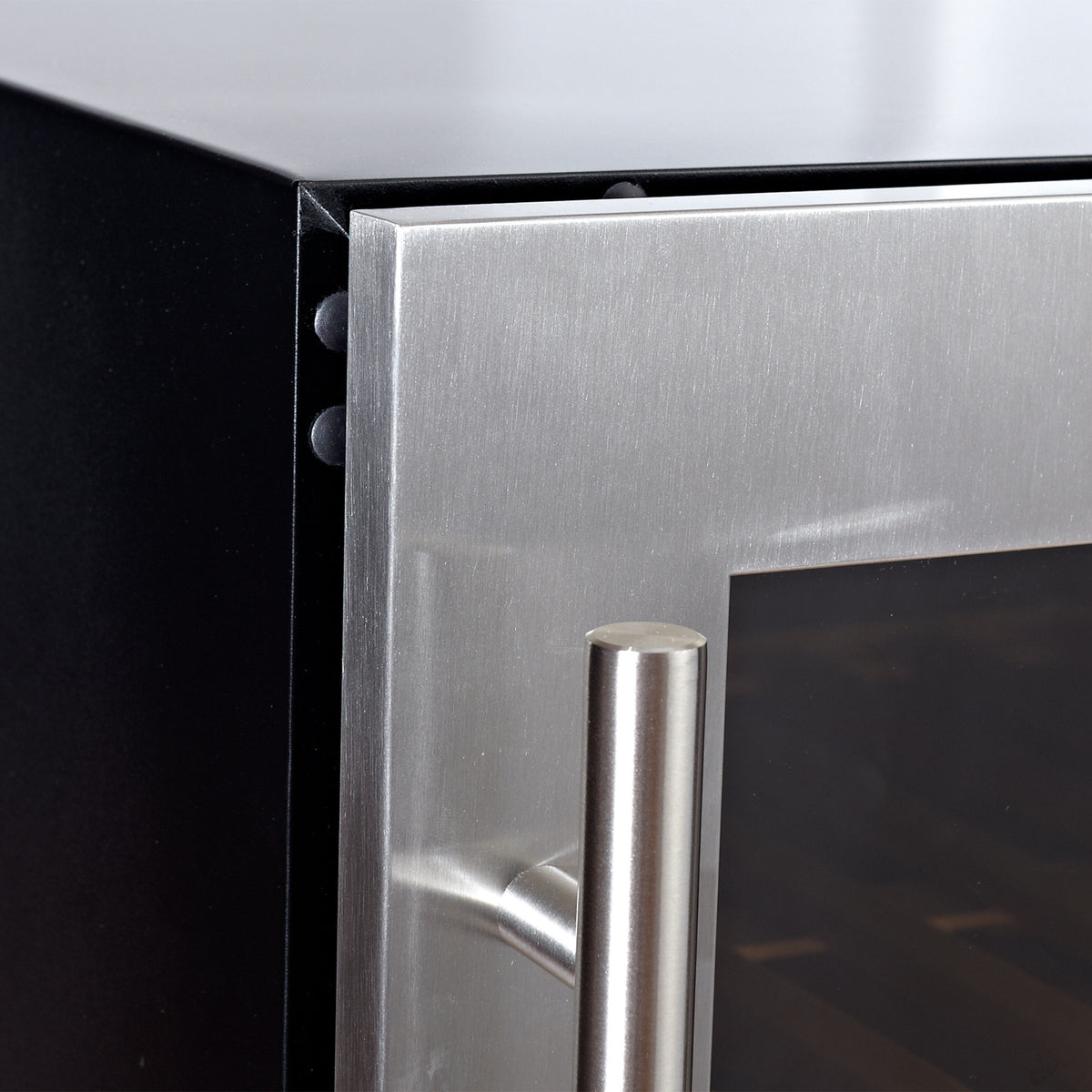

Low-E Glass Doors
The Low-E glass doors help reduce condensation and improve insulation while providing visibility into the refrigerated contents. The glass-door presentation allows bottles and beverages to remain visible without opening the cooling compartments.

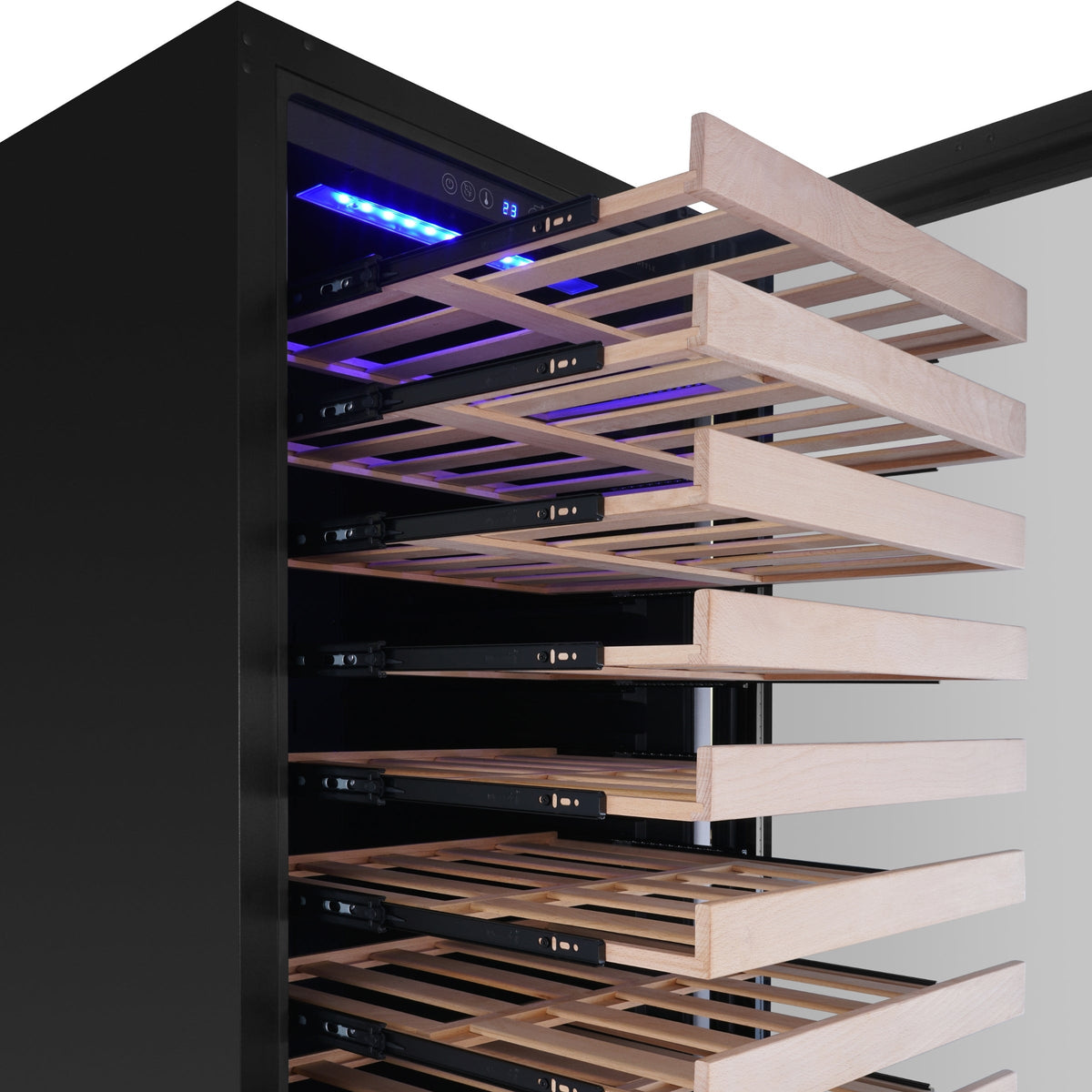

Adjustable Shelving
The adjustable shelving system allows the interior configuration to be adapted for different bottle and beverage sizes. This provides flexibility when organizing a mixed collection.

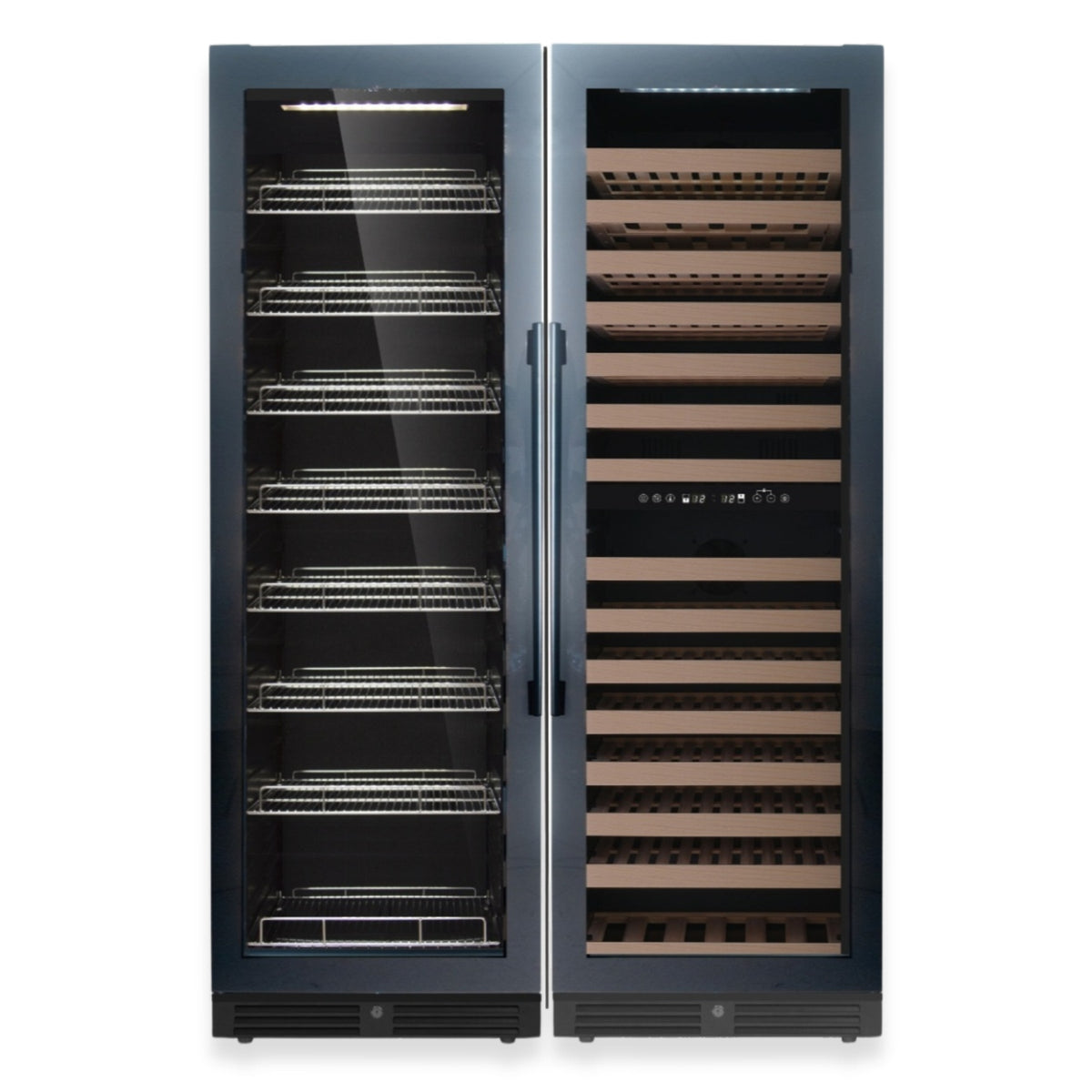

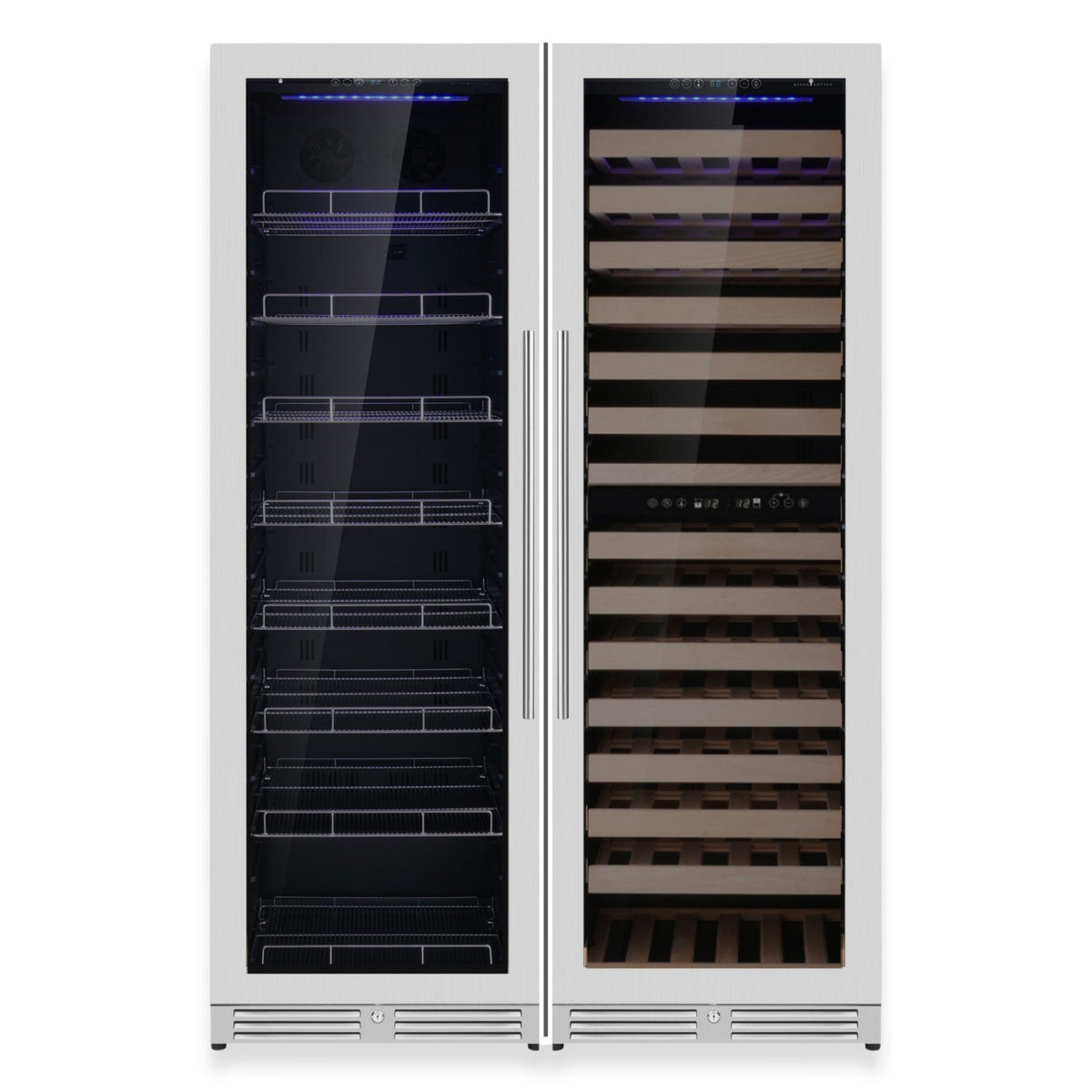

Two-Unit Configuration
The product is supplied as a set of two units. The units can be positioned side-by-side for a larger integrated installation or used separately when the available space requires a more flexible configuration.
Cooling System
An Embraco inverter compressor works with compressor cooling and forced-air convection to provide refrigerated storage across the three temperature zones. Automatic defrost helps simplify routine operation.
Built-In or Freestanding Installation
The units are designed for either built-in or freestanding installation. Front ventilation allows the system to be integrated into suitable cabinetry without requiring rear ventilation clearance for normal operation.
Additional installation space may still be required to allow the units to be positioned, serviced, and removed when necessary. Follow the manufacturer's installation diagram and clearance requirements for the selected configuration.
Specifications
| Product | 72-Inch Upright Triple-Zone Wine & Beverage Center |
| Model | KBU425BW3-FG |
| Configuration | Set of two units |
| Total Capacity | 30 cu. ft. / 850 L total |
| Capacity Per Unit | 15 cu. ft. / 425 L |
| Bottle Capacity | 159 bottles |
| Can Capacity | 630 cans |
| Temperature Zones | Triple Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32°F to 100°F (0°C to 38°C) |
| Door Type | Low-E Glass |
| Defrost | Automatic |
| Noise Level | 42.0 dB |
| Energy Consumption | 430 kWh/year |
| Electrical Requirements | 110–115V / 60Hz |

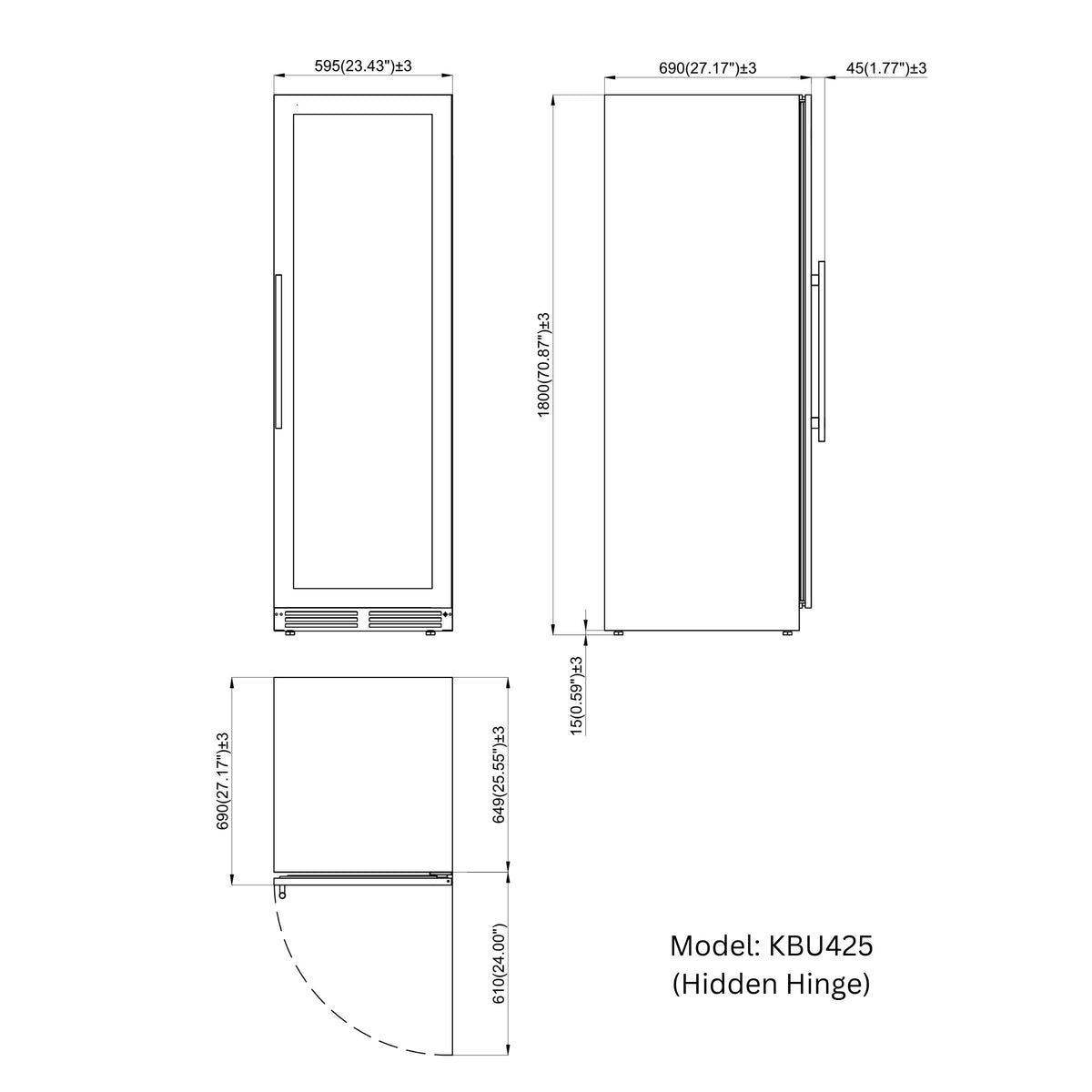

| Dimensions | 46.85" W × 27.56" D × 70.87" H |
| Installation Type | Built-In or Freestanding |
| Ventilation | Front Venting |

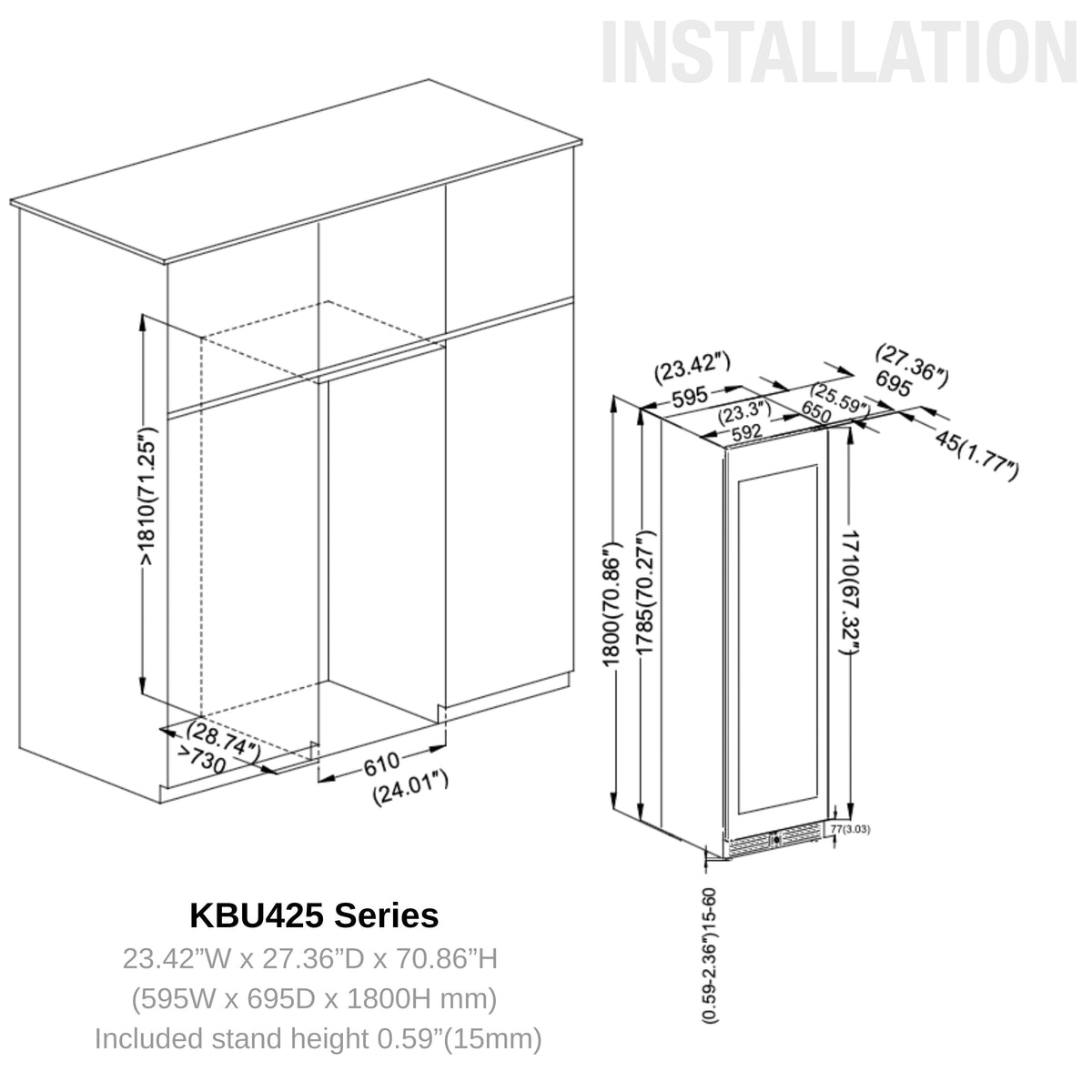

Installation Notes
- Install on a level surface.
- Follow the manufacturer's installation diagram for the required cutout and positioning.
- Front ventilation is designed for built-in installation.
- Additional space may be recommended for installation and maintenance access.
- If installed between frameless cabinets, a 1/2-inch filler strip or side panel may be required on the hinge side for unobstructed door operation.

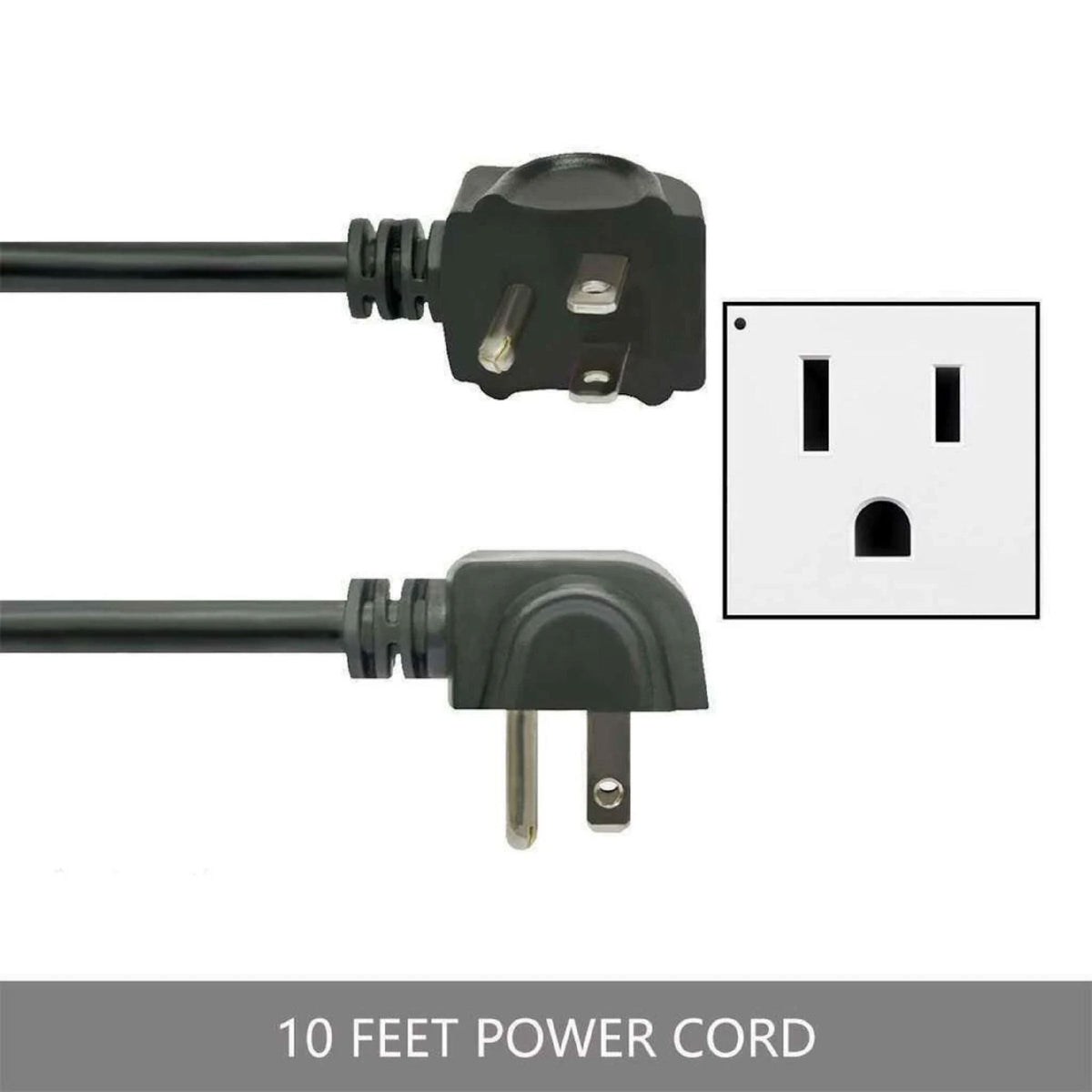

- For outlets located behind the unit, the manufacturer specifies additional space for the angled plug or recommends placing the outlet in an adjacent cabinet.
Designed for Entertaining and Dedicated Storage
The full-height configuration provides substantial storage capacity without requiring multiple types of refrigeration equipment. Its combination of wine storage, beverage capacity, multi-zone temperature control, and glass-door presentation makes it suitable for dedicated wine rooms, entertainment areas, hospitality-inspired spaces, and other applications requiring organized refrigerated storage.
