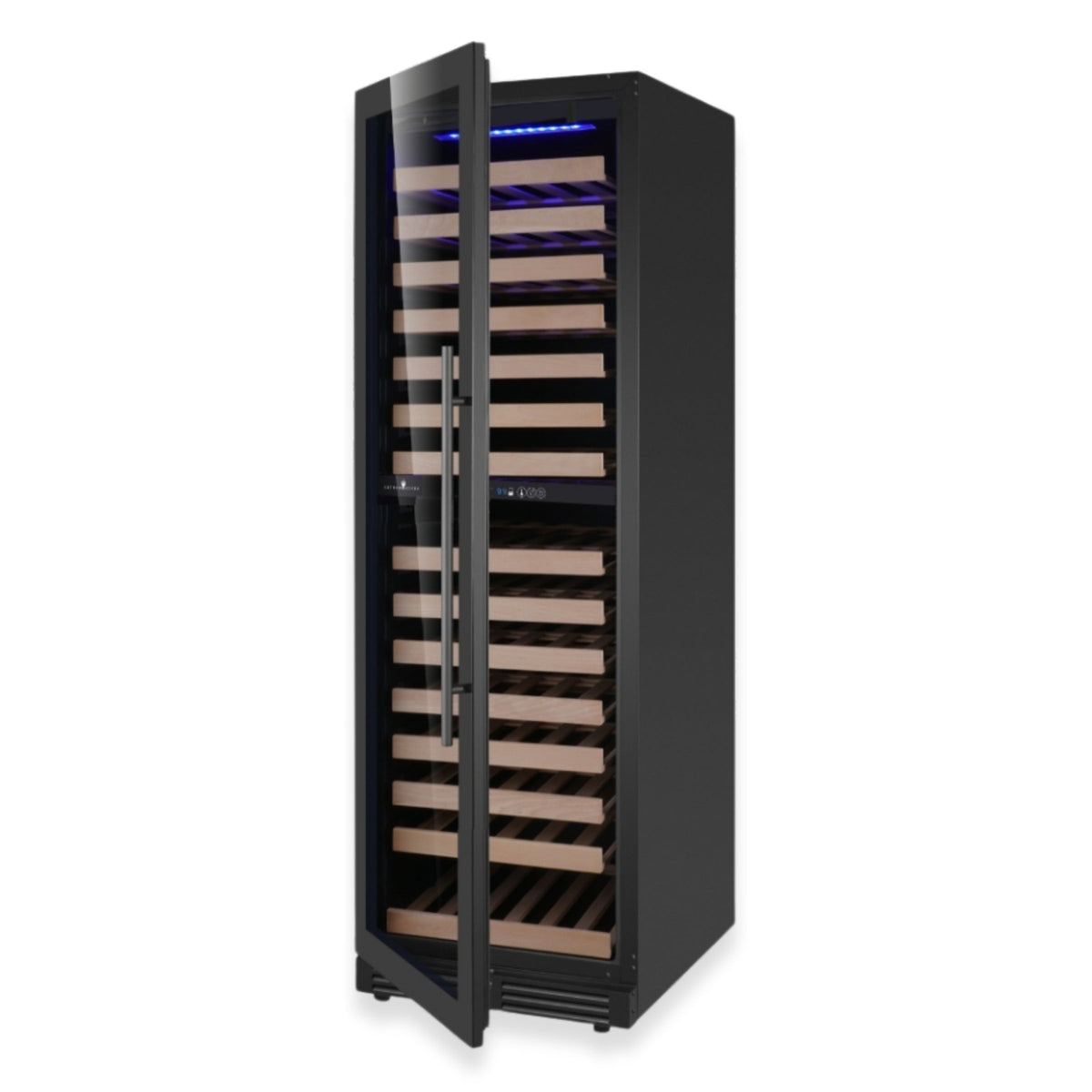

The KingsBottle 72-Inch Upright Dual-Zone Wine Cooler provides large-capacity wine storage in a tall, full-height cabinet designed for dedicated wine collections. With a 15.00 cu. ft. capacity, storage for up to 159 bottles, independently controlled temperature zones, Low-E glass, and front ventilation, it offers flexible storage and presentation for residential and dedicated wine spaces.
Key Features
- Large 15.00 Cu. Ft. Capacity: Provides 425 liters of total refrigerated wine storage.
- 159-Bottle Capacity: Designed to accommodate up to 159 wine bottles.
- Dual-Zone Temperature Control: Independent upper and lower zones allow different temperature settings within the same unit.
- Low-E Glass Door: Helps reduce condensation and improves insulation while providing visibility of the wine collection.
- Large Bottle Compatibility: Accommodates bottles up to 3.39 inches (86 mm) in diameter.
- Full-Extension Shelving: Pull-out shelving provides access to bottles stored toward the back of the cabinet.
- Embraco Inverter Compressor: Uses inverter compressor technology with compressor cooling and forced-air convection.
- Automatic Defrost: Helps simplify routine maintenance.
- Front Ventilation: Supports built-in installation without rear clearance required for normal operation.
- Built-In or Freestanding: Can be integrated into suitable cabinetry or used as a standalone wine cooler.
Dual-Zone Wine Storage

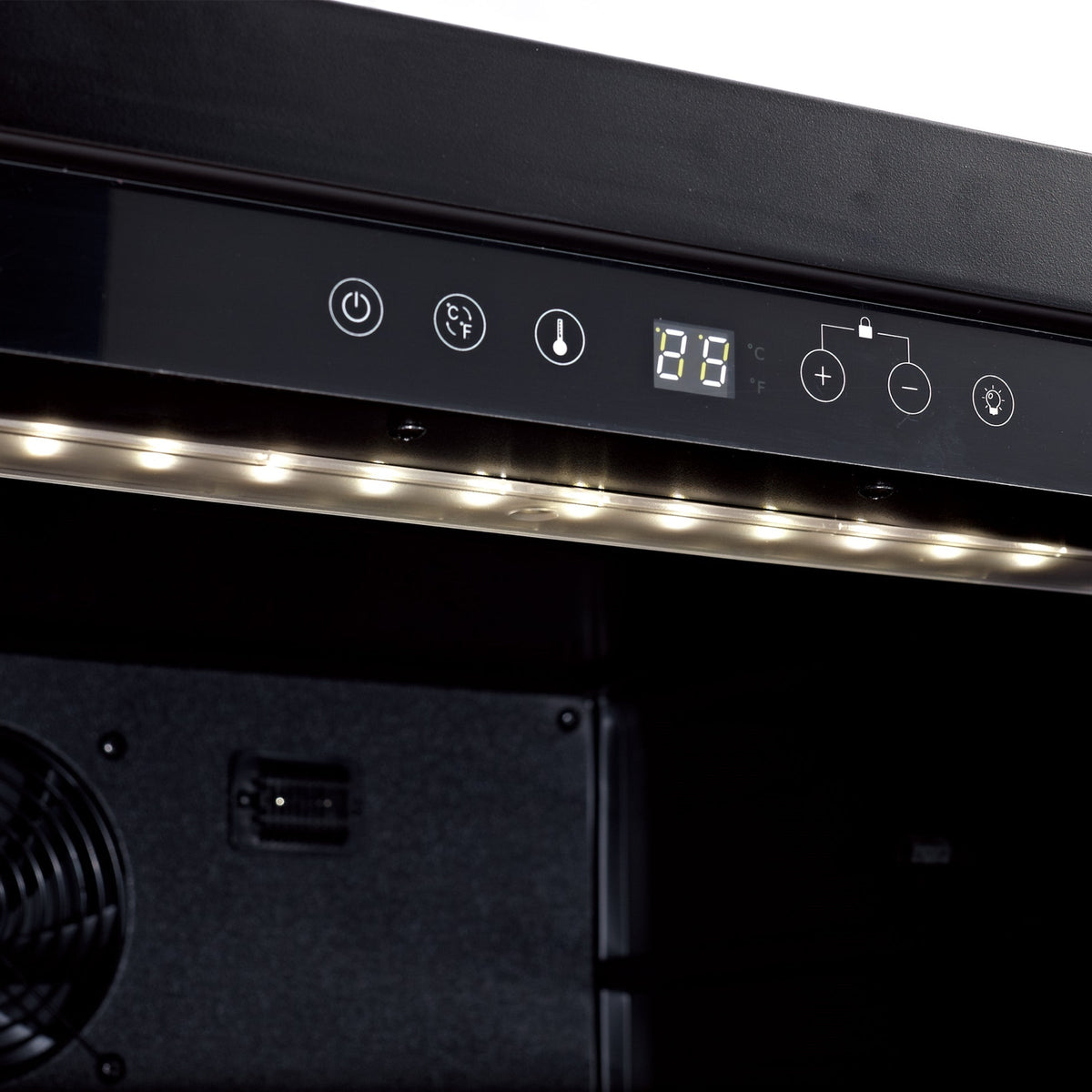

The independently controlled zones provide flexibility for organizing different wine styles within one refrigerator. The upper zone adjusts from 35°F to 54°F (2°C to 12°C), while the lower zone adjusts from 54°F to 68°F (12°C to 20°C).
This configuration allows users to establish separate temperature settings for different wines while keeping the entire collection organized within one full-height unit.
Large-Capacity Wine Collection Storage
With 15.00 cu. ft. of interior volume, the KBU425DX-FG provides storage for up to 159 bottles. The tall cabinet format makes efficient use of vertical space while providing full-height access to the wine collection.

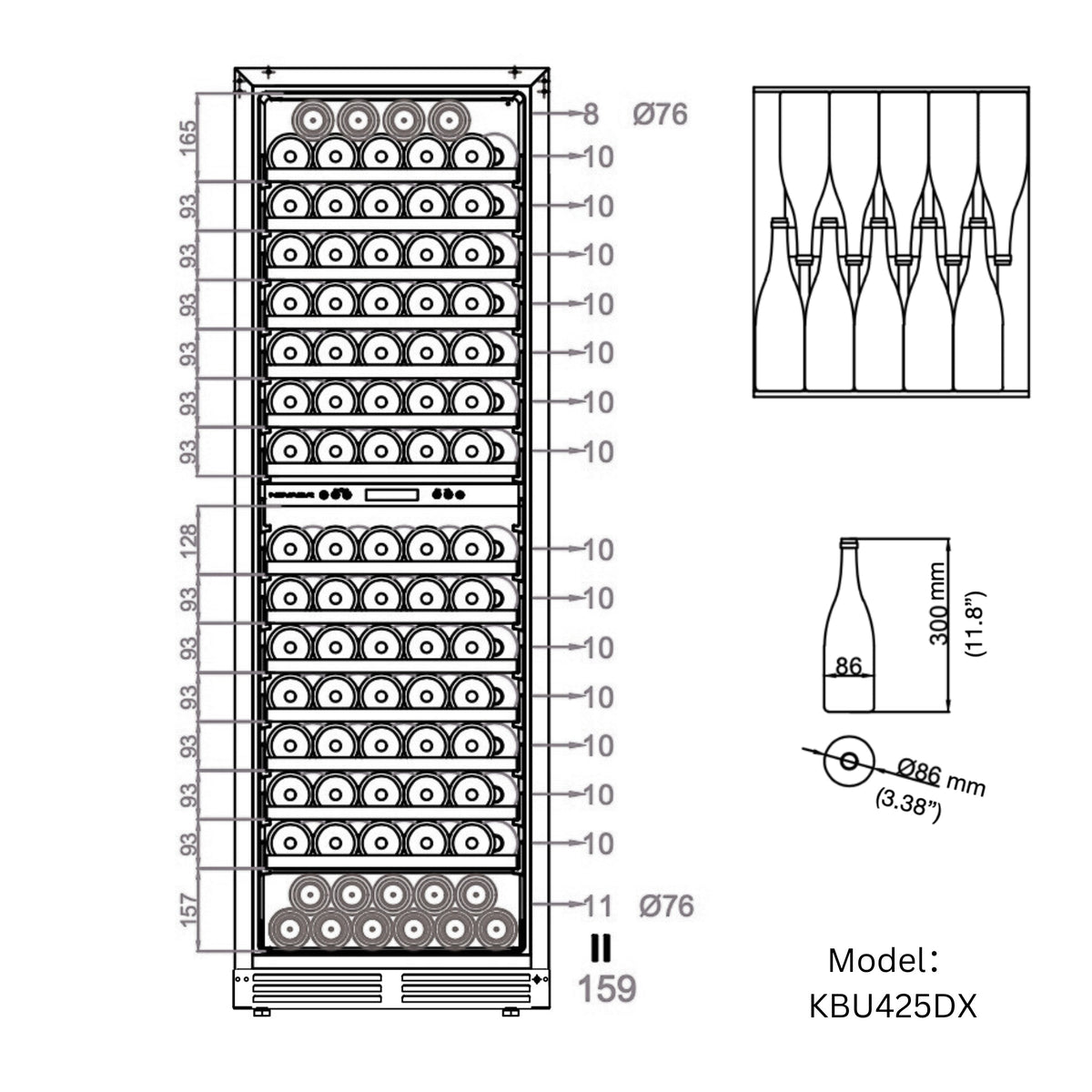

The storage system accommodates standard wine bottles as well as larger bottles up to 3.39 inches (86 mm) in diameter. Bottle capacity may vary depending on bottle shape, size, and shelf arrangement.

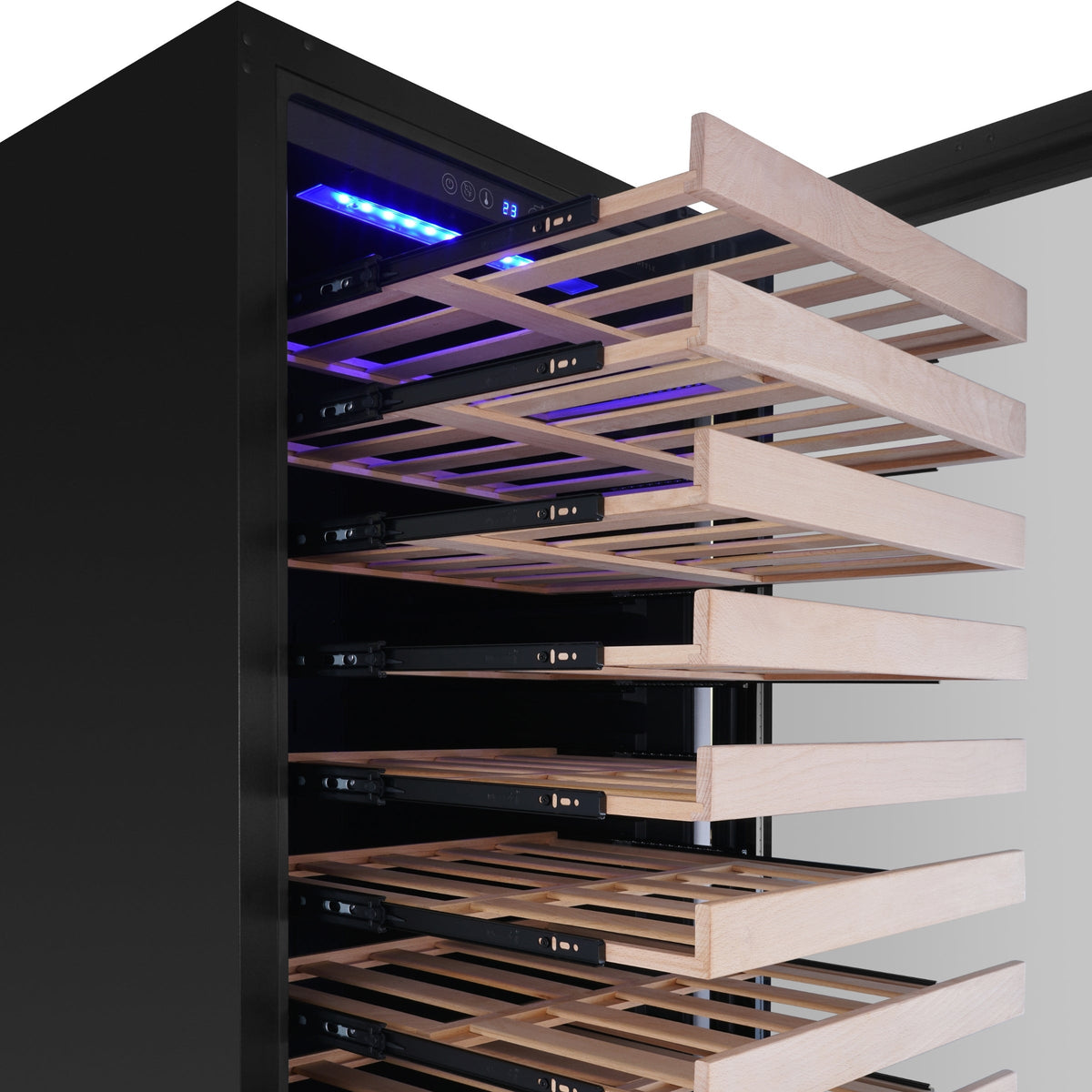

Full-Extension Shelving
The full-extension pull-out shelves are designed to provide easier access to bottles positioned deeper inside the cabinet. The shelving configuration can be arranged to suit the collection and accommodate different bottle sizes.
Low-E Glass Door
The Low-E glass door is designed to reduce condensation while improving insulation. It also provides a clear view of the wine collection, making it easier to identify and access bottles without repeatedly opening the door.

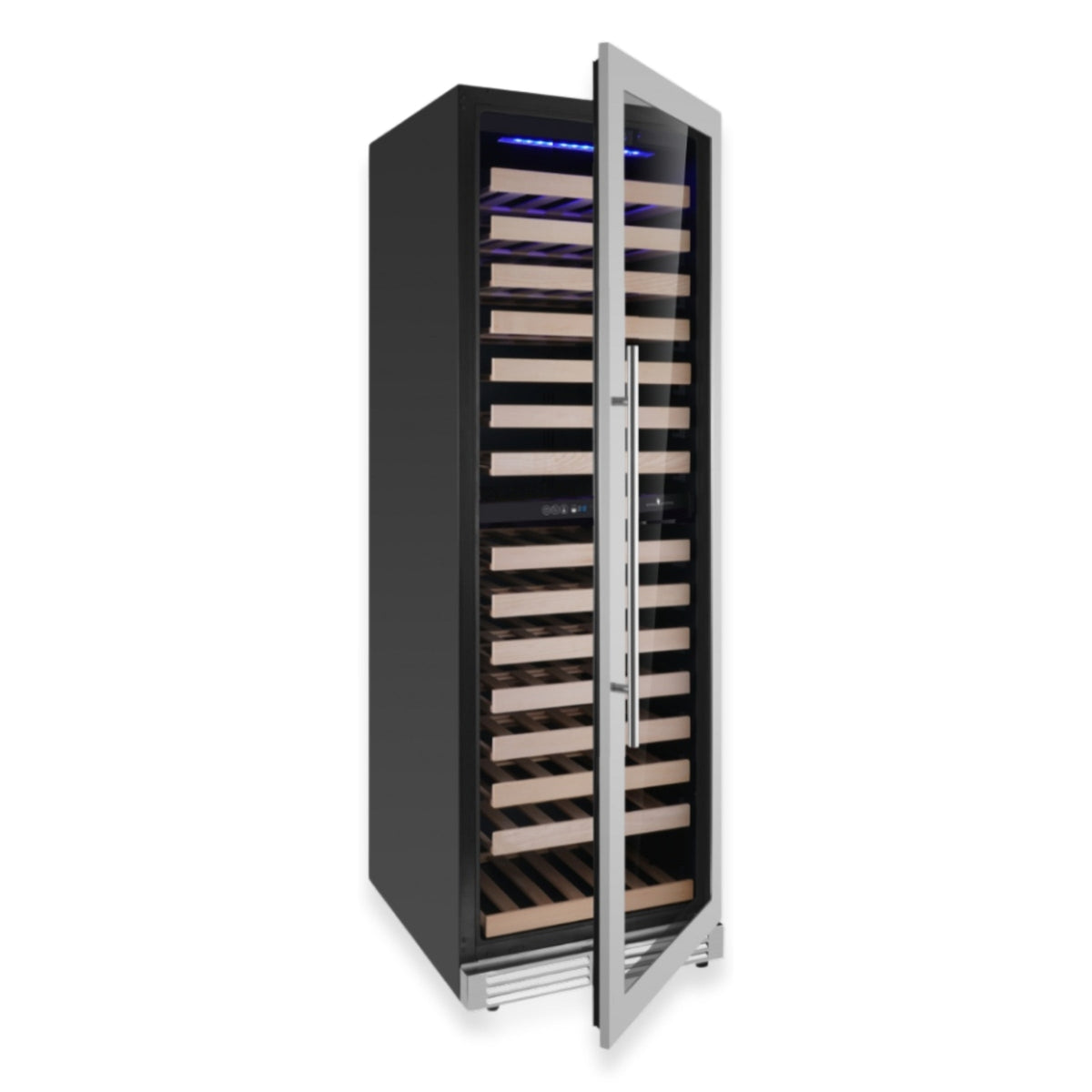

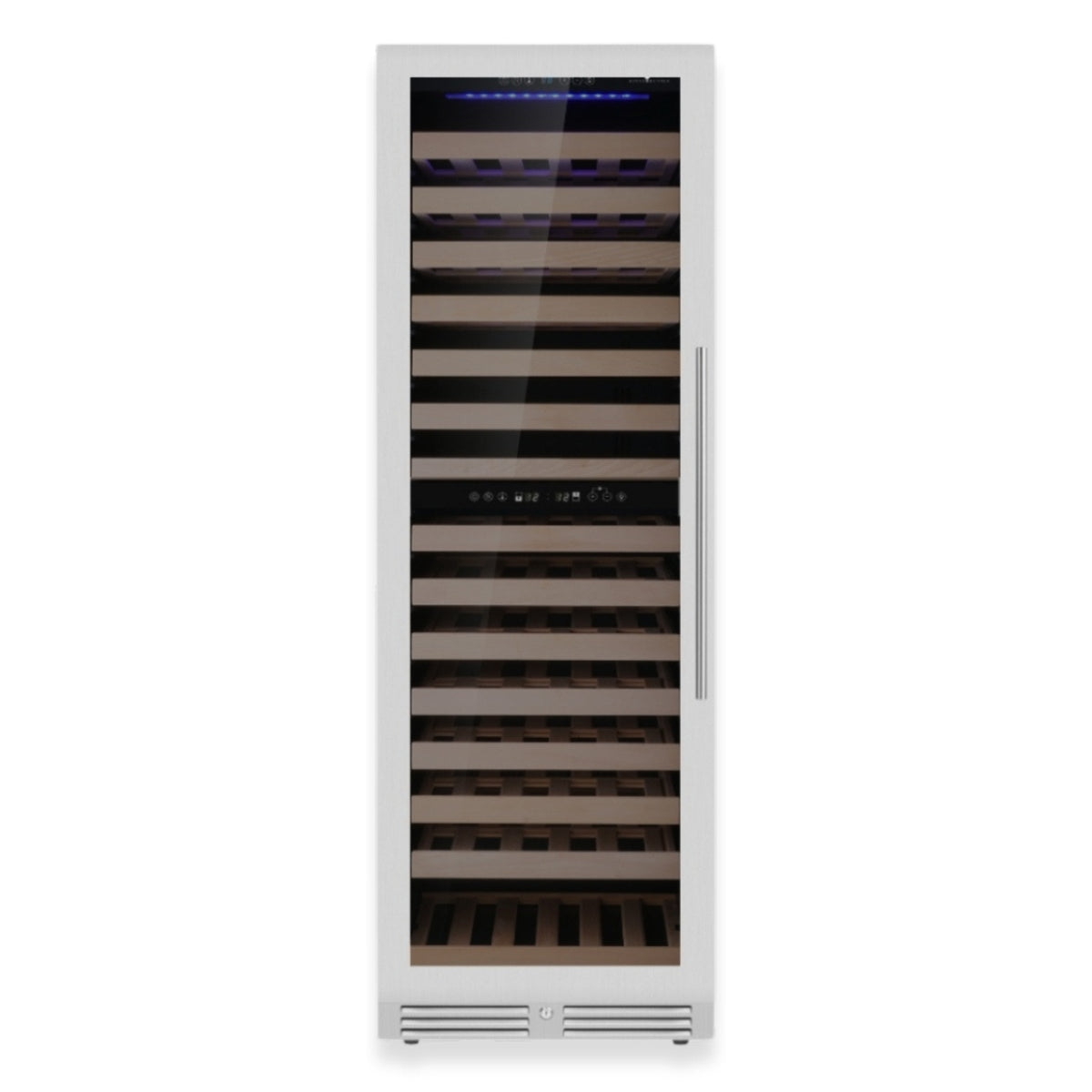

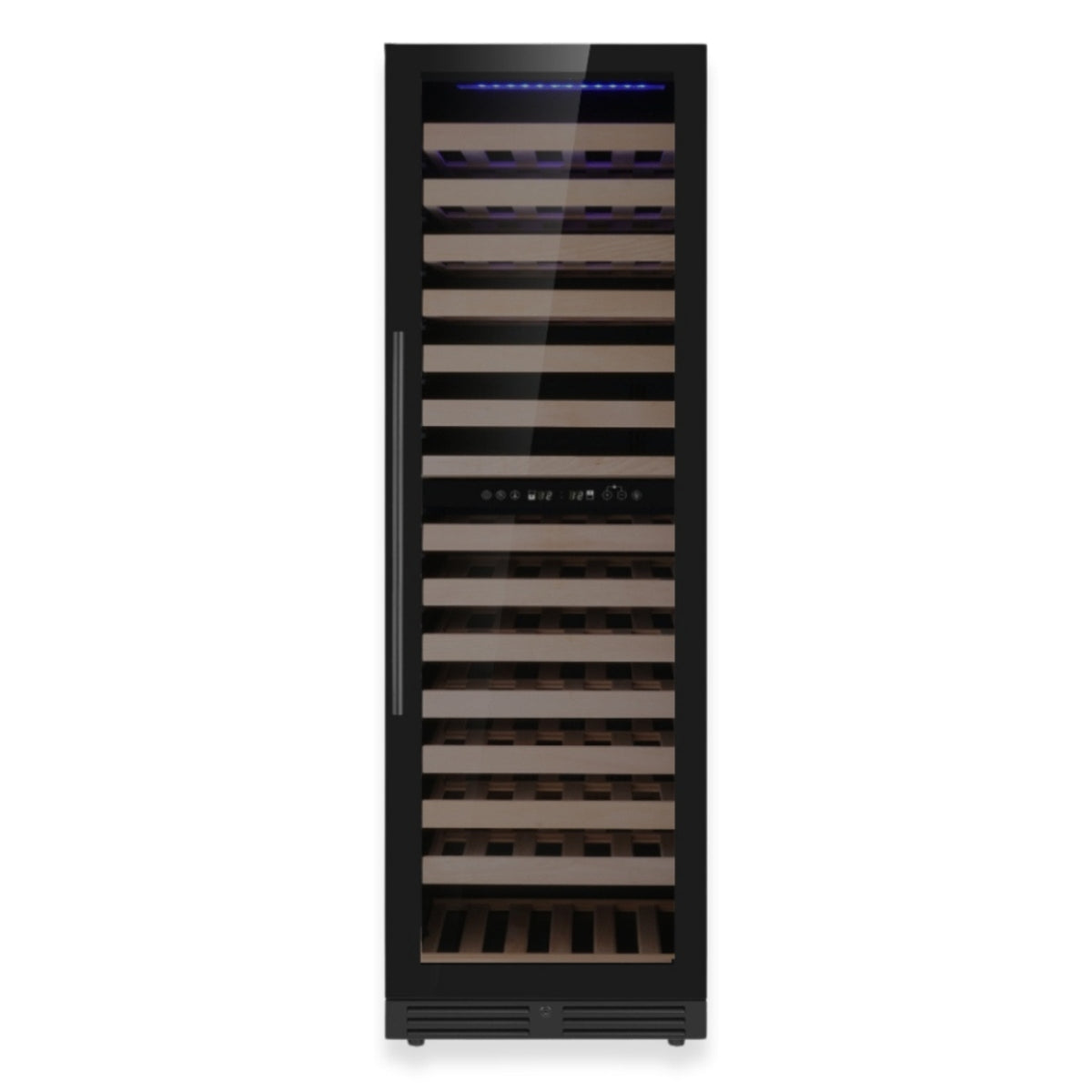

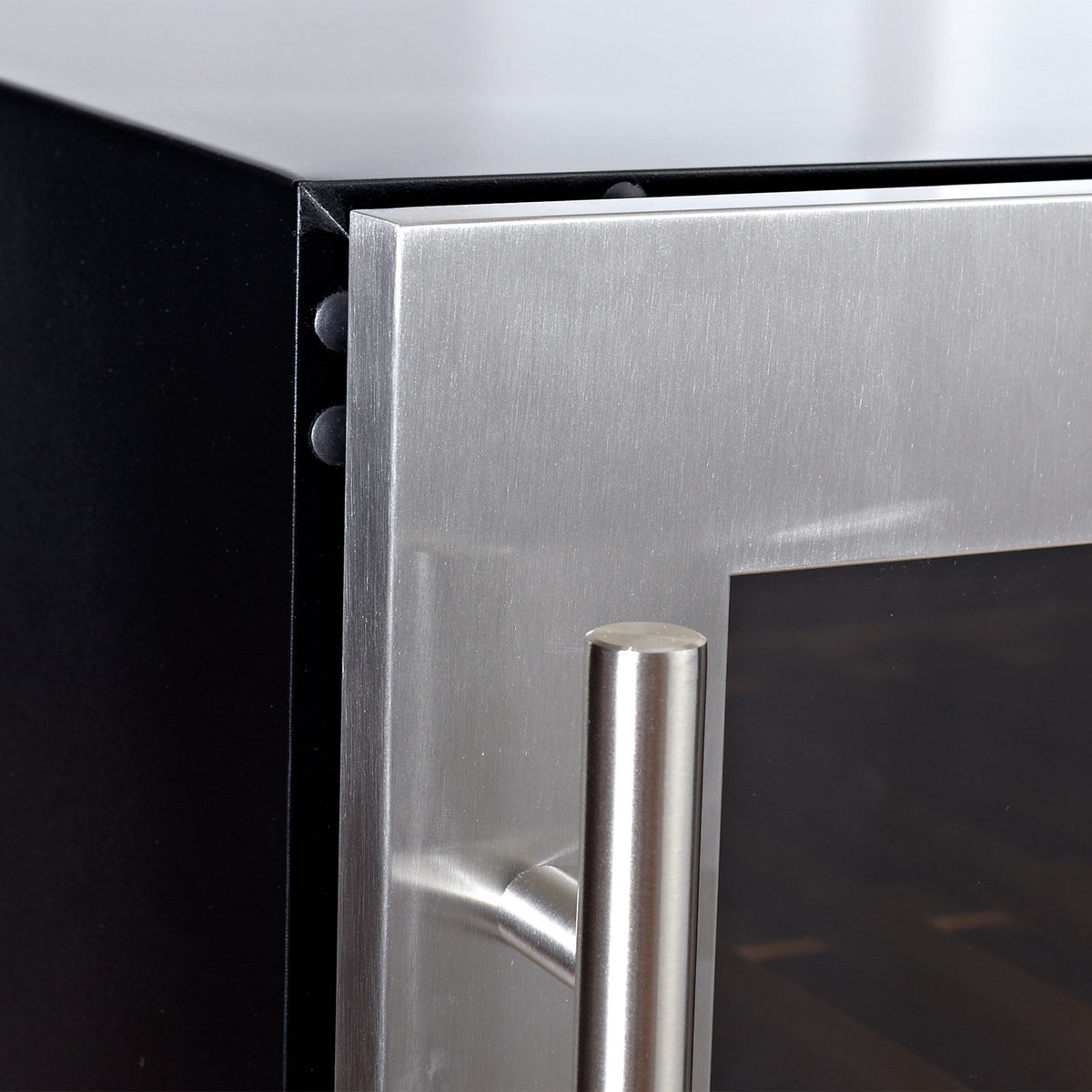

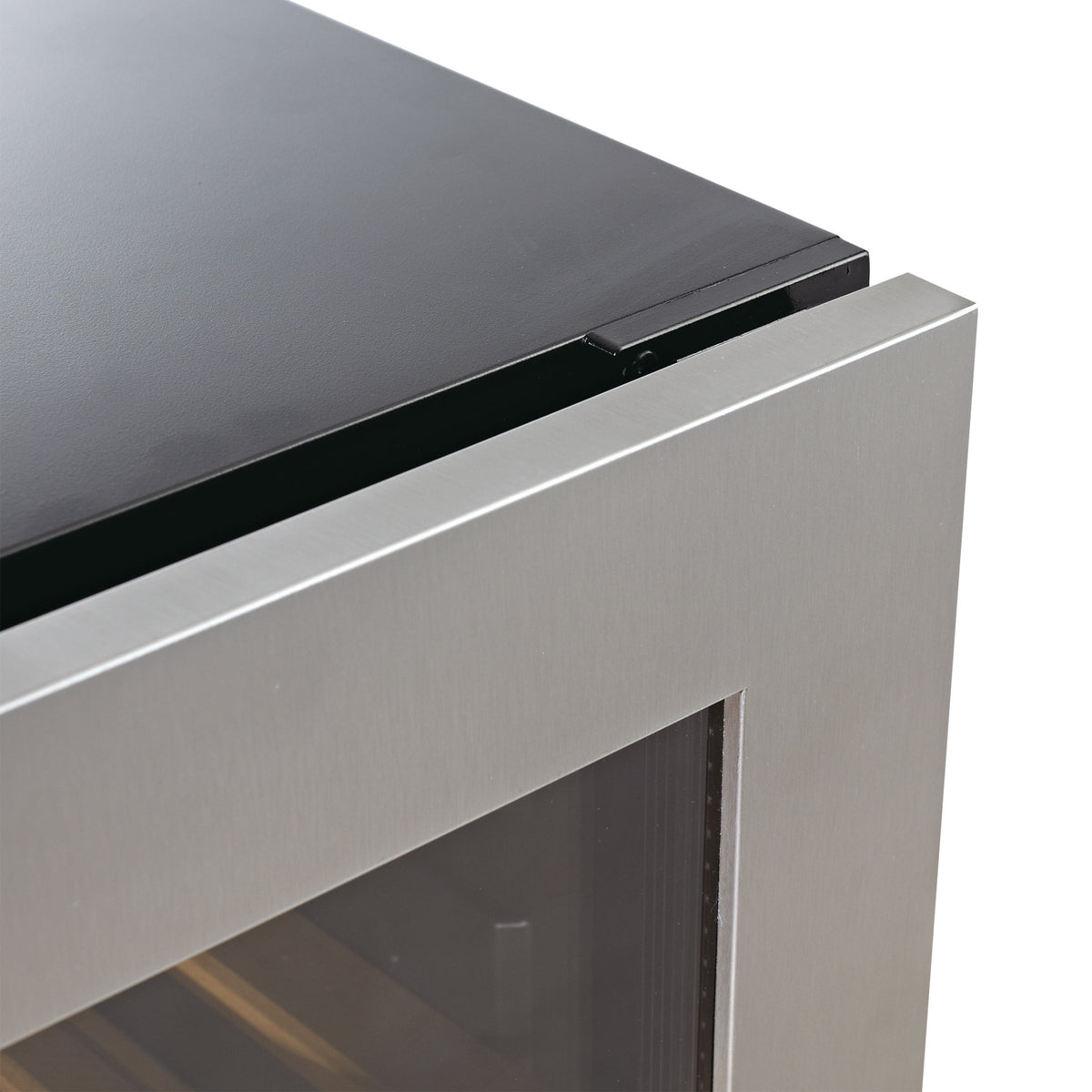

The current model is available with a borderless black glass door or glass door with stainless steel trim, depending on the selected configuration.
Built-In or Freestanding Installation
The front-venting design allows the wine cooler to be integrated into suitable cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding appliance.

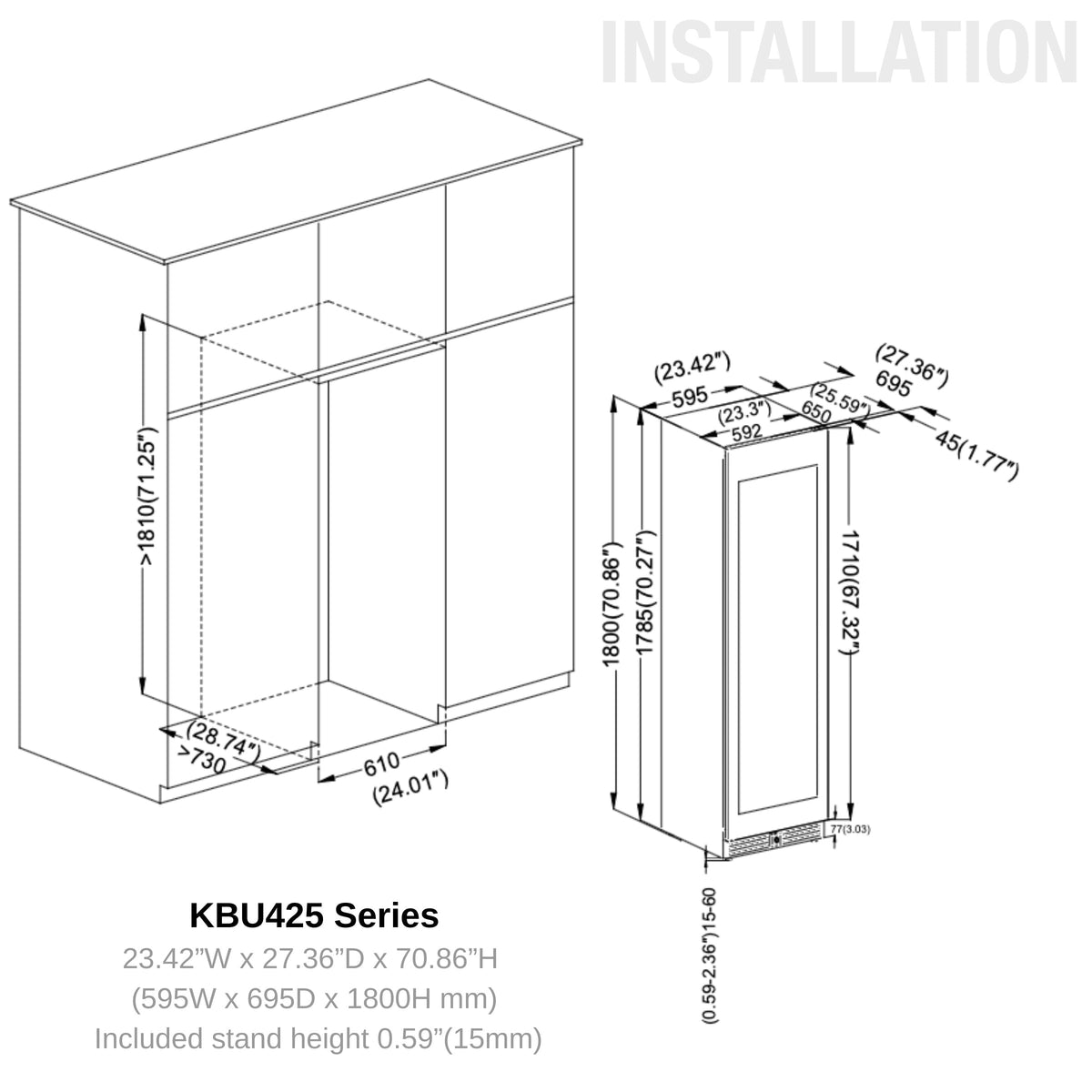

For built-in installation, follow the manufacturer's specified cutout dimensions and allow adequate space for door movement, shelf extension, installation, and servicing.
When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.
Cooling Specifications
- Temperature Zones: Dual zone
- Upper Zone: 35°F to 54°F (2°C to 12°C)
- Lower Zone: 54°F to 68°F (12°C to 20°C)
- Compressor: Embraco inverter compressor
- Cooling System: Compressor cooling with forced-air convection
- Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
- Defrost: Automatic
Storage Capacity
- Total Volume: 15.00 cu. ft. / 425 L
- Wine Capacity: Up to 159 bottles
- Maximum Large Bottle Diameter: 3.39 inches / 86 mm
- Shelving: Full-extension pull-out shelves
Construction & Features
- Door Type: Low-E glass
- Door Options: Borderless black glass or glass with stainless steel trim
- Door Hinge: Right-hand hinge on the listed RHH configuration
- Ventilation: Front venting
- Installation: Built-in or freestanding
- Noise Level: 42 dB
- Weight: 103 lb
Electrical Specifications
- Electrical Requirement: 110–115V / 60Hz
- Energy Consumption: 230 kWh/year

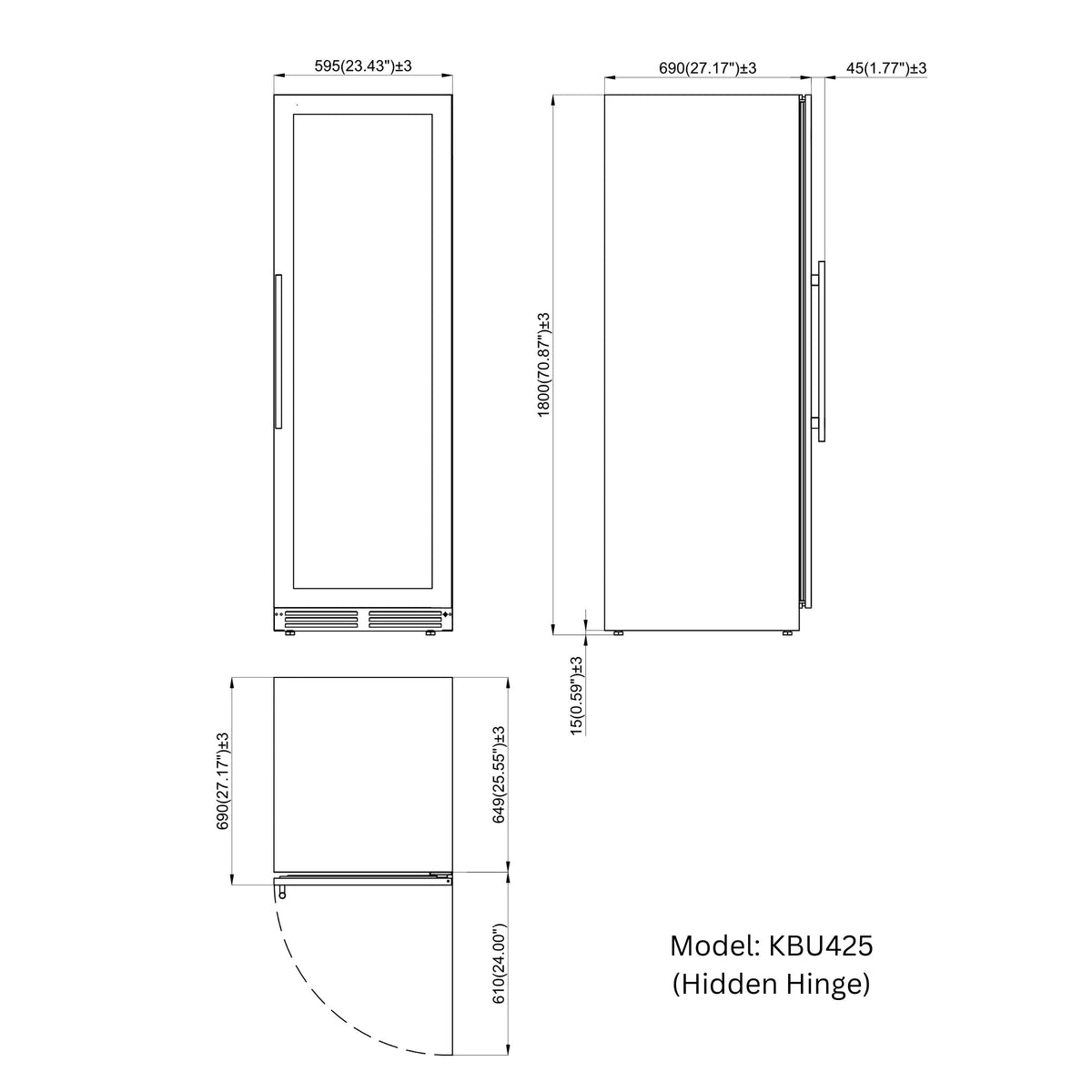

Dimensions
- Width: 23.43 inches
- Depth: 27.36 inches
- Height: 70.87 inches
- Metric Dimensions: 595 W × 695 D × 1800 H mm
Installation Notes
Install the wine cooler on a level surface and position it according to the manufacturer's specified dimensions. The front-venting configuration supports built-in installation, while additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access.
Make sure the installation location provides adequate room for the door to open fully and for the full-extension shelves to pull out without obstruction.
Care & Maintenance
Clean the interior and exterior surfaces regularly using suitable non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's maintenance instructions.
For consistent operation, avoid unnecessarily frequent or prolonged door openings and operate the appliance within the manufacturer's specified ambient temperature range.
Warranty
The KingsBottle KBU425DX-FG RHH includes a 2-year warranty. Optional 3-year and 5-year warranty extensions are available.
What's Included
- KingsBottle KBU425DX-FG RHH 72-Inch Upright Dual-Zone Wine Cooler
- Full-extension wine storage shelving
- Low-E glass door
- Dual-zone temperature control system
- Automatic defrost system
Product Specifications at a Glance
| Model | KBU425DX-FG RHH |
| Product Type | Upright Dual-Zone Wine Cooler |
| Configuration | Full-Height, Dual Zone |
| Total Capacity | 15.00 cu. ft. / 425 L |
| Bottle Capacity | 159 bottles |
| Upper Zone | 35°F to 54°F (2°C to 12°C) |
| Lower Zone | 54°F to 68°F (12°C to 20°C) |
| Compressor | Embraco Inverter |
| Door | Low-E Glass |
| Installation | Built-In or Freestanding |
| Ventilation | Front Venting |
| Dimensions | 23.43" W × 27.36" D × 70.87" H |
| Weight | 103 lb |
| Noise Level | 42 dB |
| Electrical | 110–115V / 60Hz |
| Energy Consumption | 230 kWh/year |
| Defrost | Automatic |
| Warranty | 2 Years |
