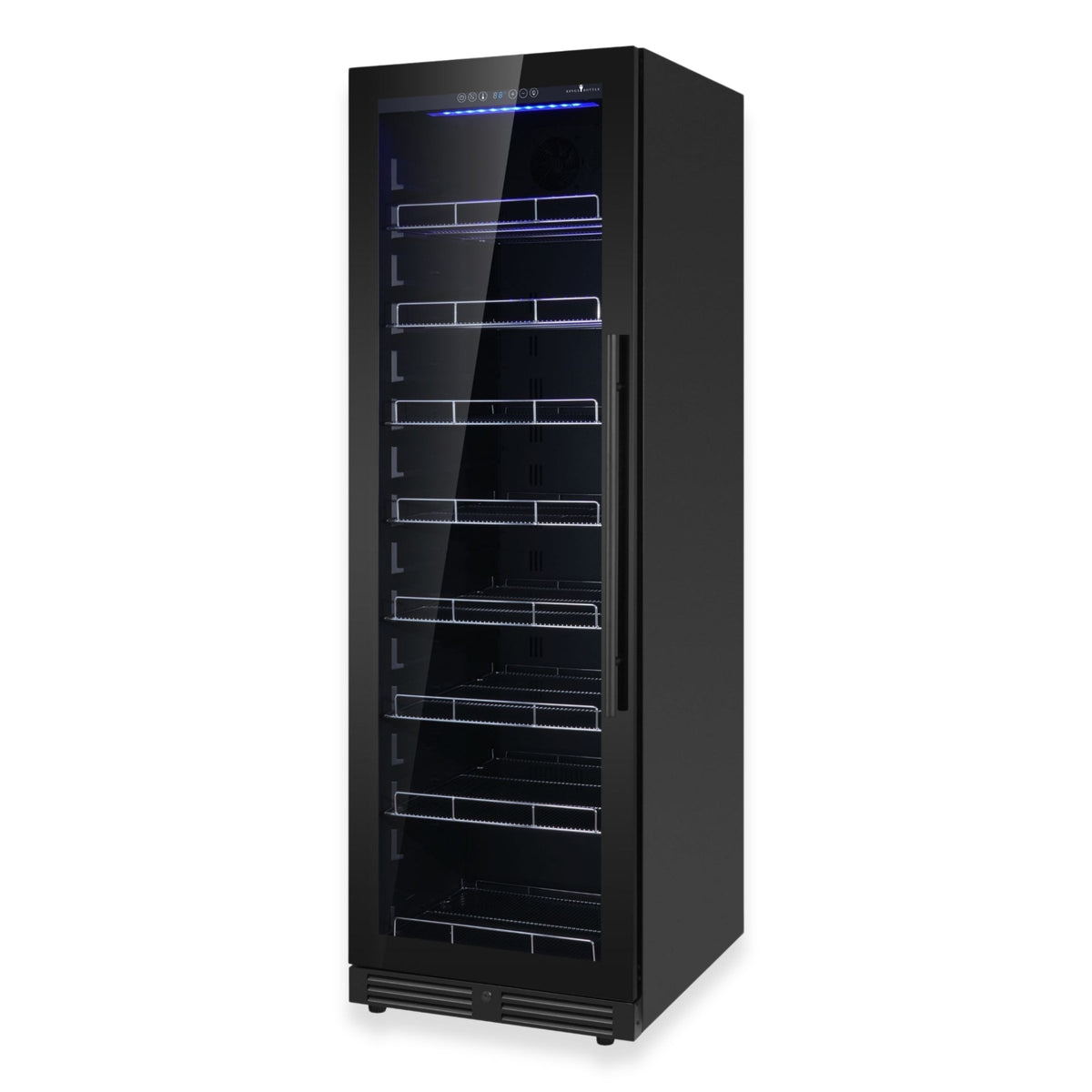

The KingsBottle 72-Inch Upright Beverage Refrigerator provides high-capacity refrigerated storage for cans and bottles in a full-height cabinet. With 15.00 cu. ft. of interior volume, storage for up to 630 cans, Low-E glass, adjustable shelving, and front ventilation, it is designed for residential and light commercial beverage storage in kitchens, entertainment areas, offices, bars, and dedicated beverage stations.
Key Features
- Large 15.00 Cu. Ft. Capacity: Provides 425 liters of refrigerated beverage storage in a full-height upright design.
- 630-Can Capacity: Provides substantial storage for canned beverages in a single refrigerator.
- Single-Zone Cooling: Adjustable temperature range from 35°F to 54°F (2°C to 20°C).
- Embraco Inverter Compressor: Uses inverter compressor technology with compressor cooling and forced-air convection.
- Low-E Glass Door: Helps reduce condensation while improving insulation and keeping stored beverages visible.
- Eight Adjustable Shelves: Chromed metal shelves can be configured to accommodate different can and bottle sizes.
- Blue & White LED Lighting: Provides interior illumination for easier beverage selection.
- Automatic Defrost: Helps simplify routine maintenance.
- Lockable Door: Provides controlled access to the beverage storage area.
- Front Ventilation: Supports built-in installation without requiring rear clearance for normal operation.
- Built-In or Freestanding: Can be integrated into suitable cabinetry or used as a standalone refrigerator.
Large-Capacity Beverage Storage
With 15.00 cu. ft. of storage space and a manufacturer-rated capacity of up to 630 cans, the KBU425BX-SS is designed for beverage collections that require more storage than a typical under-counter refrigerator.
The eight adjustable chromed metal shelves provide flexibility for organizing different beverage formats. Actual capacity will vary depending on the size and arrangement of cans and bottles.
Single-Zone Temperature Control
The refrigerator operates within an adjustable temperature range of 35°F to 54°F (2°C to 20°C). The single-zone configuration provides one temperature setting for the entire refrigerated cabinet.
Actual internal temperature can vary depending on ambient conditions, loading, door-opening frequency, and installation conditions.
Low-E Glass Door
The Low-E glass door is designed to reduce condensation while improving insulation. The glass construction also provides visibility into the beverage collection, making it easier to identify and access stored drinks.

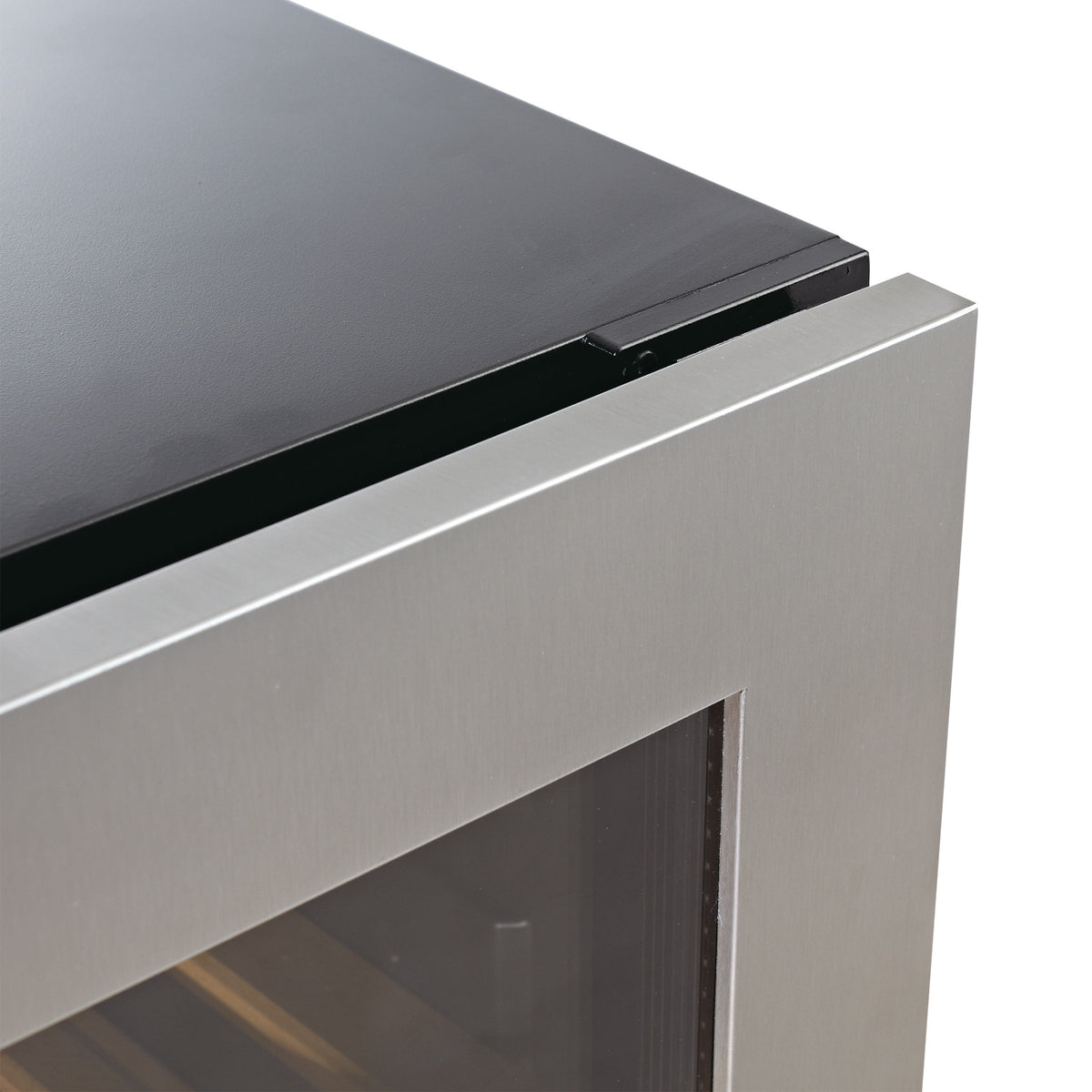

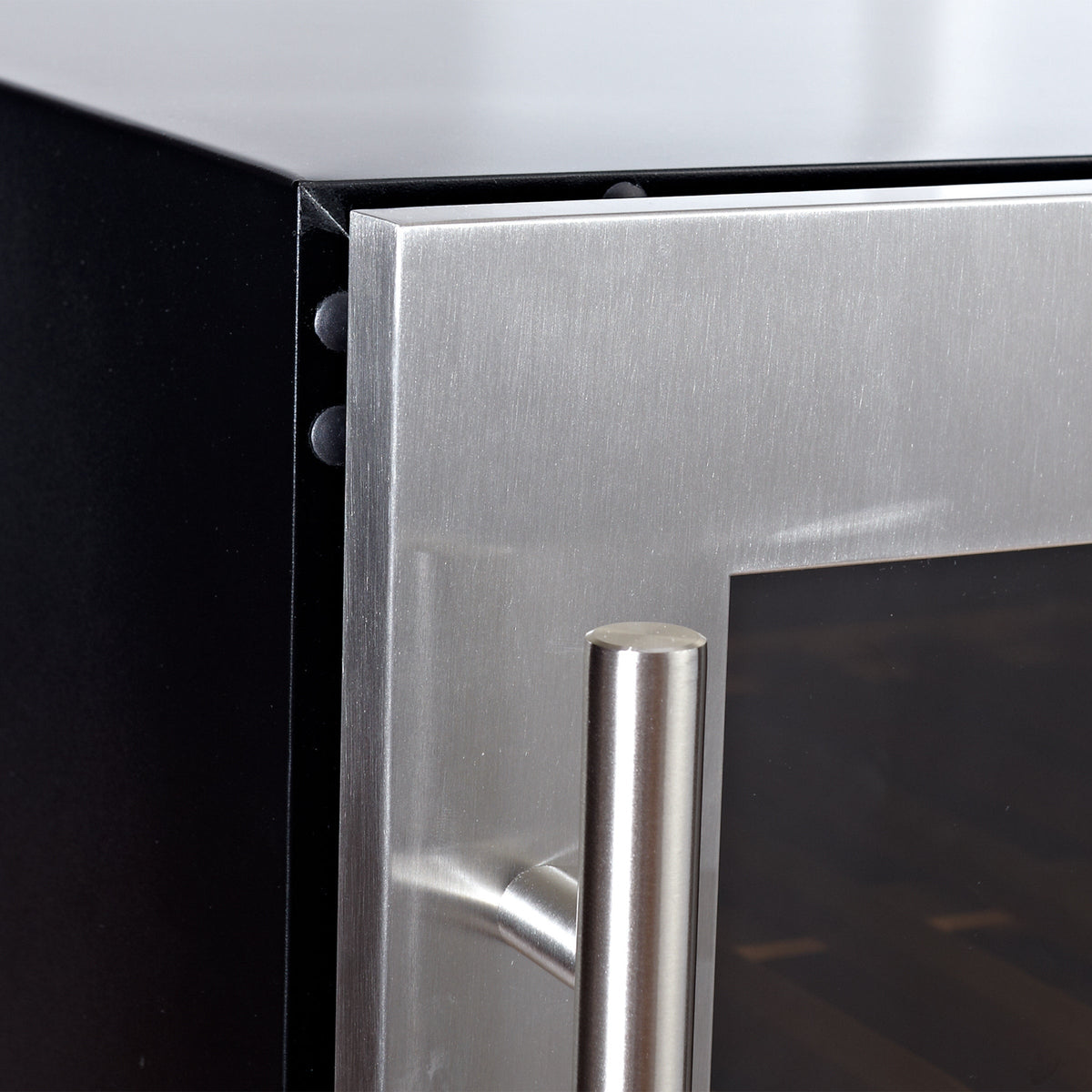

The listed configuration features a glass door with stainless steel trim. A borderless black glass door option is also available depending on the selected configuration.
Adjustable Interior Storage

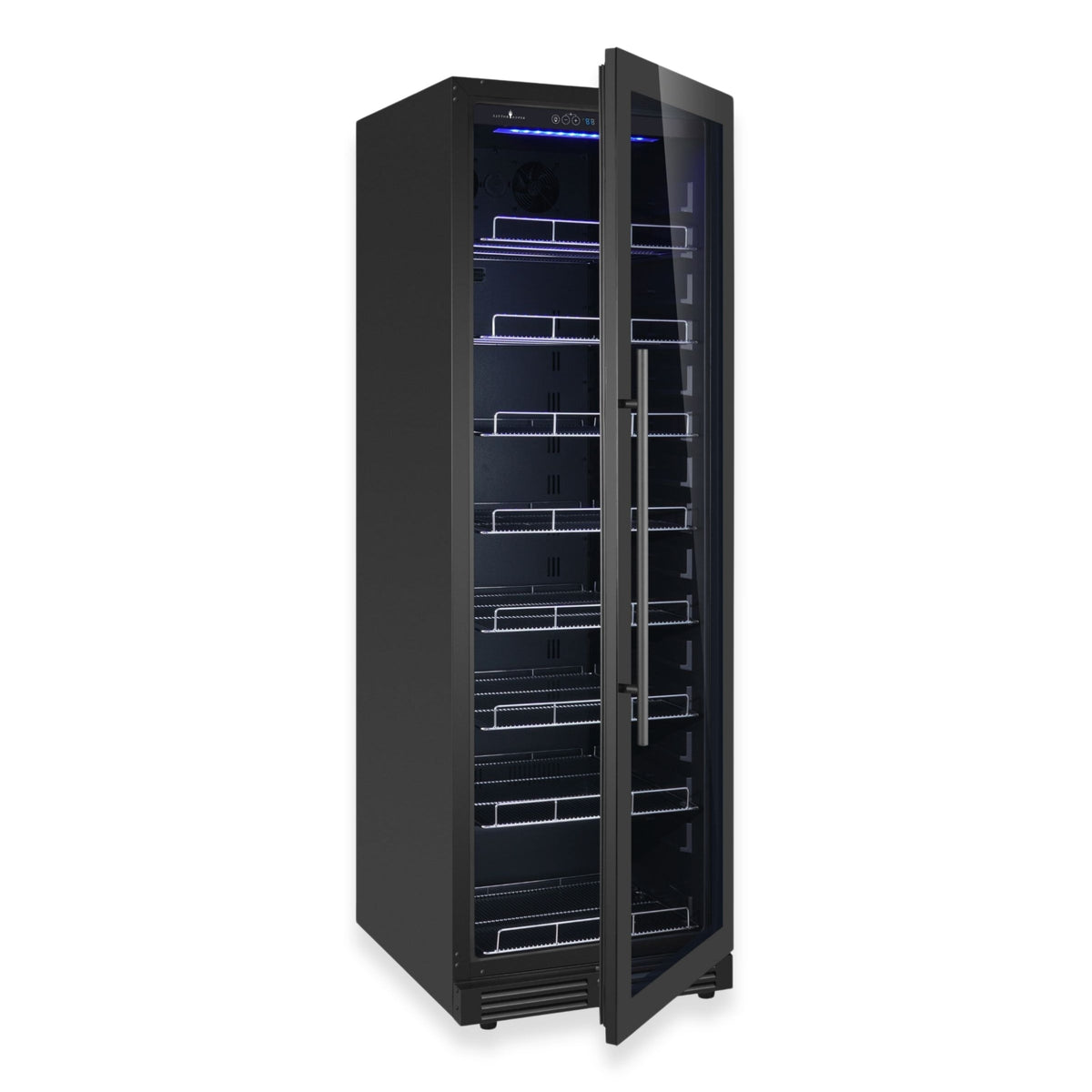

The refrigerator includes eight adjustable chromed metal shelves. The flexible shelf arrangement allows the interior to be configured around different beverage sizes and storage requirements.
Built-In or Freestanding Installation
The front-venting design allows the beverage refrigerator to be installed within suitable cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding appliance.

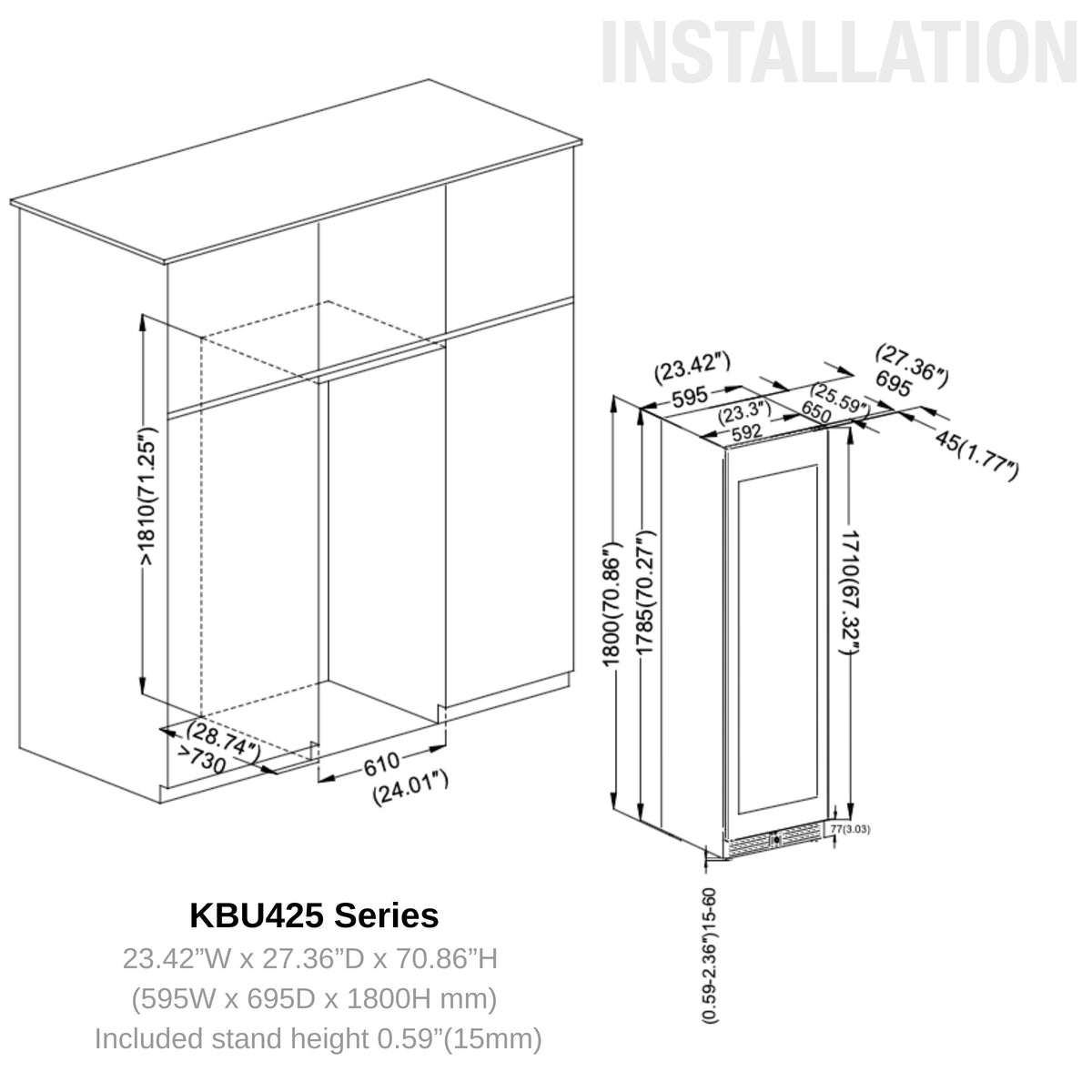

For built-in installations, follow the manufacturer's specified cutout dimensions. KingsBottle recommends additional space around the unit to facilitate installation, door operation, ventilation efficiency, and maintenance access.
When installed between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.
Cooling Specifications
- Temperature Zones: Single zone
- Temperature Range: 35°F to 54°F (2°C to 20°C)
- Compressor: Embraco inverter compressor
- Cooling System: Compressor cooling with forced-air convection
- Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
- Defrost: Automatic
Storage Capacity
- Total Volume: 15.00 cu. ft. / 425 L
- Can Capacity: Up to 630 cans
- Shelving: 8 adjustable chromed metal shelves
- Storage Type: Beverage-focused refrigerated storage
Construction & Features
- Door Type: Low-E glass

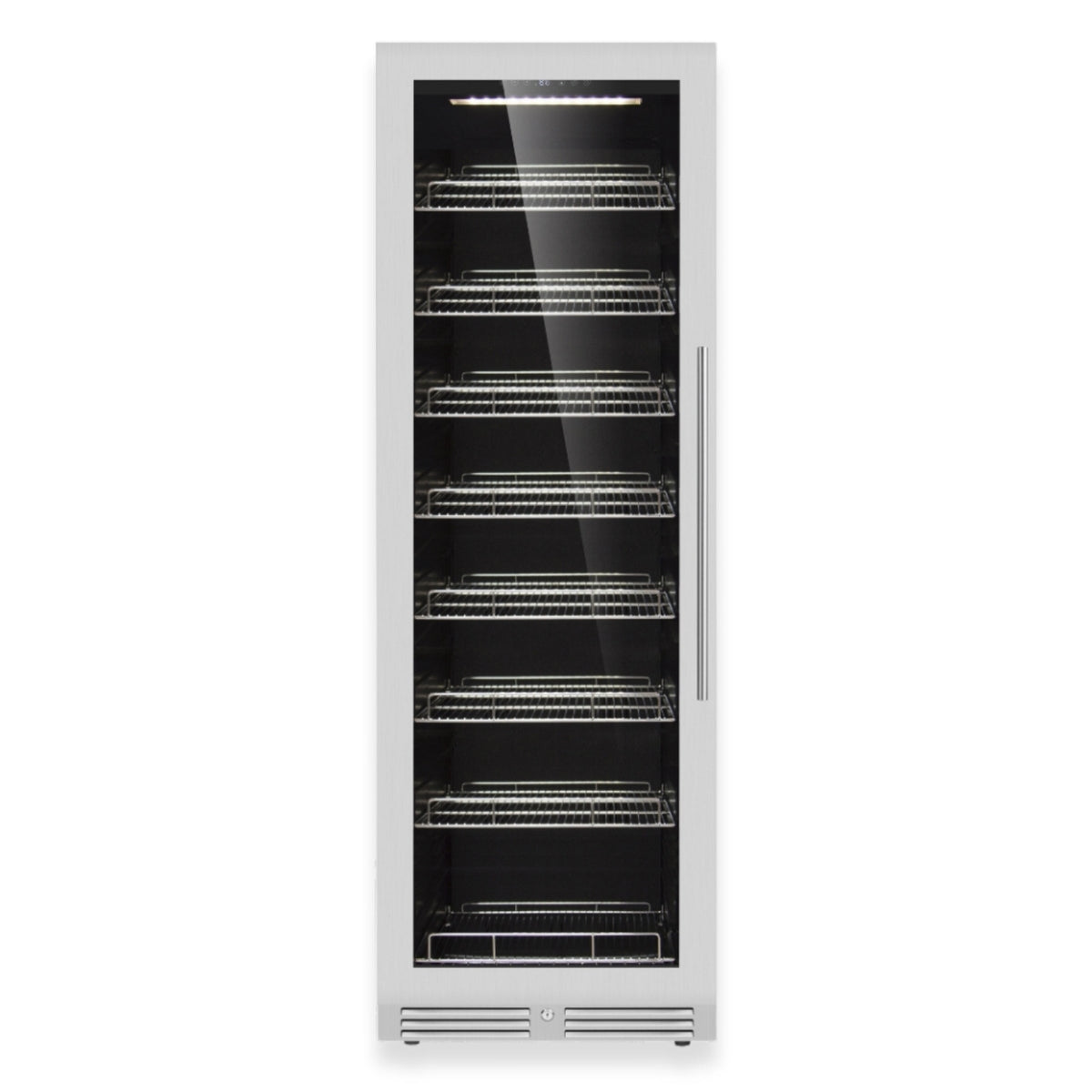

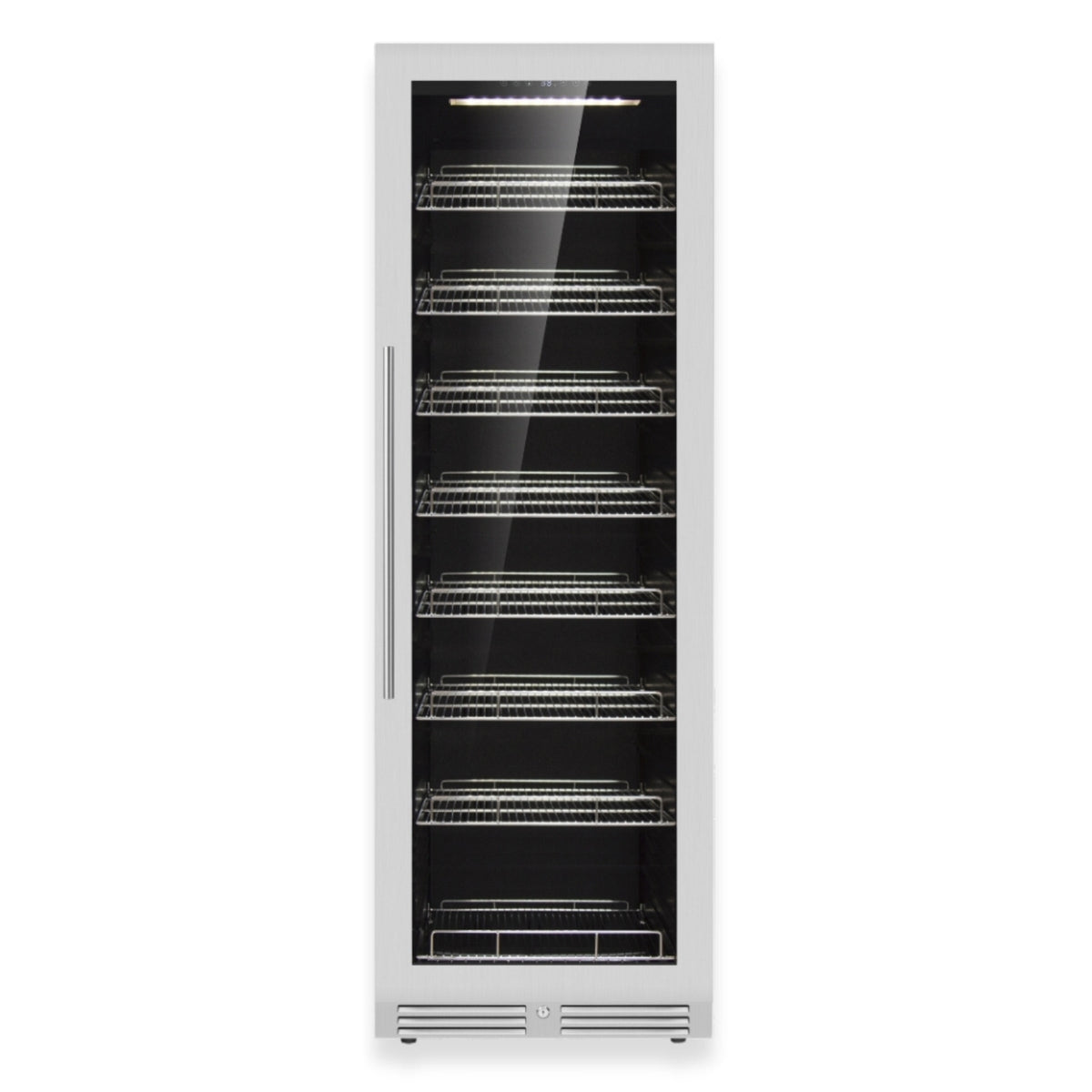

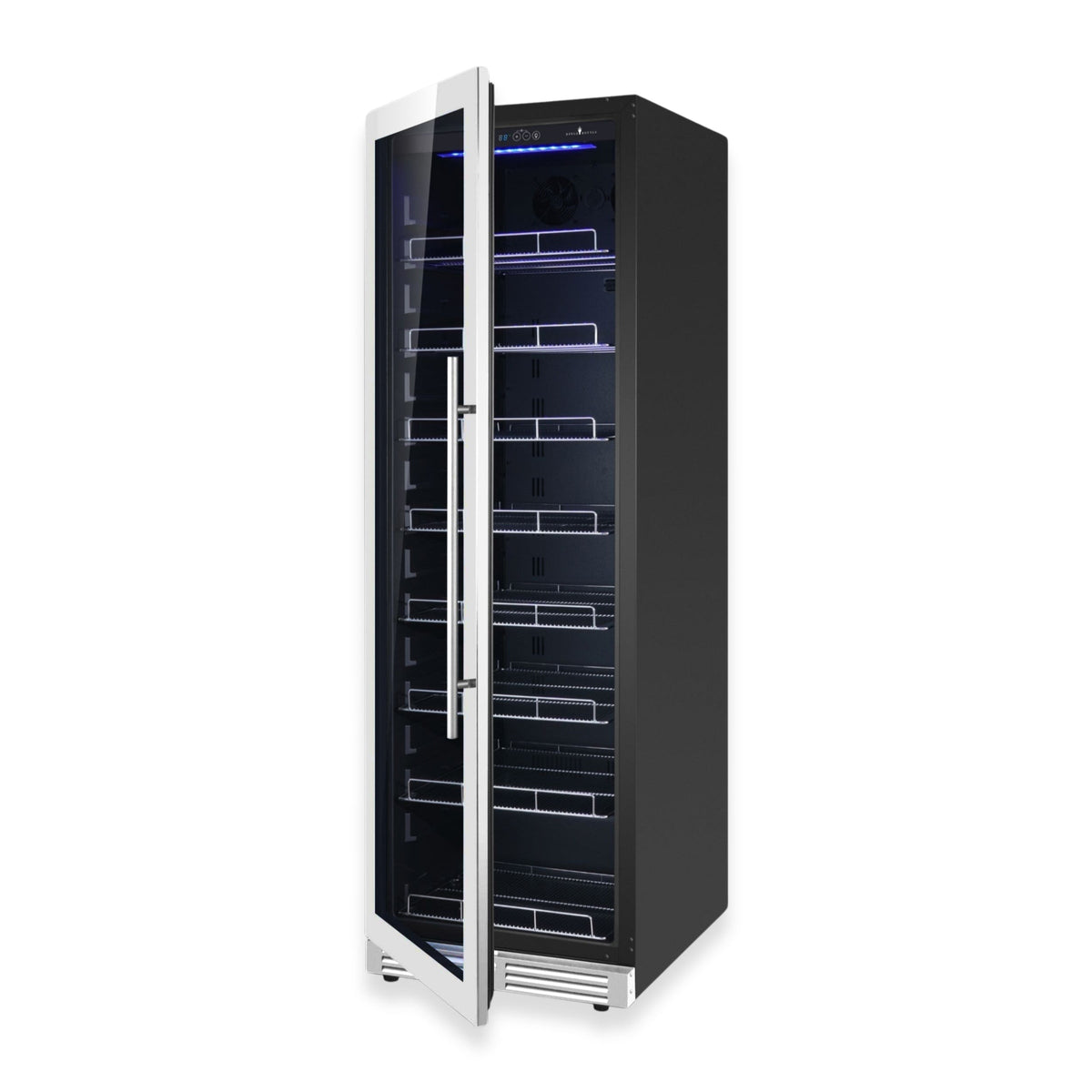

- Standard Door Finish: Glass with stainless steel trim

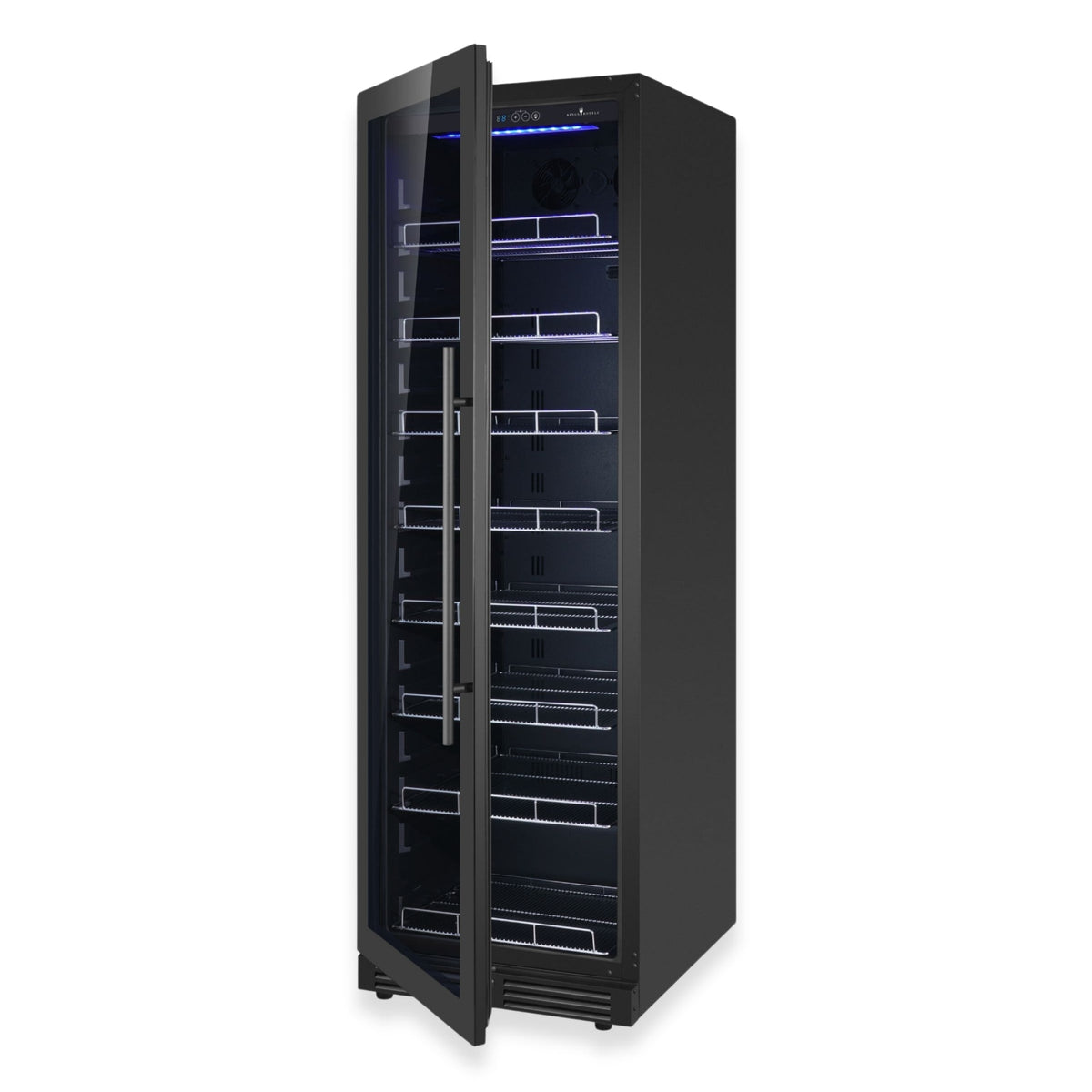

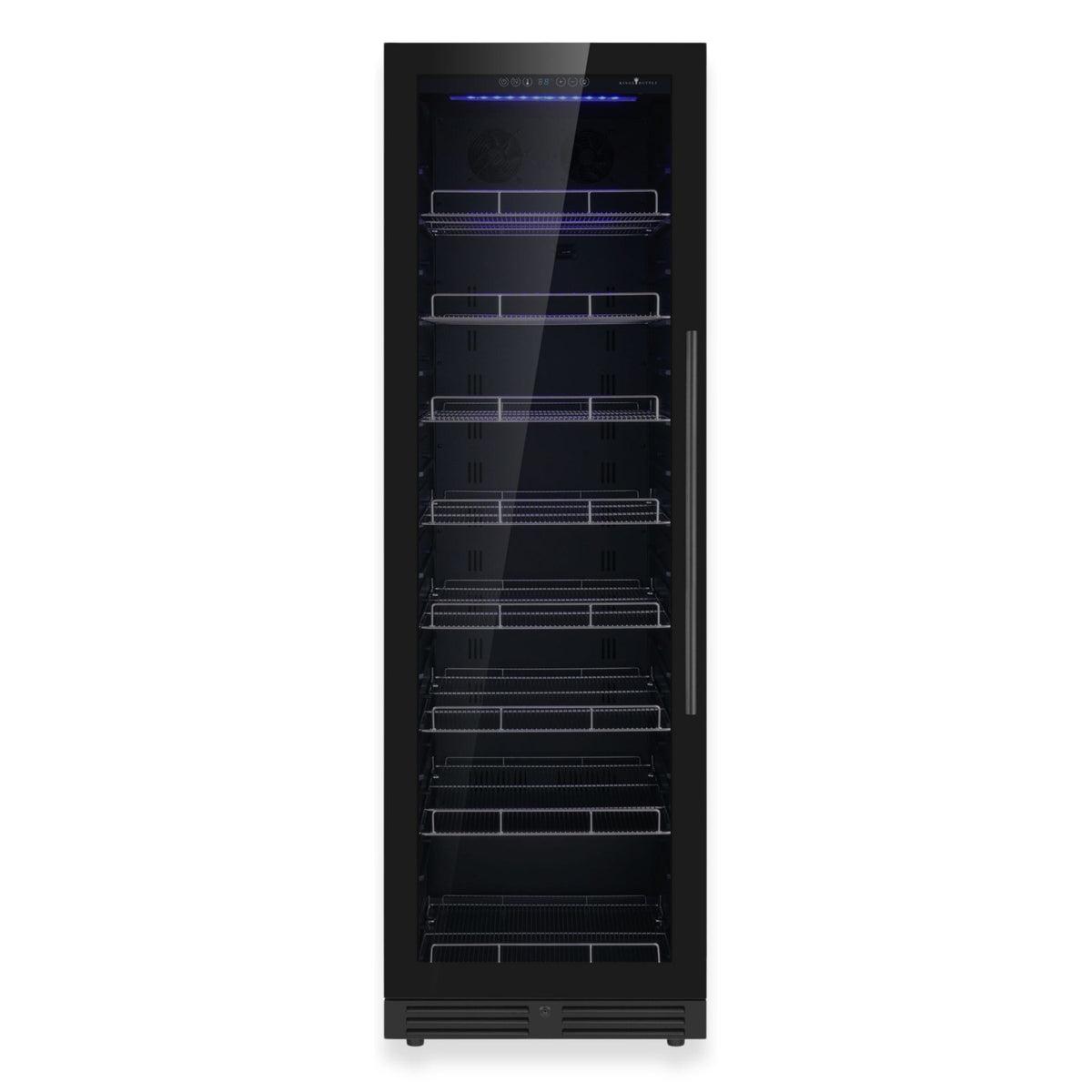

- Alternative Door: Borderless black glass, depending on selected configuration

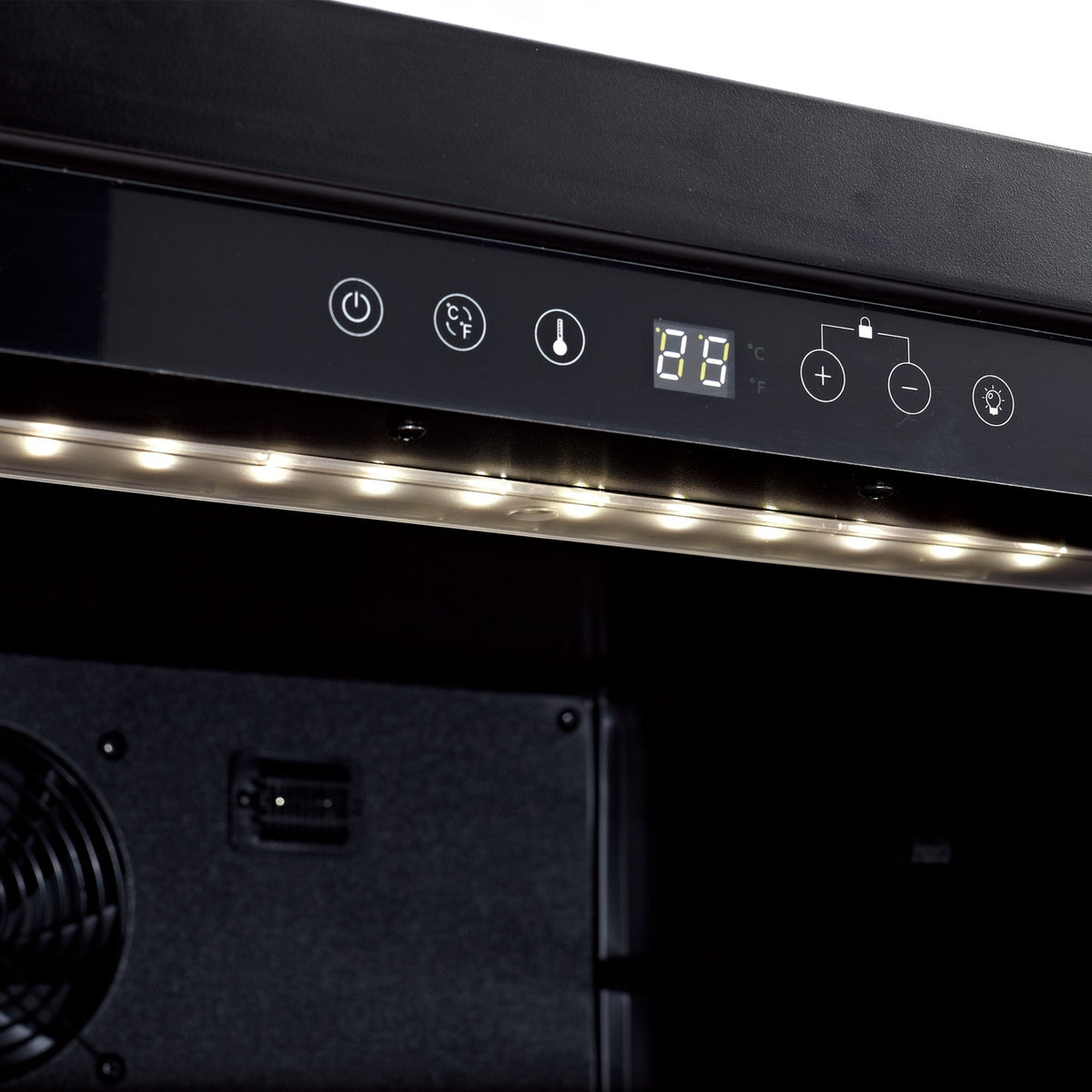

- Interior Lighting: Blue and white LED
- Door Lock: Yes
- Ventilation: Front venting
- Installation: Built-in or freestanding
- Noise Level: 42 dB
- Weight: 103 lb
- Energy Certification: ETL/DOE
Electrical Specifications

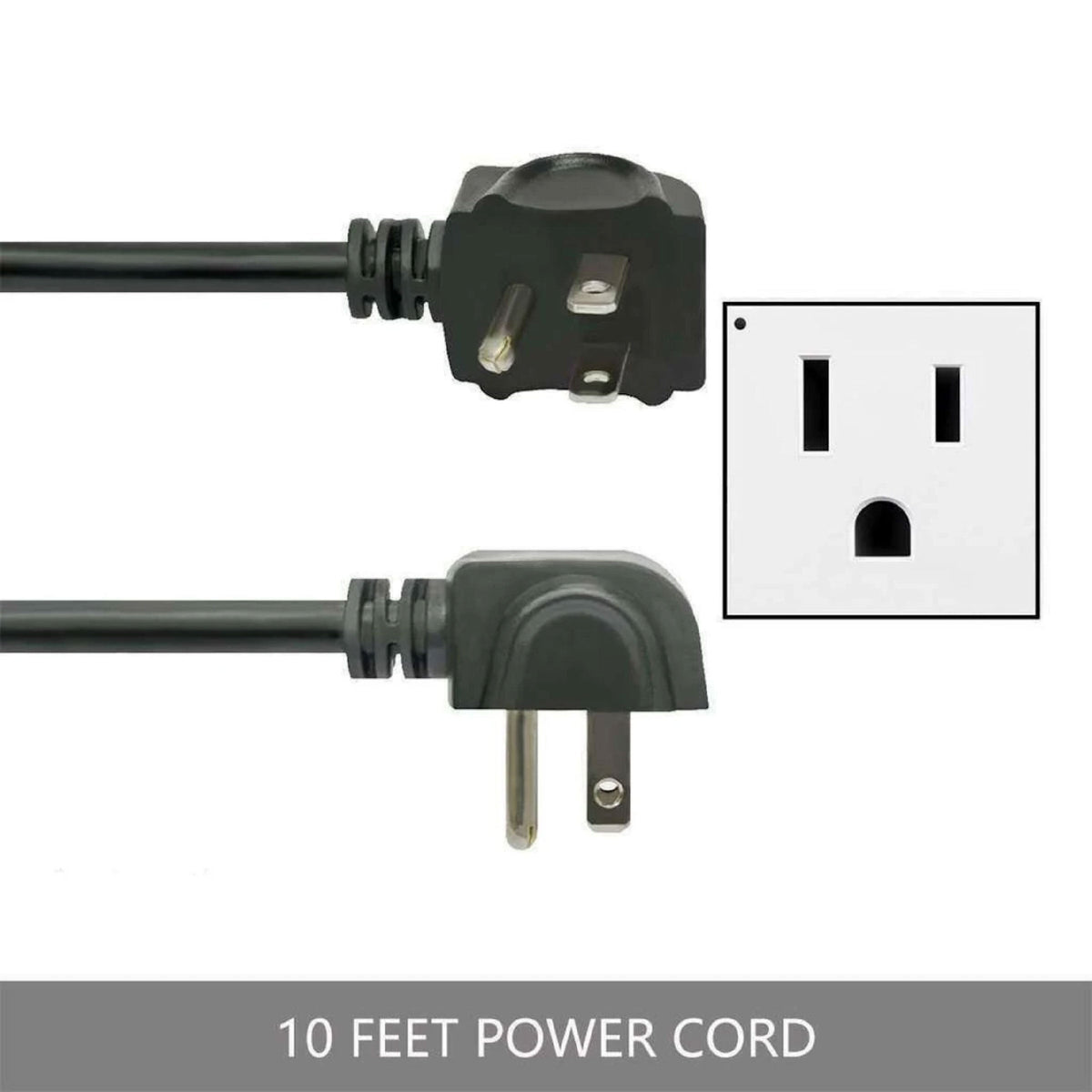

- Electrical Requirement: 110–115V / 60Hz
- Energy Consumption: 200 kWh/year

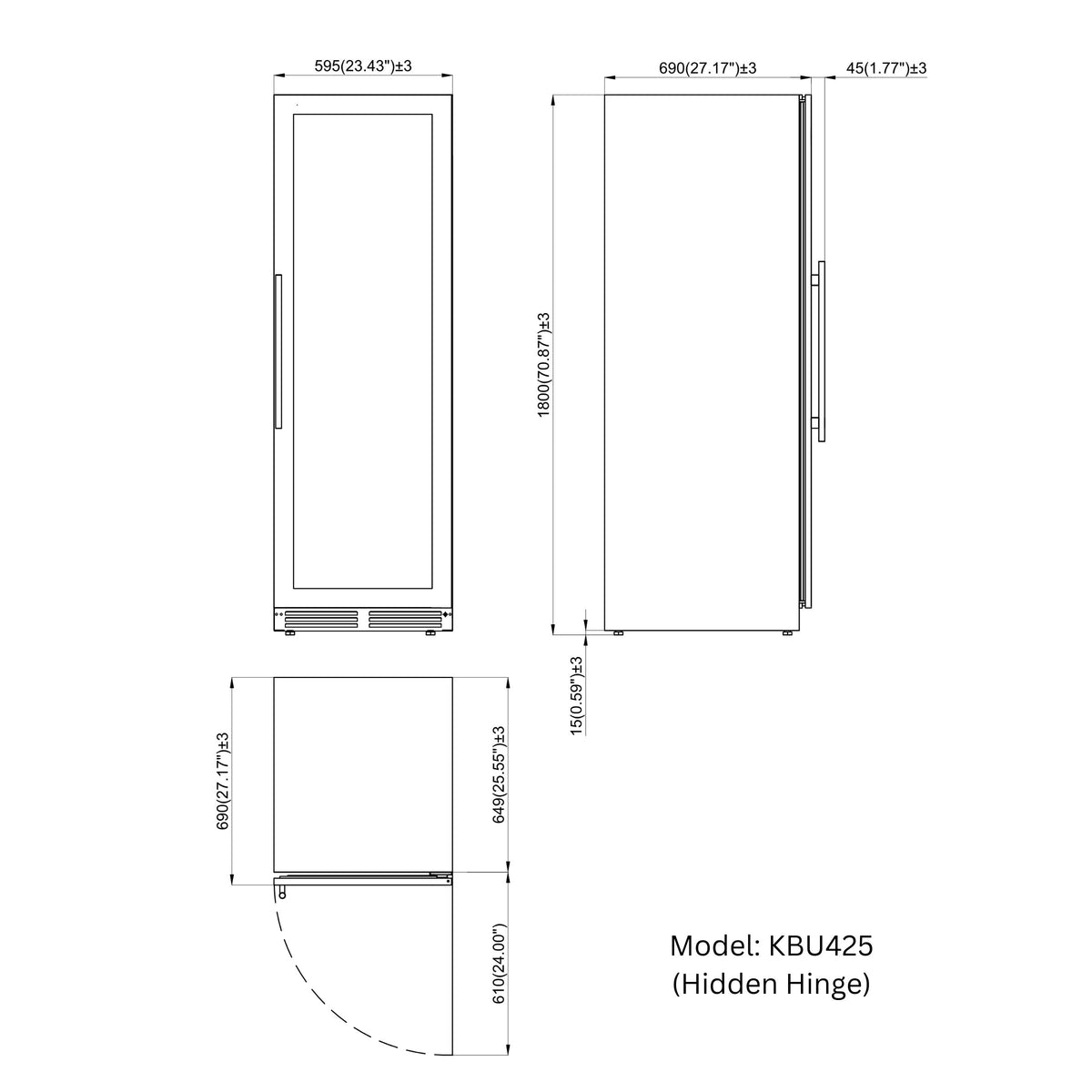

Dimensions
- Width: 23.43 inches
- Depth: 27.36 inches
- Height: 70.87 inches
- Metric Dimensions: 595 W × 695 D × 1800 H mm
Installation Notes
Install the beverage refrigerator on a level surface and position it according to the manufacturer's specified installation dimensions. The front-venting configuration supports built-in installation without rear operating clearance.
Ensure that the installation location provides adequate room for the door to open fully and for the adjustable shelves to be accessed. Additional installation and maintenance space is recommended even though rear clearance is not required for normal operation.
Care & Maintenance
Keep the interior and exterior surfaces clean using appropriate non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's cleaning and maintenance instructions.
For consistent operation, avoid unnecessarily frequent or prolonged door openings and operate the refrigerator within the specified ambient temperature range.
Warranty
The KingsBottle KBU425BX-SS includes a 2-year warranty. Optional 3-year and 5-year warranty extensions are available.
What's Included
- KingsBottle KBU425BX-SS 72-Inch Upright Beverage Refrigerator
- 8 adjustable chromed metal shelves
- Low-E glass door
- Blue and white LED interior lighting
- Integrated temperature control system
- Automatic defrost system
Product Specifications at a Glance
| Model | KBU425BX-SS LHH |
| Product Type | Upright Beverage Refrigerator |
| Configuration | Full-Height, Single Zone |
| Total Capacity | 15.00 cu. ft. / 425 L |
| Can Capacity | Up to 630 cans |
| Temperature Range | 35°F to 54°F (2°C to 20°C) |
| Temperature Zones | 1 |
| Compressor | Embraco Inverter |
| Door | Low-E Glass |
| Shelving | 8 Adjustable Chromed Metal Shelves |
| Installation | Built-In or Freestanding |
| Ventilation | Front Venting |
| Dimensions | 23.43" W × 27.36" D × 70.87" H |
| Weight | 103 lb |
| Noise Level | 42 dB |
| Electrical | 110–115V / 60Hz |
| Energy Consumption | 200 kWh/year |
| Defrost | Automatic |
| Warranty | 2 Years |
