Breezaire WKCE 1060 Wine Cabinet Cooling Unit

The Breezaire WKCE 1060 Wine Cabinet Cooling Unit is a compact, self-contained cooling system designed for enclosed wine cabinets and other properly constructed, constricted wine storage spaces. With 1,060 BTU of cooling capacity, a bottom cold-air discharge, and a Sentry III digital electronic thermostat, the WKCE 1060 is designed for applications where a compact through-the-wall cooling unit is required.

The WKCE 1060 is also designed as a replacement for older Breezaire WKC 1060 and OEM 1060 cabinet cooling units. Because cabinet configurations can vary by manufacturer, confirm the existing cabinet opening, airflow configuration, and electrical requirements before ordering a replacement.

Key Features

• Compact cabinet cooling: Designed for enclosed wine cabinets and other constricted wine storage spaces.
• 1,060 BTU cooling capacity: Provides cooling capacity for compact wine storage applications.
• Through-the-wall installation: Designed to mount through a suitable cabinet or wall opening.
• Bottom cold-air discharge: Directs cooled air from the bottom of the unit, supporting cabinet-style installations.
• Sentry III digital thermostat: Provides electronic temperature control with a green LED display.
• Selectable temperature control: Provides an adjustable operating range appropriate for wine storage applications.
• Power outage protection: The control system includes a delayed restart feature following power interruptions.
• Blocked-airflow protection: The system includes protection designed to shut the unit down under certain high-temperature conditions caused by restricted condenser airflow.
• Optional bottle probe: A bottle probe is available separately for compatible Breezaire systems.

Designed for Enclosed Wine Cabinets

Unlike Breezaire's WKL cellar units, the WKCE series is intended for cabinets and other constricted enclosures and is not assigned a standard cubic-foot cellar rating by Breezaire's general WKCE documentation.

The current Breezaire USA product listing describes the WKCE 1060 for enclosed wine storage spaces up to approximately 140 cubic feet. Actual suitability depends on cabinet construction, insulation, door seals, ambient temperature, airflow, and the way the unit is installed.

For replacement applications, verify the specific cabinet manufacturer's opening and configuration before purchasing, especially when replacing an older WKC or OEM unit.

Sentry III Digital Temperature Control

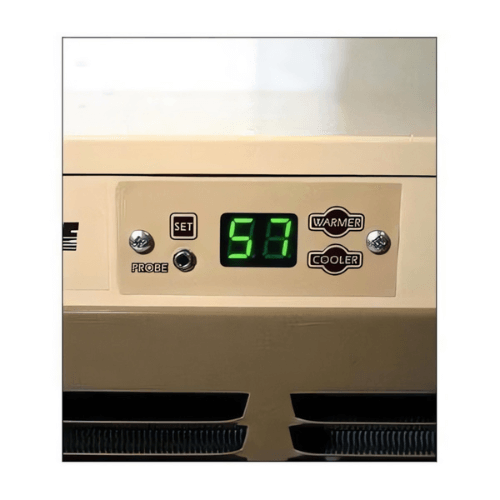

The WKCE 1060 uses Breezaire's Sentry III digital electronic thermostat. The control system provides a green LED display and allows the enclosure temperature to be monitored and adjusted through the electronic thermostat.

The control system also includes power-outage protection and blocked-airflow protection. An optional bottle probe can be used to monitor bottle temperature on compatible installations.

Bottom Cold-Air Discharge

The WKCE 1060 uses a bottom-discharge configuration for cold air. This design is intended for cabinet-style installations where the cooling unit is integrated into or mounted through an enclosed wine storage cabinet.

Proper airflow is important. The warm condenser side requires adequate fresh-air supply and exhaust space. Hot exhaust air should not be allowed to recirculate back toward the cooling system.

Installation Requirements

• Install in an appropriate enclosed wine cabinet or constricted wine storage enclosure.
• Provide adequate airflow to the condenser side of the unit.
• Keep the warm-air exhaust path clear.
• Prevent warm exhaust air from recirculating into the cooling system.
• Use a properly sealed and insulated wine enclosure where applicable.
• Provide a properly grounded 115V electrical connection with adequate capacity.
• Confirm the available cabinet or wall opening before ordering.

The unit produces heat on the condenser side during operation. Installation location therefore matters both inside the wine enclosure and in the space receiving the warm exhaust air.

Replacement Compatibility

The WKCE 1060 is listed as a direct replacement for older Breezaire WKC 1060 and OEM 1060 cabinet cooling units. Breezaire also notes that WKC and WKCE units have been used by multiple cabinet manufacturers and may have different modifications or configurations.

Before ordering a replacement, compare the existing unit's model, dimensions, electrical requirements, airflow direction, and cabinet opening with the WKCE 1060 configuration.

Available Factory Modifications

Depending on the selected configuration, the WKCE 1060 can be ordered with certain factory modifications for specific installation requirements.

• Hot Air Out the Top: Allows condenser exhaust to exit from the top instead of the standard rear configuration.
• Power Cord Out the Bottom Rear: Provides alternate power-cord routing for installations where the standard cord position is unsuitable.

Factory modifications are special-order configurations and may have additional production lead times and different cancellation or return conditions. Confirm the required configuration before ordering.

Optional Breezaire Bottle Probe

An optional Breezaire Bottle Probe is available separately for compatible Breezaire cooling units. It allows the system to monitor bottle temperature rather than relying solely on the enclosure air sensor.

Technical Specifications

• Brand: Breezaire
• Model: WKCE 1060
• Product Type: Wine cabinet cooling unit
• Cooling Capacity: 1,060 BTU
• Application: Wine cabinets and constricted wine storage enclosures
• Current Product Listing Capacity: Up to approximately 140 cubic feet
• Installation: Through-the-wall
• Cold Air Discharge: Bottom
• Standard Hot Air Exhaust: Rear
• Controller: Sentry III digital electronic thermostat
• Display: Green LED
• Electrical Requirements: 115V, 60Hz, 3A

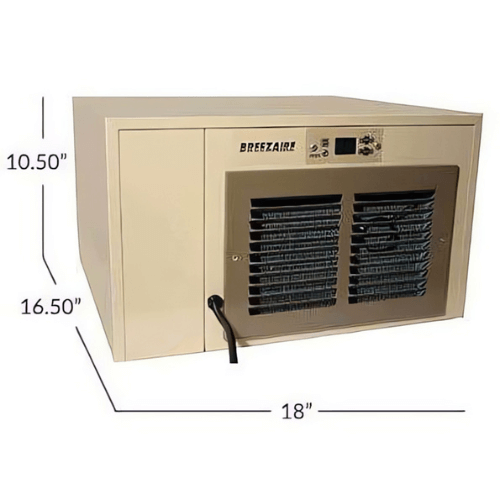

• Dimensions: 18" W × 10.5" H × 16.5" D
• Weight: 45 lb
• Warranty: 1 year labor / 5 years parts

Note: Breezaire's dedicated WKCE documentation describes the series as not being assigned a specific cubic-foot rating, while the current Breezaire USA retail listing states approximately 140 cubic feet. For cabinet replacement or custom applications, confirm sizing with the cabinet manufacturer or Breezaire before ordering.

What's Included

• Breezaire WKCE 1060 wine cabinet cooling unit
• Integrated Sentry III electronic thermostat
• Standard power cord

Optional bottle probes and factory modifications are available separately where applicable.

Care and Maintenance

Keep the condenser intake and exhaust areas clear of dust, debris, and other airflow obstructions. Inspect the installation area periodically to ensure that warm exhaust air can properly dissipate and does not recirculate toward the unit.

For cabinet installations, also check the cabinet's seals, insulation, and ventilation paths as part of routine maintenance.

Important Sizing and Replacement Note

The WKCE 1060 is a cabinet-focused cooling unit rather than a general-purpose room air conditioner. Do not use it to cool an open room or an improperly enclosed space.

When replacing an existing Breezaire WKC 1060 or OEM 1060, verify the existing unit's dimensions, electrical requirements, airflow configuration, and cabinet opening before ordering. Custom or modified cabinet installations may require a different configuration.
