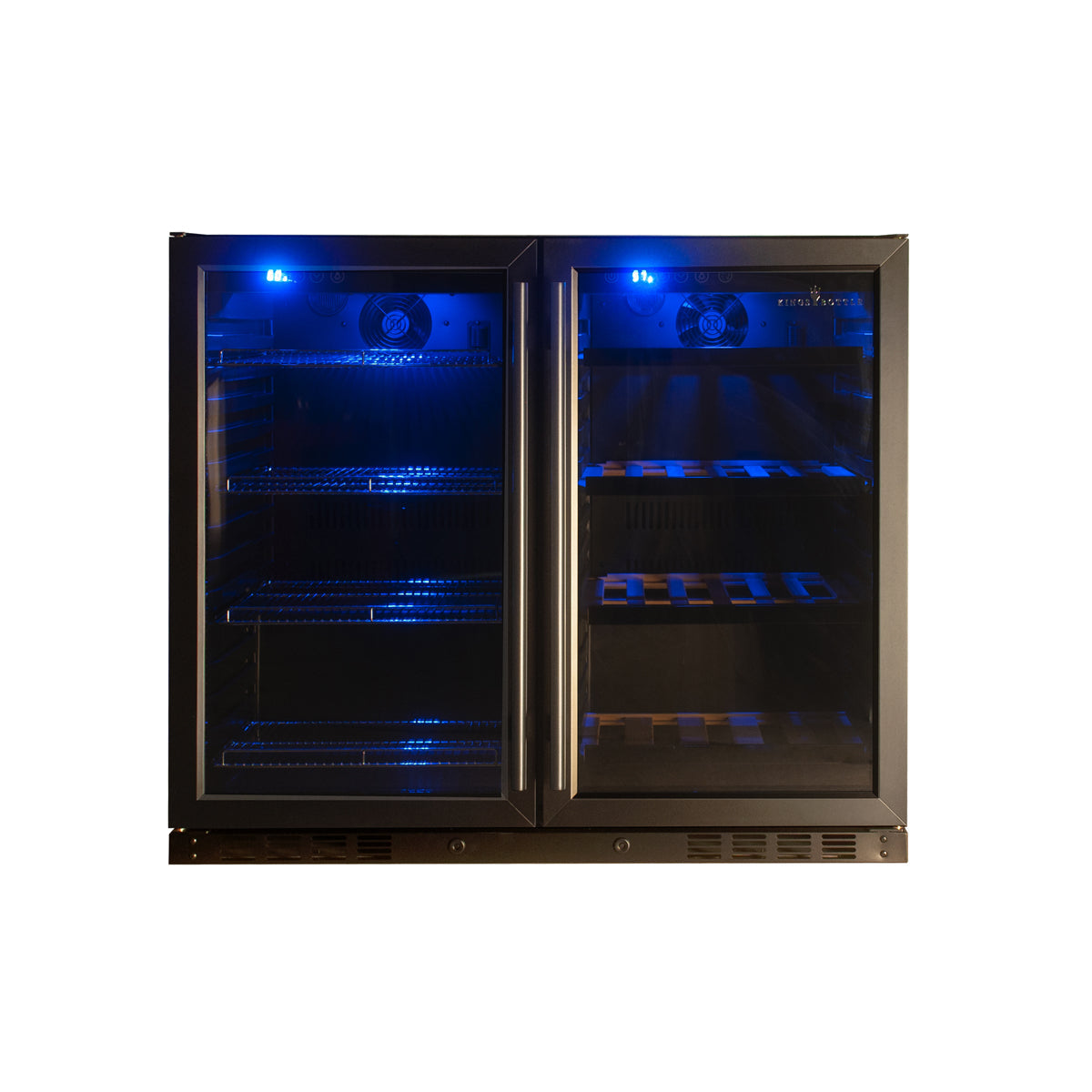

KingsBottle 39-Inch Dual-Zone Wine & Beverage Center

The KingsBottle 39-Inch Dual-Zone Wine & Beverage Center combines dedicated wine and beverage storage in one under-counter refrigeration system. Designed for kitchens, home bars, entertainment spaces, and hospitality-style settings, it features two independently controlled temperature zones, Low-E glass doors, adjustable shelving, and front ventilation for built-in or freestanding installation.

Key Features

• Dual-Zone Temperature Control: Separate cooling zones allow wine and beverages to be stored at different temperatures within the same appliance.
• Dedicated Wine & Beverage Compartments: The left compartment is designed for beer and beverages, while the right compartment is configured for wine storage.
• 7.76 Cu. Ft. Capacity: Provides 220 liters of combined refrigerated storage.
• Wine Capacity: Stores up to 28 wine bottles.
• Beverage Capacity: Stores up to 100 cans.
• Wide Temperature Range: Dual-zone temperature control from 34°F to 64°F (1°C to 18°C).
• Low-E Glass: Helps reduce condensation and provides an insulated viewing surface for the refrigerated compartments.
• Embraco Inverter Compressor: Uses inverter compressor technology with forced-air convection cooling.

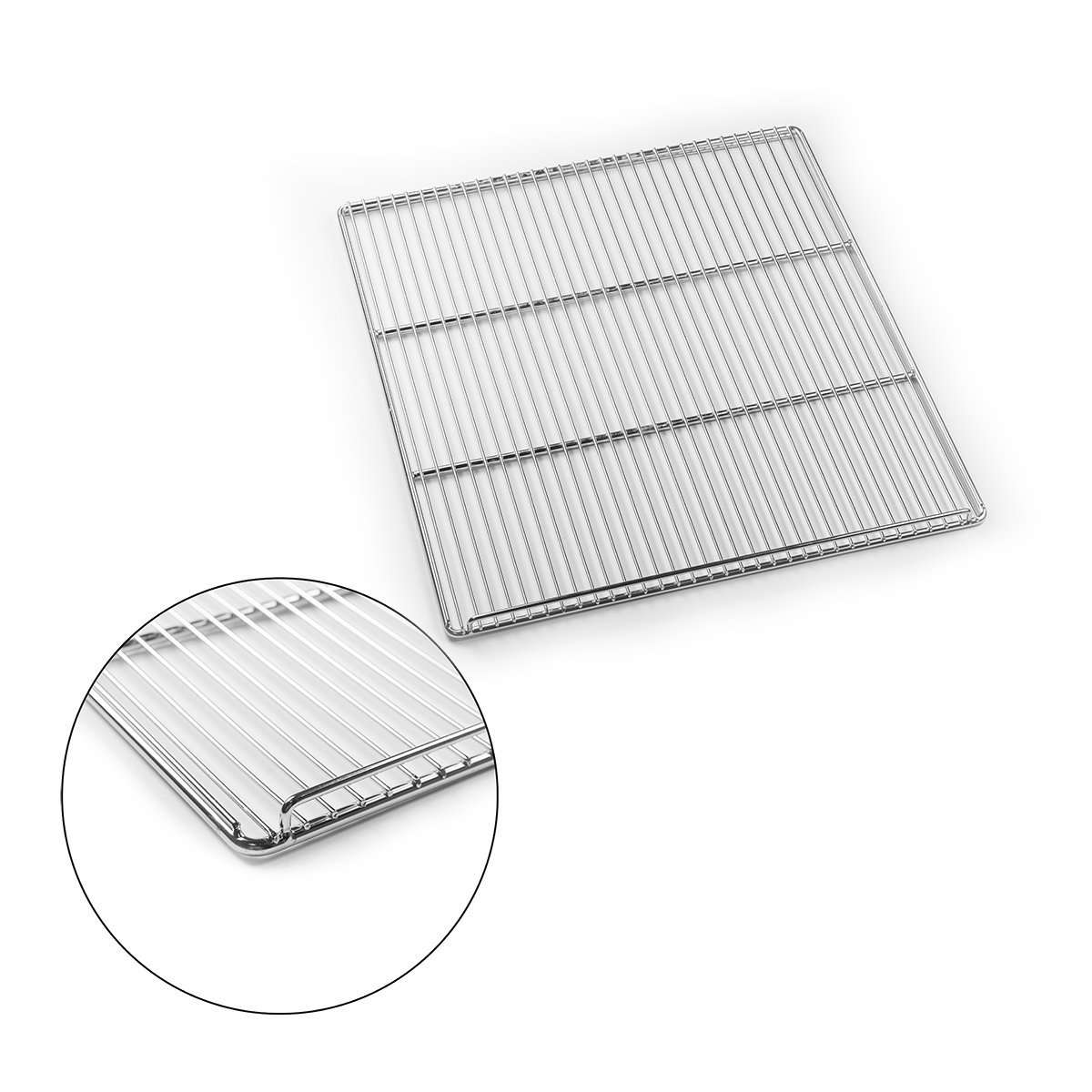

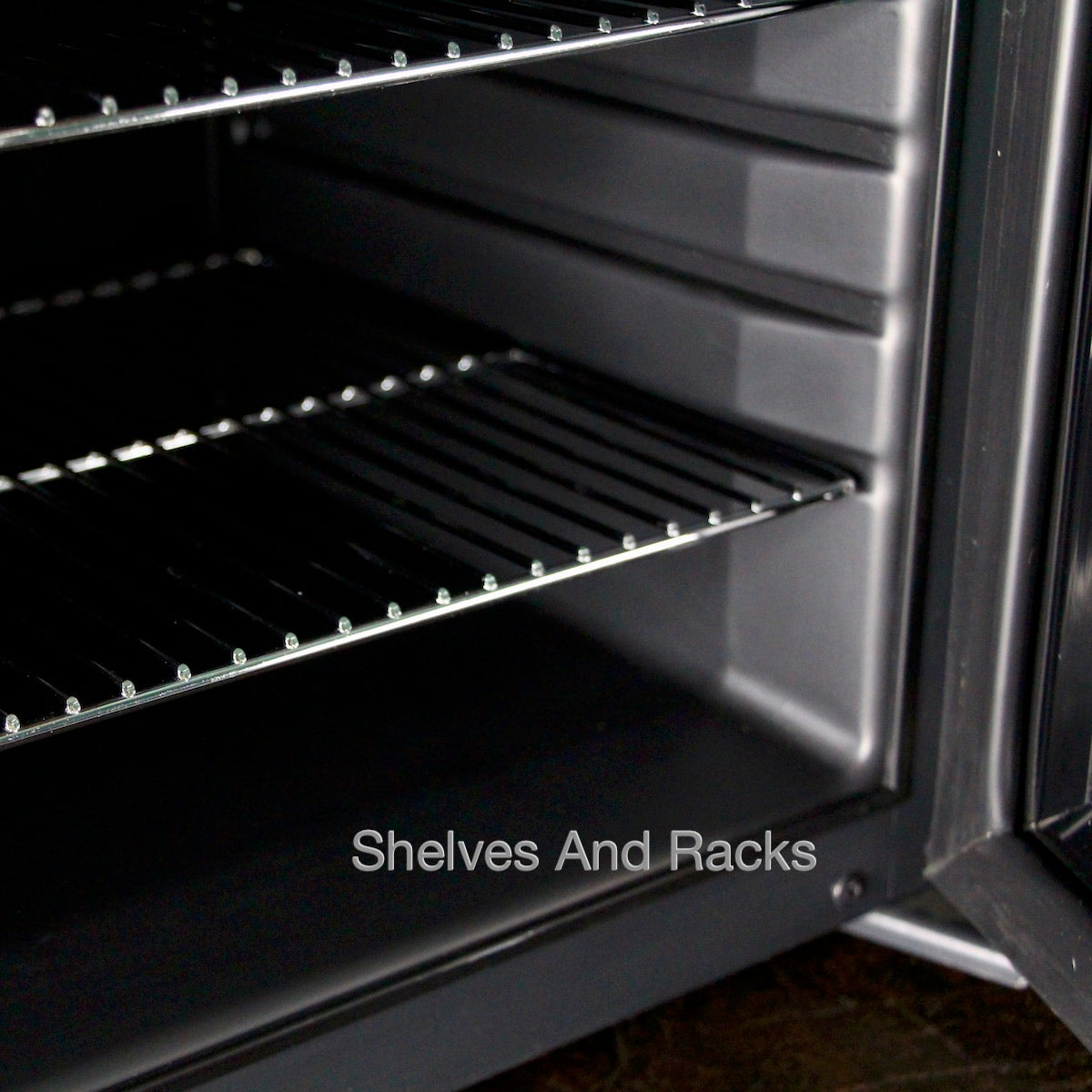

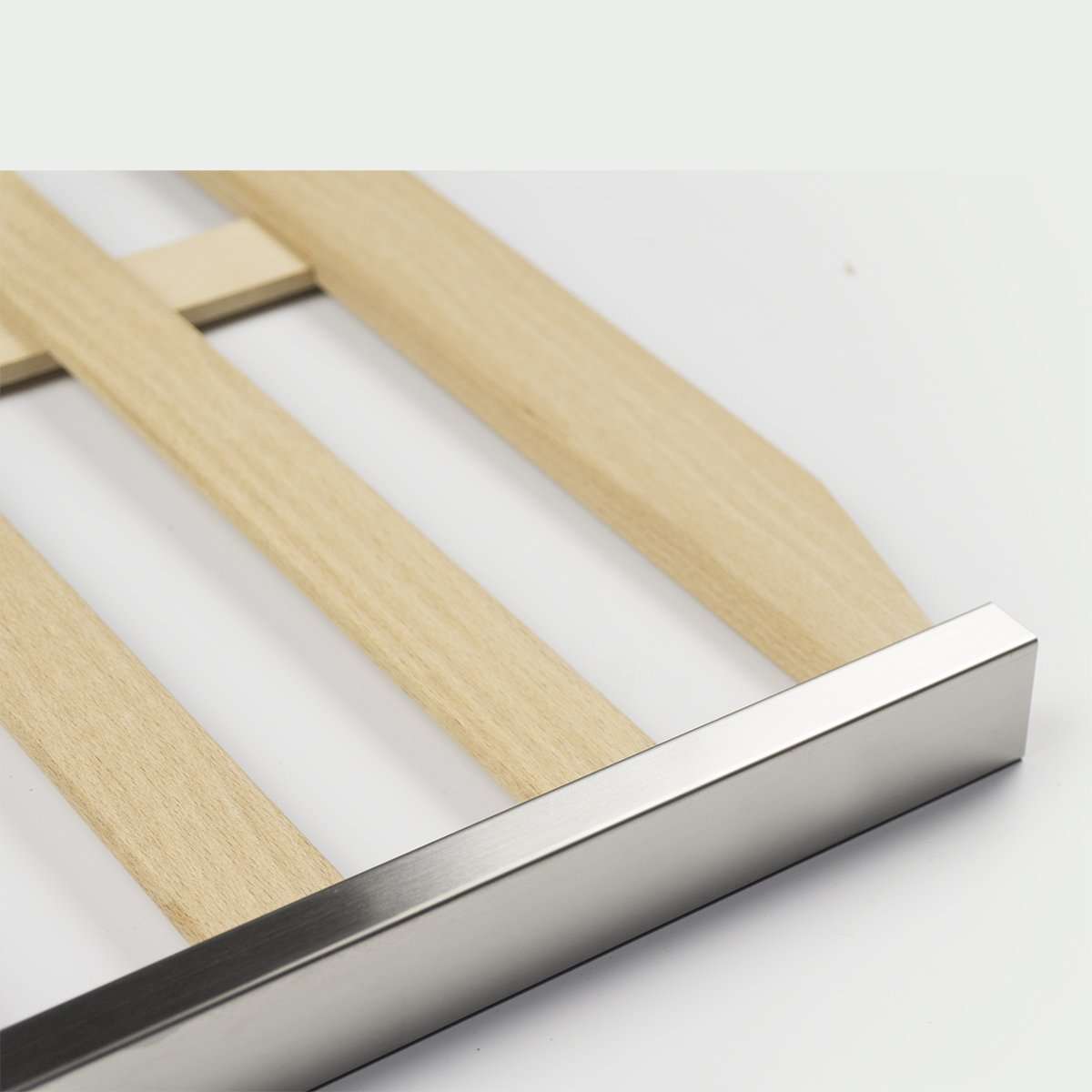

• Adjustable Shelving: Flexible shelf placement accommodates different wine bottles and beverage containers.
• Front Venting: Designed for built-in installation without rear clearance required for operation.
• Automatic Defrost: Helps simplify routine maintenance.
• Built-In or Freestanding: Can be integrated into suitable cabinetry or used as a standalone appliance.

Dedicated Wine & Beverage Storage

The KBU28LRX combines two different storage functions into one appliance. The left compartment is designed for beer and beverages, while the right compartment is designed for wine.

This configuration makes it possible to organize wine bottles and everyday beverages separately while maintaining independent temperature settings for each zone.

Dual-Zone Temperature Control

The refrigerator provides two independently controlled cooling zones with an overall temperature range of 34°F to 64°F (1°C to 18°C).

Independent temperature adjustment allows the wine and beverage compartments to be configured according to their intended use rather than requiring both sides to operate at the same temperature.

Actual internal temperatures can vary depending on ambient conditions, cabinet loading, door-opening frequency, and installation conditions.

Flexible Storage Capacity

The 7.76 cu. ft. interior provides storage for up to 28 wine bottles and 100 cans. Actual capacity may vary depending on bottle and can dimensions and shelf arrangement.

Adjustable shelving provides flexibility for organizing different beverage formats and making efficient use of the available interior space.

Low-E Glass Doors

The Low-E glass doors provide visibility into the refrigerated compartments while helping reduce condensation and improve insulation.

The glass-door design also makes it easier to view stored wine and beverages without opening the doors unnecessarily.

Built-In or Freestanding Installation

The front-venting configuration allows the KBU28LRX to be incorporated into suitable cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding refrigerator.

For built-in installation, follow the manufacturer's specified cutout dimensions and provide sufficient space for door operation, shelf access, installation, and maintenance.

When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.

Cooling Specifications

• Temperature Zones: Dual zone
• Temperature Range: 34°F to 64°F (1°C to 18°C)
• Compressor: Embraco inverter compressor
• Cooling System: Compressor cooling with forced-air convection
• Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
• Defrost: Automatic

Storage Capacity

• Total Volume: 7.76 cu. ft. / 220 L
• Wine Bottle Capacity: Up to 28 bottles
• Can Capacity: Up to 100 cans
• Configuration: Left beverage zone / right wine zone
• Shelving: Adjustable

Construction & Features

• Door Type: Low-E Glass
• Door Options: Black Trim or Stainless Steel Trim
• Installation: Built-In or Freestanding
• Ventilation: Front Venting
• Noise Level: 42 dB
• Automatic Defrost: Yes

Electrical Specifications

• Electrical Requirement: 110–115V / 60Hz
• Energy Consumption: 449 kWh/year

Dimensions & Weight

• Width: 38.78 inches
• Depth: 23.23 inches
• Height: 34.41 inches
• Metric Dimensions: 985 W × 590 D × 874 H mm
• Weight: 82 lb

Installation Notes

Install the wine and beverage center on a level surface and position it according to the manufacturer's specified installation dimensions. The front-venting design supports built-in installation without rear clearance required for operation.

Additional space is recommended to facilitate installation, maintenance access, door movement, and shelf operation. Make sure the unit is properly aligned and that both doors can open fully.

Care & Maintenance

Clean the interior and exterior surfaces regularly using suitable non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's care and maintenance recommendations.

Avoid unnecessarily frequent or prolonged door openings to help maintain the selected temperatures within each cooling zone.

Warranty

The KingsBottle KBU28LRX includes a 2-year warranty. Optional extended warranty coverage may also be available depending on the selected configuration.

What's Included

• KingsBottle KBU28LRX 39-Inch Dual-Zone Wine & Beverage Center
• Adjustable shelving
• Low-E glass doors
• Dual-zone temperature control
• Integrated temperature control system

Product Specifications at a Glance

Model	KBU28LRX-BLK
Product Type	Dual-Zone Wine & Beverage Center
Configuration	Under-Counter, Dual Zone
Total Capacity	7.76 cu. ft. / 220 L
Wine Capacity	Up to 28 bottles
Can Capacity	Up to 100 cans
Temperature Range	34°F to 64°F (1°C to 18°C)
Temperature Zones	2
Compressor	Embraco Inverter Compressor
Cooling System	Compressor Cooling + Forced-Air Convection
Door Type	Low-E Glass
Installation	Built-In or Freestanding
Ventilation	Front Venting
Dimensions	38.78" W × 23.23" D × 34.41" H
Weight	82 lb
Noise Level	42 dB
Energy Consumption	449 kWh/year
Electrical	110–115V / 60Hz
Defrost	Automatic
Warranty	2 Years
