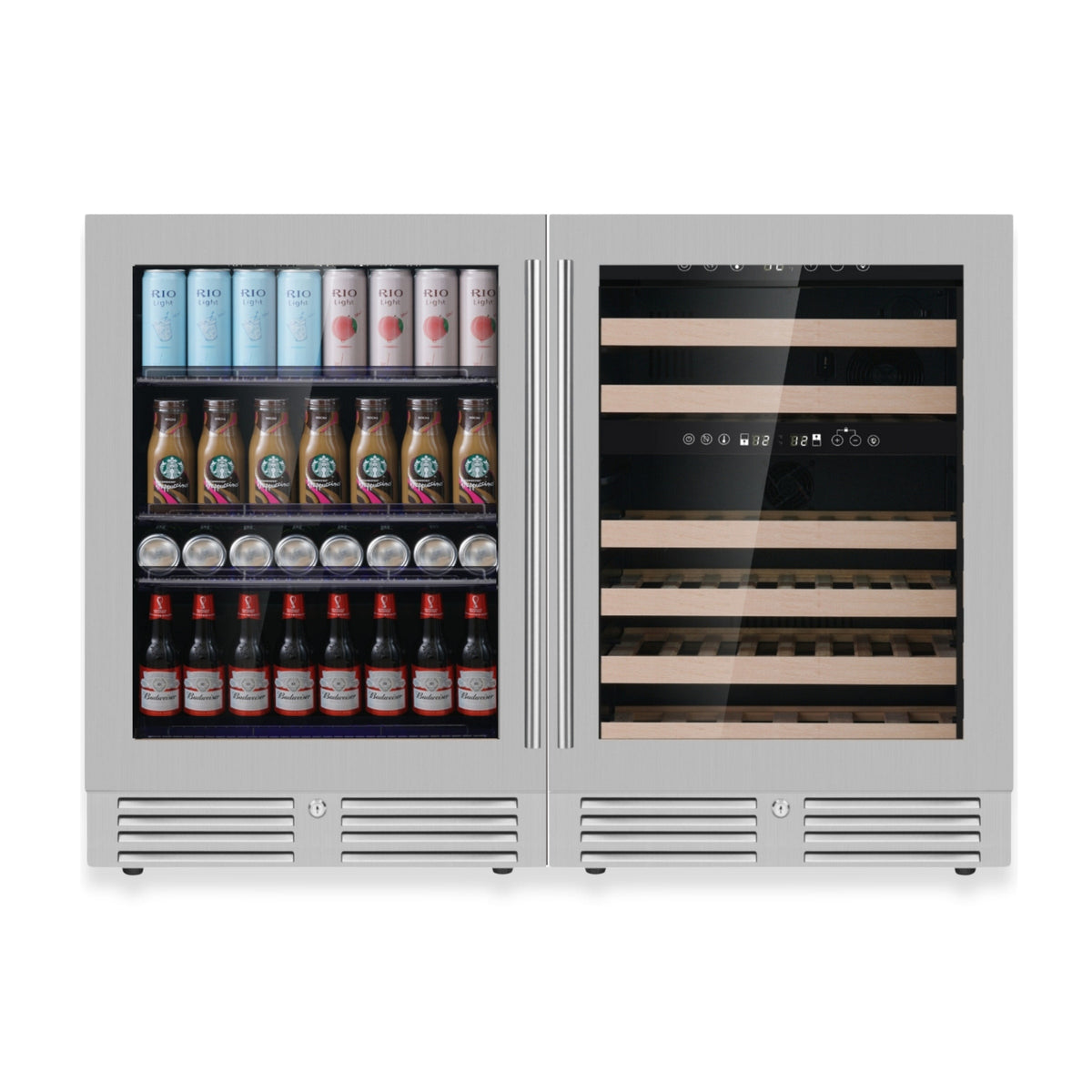

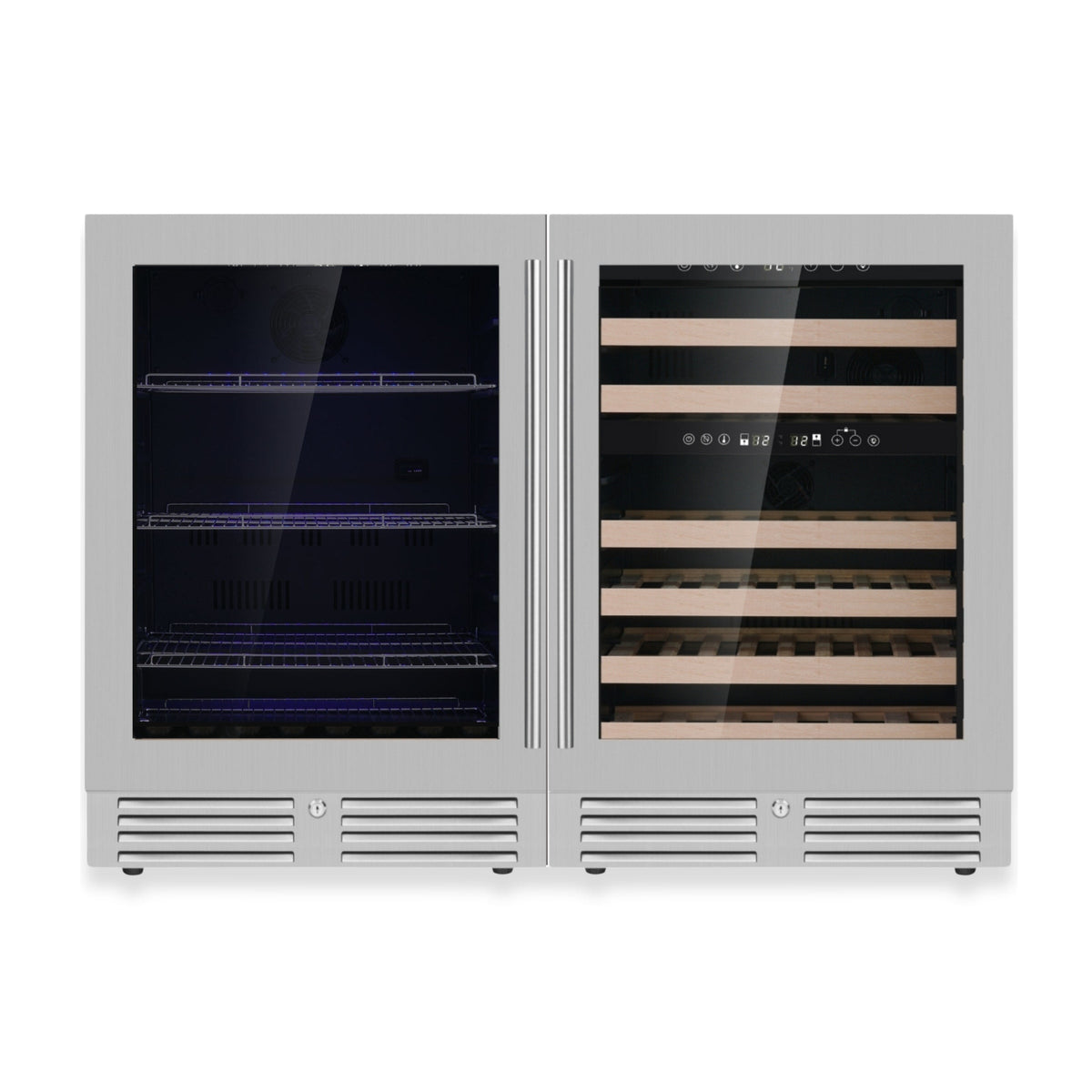

KingsBottle 48-Inch Triple-Zone Wine & Beverage Center

The KingsBottle 48-Inch Triple-Zone Wine & Beverage Center combines dedicated wine and beverage storage in a wide under-counter refrigeration system. With three independently controlled temperature zones, a total capacity of 10.24 cu. ft., and front ventilation, it is designed for kitchens, home bars, entertainment spaces, and other areas where organized wine and beverage storage is needed.

Key Features

• Triple-Zone Cooling: Three independently controlled temperature zones allow different wines and beverages to be stored at separate temperatures.
• Wine & Beverage Storage: Holds up to 46 bottles and 161 cans across its dedicated storage areas.
• 10.24 Cu. Ft. Total Capacity: Provides substantial under-counter storage in a 48-inch-wide format.
• Adjustable Temperature Range: Each cooling system operates within a range of 35°F to 68°F (2°C to 20°C).
• Low-E Glass: Low-emissivity glass helps reduce condensation and improves insulation.
• Embraco Inverter Compressor: Uses inverter compressor technology with compressor cooling and forced-air convection.
• Front Venting: Designed for built-in installation without requiring rear operating clearance.
• Automatic Defrost: Helps simplify routine maintenance.
• Glass Doors with Stainless Steel Trim: Provides a clean display-oriented appearance while allowing the stored collection to remain visible.
• Built-In or Freestanding: Can be integrated into suitable cabinetry or operated as a freestanding unit.

Three Independent Temperature Zones

The triple-zone configuration provides separate temperature controls for different types of wine and beverages. This makes it possible to organize reds, whites, sparkling wines, beer, soft drinks, and other beverages according to their preferred serving temperatures without relying on a single temperature setting for the entire unit.

The adjustable range is 35°F to 68°F (2°C to 20°C). Actual internal temperatures can vary depending on loading, ambient conditions, installation, and door-opening frequency.

Wine & Beverage Storage

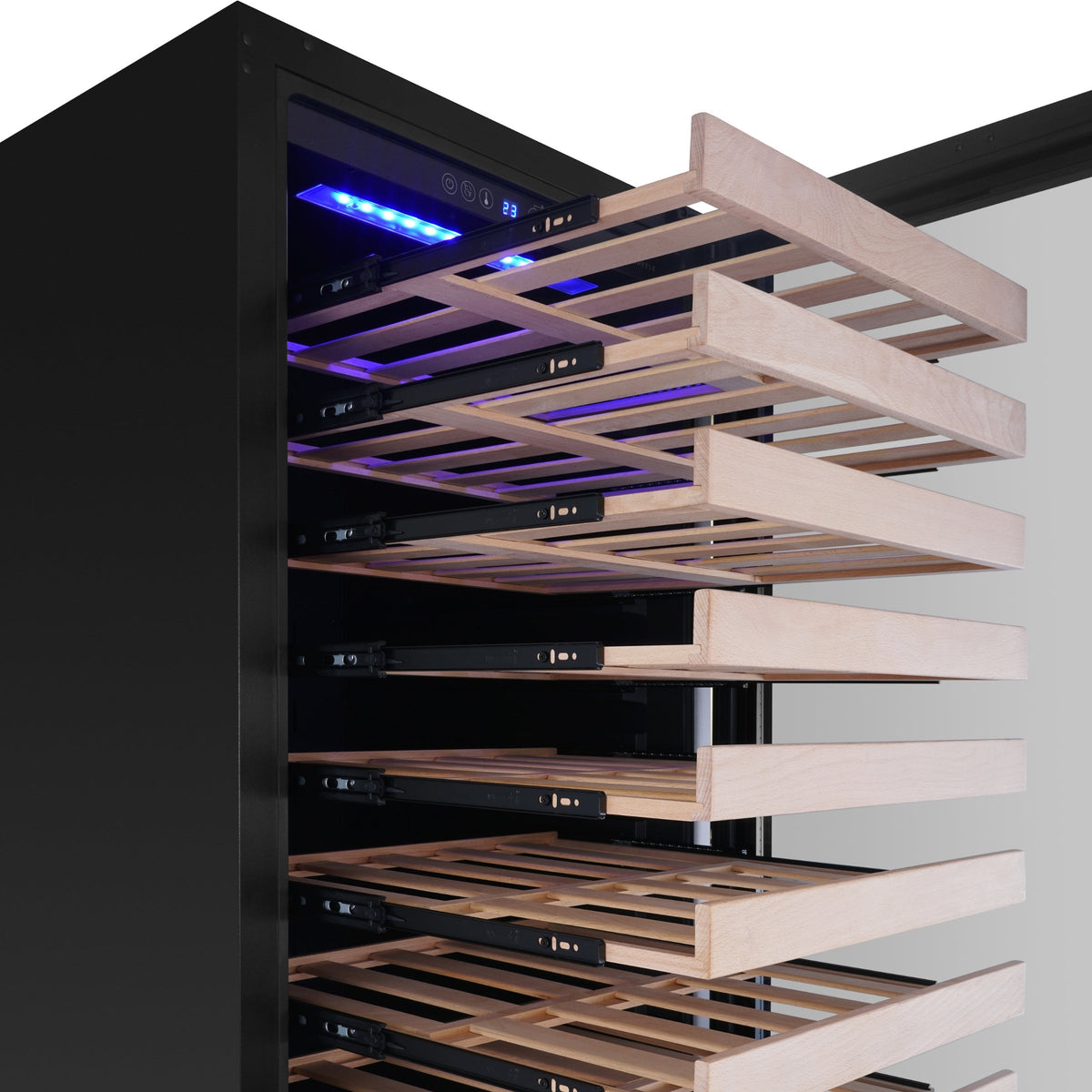

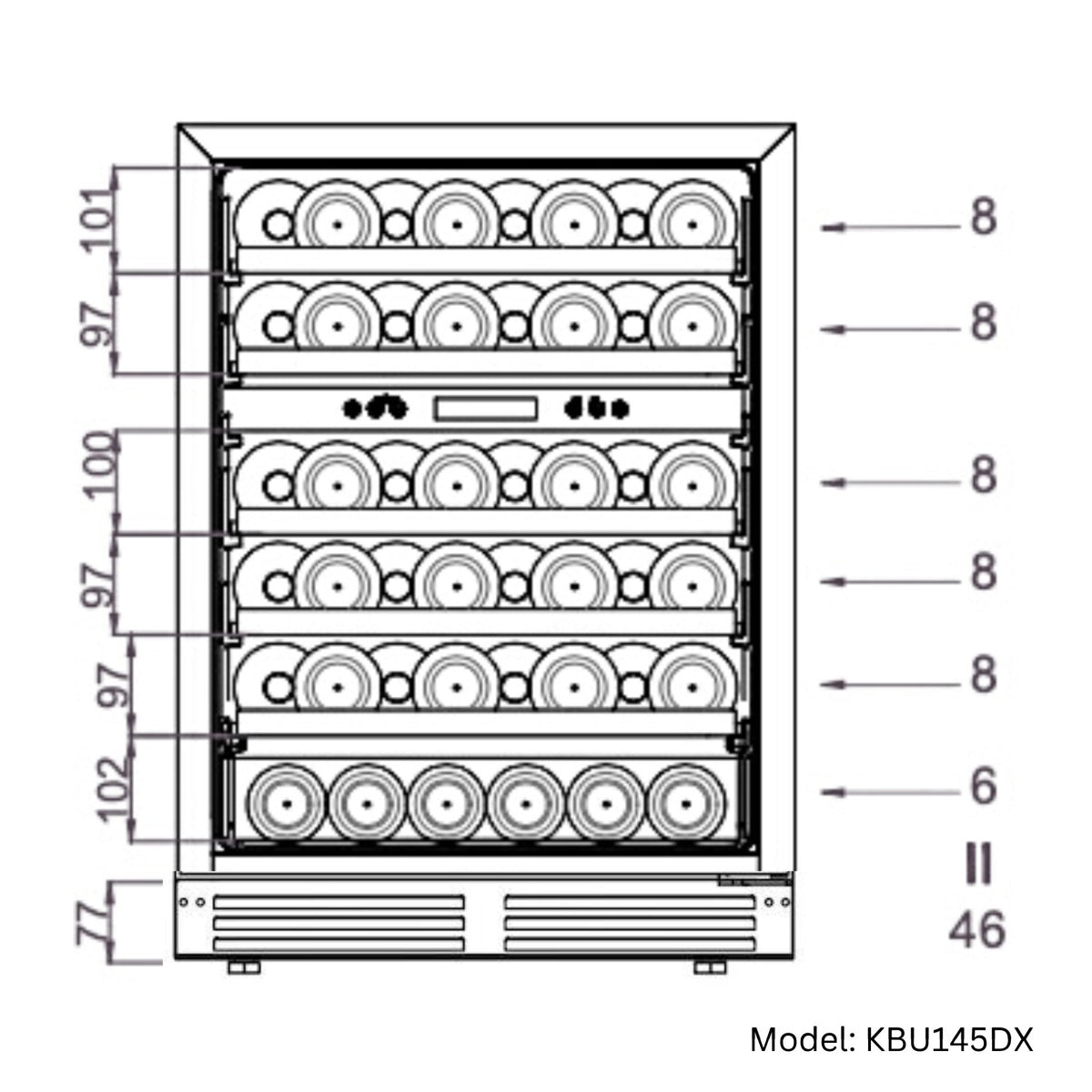

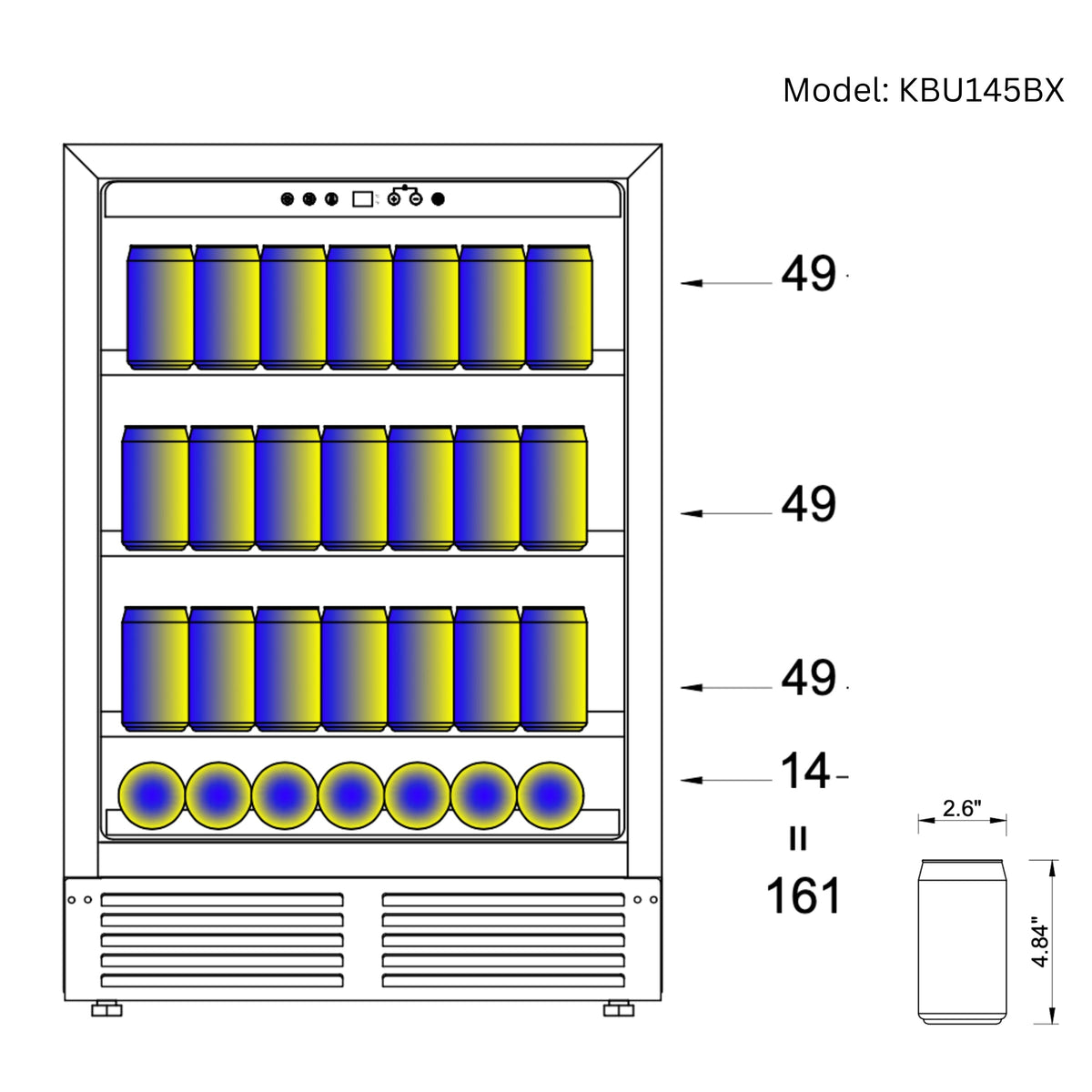

The KBU145BW3-SS provides storage for up to 46 bottles and 161 cans. Adjustable shelving allows the interior arrangement to accommodate different bottle and beverage formats.

The wide under-counter design makes the unit suitable for kitchen islands, home bars, entertainment rooms, dining areas, and hospitality-style installations where convenient access to both wine and beverages is important.

Low-E Glass Doors

The glass doors feature Low-E construction designed to reduce condensation while helping improve insulation. The stainless steel trim provides a coordinated appearance for modern kitchen and bar installations.

Built-In or Freestanding Installation

Front ventilation allows the refrigerator to be installed within appropriate cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding appliance when preferred.

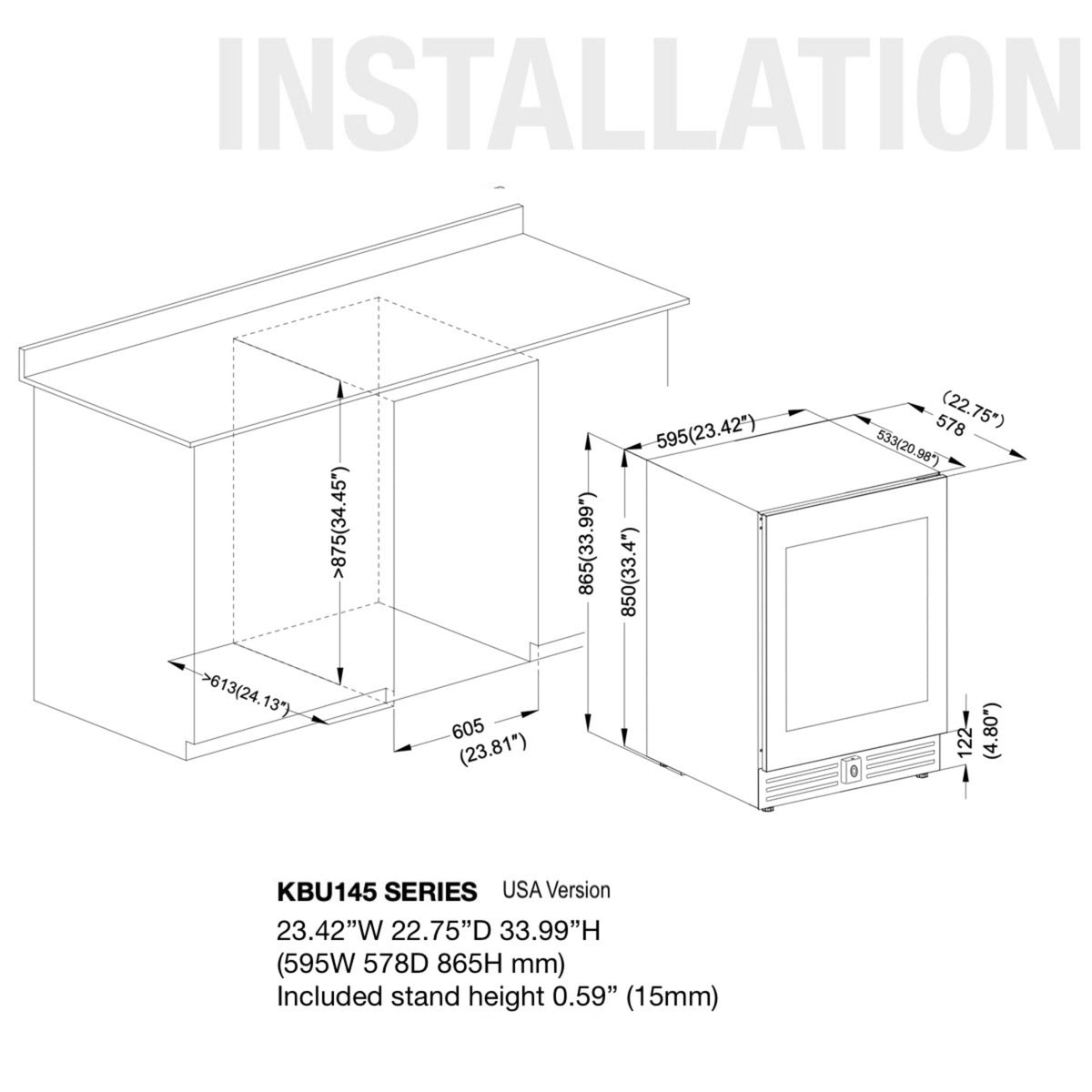

For built-in installations, follow the manufacturer's cutout dimensions and allow sufficient space for installation and servicing. When installed between frameless cabinets, a 1/2-inch filler strip or side panel may be required on the hinge side to provide unobstructed door movement.

Cooling Specifications

• Temperature Zones: Triple zone
• Temperature Range: 35°F to 68°F (2°C to 20°C)
• Compressor: Embraco inverter compressor
• Cooling System: Compressor cooling with forced-air convection
• Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
• Defrost: Automatic

Storage Capacity

• Total Volume: 10.24 cu. ft. / 290 L
• Bottle Capacity: Up to 46 bottles
• Can Capacity: Up to 161 cans
• Format: Under-counter wine and beverage center

Construction & Features

• Door Type: Low-E glass with stainless steel trim
• Ventilation: Front venting
• Installation: Built-in or freestanding
• Noise Level: 42 dB
• Weight: 104 lb
• Energy Certification: ETL/DOE

Electrical Specifications

• Electrical Requirement: 110–115V / 60Hz
• Energy Consumption: 362 kWh/year

Dimensions

• Width: 46.85 inches
• Depth: 22.76 inches
• Height: 32.87 inches
• Metric Dimensions: 1190 W × 578 D × 835 H mm

Installation Notes

Install the wine and beverage center on a level surface and follow the manufacturer's installation dimensions. The front-venting configuration supports built-in installation, while additional space may be provided to make installation, servicing, and removal easier.

If the electrical outlet is positioned on the wall behind the unit, allow adequate space for the angled power plug or position the outlet in an adjacent cabinet as specified by the manufacturer.

Care & Maintenance

Keep the interior and exterior surfaces clean using appropriate non-abrasive cleaning materials. Keep the ventilation area unobstructed and follow the manufacturer's maintenance instructions. Avoid unnecessarily frequent or prolonged door openings when stable internal temperatures are important.

Warranty

The KingsBottle KBU145BW3-SS includes a 2-year warranty. Optional extended warranty coverage is available in 3-year and 5-year terms.

What's Included

• KingsBottle KBU145BW3-SS 48-Inch Triple-Zone Wine & Beverage Center
• Integrated wine and beverage storage compartments
• Adjustable shelving
• Low-E glass doors with stainless steel trim
• Built-in temperature control system

Product Specifications at a Glance

Model	KBU145BW3-SS
Product Type	Triple-Zone Wine & Beverage Center
Configuration	Under-Counter, Triple Zone
Total Volume	10.24 cu. ft. / 290 L
Bottle Capacity	46 bottles
Can Capacity	161 cans
Temperature Range	35°F to 68°F (2°C to 20°C)
Temperature Zones	3
Compressor	Embraco Inverter
Door Type	Low-E Glass with Stainless Steel Trim
Installation	Built-In or Freestanding
Ventilation	Front Venting
Dimensions	46.85" W × 22.76" D × 32.87" H
Weight	104 lb
Electrical	110–115V / 60Hz
Energy Consumption	362 kWh/year
Warranty	2 Years
