The KingsBottle 47-Inch Upright Dual-Zone Wine & Beverage Center combines dedicated wine and beverage storage in one tall refrigeration system. With independently controlled upper and lower temperature zones, 9.36 cu. ft. of storage, Low-E glass, adjustable shelving, and front ventilation, it provides organized refrigeration for wine and beverages in kitchens, entertainment spaces, home bars, and light commercial environments.
Key Features
- Dual-Zone Temperature Control: Independent upper and lower zones allow different temperature settings within the same refrigerator.
- Wine & Beverage Storage: Designed to accommodate both wine bottles and beverage cans in one integrated cooling system.
- 9.36 Cu. Ft. Capacity: Provides 265 liters of total refrigerated storage.
- Up to 51 Wine Bottles: Provides dedicated bottle storage for wine collections and entertaining.
- Up to 108 Cans: Offers separate beverage storage for cans and other chilled drinks.
- Upper Zone: Adjustable from 35°F to 54°F (2°C to 12°C).
- Lower Zone: Adjustable from 54°F to 68°F (12°C to 20°C).
- Embraco Inverter Compressor: Uses compressor cooling with forced-air convection.
- Low-E Glass Door: Helps reduce condensation and provides an insulated viewing surface.
- Adjustable Shelving: Allows the interior to be configured for different bottle and beverage sizes.
- Front Venting: Supports built-in installation without rear clearance required for operation.
- Automatic Defrost: Helps simplify routine maintenance.
- Built-In or Freestanding: Suitable for cabinetry integration or standalone placement.

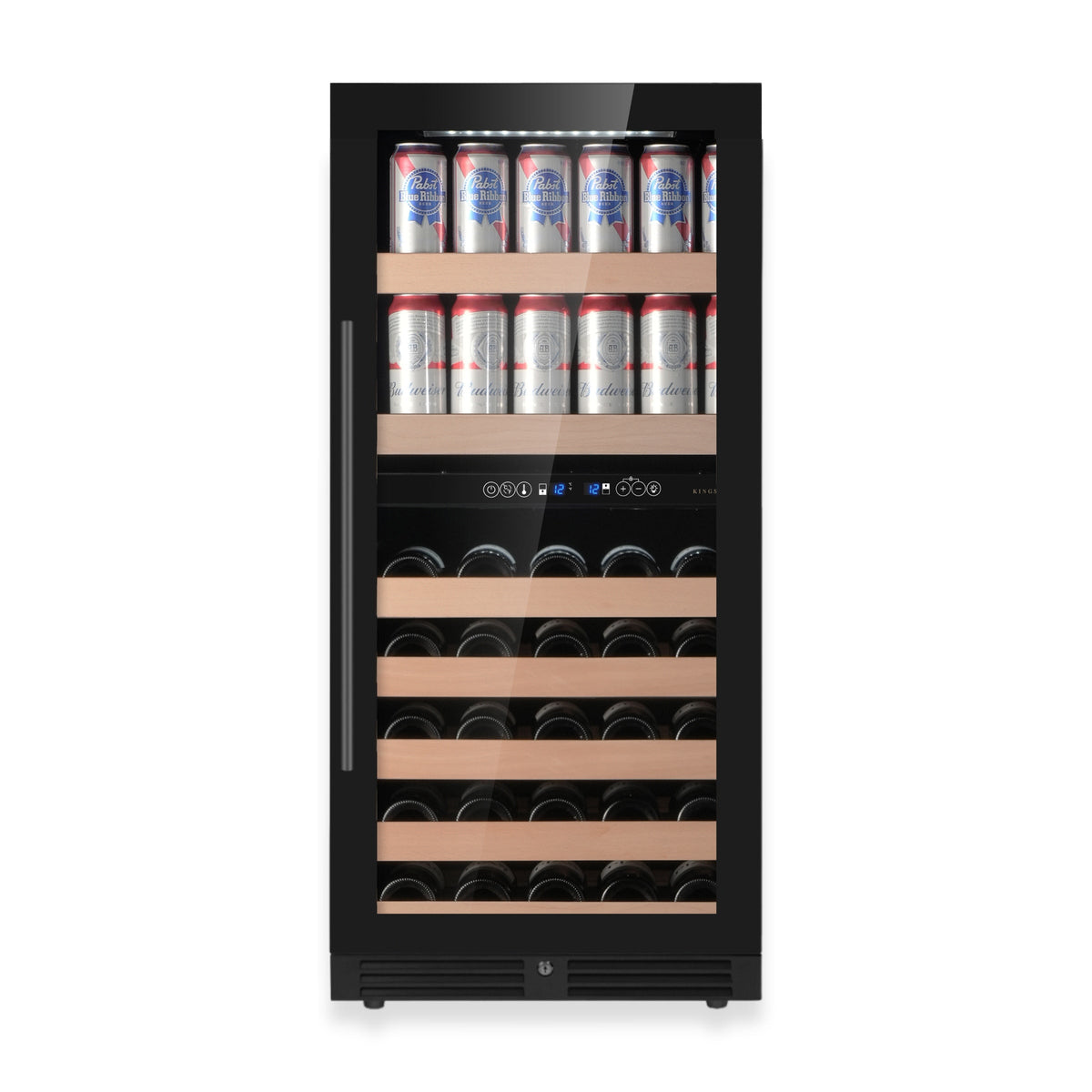

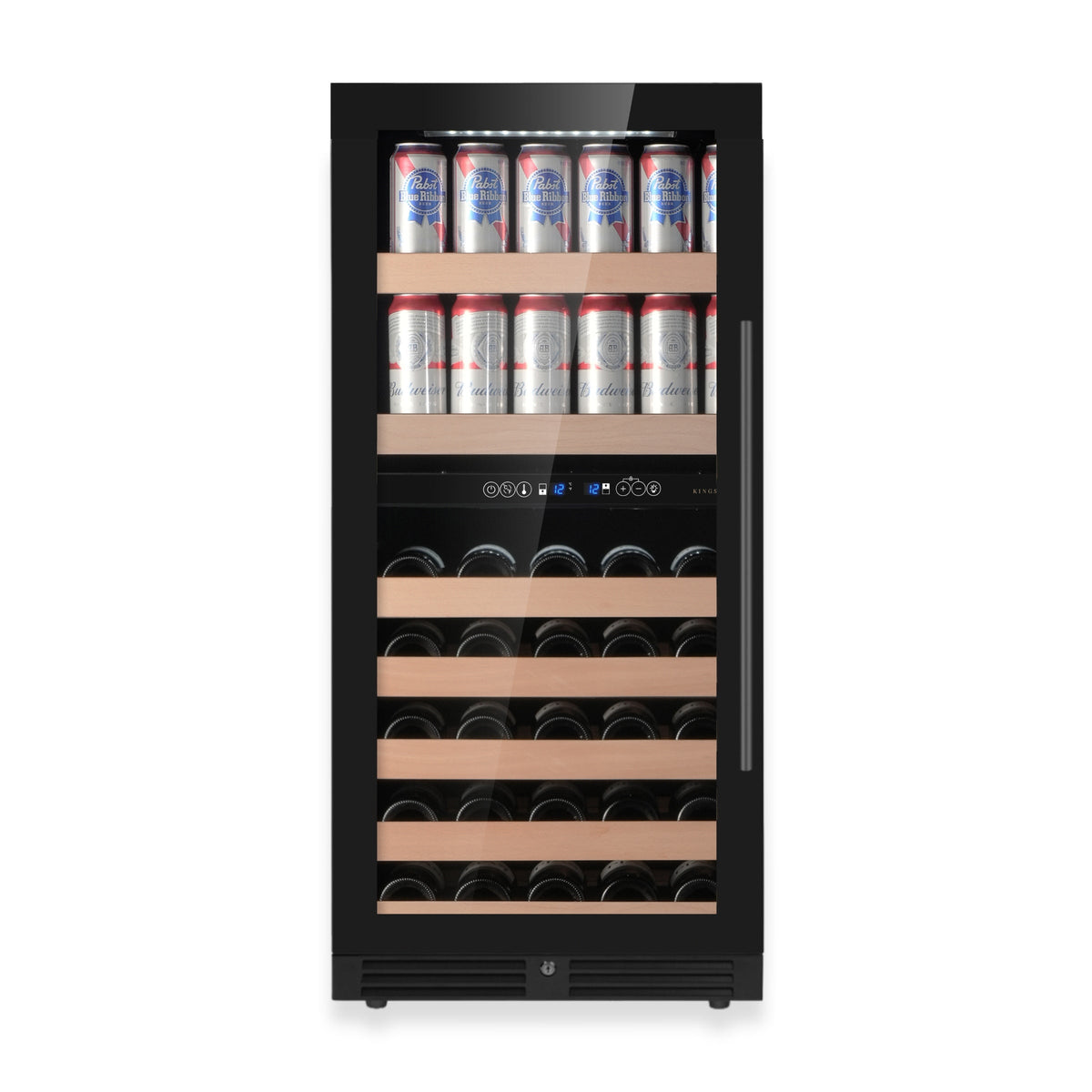

Dedicated Wine & Beverage Storage
The KBU265DX-FG HYBRID is designed for households and spaces that need both wine and beverage refrigeration in one appliance. Its dual-zone configuration separates the temperature settings between the upper and lower sections, providing greater flexibility than a single-zone refrigerator.
The tall upright format provides 9.36 cu. ft. of refrigerated storage while keeping wine bottles and beverages organized and accessible.

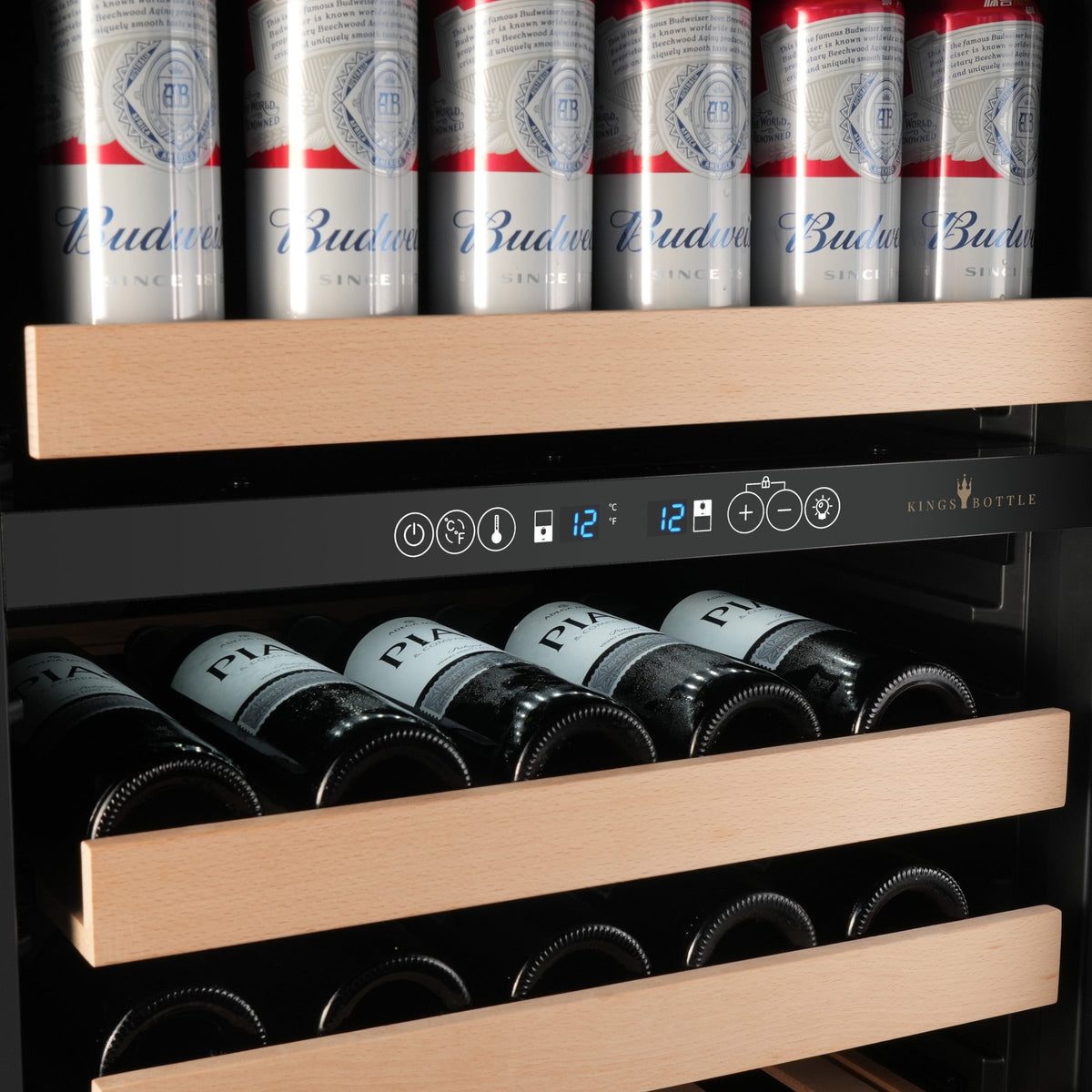

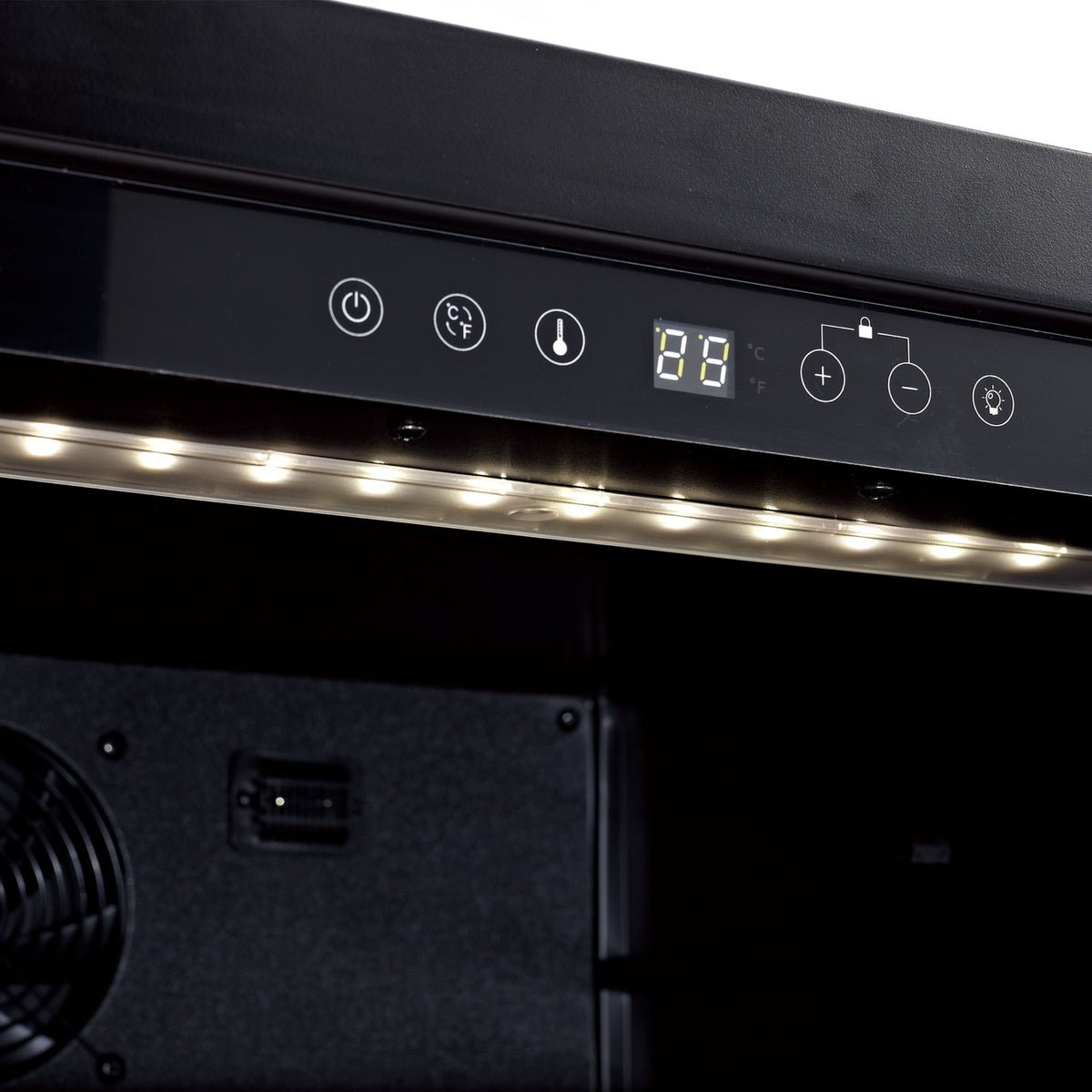

Independent Dual-Zone Cooling
The refrigerator features two independently controlled temperature zones:
- Upper Zone: 35°F to 54°F (2°C to 12°C)
- Lower Zone: 54°F to 68°F (12°C to 20°C)
This configuration allows the two sections to be adjusted according to the type of wine or beverage being stored. Actual internal temperatures may vary depending on ambient conditions, cabinet loading, door-opening frequency, and installation conditions.
Flexible Storage Capacity
The 9.36 cu. ft. interior provides storage for up to 51 wine bottles and 108 cans. Actual capacity may vary depending on bottle and can dimensions and shelf arrangement.

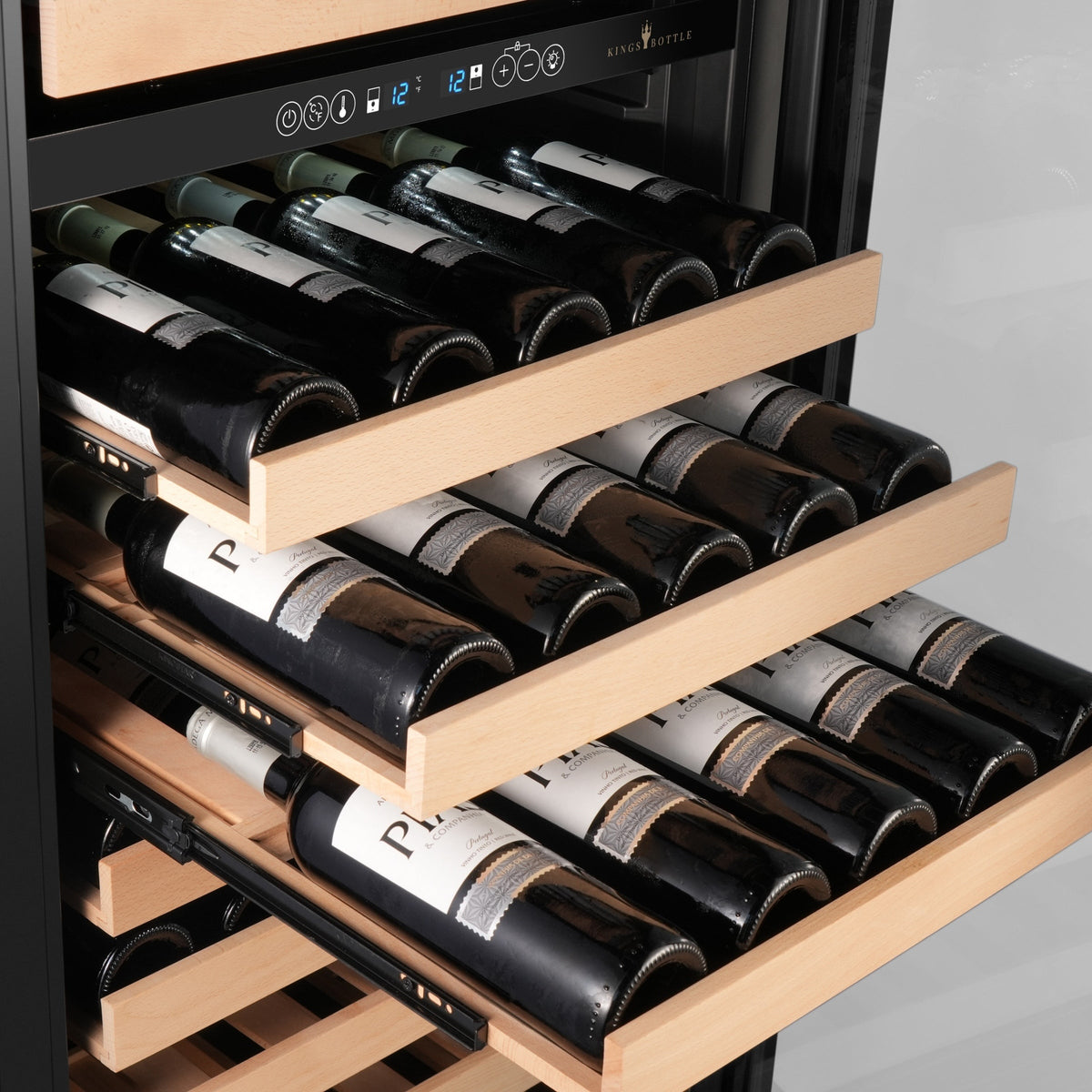

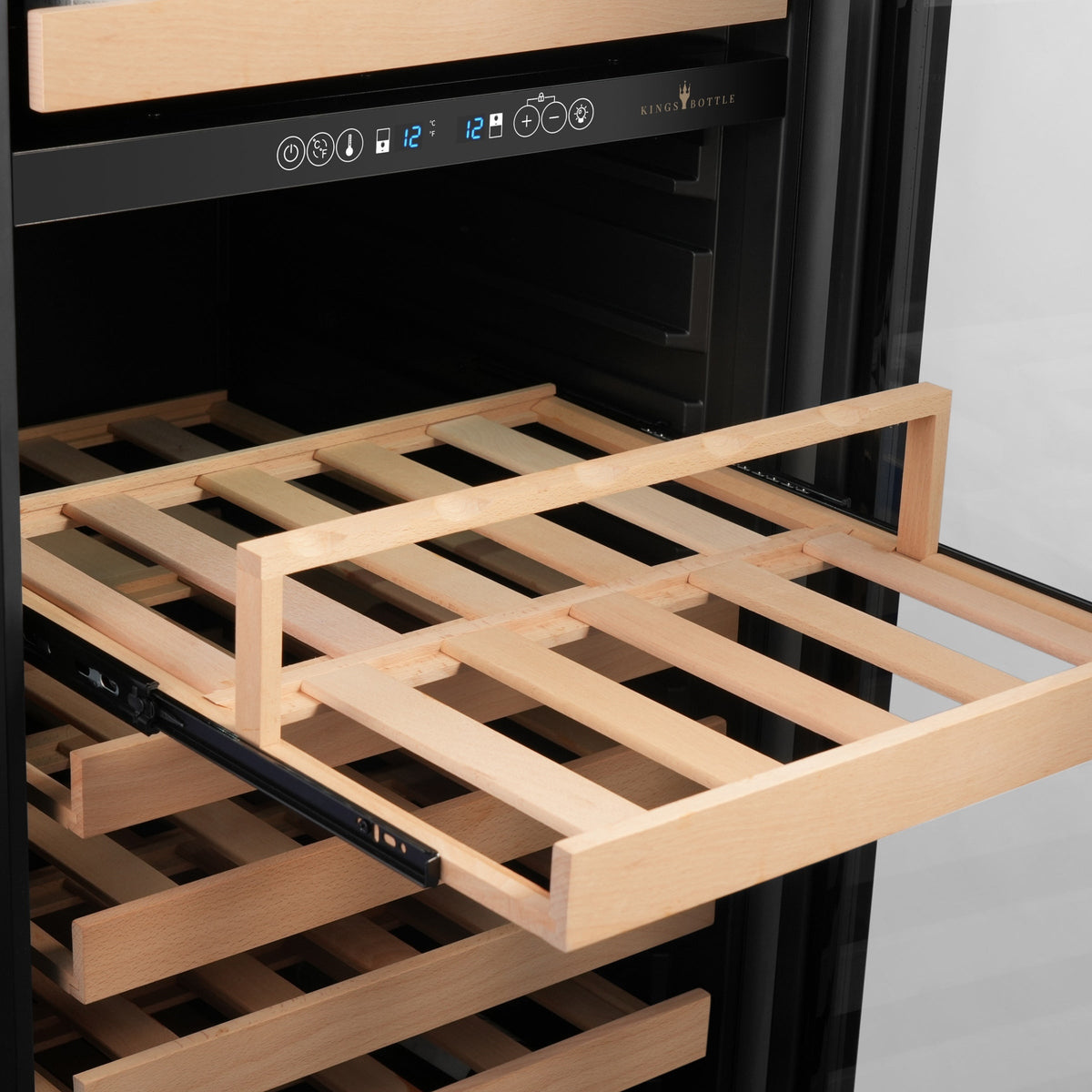

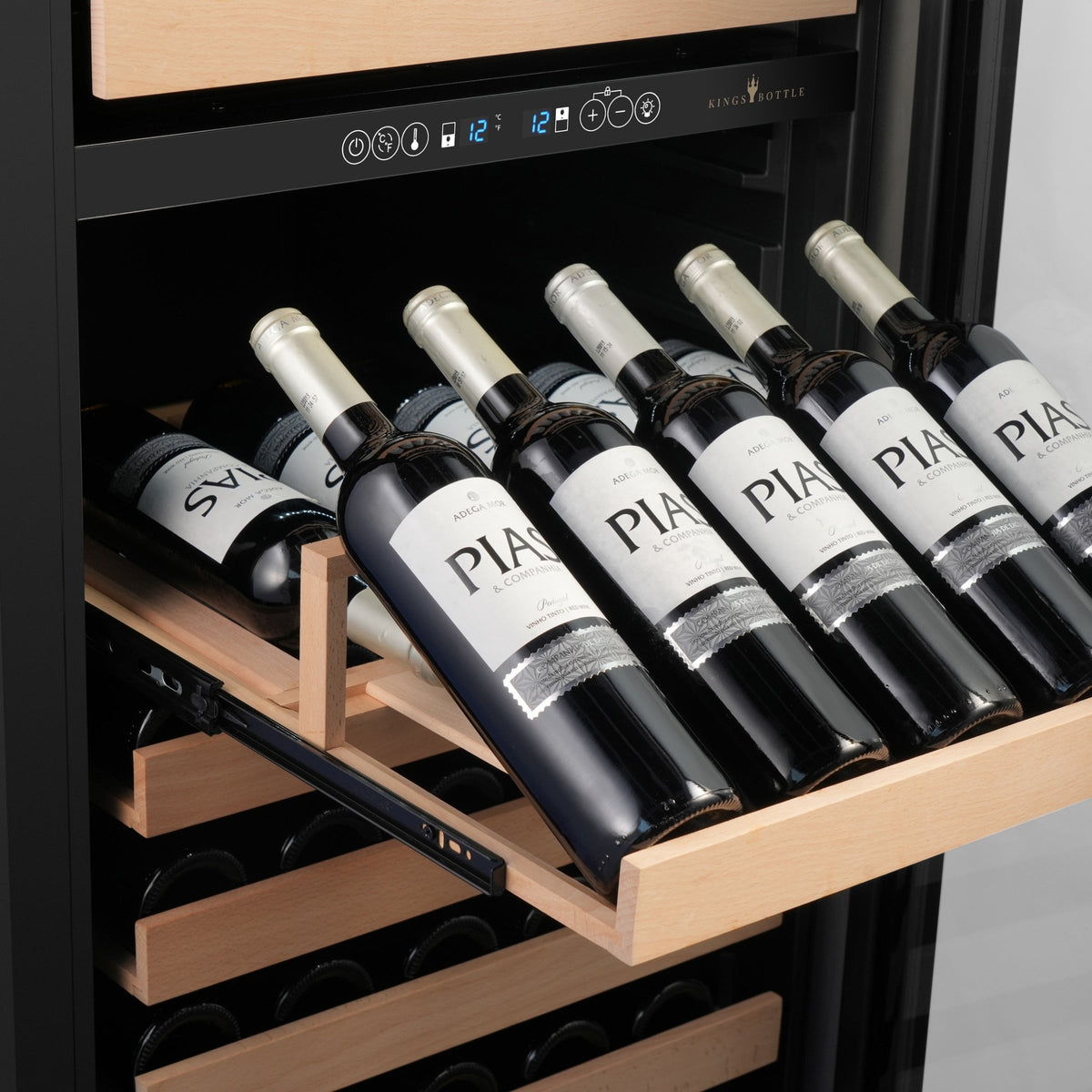

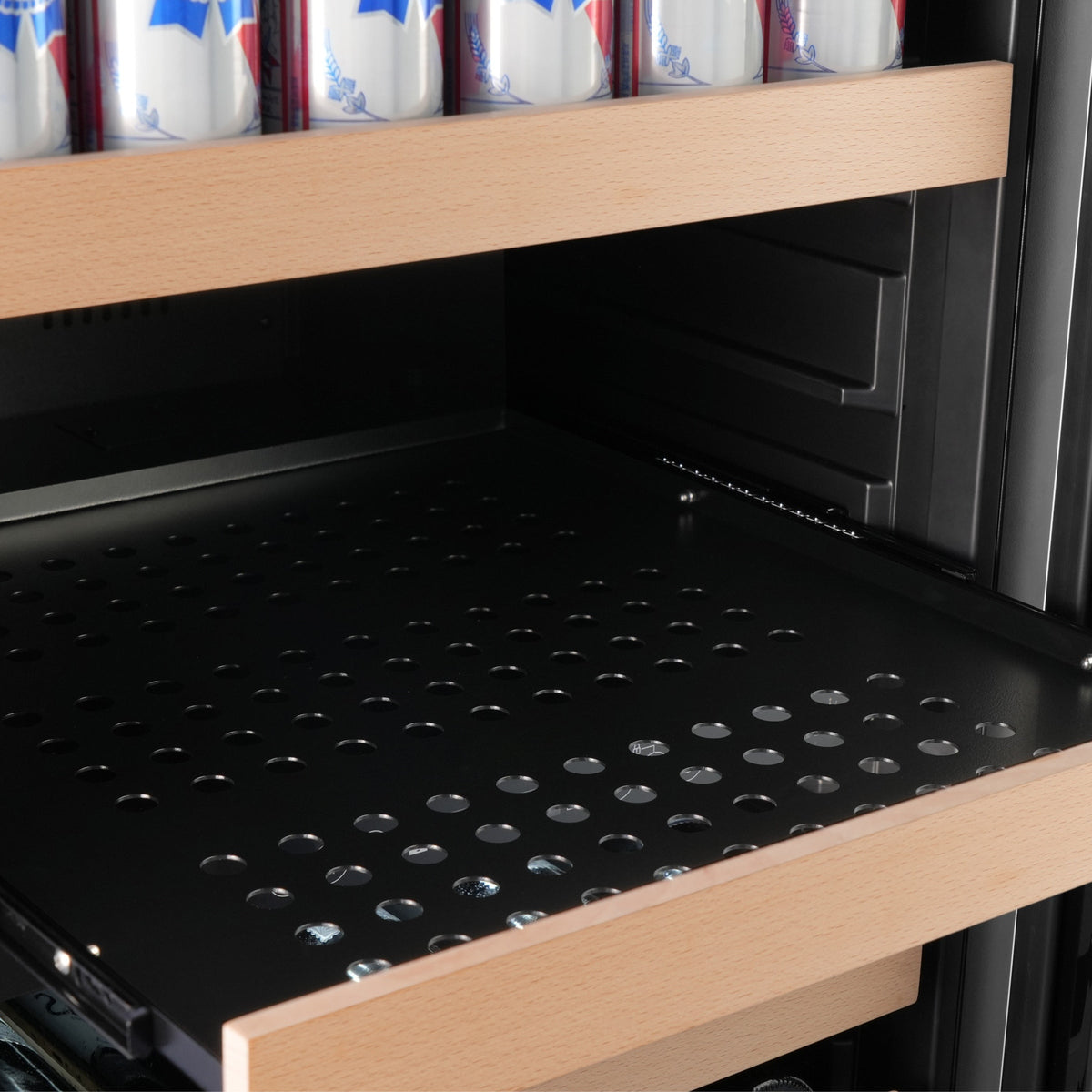

The adjustable shelving system provides flexibility when organizing different bottle sizes and beverage containers.
Low-E Glass Door
The Low-E glass door provides visibility into the refrigerated interior while helping reduce condensation and improve insulation.
The glass presentation also makes it easier to identify stored bottles and beverages without repeatedly opening the door.

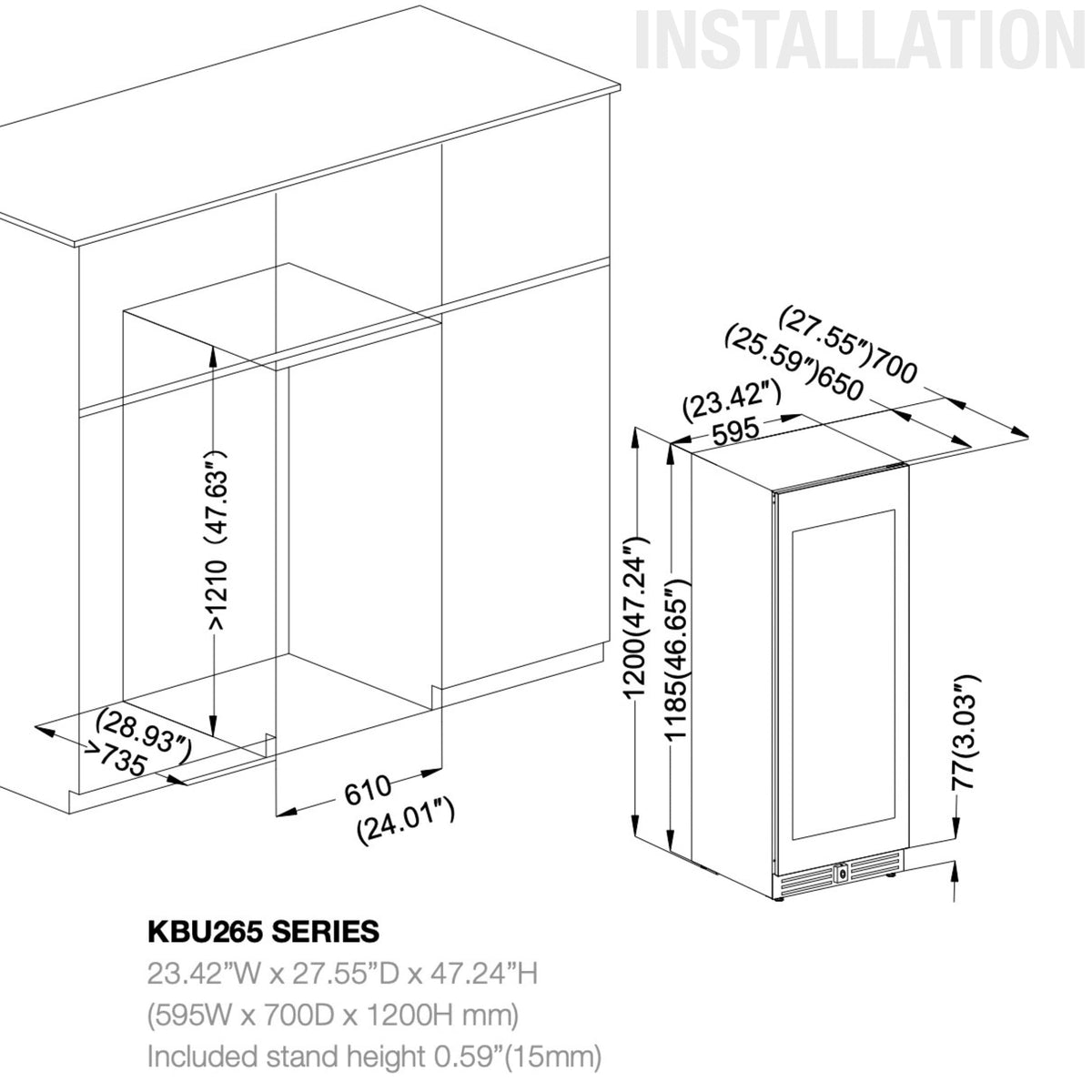

Built-In or Freestanding Installation
The front-venting design allows the KBU265DX-FG HYBRID to be incorporated into suitable cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding refrigerator.
For built-in installations, follow the manufacturer's specified cutout dimensions and provide sufficient space for door operation, shelf access, installation, and maintenance.
When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.
Cooling Specifications
- Temperature Zones: Dual zone
- Upper Zone: 35°F to 54°F (2°C to 12°C)
- Lower Zone: 54°F to 68°F (12°C to 20°C)
- Compressor: Embraco inverter compressor
- Cooling System: Compressor cooling with forced-air convection
- Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
- Defrost: Automatic
Storage Capacity
- Total Volume: 9.36 cu. ft. / 265 L
- Wine Bottle Capacity: Up to 51 bottles
- Can Capacity: Up to 108 cans
- Configuration: Dual-zone wine and beverage storage
- Shelving: Adjustable
Construction & Features
- Door Type: Low-E glass
- Door Style: Borderless black glass door
- Door Hinge: Right-hand hinge standard for the listed RHH configuration
- Installation: Built-In or Freestanding
- Ventilation: Front venting
- Noise Level: 42 dB
- Weight: 76 lb
Electrical Specifications
- Electrical Requirement: 110–115V / 60Hz
- Energy Consumption: 189 kWh/year

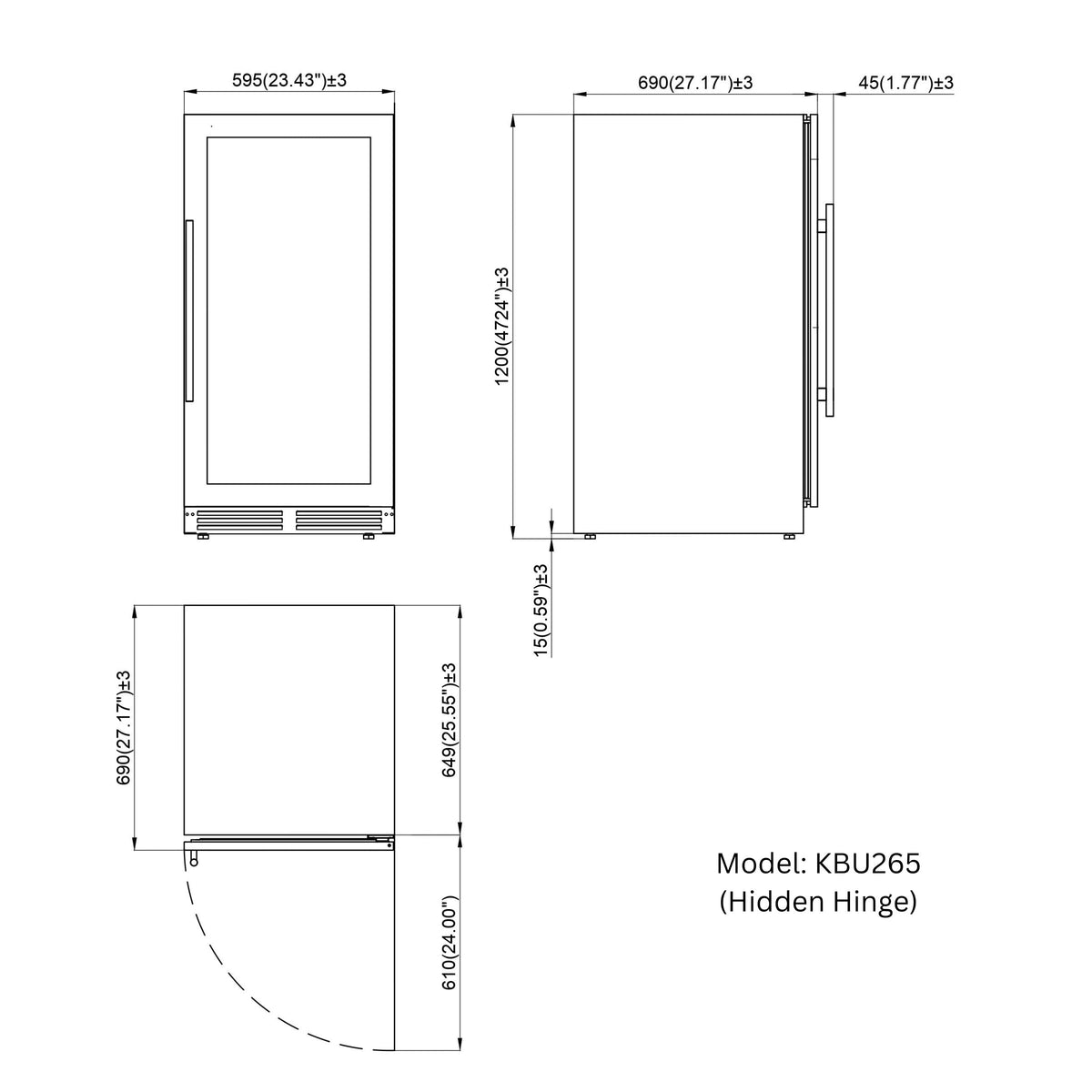

Dimensions
- Width: 23.43 inches
- Depth: 27.56 inches
- Height: 47.24 inches
- Metric Dimensions: 595 W × 700 D × 1200 H mm
Installation Notes
Install the refrigerator on a level surface and position it according to the manufacturer's specified installation dimensions. The front-venting system supports built-in installation without rear clearance required for operation.
Additional space is recommended to facilitate installation, maintenance access, ventilation efficiency, and full door and shelf operation.
For built-in installations, ensure that the unit is properly aligned and that the door can open fully without interference from surrounding cabinetry.
Care & Maintenance
Clean the interior and exterior surfaces regularly using suitable non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's care and maintenance recommendations.
Avoid unnecessarily frequent or prolonged door openings to help maintain the selected temperatures within each cooling zone.
Warranty
The listed KBU265DX-FG HYBRID configuration includes a 2-year warranty. Optional 3-year and 5-year warranty extensions are also available.
What's Included
- KingsBottle KBU265DX-FG HYBRID 47-Inch Upright Dual-Zone Wine & Beverage Center
- Adjustable shelving system
- Low-E glass door
- Dual-zone temperature control
- Integrated cooling system
Product Specifications at a Glance
| Model | KBU265DX-FG HYBRID RHH |
| Product Type | 47-Inch Upright Dual-Zone Wine & Beverage Center |
| Configuration | Upright, Dual Zone |
| Total Capacity | 9.36 cu. ft. / 265 L |
| Wine Bottle Capacity | Up to 51 bottles |
| Can Capacity | Up to 108 cans |
| Upper Zone | 35°F to 54°F (2°C to 12°C) |
| Lower Zone | 54°F to 68°F (12°C to 20°C) |
| Temperature Zones | 2 |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Door Type | Low-E Glass |
| Door Style | Borderless Black Glass |
| Installation | Built-In or Freestanding |
| Ventilation | Front Venting |
| Dimensions | 23.43" W × 27.56" D × 47.24" H |
| Weight | 76 lb |
| Noise Level | 42 dB |
| Energy Consumption | 189 kWh/year |
| Electrical | 110–115V / 60Hz |
| Defrost | Automatic |
| Warranty | 2 Years |
