The KingsBottle 47-Inch Upright Dual-Zone Wine & Beverage Center provides organized refrigerated storage for wine and beverages in a full-height configuration. Its independently controlled zones allow wine and beverages to be stored separately within the same cooling system, while Low-E glass doors provide visibility into the contents.
This product is supplied as a set of two matching units that can be positioned side-by-side for a larger combined installation or used separately. The system is designed for residential and light commercial applications where expanded wine and beverage storage is needed.
Key Features
- Dual-zone temperature control
- 99-bottle capacity
- 389-can capacity
- 18.72 cu. ft. (530 L) total volume
- 9.36 cu. ft. (265 L) per unit
- Set of two matching units
- Use side-by-side or separately
- Low-E glass doors
- Adjustable shelving system
- Embraco inverter compressor
- Compressor cooling with forced-air convection
- Automatic defrost
- Front-venting design
- Built-in or freestanding installation
Dual-Zone Temperature Control

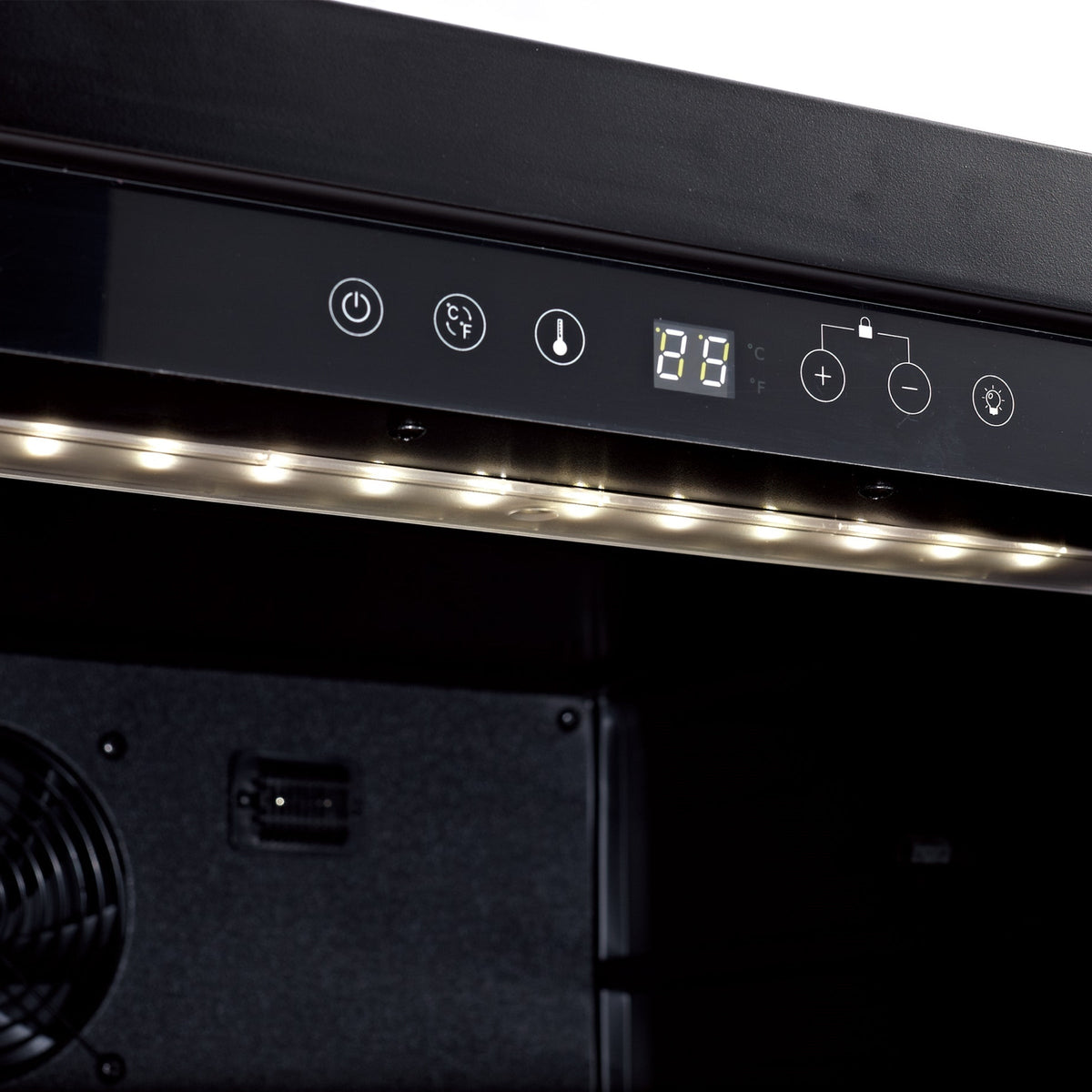

The independently controlled cooling zones provide separate storage areas for wine and beverages. The manufacturer specifies an overall temperature range of 35°F to 68°F (2°C to 20°C).
Wine and Beverage Storage

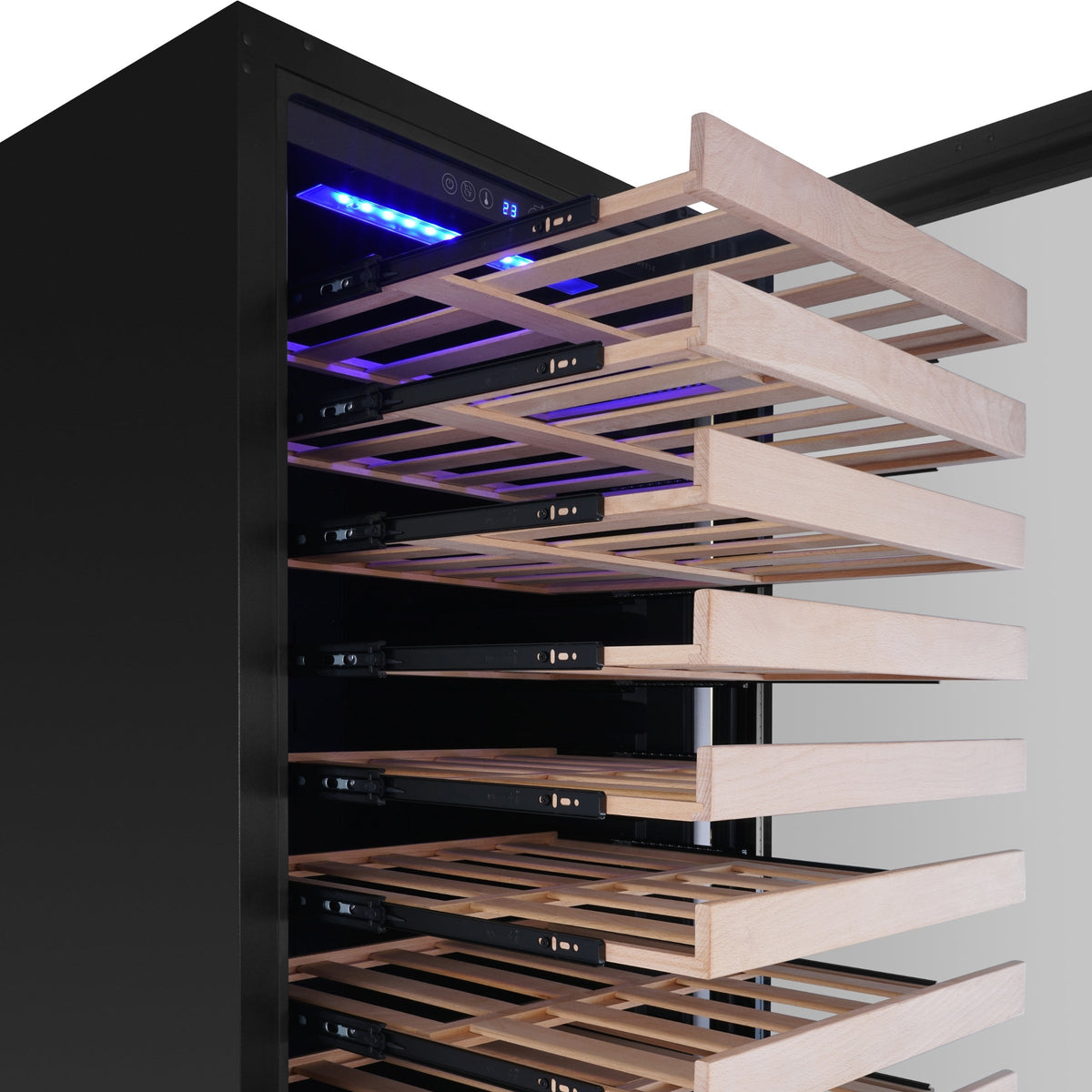

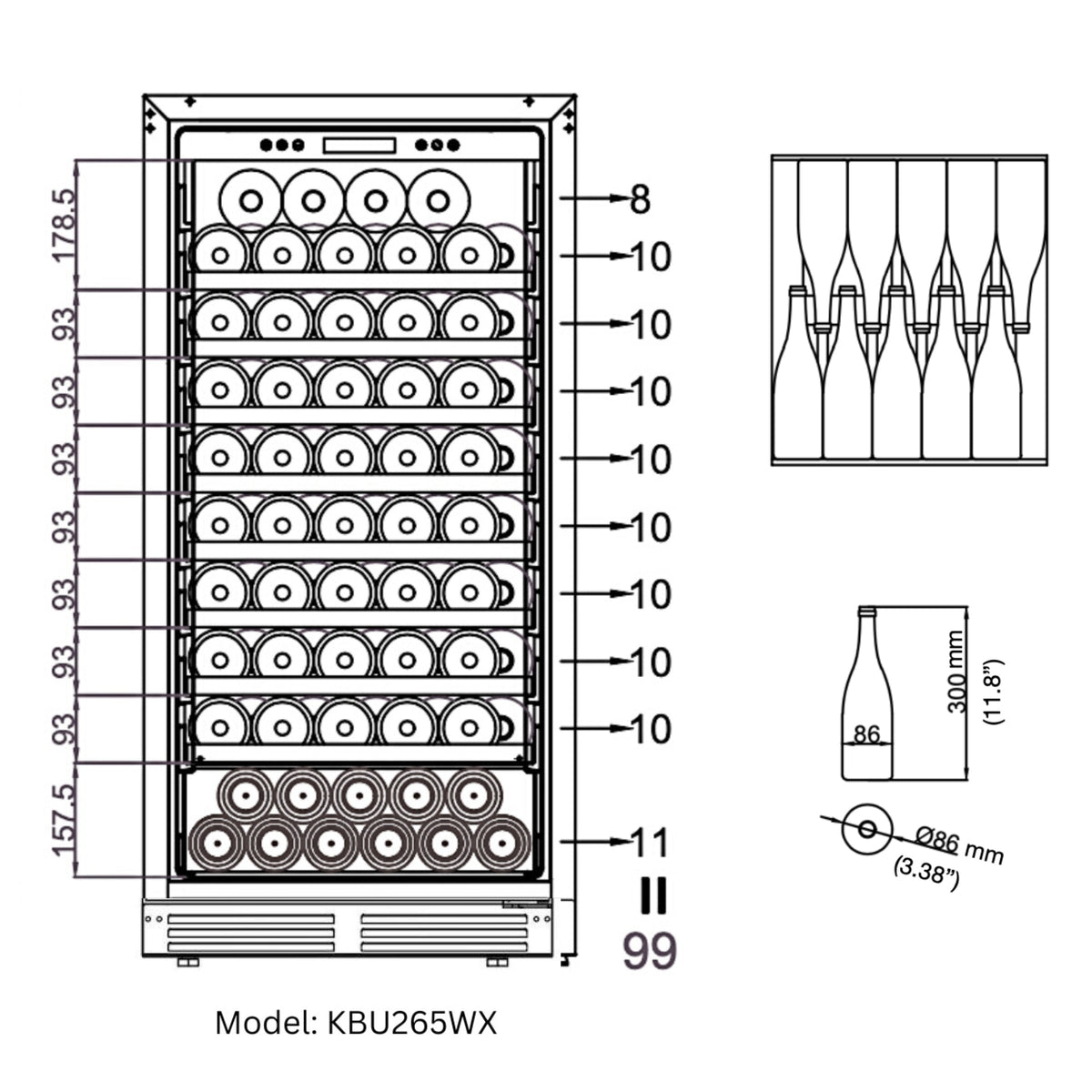

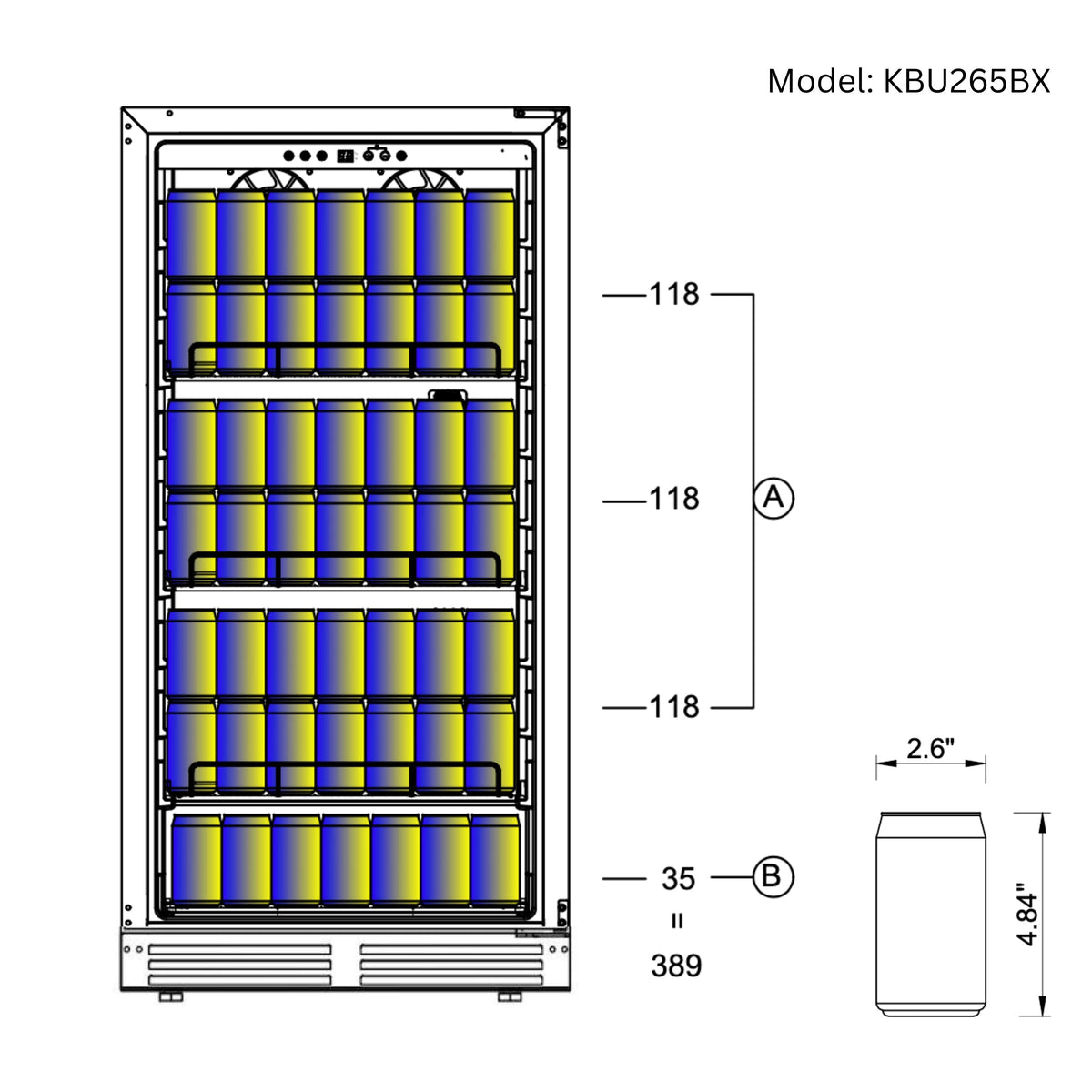

The two-unit configuration provides a combined capacity of up to 99 wine bottles and 389 beverage cans. Adjustable shelving allows the interior to be arranged for different bottle and can sizes.
Low-E Glass Doors

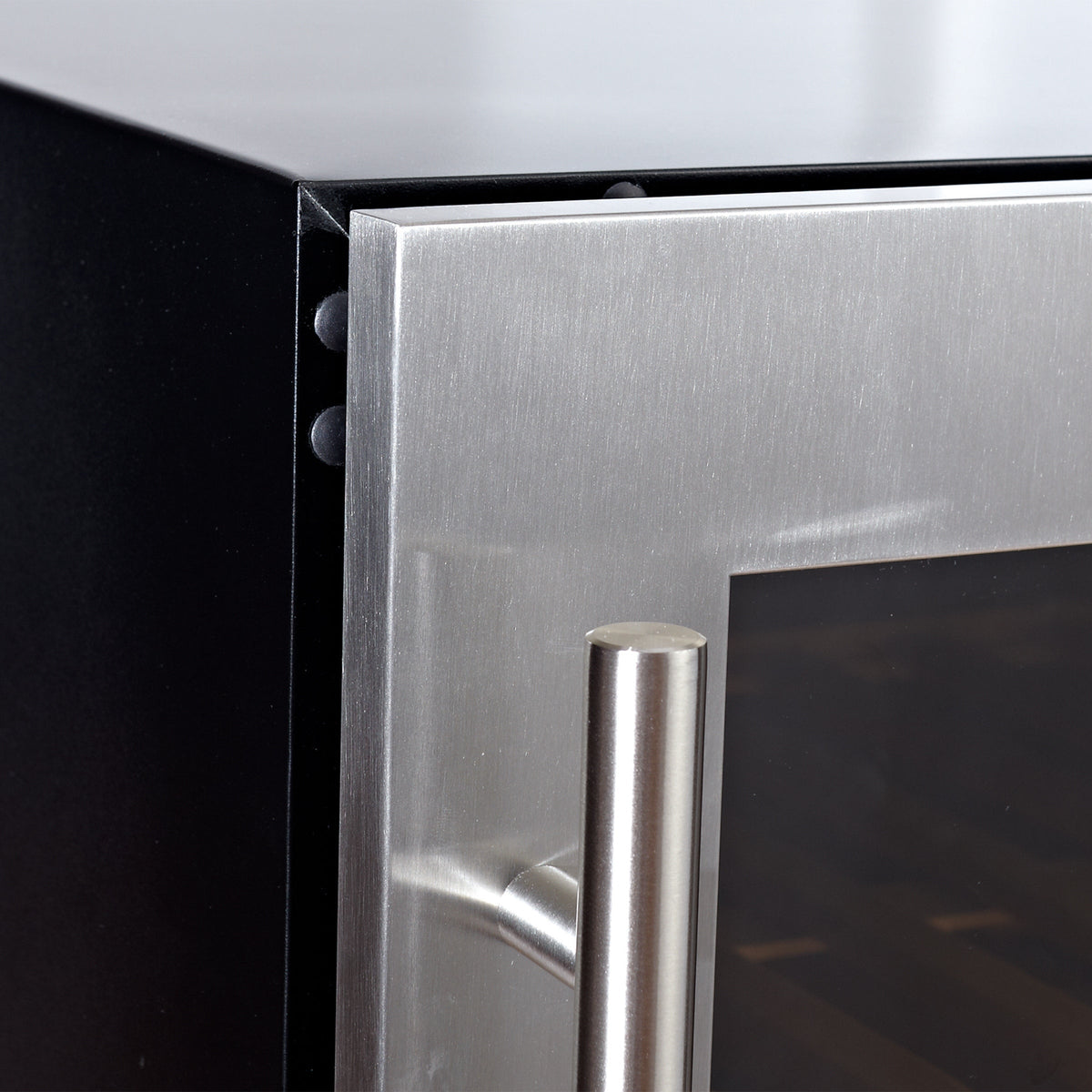

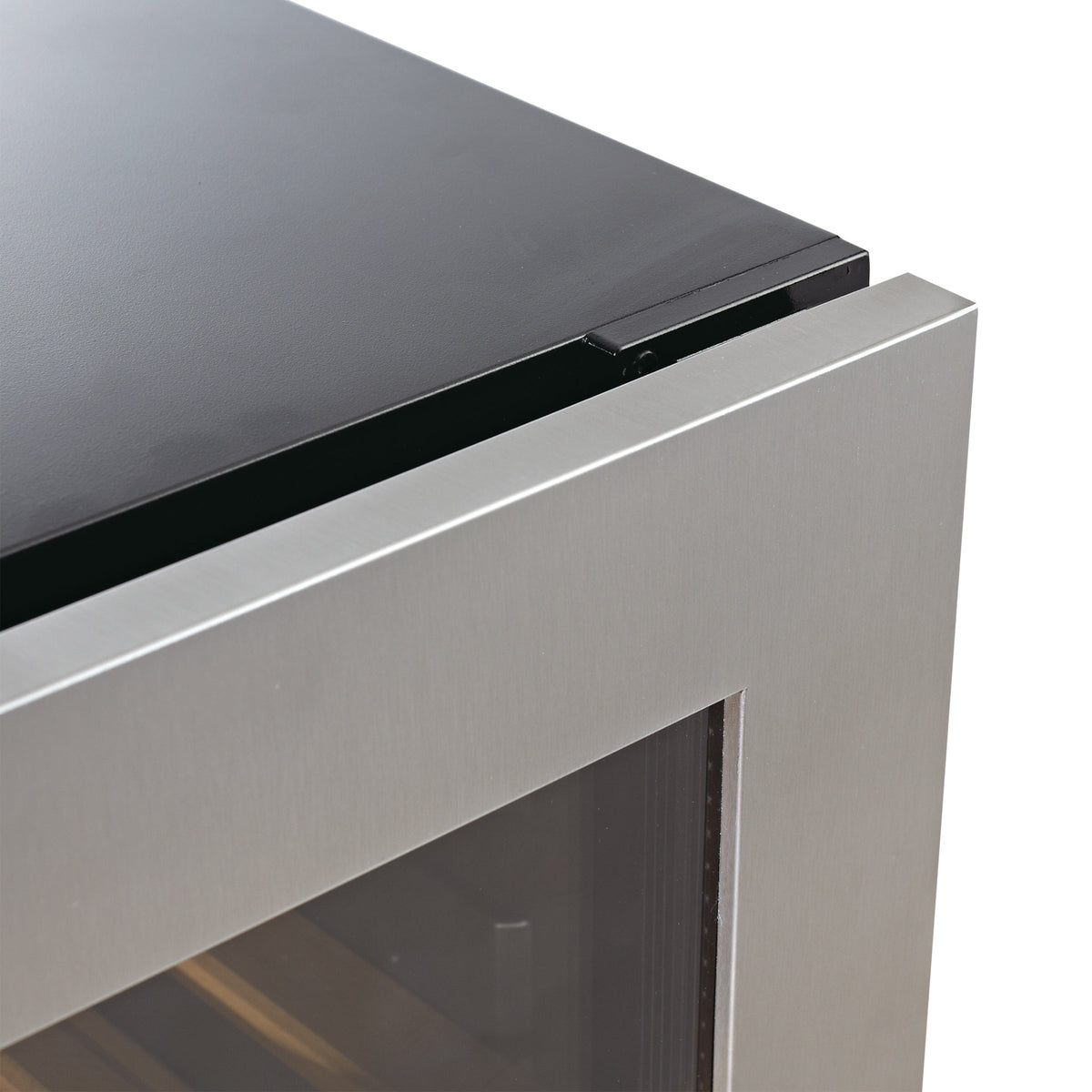

The Low-E glass doors are designed to reduce condensation while improving insulation and maintaining visibility of the refrigerated contents. The glass-door presentation also provides a convenient way to view stored bottles and beverages.
Two-Unit Configuration
The product is supplied as a set of two units. The units may be installed side-by-side for a larger integrated storage solution or positioned separately when a more flexible arrangement is preferred.
Cooling System
Each unit uses an Embraco inverter compressor with compressor cooling and forced-air convection. Automatic defrost is included for routine operation.
Built-In or Freestanding Installation
The units support both built-in and freestanding installation. Front ventilation allows the system to be integrated into suitable cabinetry without requiring rear clearance for operation.
Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. Follow the manufacturer's installation documentation for positioning and clearance requirements.
Specifications
| Product | 47-Inch Upright Dual-Zone Wine & Beverage Center |
| Model | KBU265BW2-SS |
| Configuration | Set of two units |
| Total Volume | 18.72 cu. ft. / 530 L |
| Volume Per Unit | 9.36 cu. ft. / 265 L |
| Bottle Capacity | 99 bottles |
| Can Capacity | 389 cans |
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32°F to 100°F (0°C to 38°C) |
| Door Type | Low-E Glass |
| Defrost | Automatic |
| Noise Level | 42.0 dB |
| Energy Consumption | 371 kWh/year |

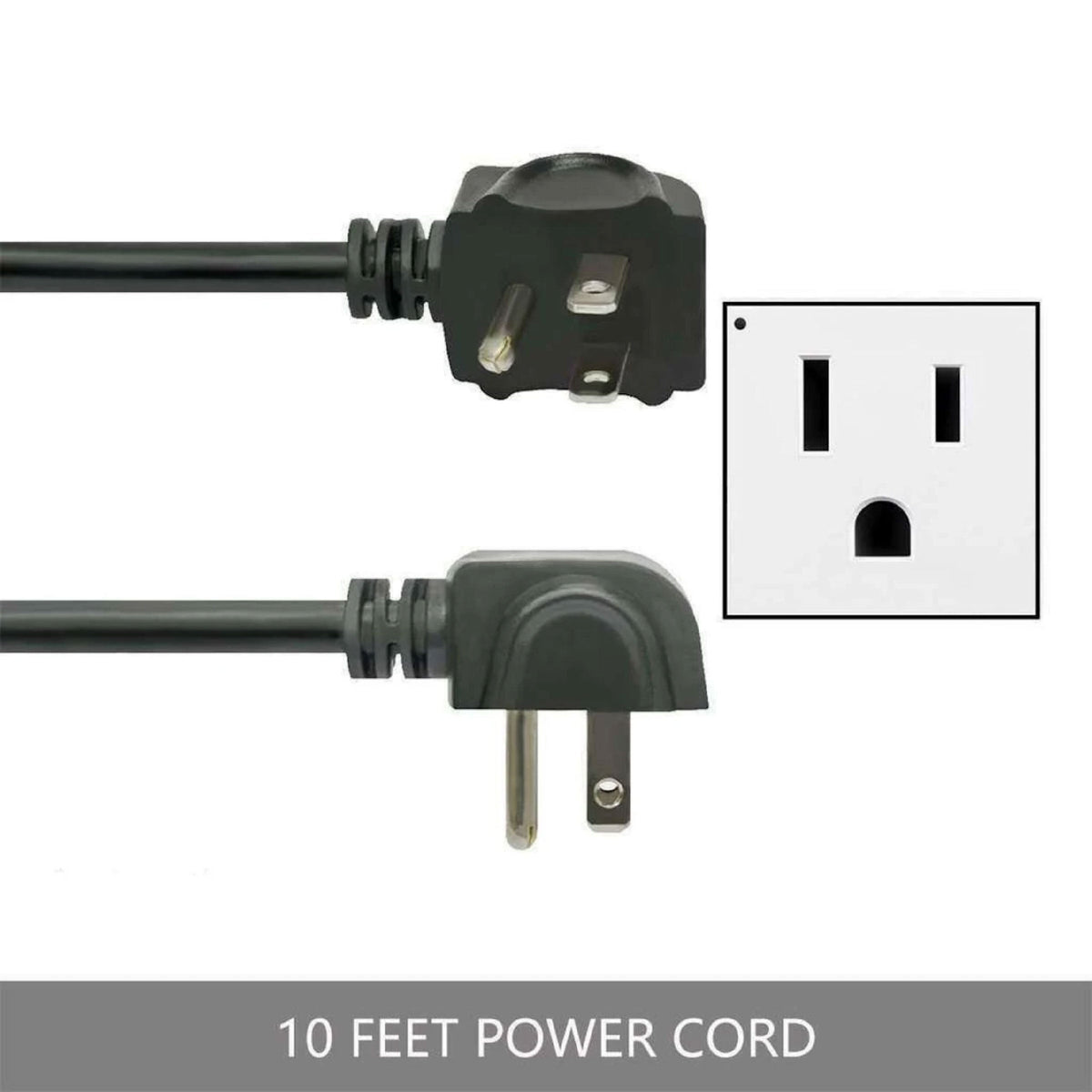

| Electrical Requirements | 110–115V / 60Hz |
| Weight | 152 lb |

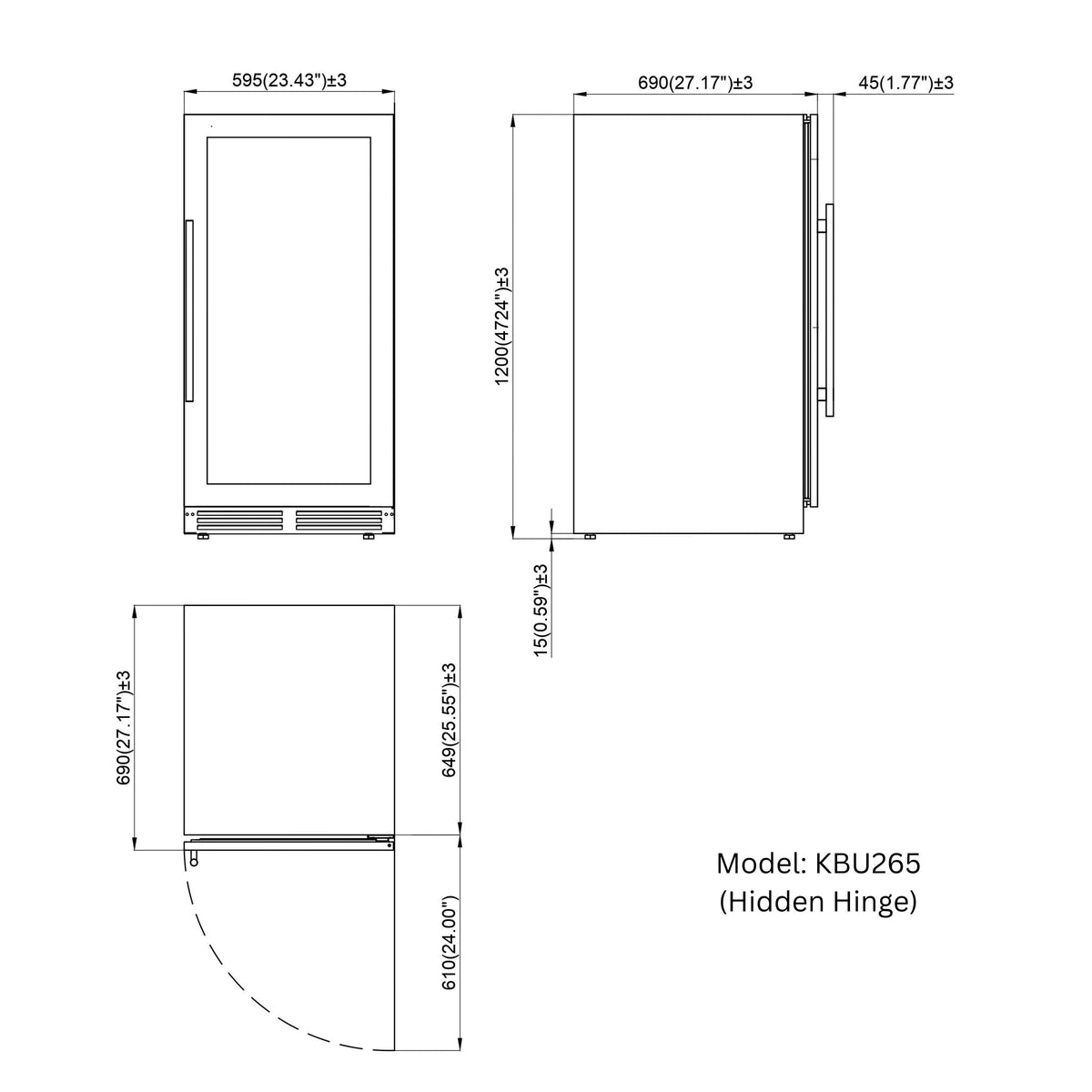

| Dimensions | 46.85" W × 27.56" D × 47.24" H |
| Installation Type | Built-In or Freestanding |
| Ventilation | Front Venting |

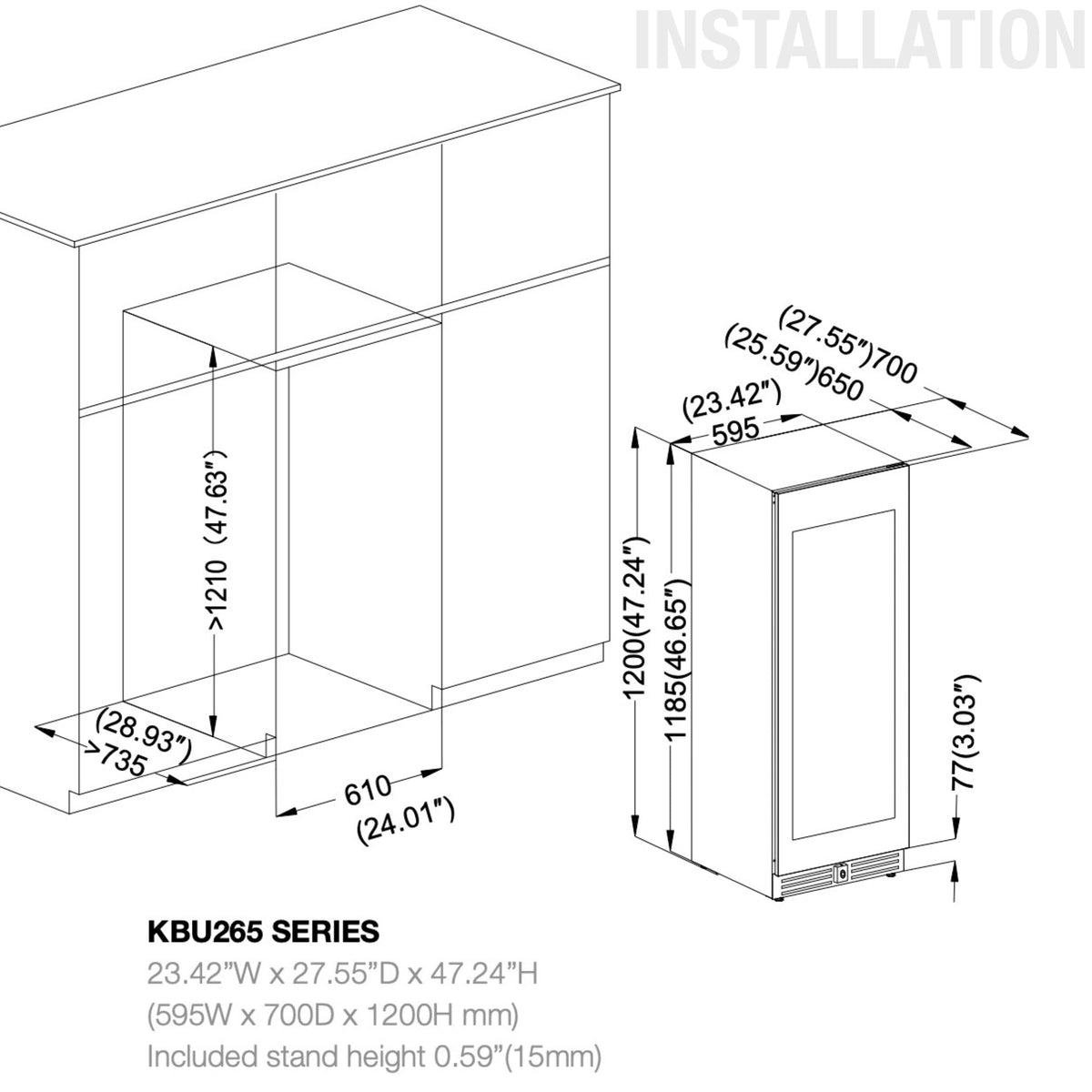

Installation Considerations
- Install the units on a level surface.
- Follow the manufacturer's installation diagram for positioning and cutout requirements.
- Front ventilation supports built-in installation.
- No rear clearance is required for normal operation.
- Additional space is recommended for installation, ventilation efficiency, and maintenance access.
- When installed between frameless cabinets, a 1/2-inch filler strip or side panel may be required on the hinge side for unobstructed door movement.
- Allow sufficient clearance for the doors and pull-out shelves to operate properly.
What's Included
- Two KingsBottle upright refrigeration units
- Dual-zone cooling configuration
- Low-E glass doors
- Adjustable shelving system
Designed for Wine and Beverage Storage
The 47-inch upright format provides substantial wine and beverage storage while maintaining separate temperature zones. Its full-height design works well for kitchens, entertainment areas, dedicated wine and beverage spaces, hospitality settings, and other residential or light commercial applications.
Warranty
A 2-year KingsBottle warranty is included with the standard configuration. Extended 3-year and 5-year warranty options are also offered by the manufacturer for an additional charge.
