The KingsBottle 47-Inch Upright Triple-Zone Wine & Beverage Center provides flexible refrigerated storage for wine and beverages in a compact upright configuration. With three independently controlled temperature zones, the system allows different wines and beverages to be organized according to their individual temperature requirements.
This configuration includes two matching refrigeration units that can be positioned side-by-side for a larger integrated setup or used separately. Low-E glass doors provide visibility into the contents while helping reduce condensation and improve insulation.
Key Features
- Triple-zone temperature control
- 91-bottle capacity
- 389-can capacity
- 18.72 cu. ft. (530 L) total volume
- 9.36 cu. ft. (265 L) per unit
- Set of two matching units
- Use side-by-side or separately
- Low-E glass doors

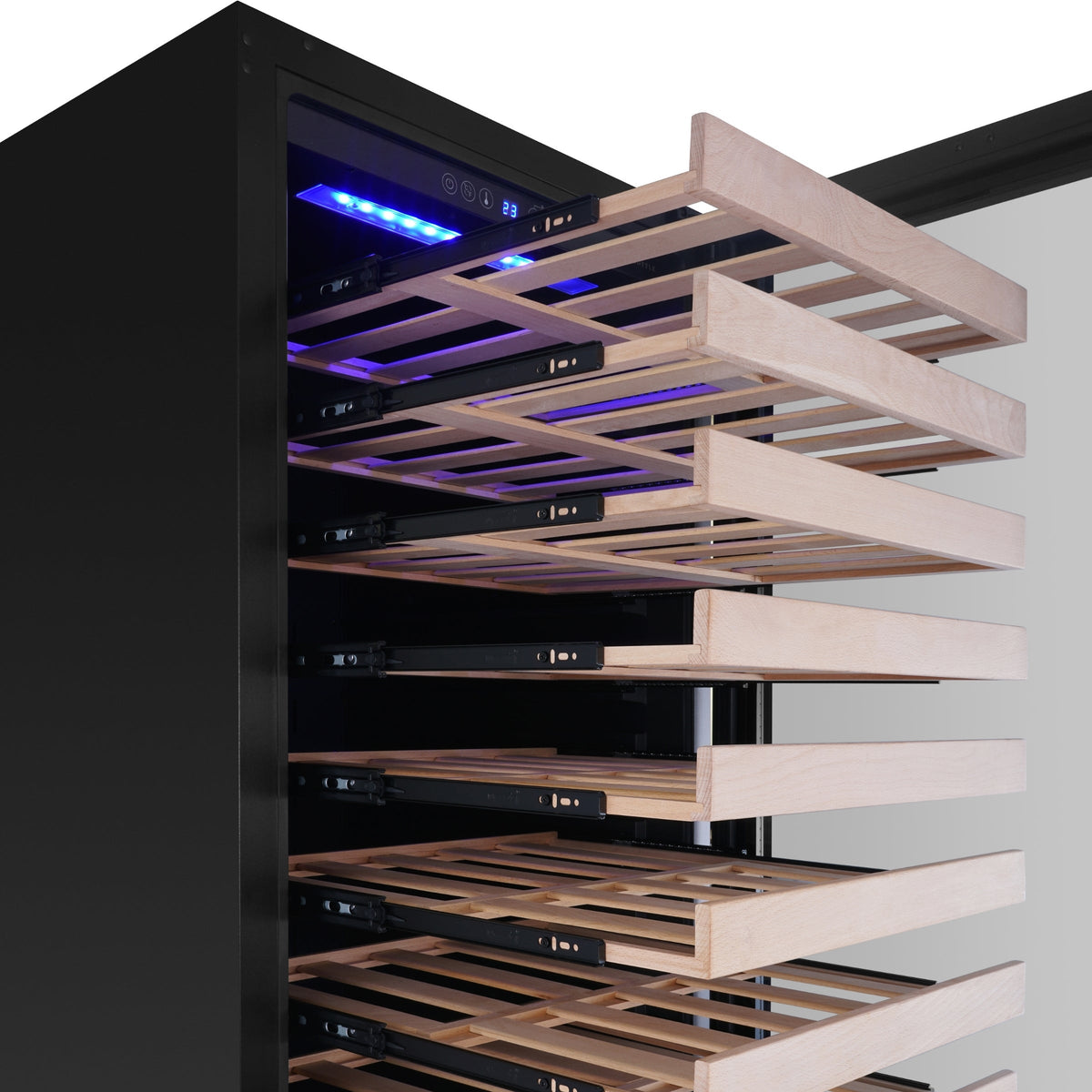

- Adjustable shelving system
- Embraco inverter compressor
- Compressor cooling with forced-air convection
- Automatic defrost
- Front-venting design
- Built-in or freestanding installation

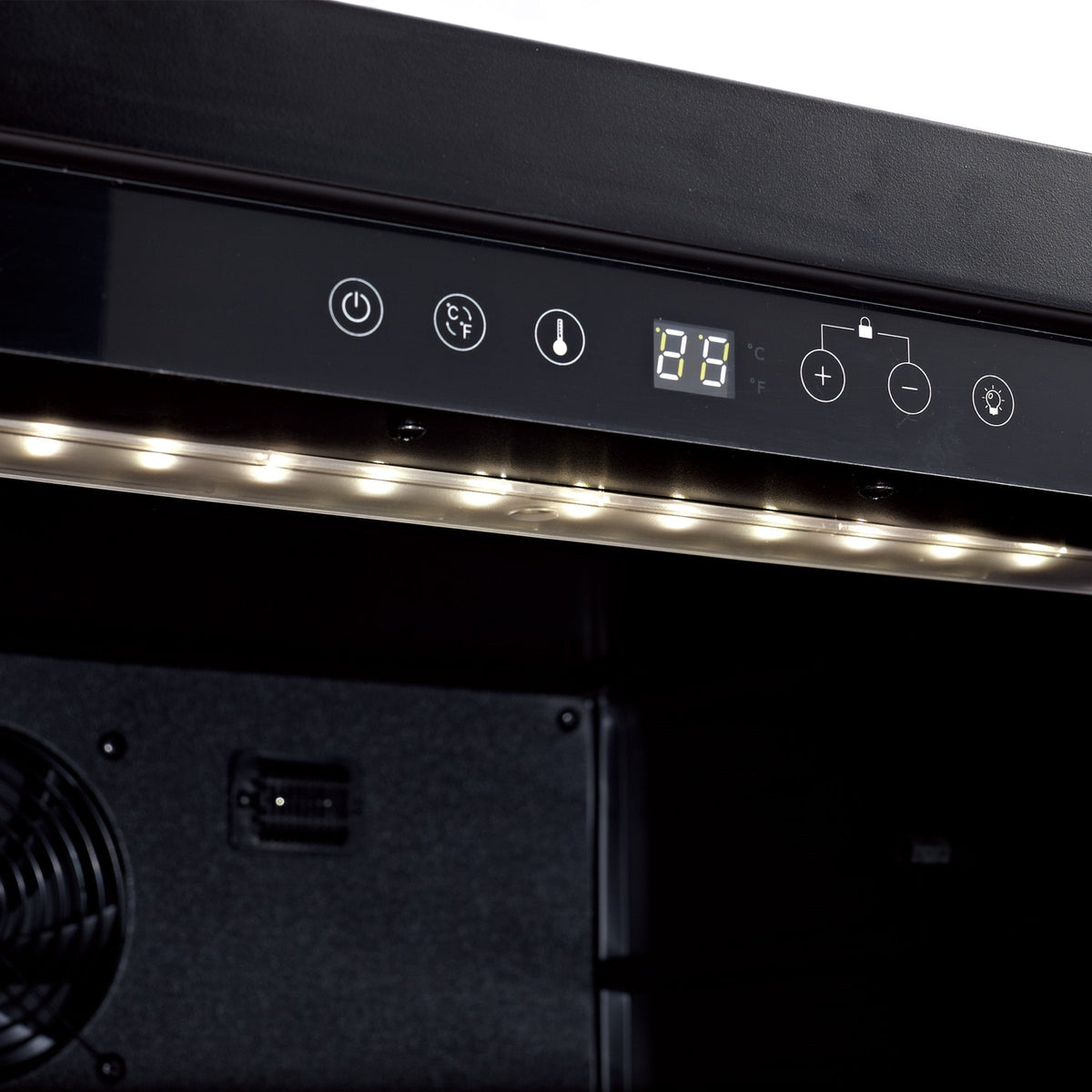

Triple-Zone Temperature Control
Three independently controlled temperature zones provide flexibility for storing different wines and beverages within the same overall system. The manufacturer specifies a temperature range of 35°F to 68°F (2°C to 20°C).
Wine and Beverage Storage

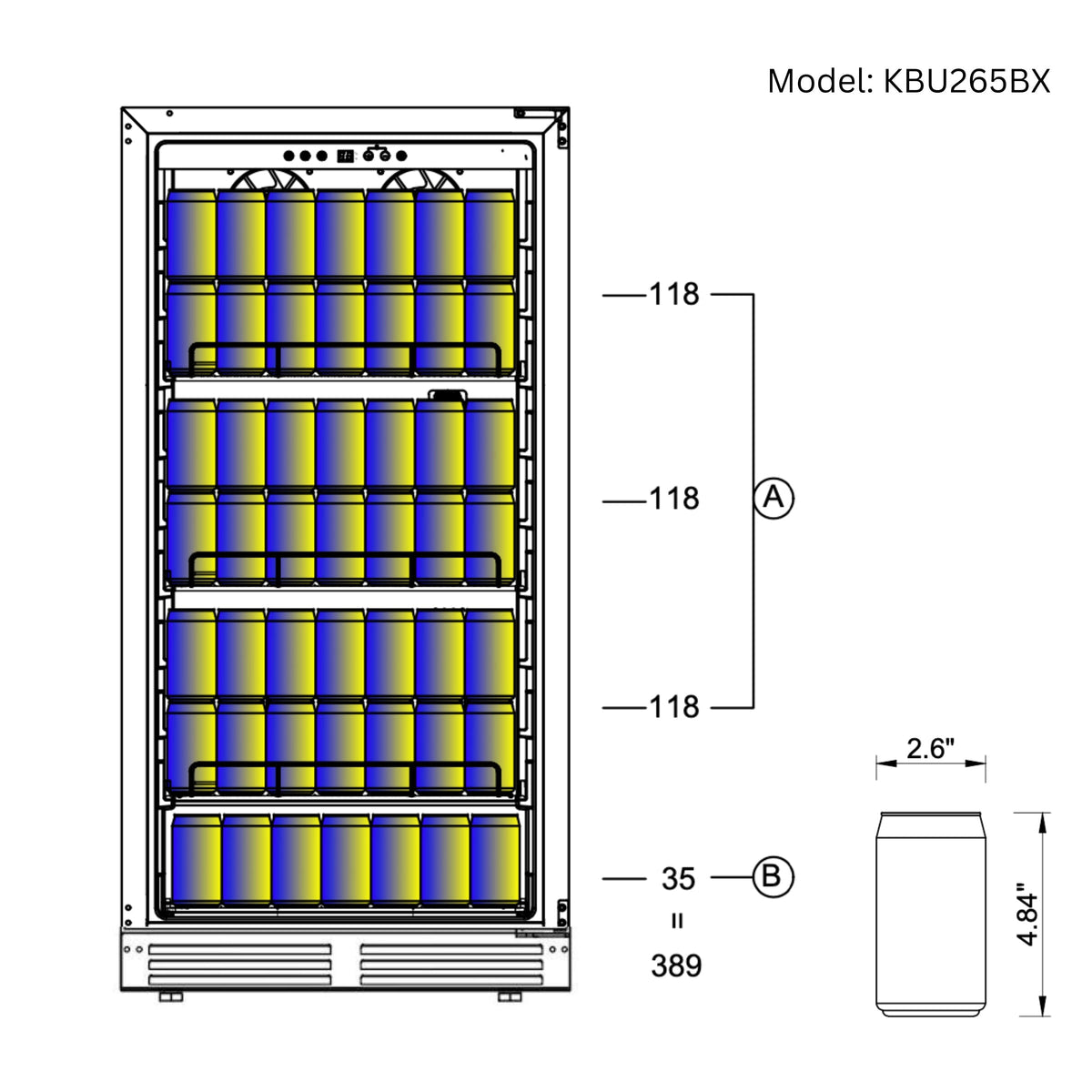

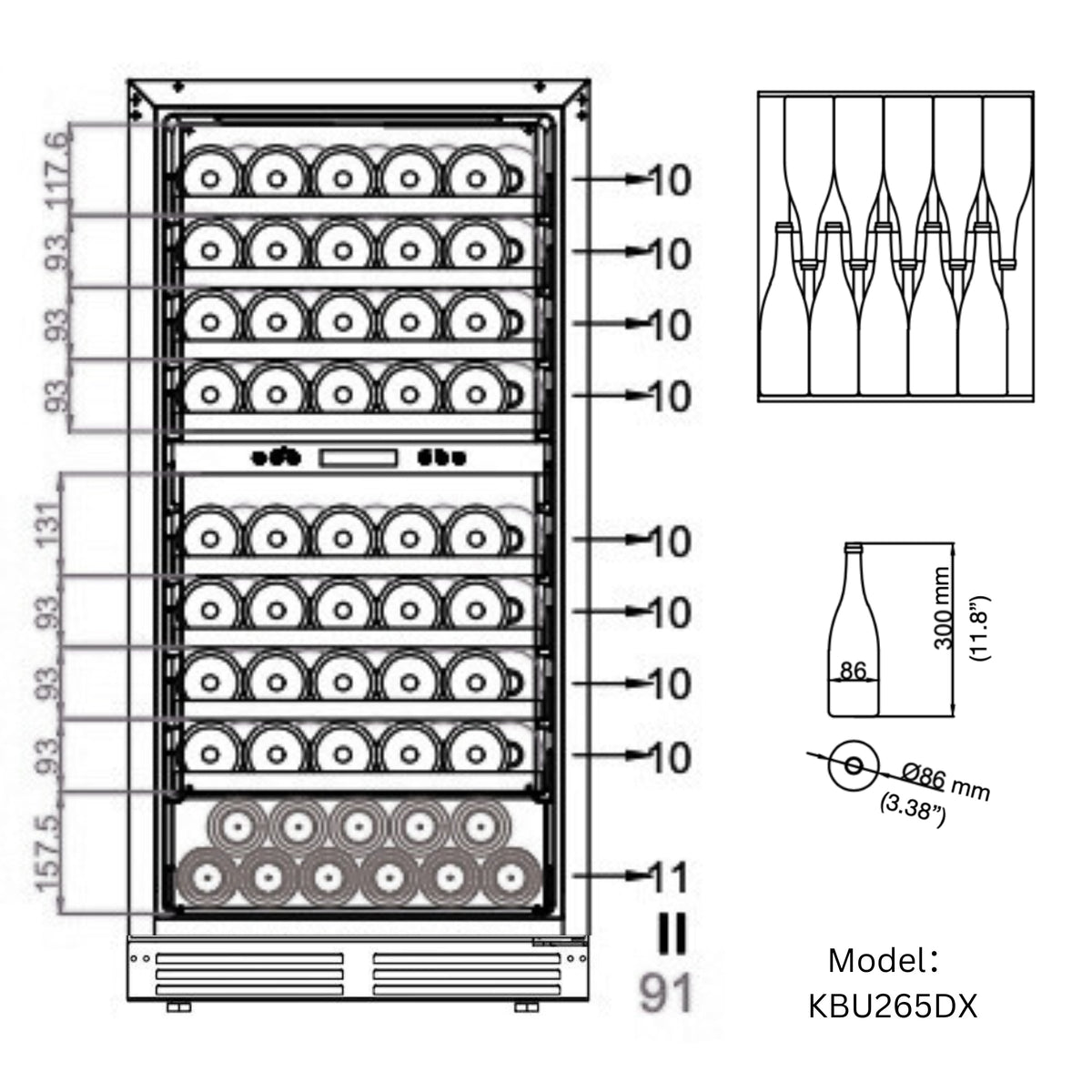

The two-unit system provides a combined capacity of up to 91 wine bottles and 389 beverage cans. Adjustable shelving helps organize different bottle and can sizes while maintaining convenient access to stored items.

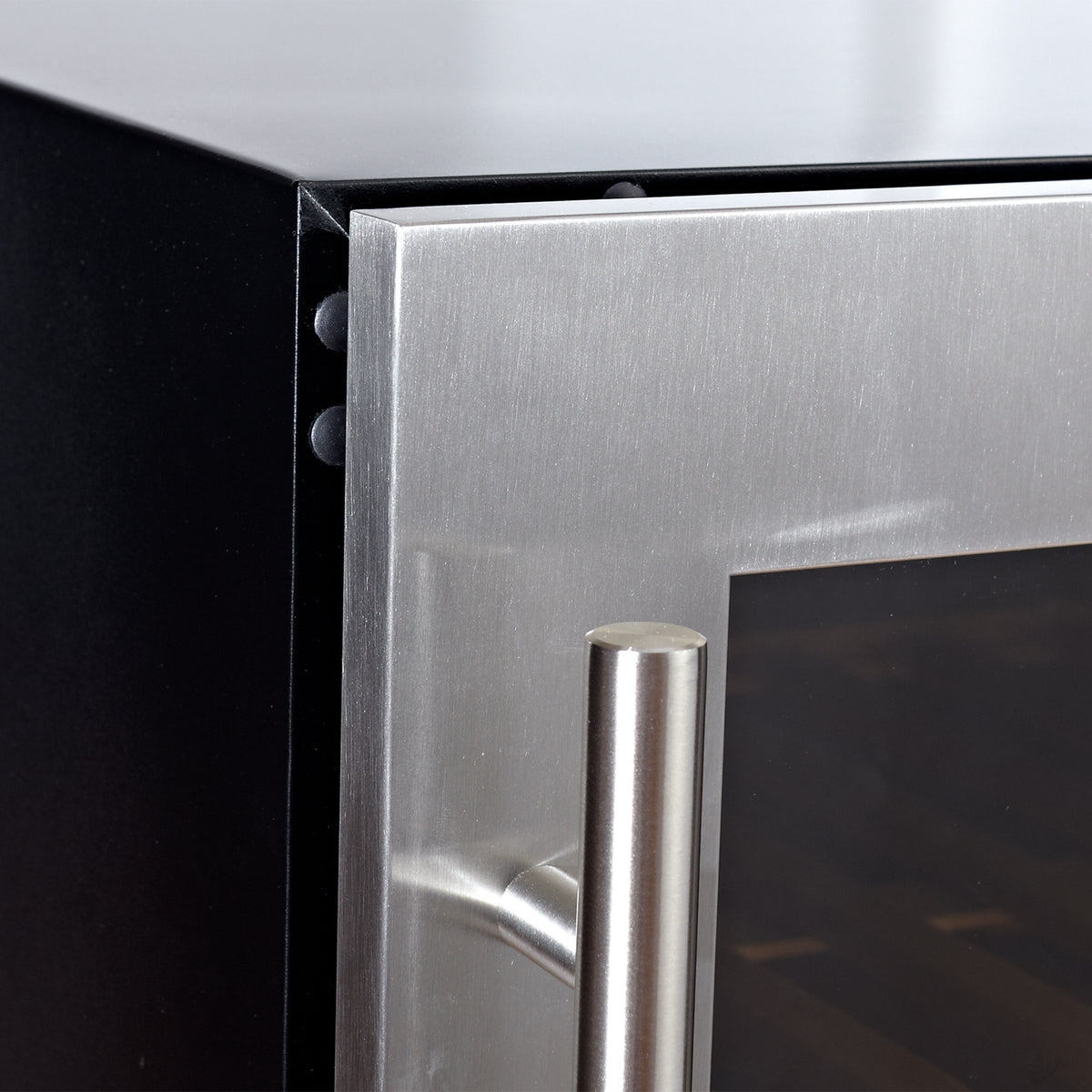

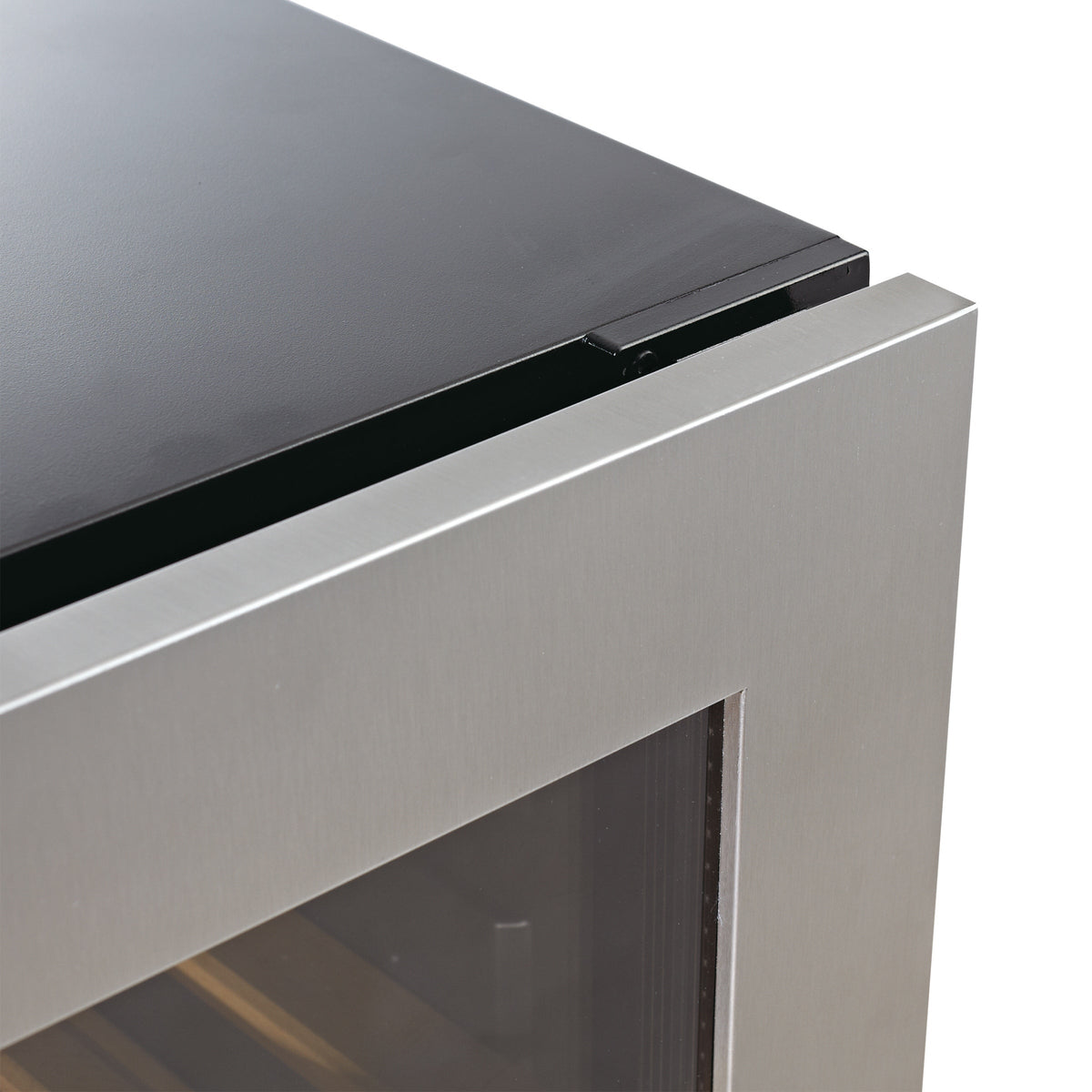

Low-E Glass Doors
The Low-E glass doors help reduce condensation and improve insulation while maintaining visibility of the refrigerated contents. The glass-door design also provides a clean presentation for wine and beverage collections.
Two-Unit Configuration
The product is supplied as a set of two units. They can be installed next to each other for a larger combined storage installation or positioned separately where the available space calls for a more flexible arrangement.
Cooling System
Each unit uses an Embraco inverter compressor with compressor cooling and forced-air convection. Automatic defrost is included for simplified day-to-day operation.
Built-In or Freestanding Installation
The units support both built-in and freestanding installation. Front ventilation allows the appliances to be integrated into suitable cabinetry without requiring rear clearance for normal operation.
Additional space is recommended for installation, ventilation efficiency, and maintenance access. Follow the manufacturer's installation documentation for the required positioning and clearances.
Specifications
| Product | 47-Inch Upright Triple-Zone Wine & Beverage Center |
| Model | KBU265BW3-FG |
| Configuration | Set of two units |
| Total Volume | 18.72 cu. ft. / 530 L |
| Volume Per Unit | 9.36 cu. ft. / 265 L |
| Bottle Capacity | 91 bottles |
| Can Capacity | 389 cans |
| Temperature Zones | Triple Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32°F to 100°F (0°C to 38°C) |
| Door Type | Low-E Glass |
| Defrost | Automatic |
| Noise Level | 42.0 dB |
| Energy Consumption | 382 kWh/year |
| Electrical Requirements | 110–115V / 60Hz |
| Weight | 152 lb |

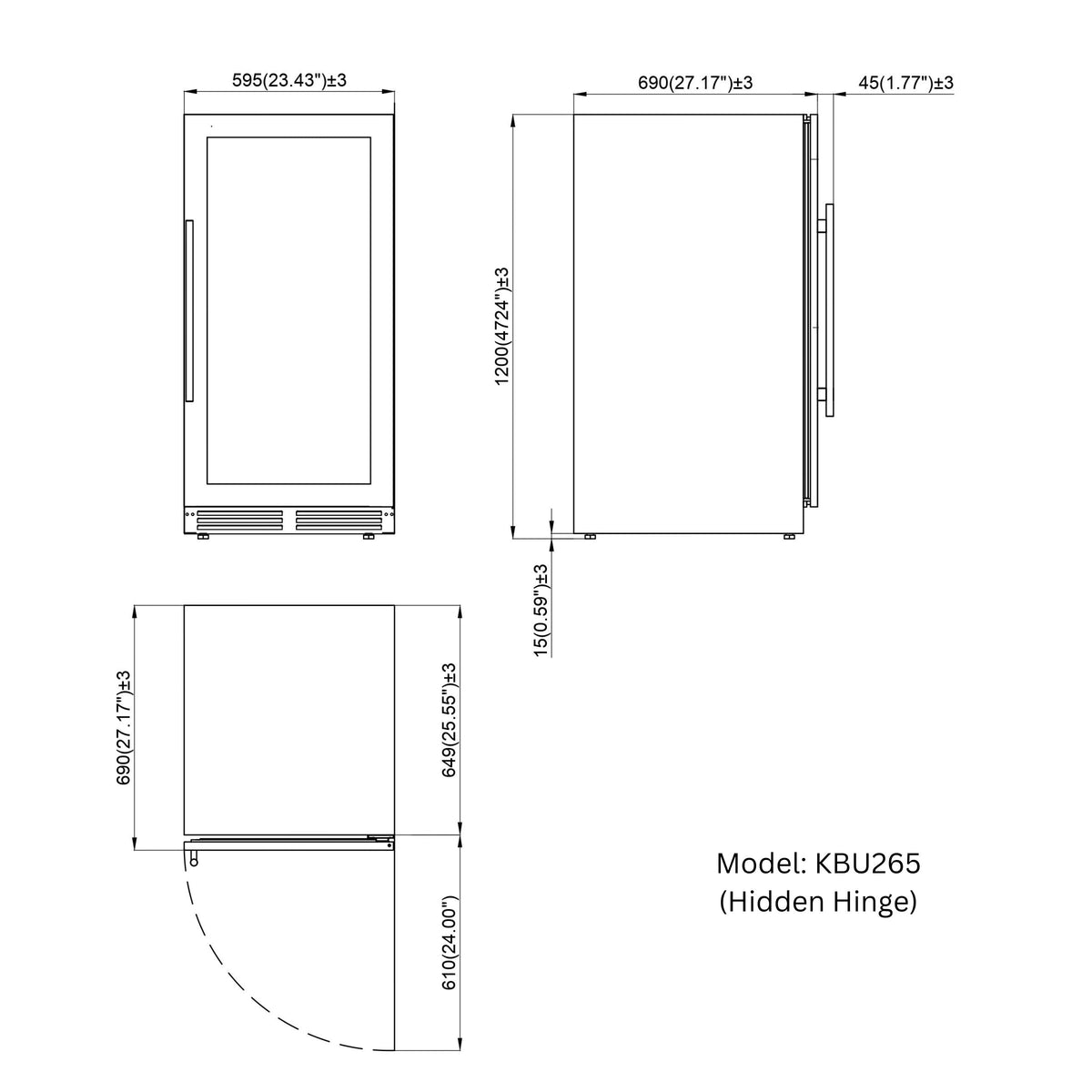

| Dimensions | 46.85" W × 27.56" D × 47.24" H |
| Installation Type | Built-In or Freestanding |
| Ventilation | Front Venting |

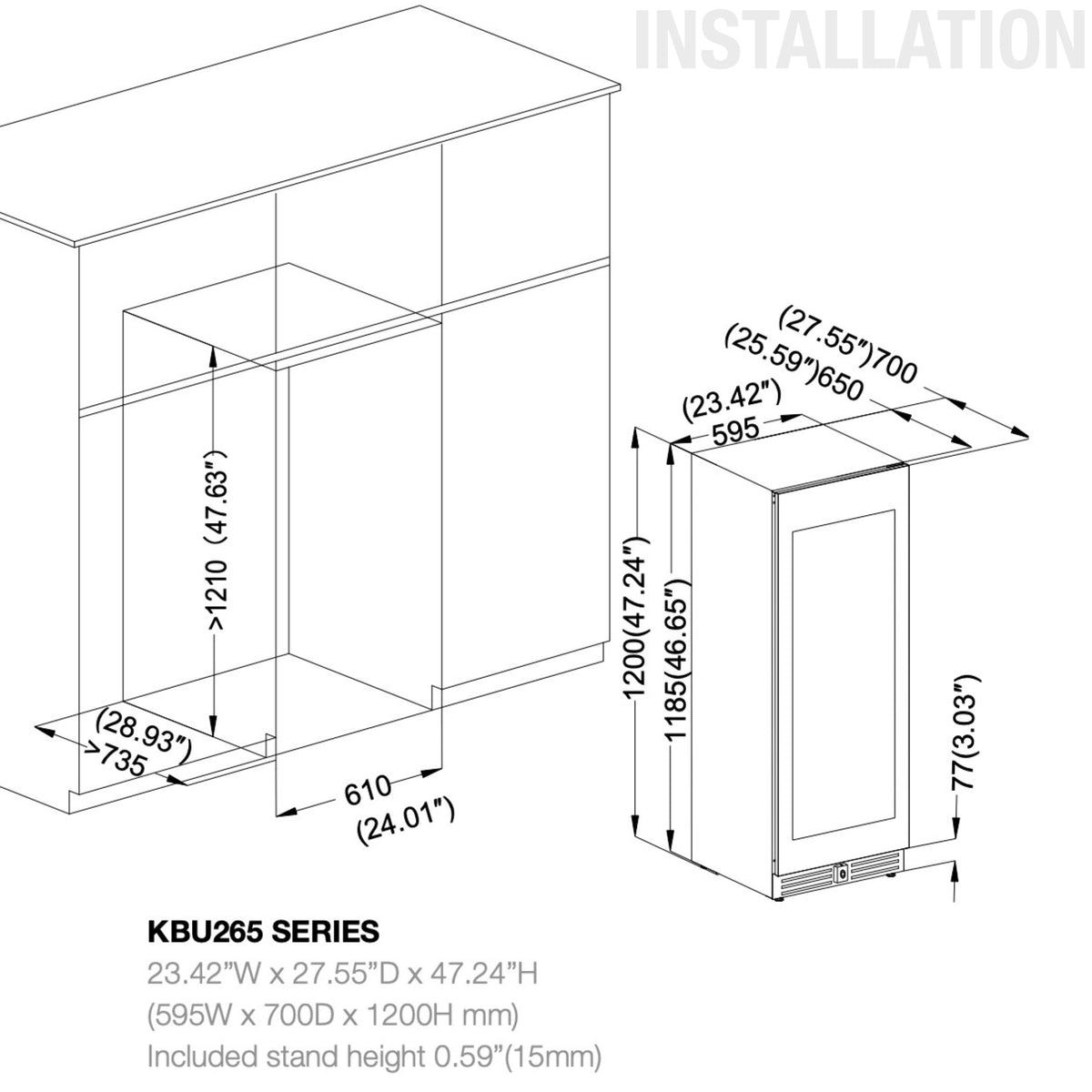

Installation Considerations
- Install on a level surface.
- Follow the manufacturer's installation diagram for positioning and cutout requirements.
- Front ventilation supports built-in installation.
- Additional space is recommended for installation, ventilation efficiency, and maintenance access.
- When installed between frameless cabinets, a 1/2-inch filler strip or side panel may be required on the hinge side for unobstructed door operation.
- Allow sufficient access for the doors and pull-out shelves to operate properly.
Designed for Wine and Beverage Storage
The upright configuration combines wine and beverage storage in one coordinated system while maintaining three temperature zones. Its 47-inch height makes it suitable for entertainment areas, dedicated refrigeration spaces, hospitality settings, and residential applications where organized wine and beverage storage is needed.
What's Included
- Two KingsBottle upright refrigeration units
- Triple-zone cooling configuration
- Low-E glass doors
- Adjustable shelving system
