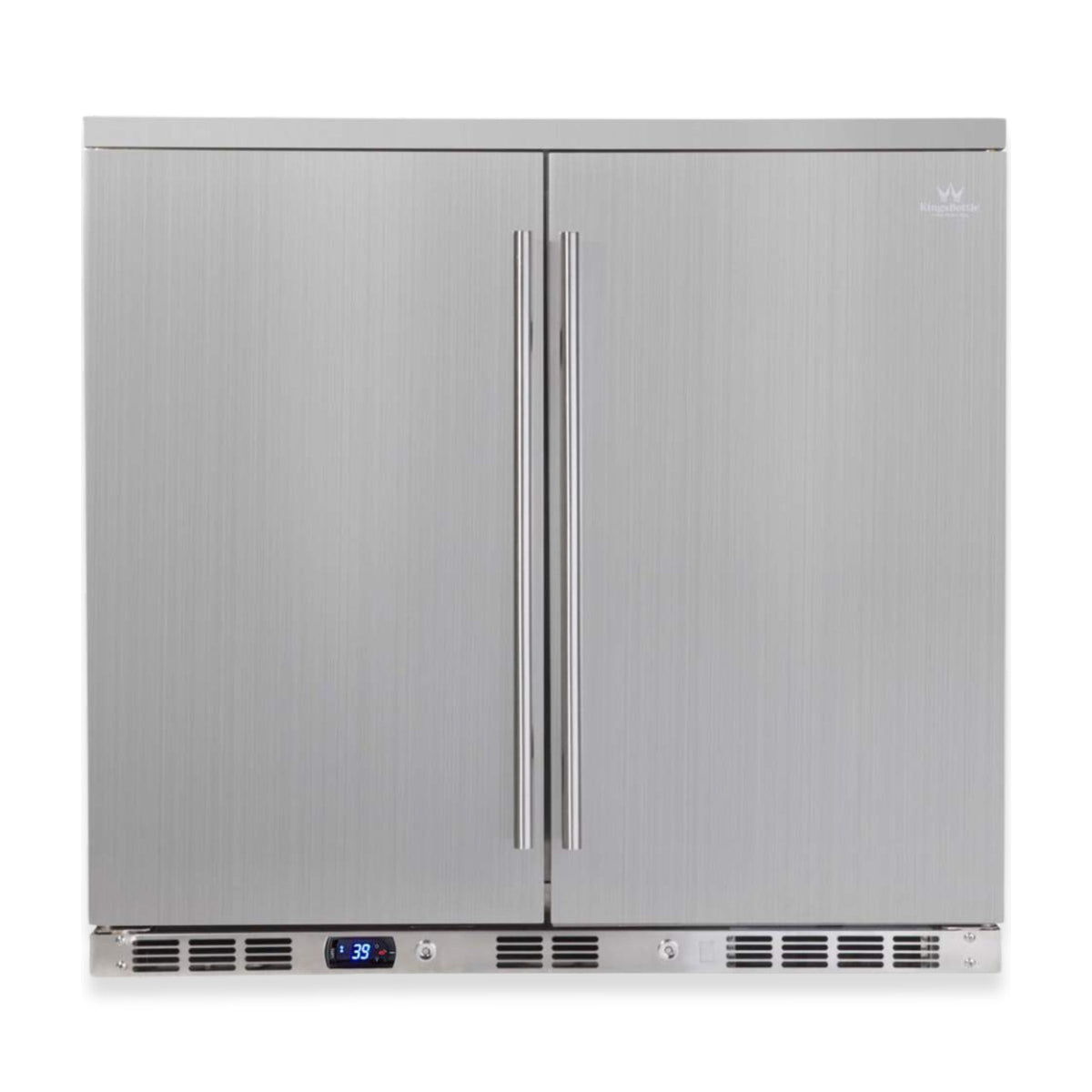

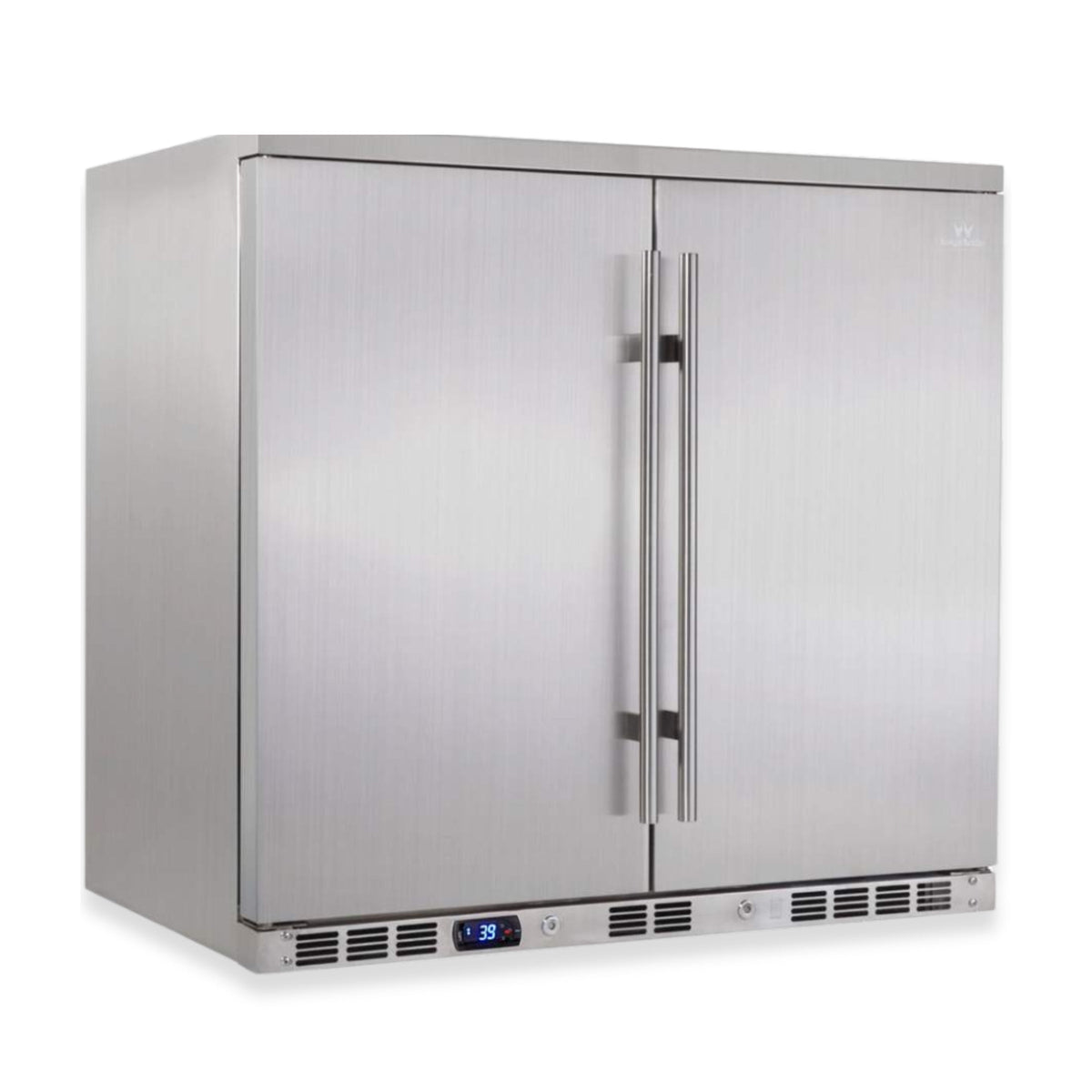

KingsBottle 36-Inch Outdoor Beverage Refrigerator

The KingsBottle 36-Inch Outdoor Beverage Refrigerator is designed for outdoor kitchens, patios, entertainment areas, and other covered outdoor installations that need convenient refrigerated beverage storage. With a 7.42 cu. ft. capacity, single-zone cooling, solid stainless steel doors, front ventilation, and an IP45 ingress protection rating, it provides organized storage for bottles and cans in a compact under-counter format.

Key Features

• Outdoor-Ready Design: Designed for outdoor beverage storage with an IP45 ingress protection rating.
• 7.42 Cu. Ft. Capacity: Provides 210 liters of refrigerated storage.
• Flexible Beverage Storage: Holds up to 120 bottles or 198 cans, depending on beverage size and shelf arrangement.
• Single-Zone Cooling: Adjustable temperature range from 32°F to 46°F (1°C to 8°C).
• Solid Stainless Steel Doors: Keeps stored beverages enclosed while providing a clean, durable appearance.
• Front-Venting Design: Supports built-in installation without requiring rear clearance for normal operation.
• Adjustable Shelving: Flexible shelf configuration accommodates different bottle and can sizes.
• Embraco Fixed-Speed Compressor: Uses compressor cooling with forced-air convection.
• White LED Interior Lighting: Provides visibility inside the beverage compartment.
• Automatic Defrost: Helps simplify routine maintenance.
• Lockable: Integrated locking provides controlled access to stored beverages.
• Built-In or Freestanding: Suitable for outdoor cabinetry or standalone placement.

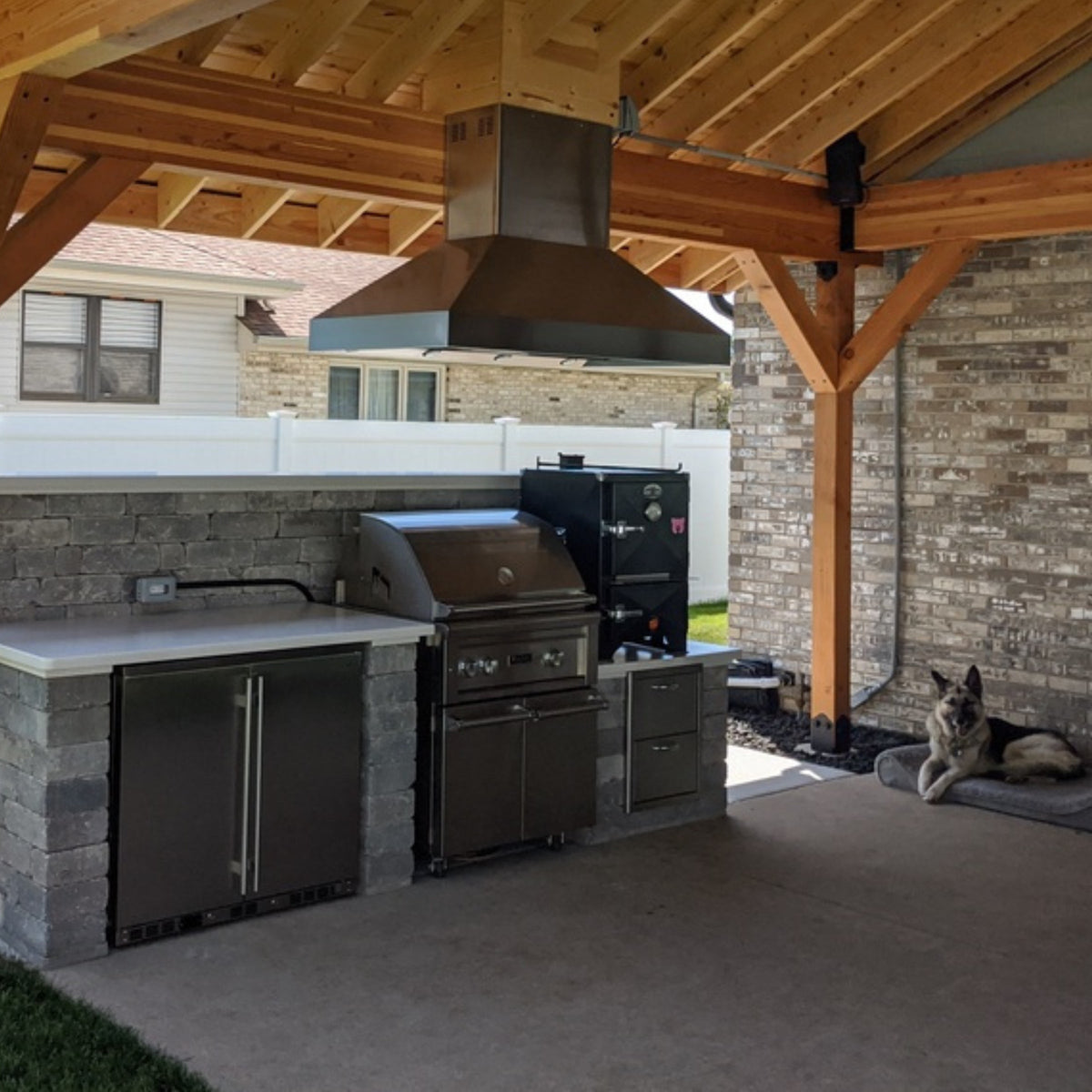

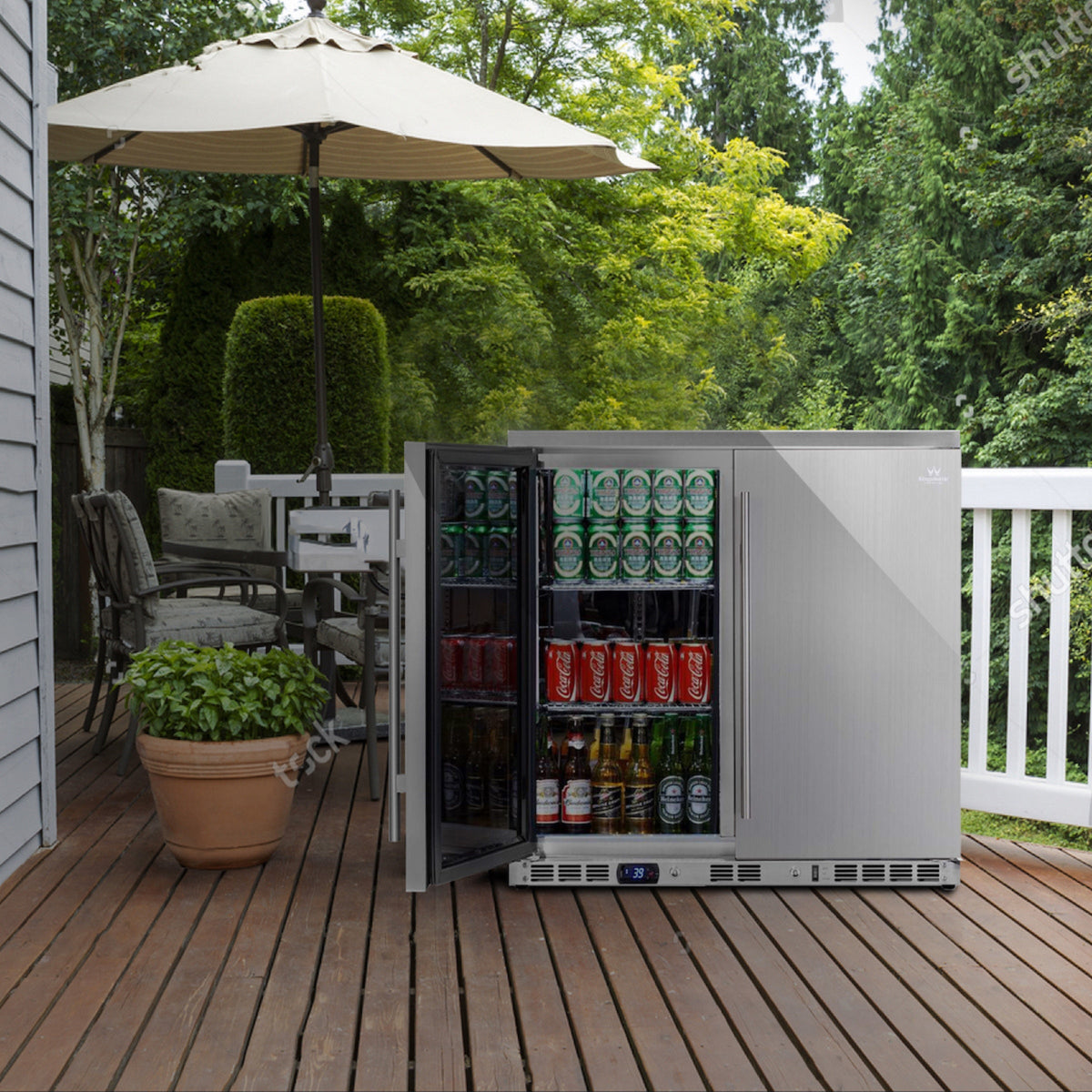

Outdoor Beverage Storage

The KBU56ASD is designed specifically for outdoor beverage storage applications. Its solid-door construction and IP45-rated design make it suitable for covered outdoor kitchens, patios, entertaining areas, and similar installations where a dedicated beverage refrigerator is needed.

The manufacturer recommends installing the refrigerator in a well-ventilated area and avoiding direct exposure to extreme weather conditions.

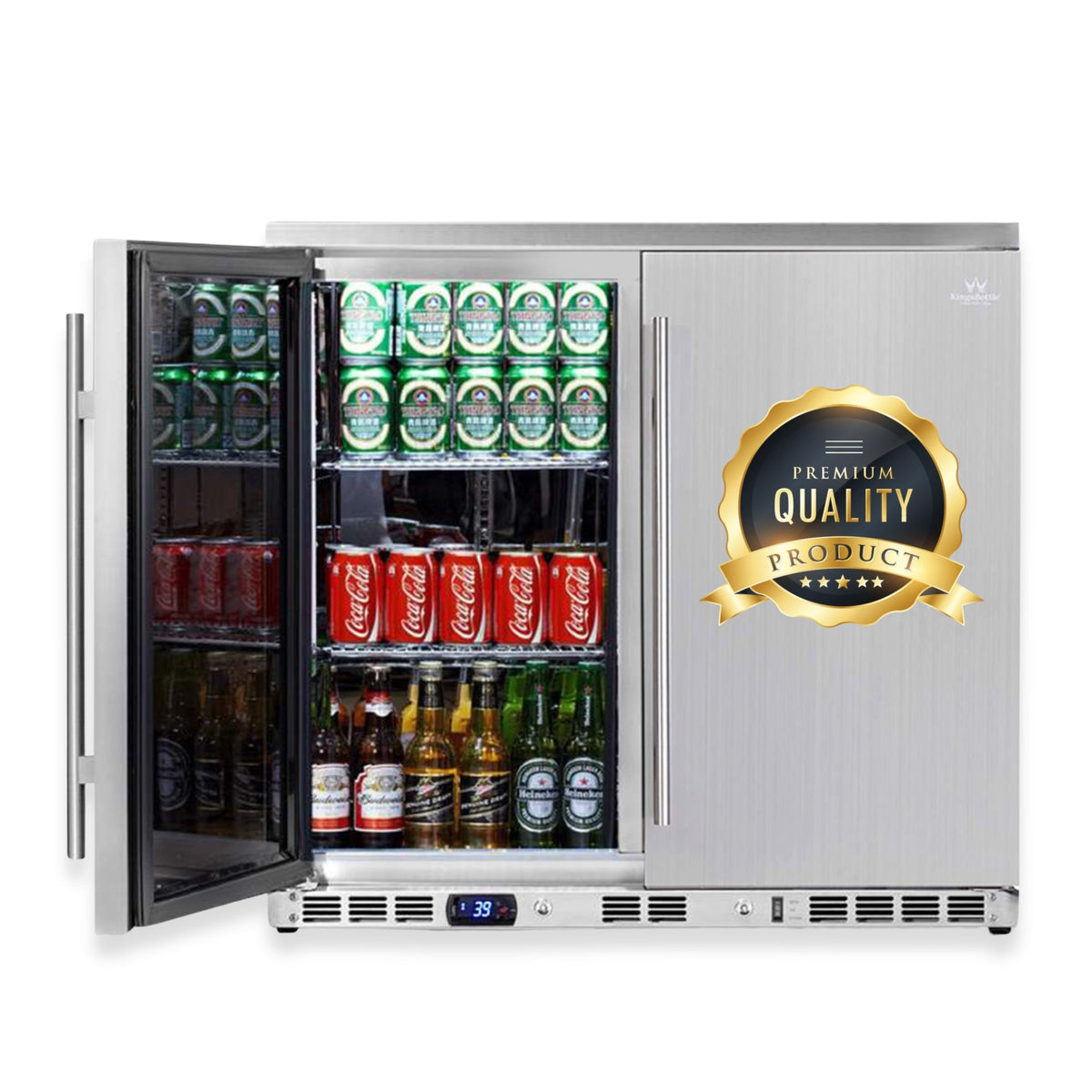

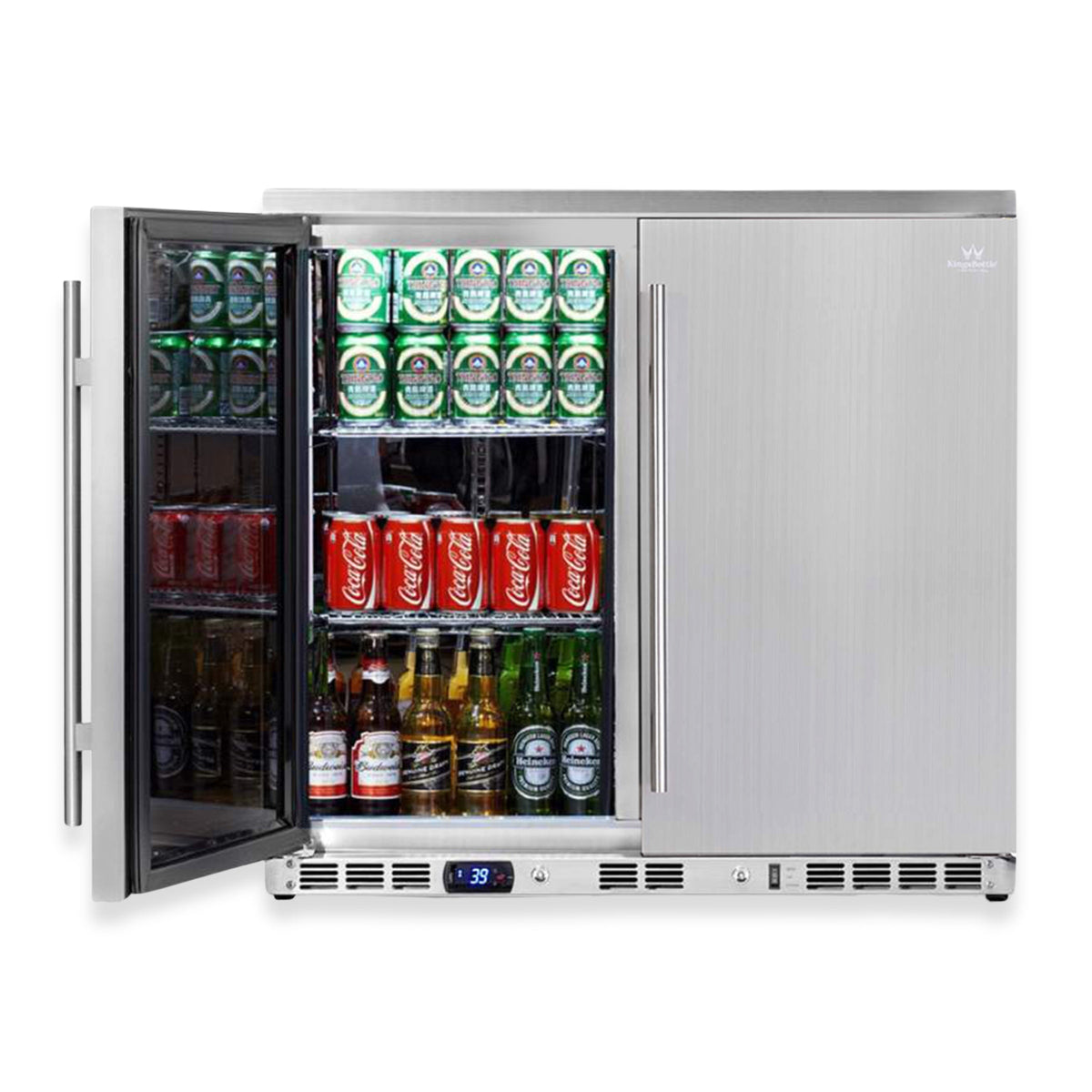

Large Storage in a Compact Footprint

With 7.42 cu. ft. of interior volume, the refrigerator provides space for up to 120 bottles or 198 cans. The actual storage capacity will vary depending on the size and arrangement of the beverages.

The adjustable shelving system allows the interior to be configured around different bottle and can formats, making it suitable for everyday beverage storage and entertaining.

Single-Zone Temperature Control

The refrigerator features a single temperature zone with an adjustable operating range of 32°F to 46°F (1°C to 8°C). The single-zone configuration provides one temperature setting throughout the refrigerated cabinet.

Actual internal temperatures may vary depending on ambient conditions, loading, door-opening frequency, and installation conditions.

Built-In or Freestanding Installation

The front-venting configuration allows the refrigerator to be installed within suitable outdoor cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding appliance.

For built-in installations, follow the manufacturer's specified cutout dimensions. Additional space is recommended to facilitate installation, ventilation efficiency, maintenance access, and full door operation.

When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.

Cooling Specifications

• Temperature Zones: Single zone
• Temperature Range: 32°F to 46°F (1°C to 8°C)
• Compressor: Embraco fixed-speed compressor
• Cooling System: Compressor cooling with forced-air convection
• Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
• Defrost: Automatic

Storage Capacity

• Total Volume: 7.42 cu. ft. / 210 L
• Bottle Capacity: Up to 120 bottles
• Can Capacity: Up to 198 cans
• Shelving: Adjustable

Outdoor Construction & Features

• Ingress Protection: IP45
• Door Type: Solid door
• Interior Lighting: White LED
• Door Lock: Yes
• Installation: Built-in or freestanding
• Ventilation: Front venting
• Noise Level: 42 dB
• Weight: 75 lb

Electrical Specifications

• Electrical Requirement: 110–115V / 60Hz
• Energy Consumption: 449 kWh/year

Dimensions

• Width: 35.43 inches
• Depth: 21.46 inches
• Height: 33.86 inches
• Metric Dimensions: 900 W × 545 D × 860 H mm

Installation Notes

Install the refrigerator on a level surface and position it according to the manufacturer's specified cutout dimensions. The front-venting design supports built-in installation without rear clearance required for operation.

For outdoor installations, choose a well-ventilated location and avoid placing the appliance where it will be directly exposed to extreme weather conditions. Ensure that the doors and pull-out shelves have sufficient clearance for normal use.

Care & Maintenance

Keep the interior and exterior surfaces clean using suitable non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's maintenance instructions.

For consistent operation, avoid unnecessarily frequent or prolonged door openings and operate the appliance within the specified ambient temperature range.

Warranty

The KingsBottle KBU56ASD includes a 2-year warranty. Optional 3-year and 5-year warranty extensions are available.

What's Included

• KingsBottle KBU56ASD 36-Inch Outdoor Beverage Refrigerator
• Adjustable shelving
• White LED interior lighting
• Solid stainless steel doors
• Integrated temperature control system
• Door lock

Product Specifications at a Glance

Model	KBU56ASD
Product Type	Outdoor Beverage Refrigerator
Configuration	Under-Counter, Single Zone
Total Capacity	7.42 cu. ft. / 210 L
Bottle Capacity	120 bottles
Can Capacity	198 cans
Temperature Range	32°F to 46°F (1°C to 8°C)
Temperature Zones	1
Compressor	Embraco Fixed-Speed
Door Type	Solid Door
Ingress Protection	IP45
Installation	Built-In or Freestanding
Ventilation	Front Venting
Dimensions	35.43" W × 21.46" D × 33.86" H
Weight	75 lb
Noise Level	42 dB
Electrical	110–115V / 60Hz
Energy Consumption	449 kWh/year
Defrost	Automatic
Warranty	2 Years
