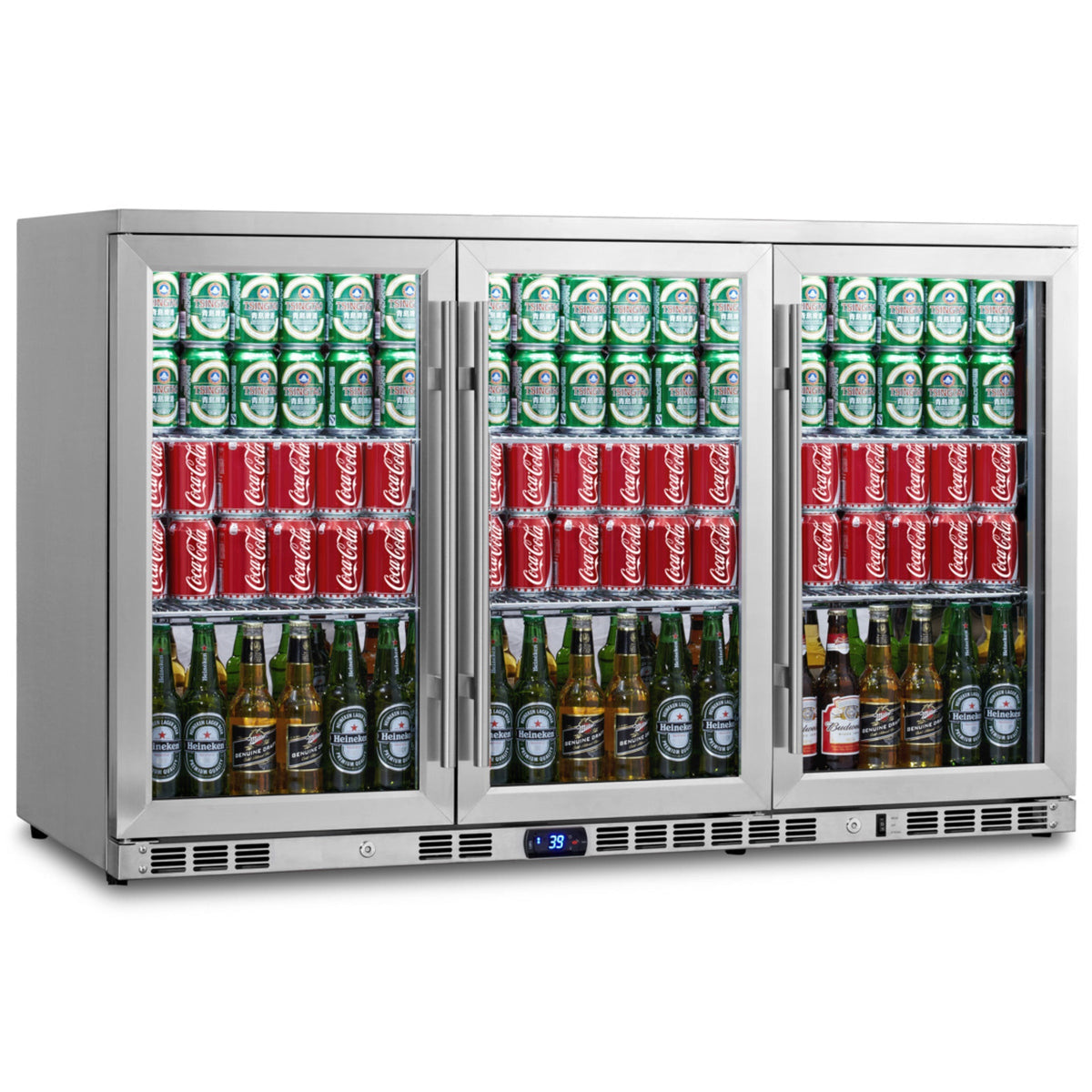

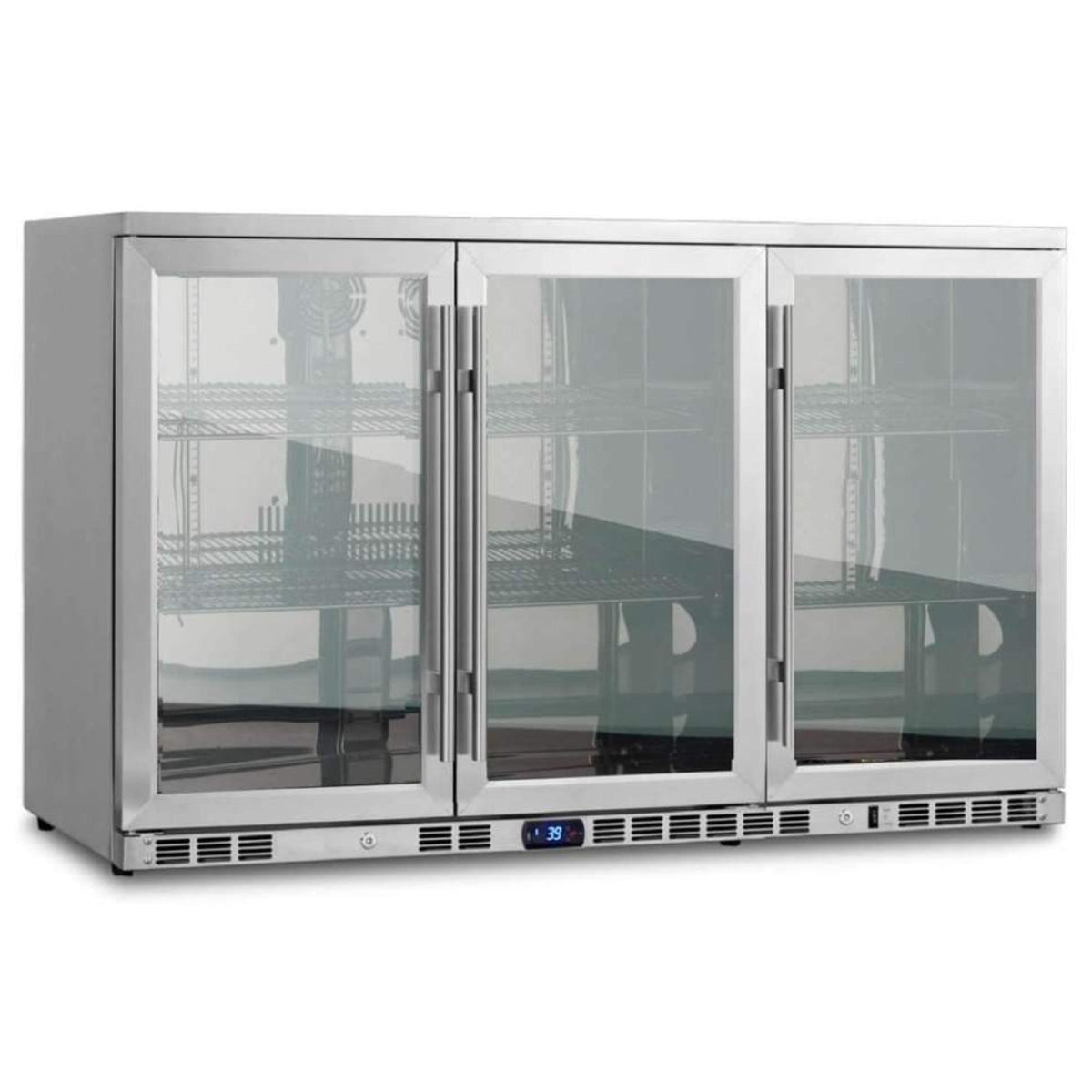

The KingsBottle 53-Inch Beverage Refrigerator provides spacious, organized cold storage for cans and bottles in home bars, kitchens, entertainment areas, and hospitality spaces. With an 11.12 cu. ft. capacity, three-door configuration, front ventilation, and a temperature range of 32°F to 46°F, it is designed for convenient under-counter beverage storage while maintaining a clean built-in appearance.
Key Features
- Large 11.12 Cu. Ft. Capacity: Provides storage for up to 190 bottles or 324 cans.
- Single-Zone Cooling: Adjustable temperature range from 32°F to 46°F (1°C to 8°C).
- Three-Door Configuration: Provides convenient access across the refrigerator's wide storage area.
- Heated Glass Doors: Integrated heating elements help reduce condensation and maintain clear visibility through the doors.
- Front-Venting Design: Allows the unit to be installed as a built-in appliance without requiring rear clearance for normal operation.
- Embraco Compressor: Uses a fixed-speed Embraco compressor with compressor cooling and forced-air convection.
- Adjustable Shelving: Flexible shelf positioning accommodates different bottle and can sizes.
- White LED Interior Lighting: Illuminates the storage area for easier beverage selection.
- Automatic Defrost: Simplifies routine operation and maintenance.
- Lockable: Integrated door locking provides added control over access to stored beverages.
Designed for Beverage Storage
With room for up to 324 cans or 190 bottles, this wide-format beverage refrigerator offers substantial storage for entertaining and everyday use. The organized shelving system provides flexibility for different beverage formats while the single-zone cooling system keeps the interior within an adjustable serving-temperature range.
Heated Glass Door Design
The three heated glass doors incorporate built-in heating elements designed to help prevent condensation from obscuring the interior. This makes it easier to view stored beverages while maintaining the refrigerator's clean display-oriented appearance.

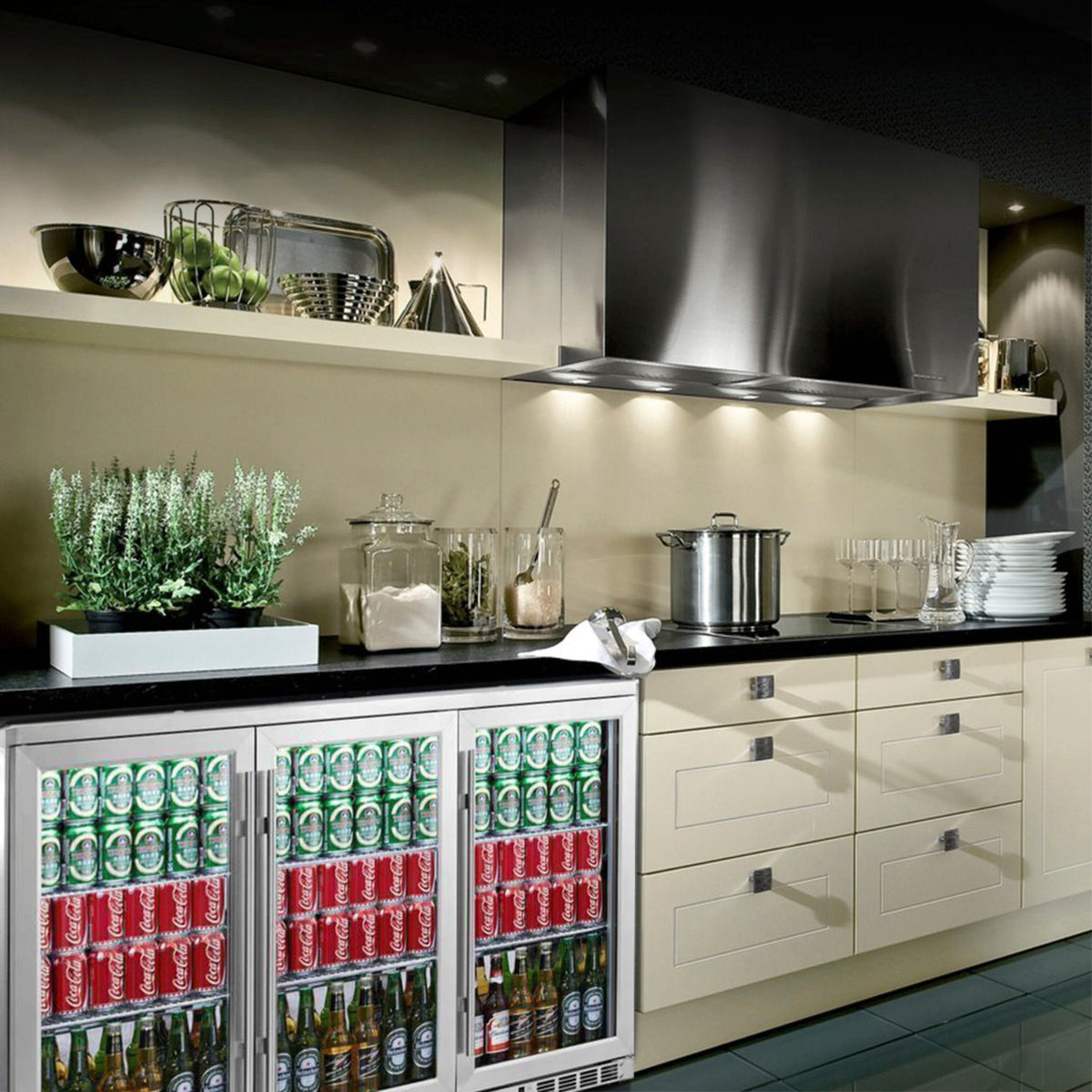

Built-In or Freestanding Installation
The front-venting design allows the KBU328M to be installed within suitable cabinetry or used as a freestanding refrigerator. No rear clearance is required for operation, although additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access.

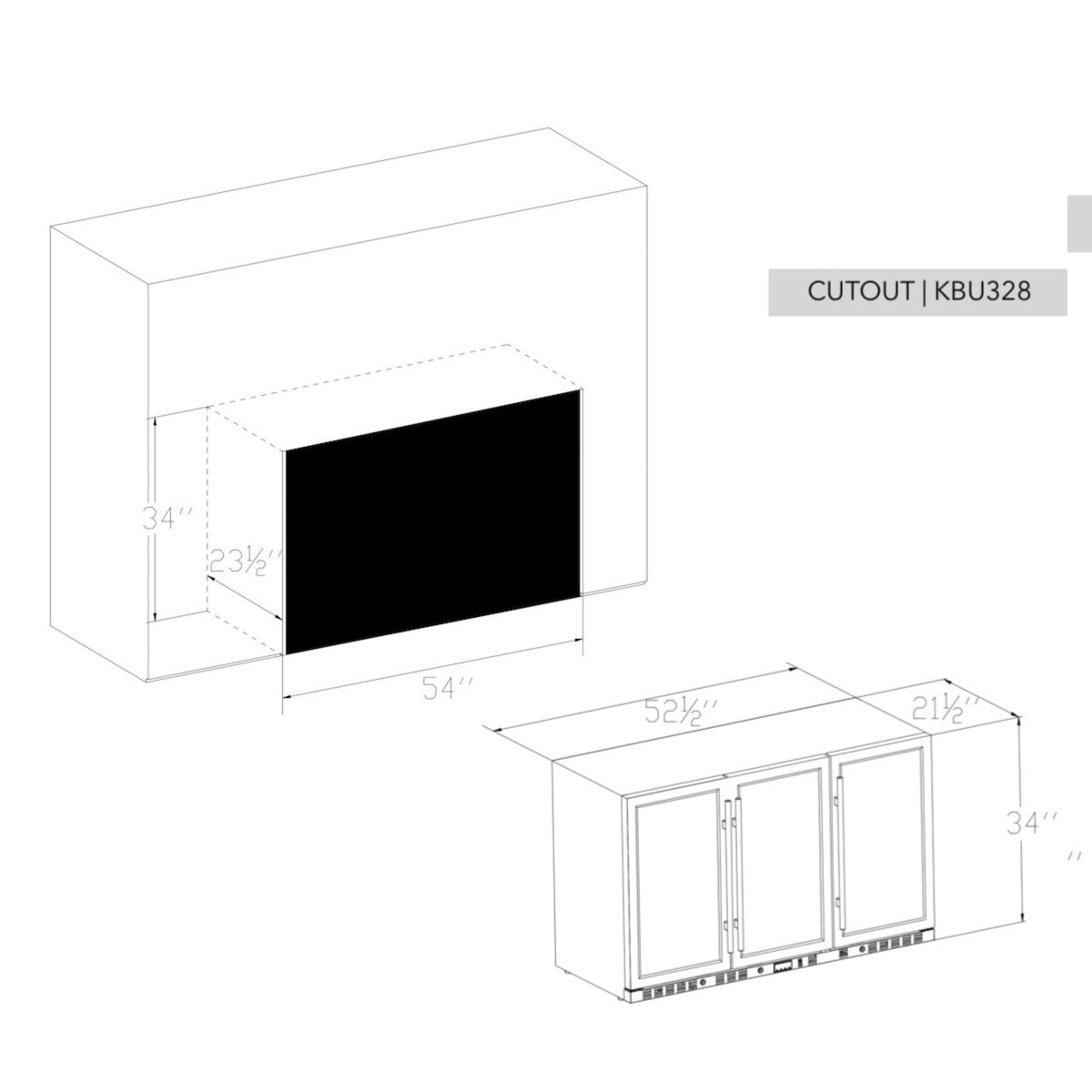

For built-in installations, the surrounding cabinetry and cutout should follow the manufacturer's installation dimensions. When installing between frameless cabinets, a 1/2-inch filler strip or side panel may be required on the hinge side to provide unobstructed door movement.
Cooling Specifications
- Cooling Type: Compressor cooling with forced-air convection
- Compressor: Embraco fixed-speed compressor
- Temperature Zones: Single zone
- Temperature Range: 32°F to 46°F (1°C to 8°C)
- Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
- Defrost: Automatic
Storage Capacity
- Interior Volume: 11.12 cu. ft. / 315 L

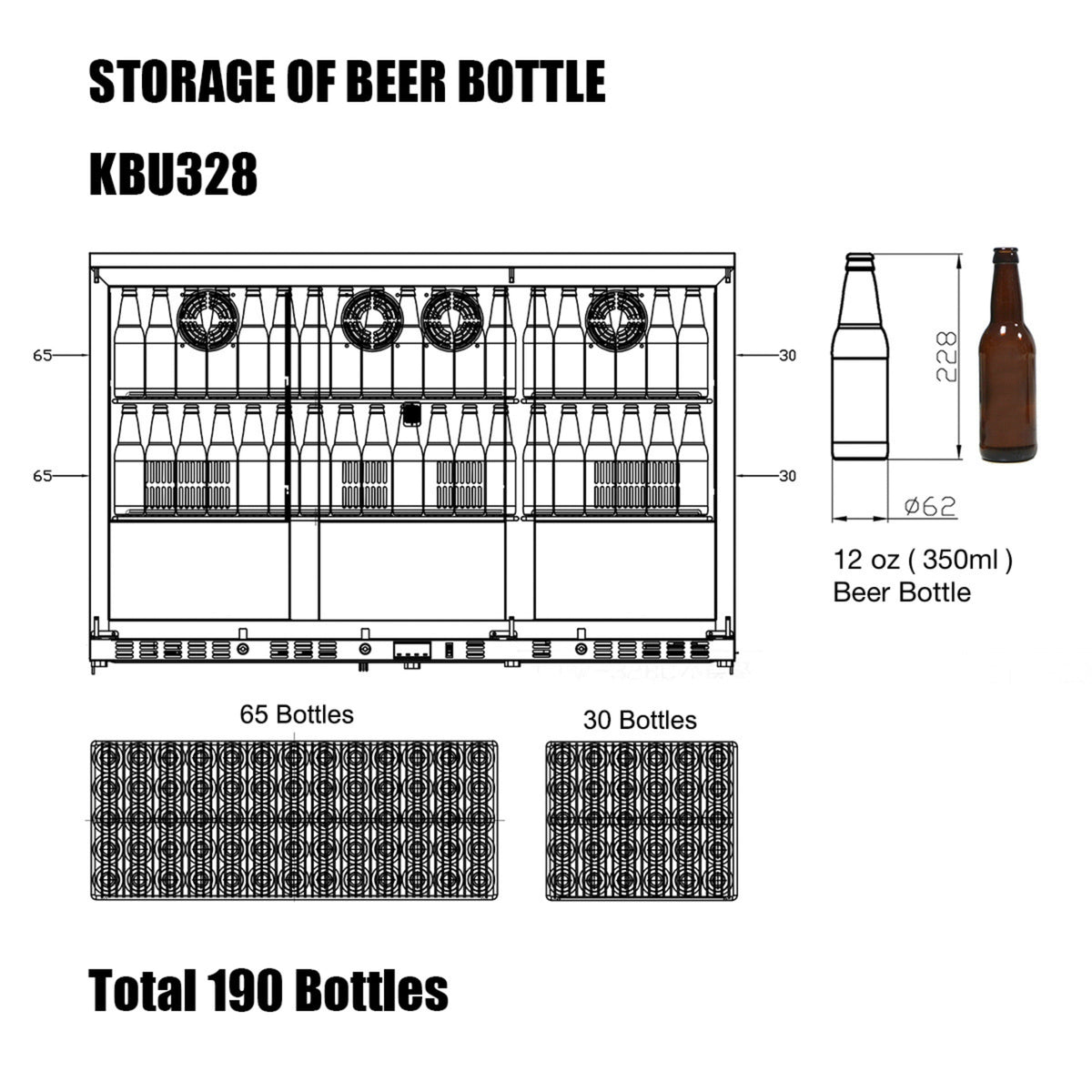

- Bottle Capacity: Up to 190 bottles

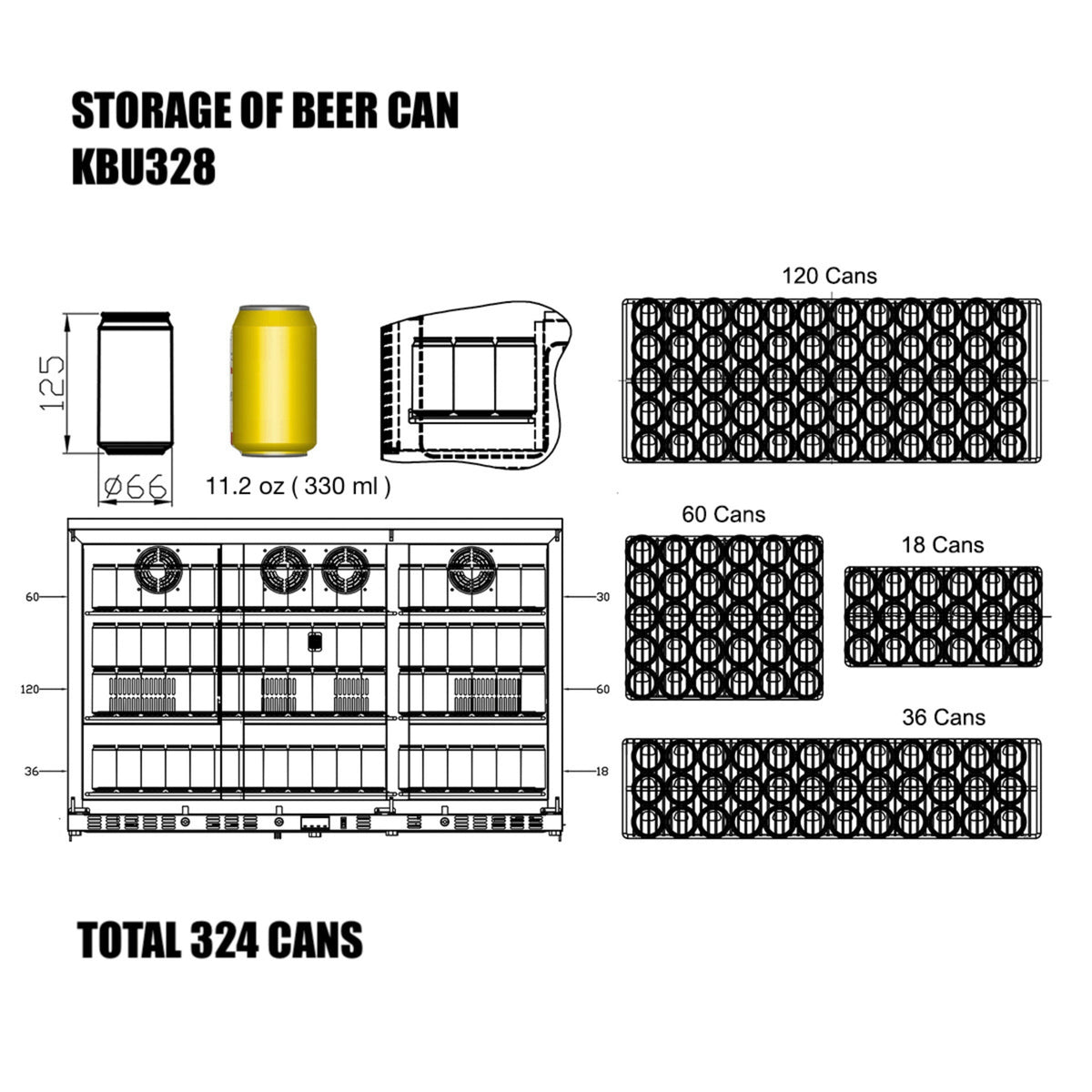

- Can Capacity: Up to 324 cans
- Storage Configuration: Adjustable shelving
Construction & Features
- Door Type: Heated glass
- Interior Lighting: White LED
- Door Lock: Yes
- Installation: Built-in or freestanding
- Ventilation: Front venting
- Noise Level: 48 dB
- Weight: 120 lb
Electrical Specifications
- Electrical Requirement: 110–115V / 60Hz
- Energy Consumption: 712 kWh/year

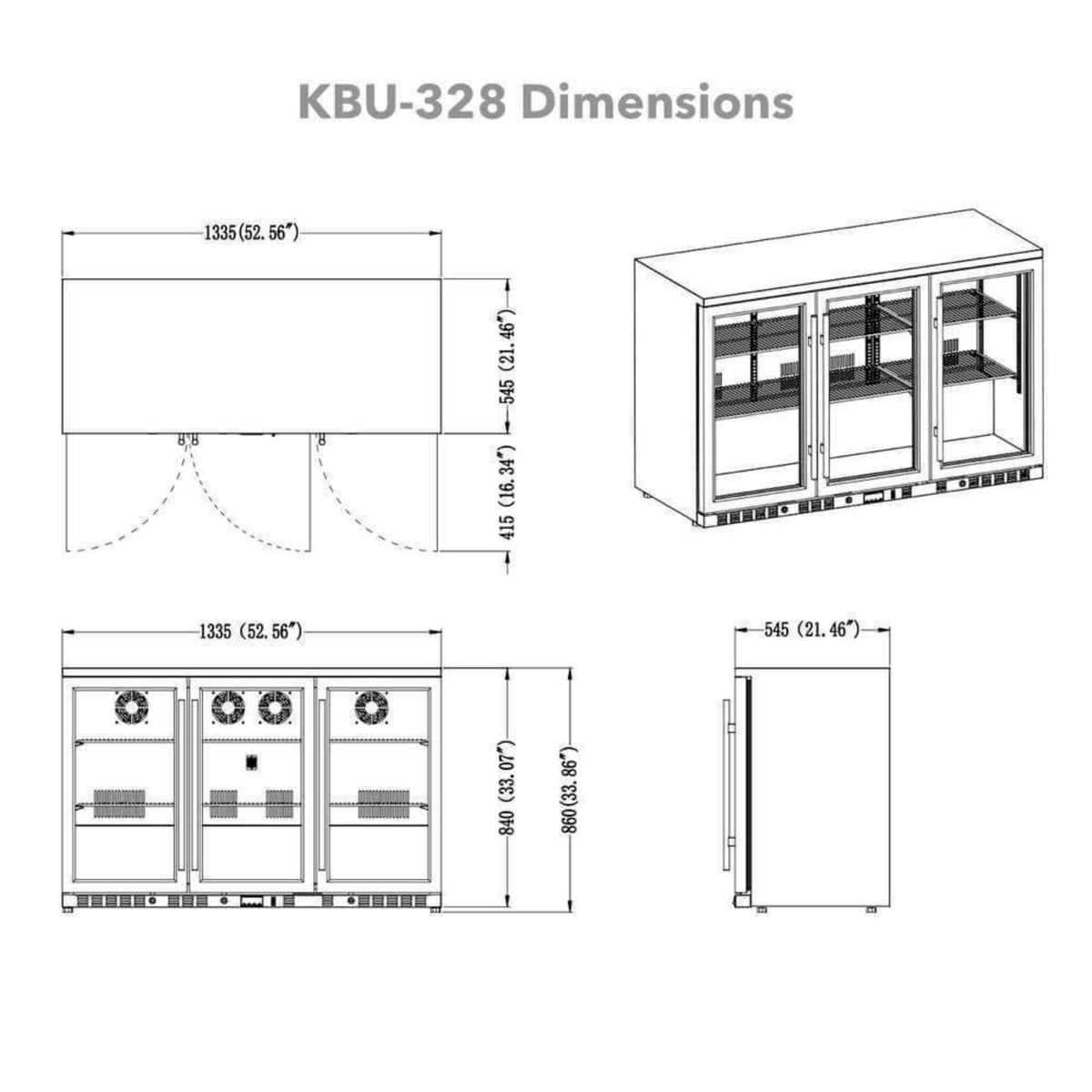

Dimensions
- Width: 52.56 inches
- Depth: 21.46 inches
- Height: 33.86 inches
- Metric Dimensions: 1335 W × 545 D × 860 H mm
Installation Notes
Install the refrigerator on a level surface and position it according to the manufacturer's specified cutout dimensions. The installation should allow full door operation and access to the pull-out shelving.
The front-venting configuration is intended to support built-in installation without rear operating clearance. Additional space around the appliance is recommended to make installation, ventilation, and future maintenance easier.
Care & Maintenance
Clean the exterior and interior surfaces regularly using appropriate non-abrasive cleaning materials. Keep the ventilation area unobstructed and maintain the unit according to the manufacturer's care and installation instructions.
What's Included
- KingsBottle KBU328M 53-Inch Beverage Refrigerator
- Adjustable shelving
- Integrated white LED interior lighting
- Lockable heated-glass doors
Product Specifications at a Glance
| Model | KBU328M |
| Type | 53-Inch Beverage Refrigerator |
| Configuration | Three-Door, Single Zone |
| Capacity | 11.12 cu. ft. / 315 L |
| Bottle Capacity | 190 bottles |
| Can Capacity | 324 cans |
| Temperature Range | 32°F to 46°F (1°C to 8°C) |
| Door Type | Heated Glass |
| Dimensions | 52.56" W × 21.46" D × 33.86" H |
| Installation | Built-In or Freestanding |
| Ventilation | Front Venting |
| Compressor | Embraco Fixed-Speed |
| Electrical | 110–115V / 60Hz |
| Weight | 120 lb |
