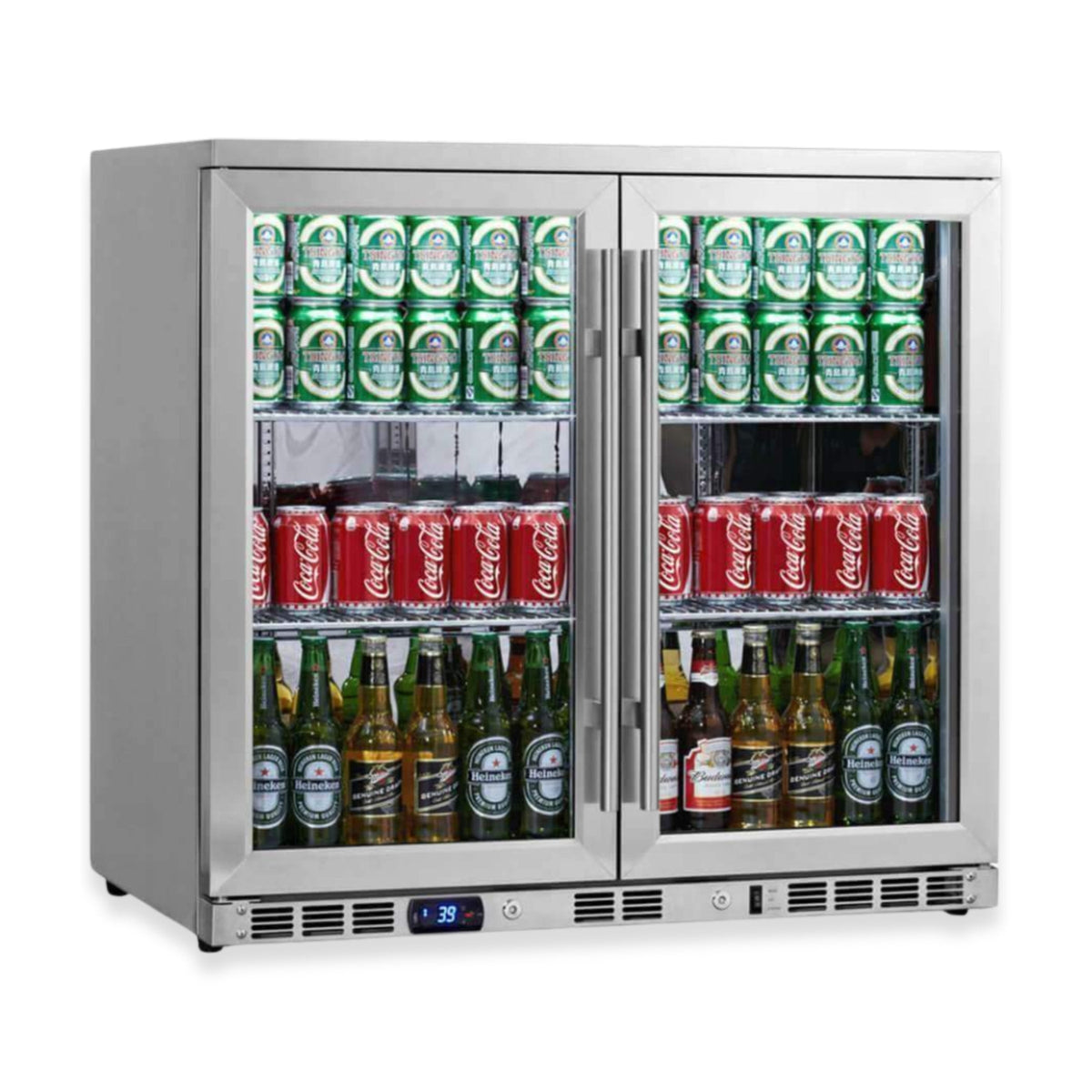

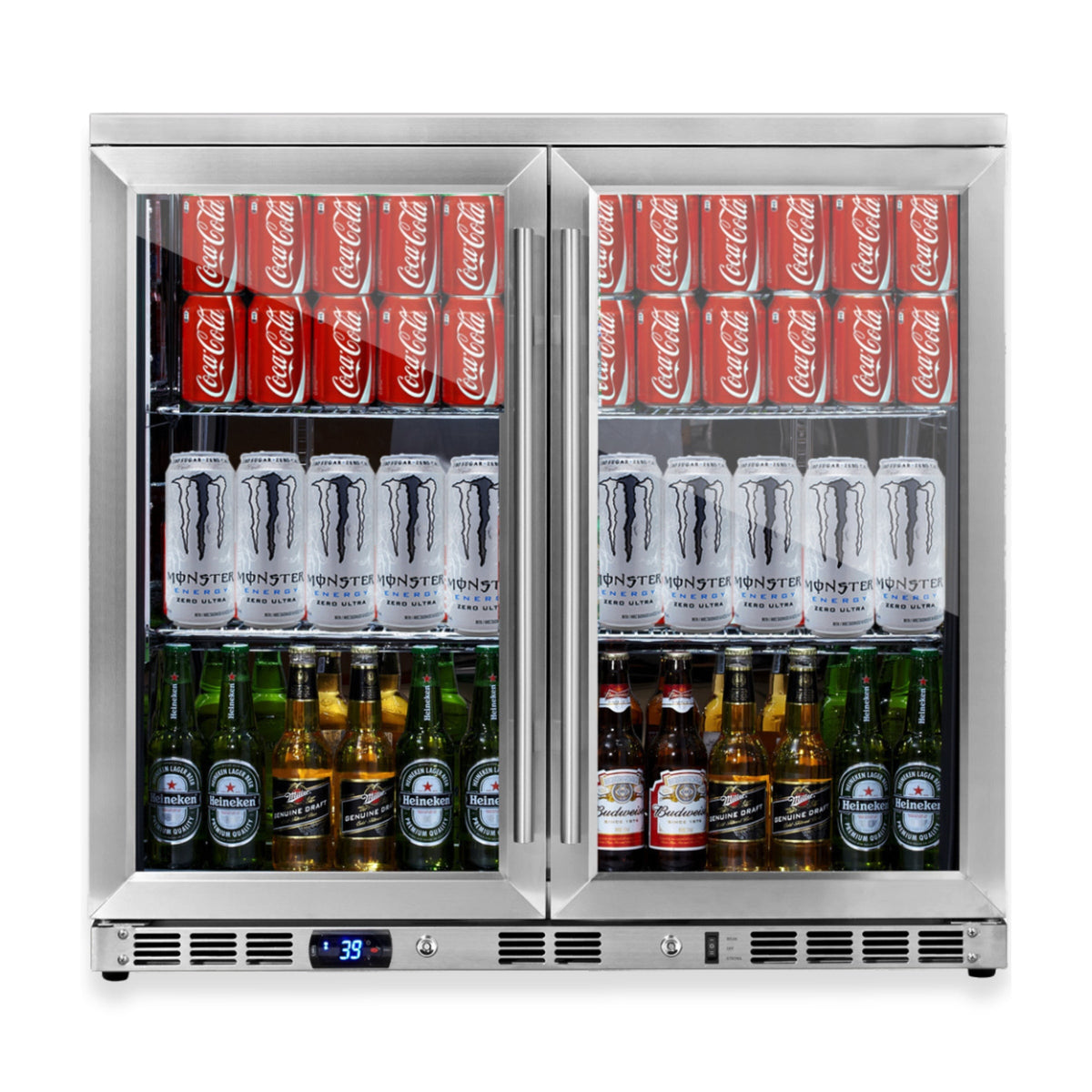

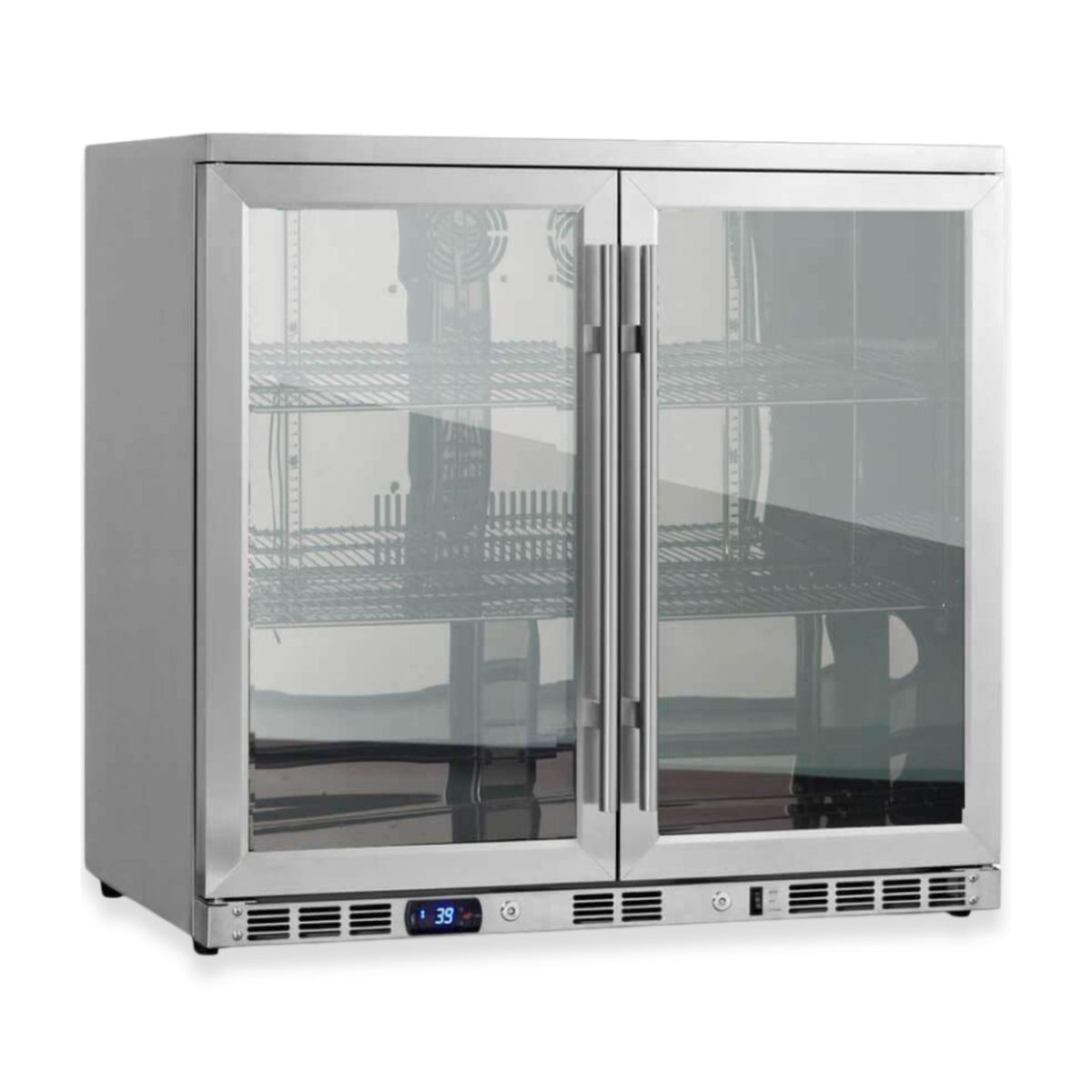

KingsBottle 36-Inch Beverage Refrigerator

The KingsBottle 36-Inch Beverage Refrigerator is designed for kitchens, home bars, entertainment spaces, and other indoor areas that need convenient, organized beverage storage. With a 7.42 cu. ft. capacity, single-zone temperature control, heated glass doors, front ventilation, and adjustable shelving, it provides flexible storage for bottles and cans while fitting neatly into an under-counter installation.

Key Features

• 7.42 Cu. Ft. Capacity: Provides 210 liters of refrigerated beverage storage.
• Single-Zone Cooling: Adjustable temperature range from 32°F to 46°F (1°C to 8°C).
• Up to 120 Bottles or 198 Cans: Storage capacity accommodates a variety of beverage sizes and configurations.
• Heated Glass Doors: Integrated heating elements help reduce condensation on the glass in humid conditions.
• Front-Venting Design: Allows the refrigerator to be installed as a built-in appliance without rear clearance required for operation.
• Adjustable Shelving: Flexible shelf positioning makes it easier to organize different bottle and can sizes.
• Embraco Fixed-Speed Compressor: Uses compressor cooling with forced-air convection.
• White LED Interior Lighting: Illuminates the beverage compartment for easier visibility.
• Automatic Defrost: Helps simplify routine maintenance.
• Lockable: Integrated lock provides controlled access to stored beverages.
• Built-In or Freestanding: Can be incorporated into suitable cabinetry or used as a standalone refrigerator.

Designed for Kitchens & Home Bars

The KBU56M provides dedicated refrigerated storage for beverages without taking up the footprint of a full-size refrigerator. Its under-counter format works well in kitchens, home bars, entertainment rooms, and other indoor beverage-serving areas.

The heated glass doors provide visibility into the cabinet while the integrated heating element helps reduce condensation on the glass, particularly in humid indoor environments.

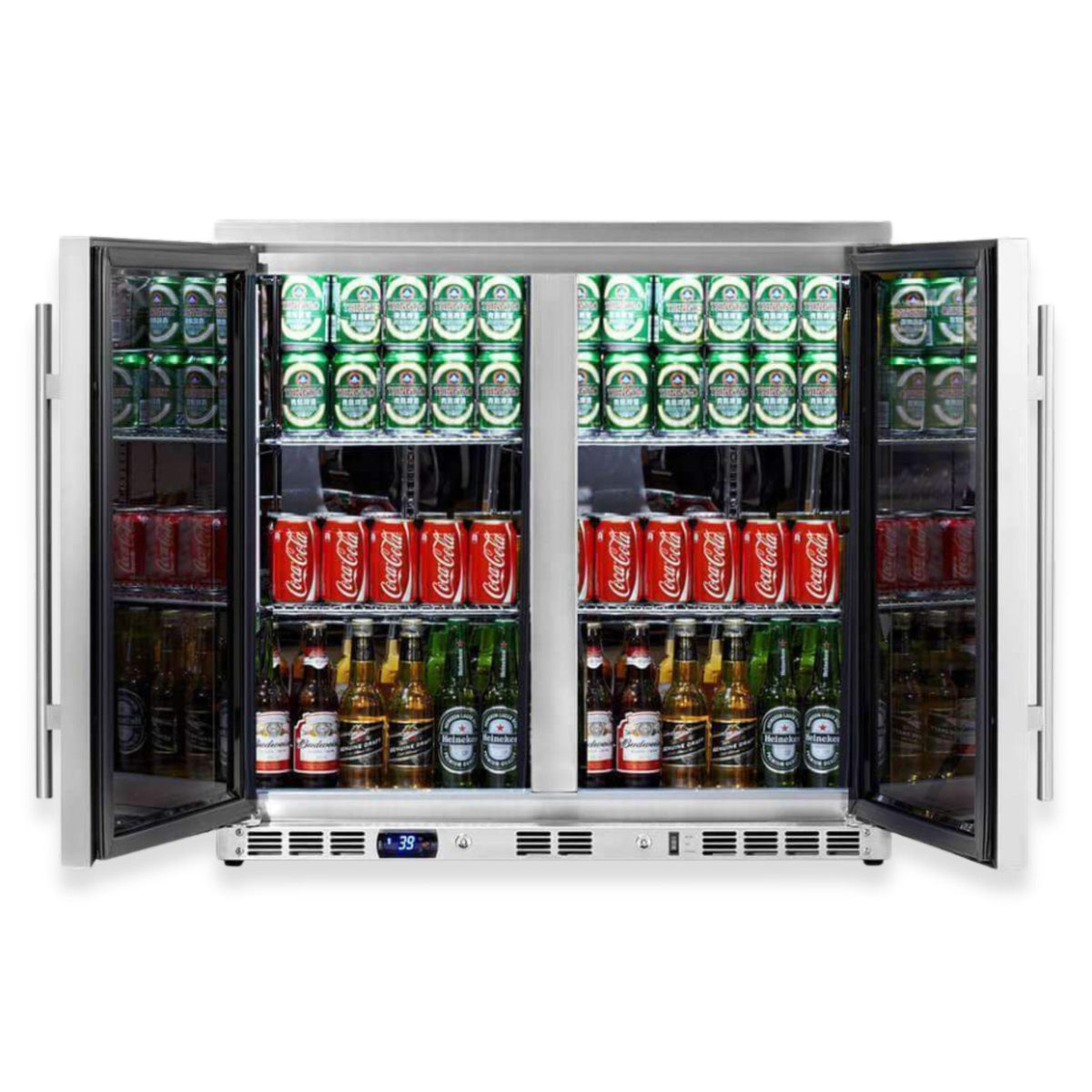

Flexible Beverage Storage

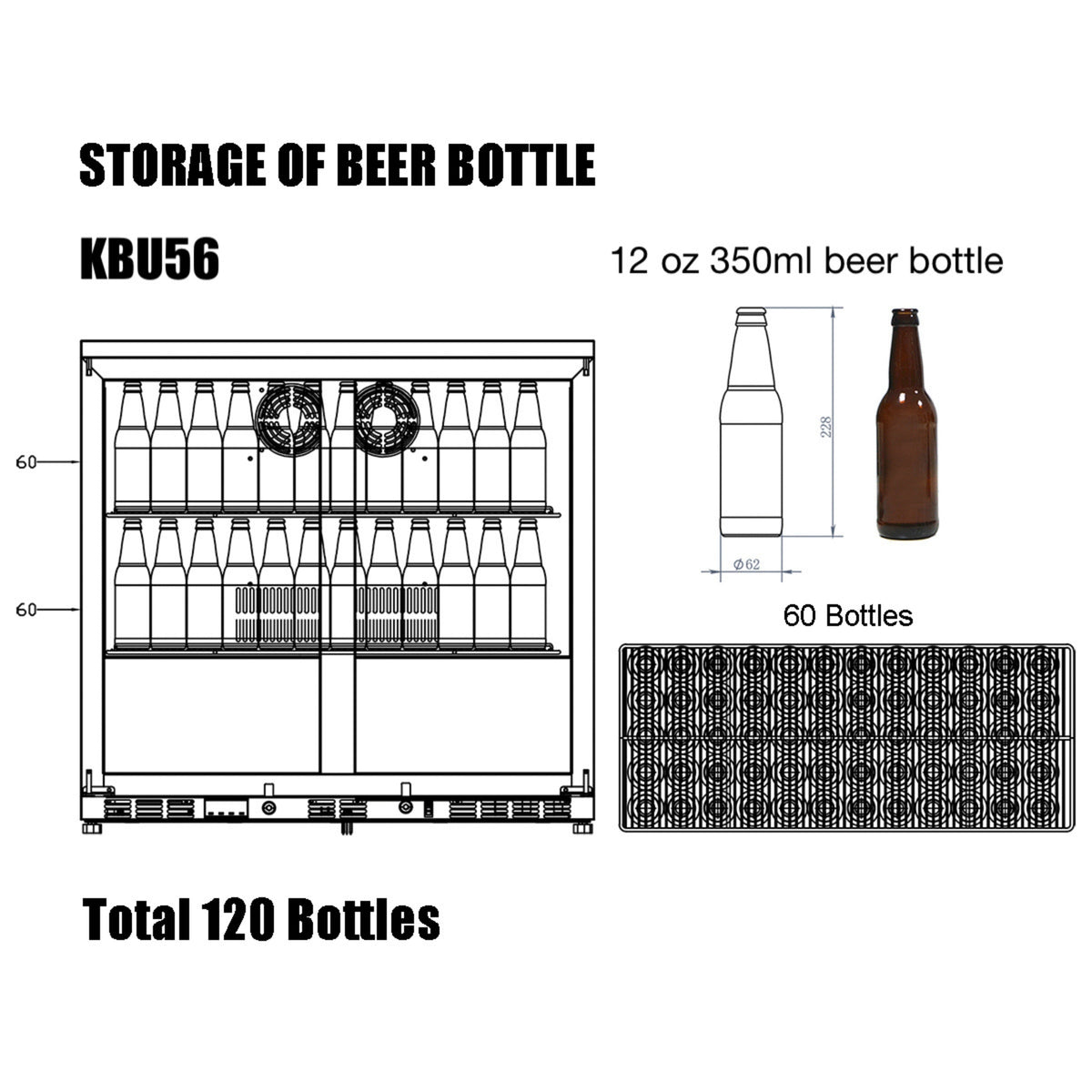

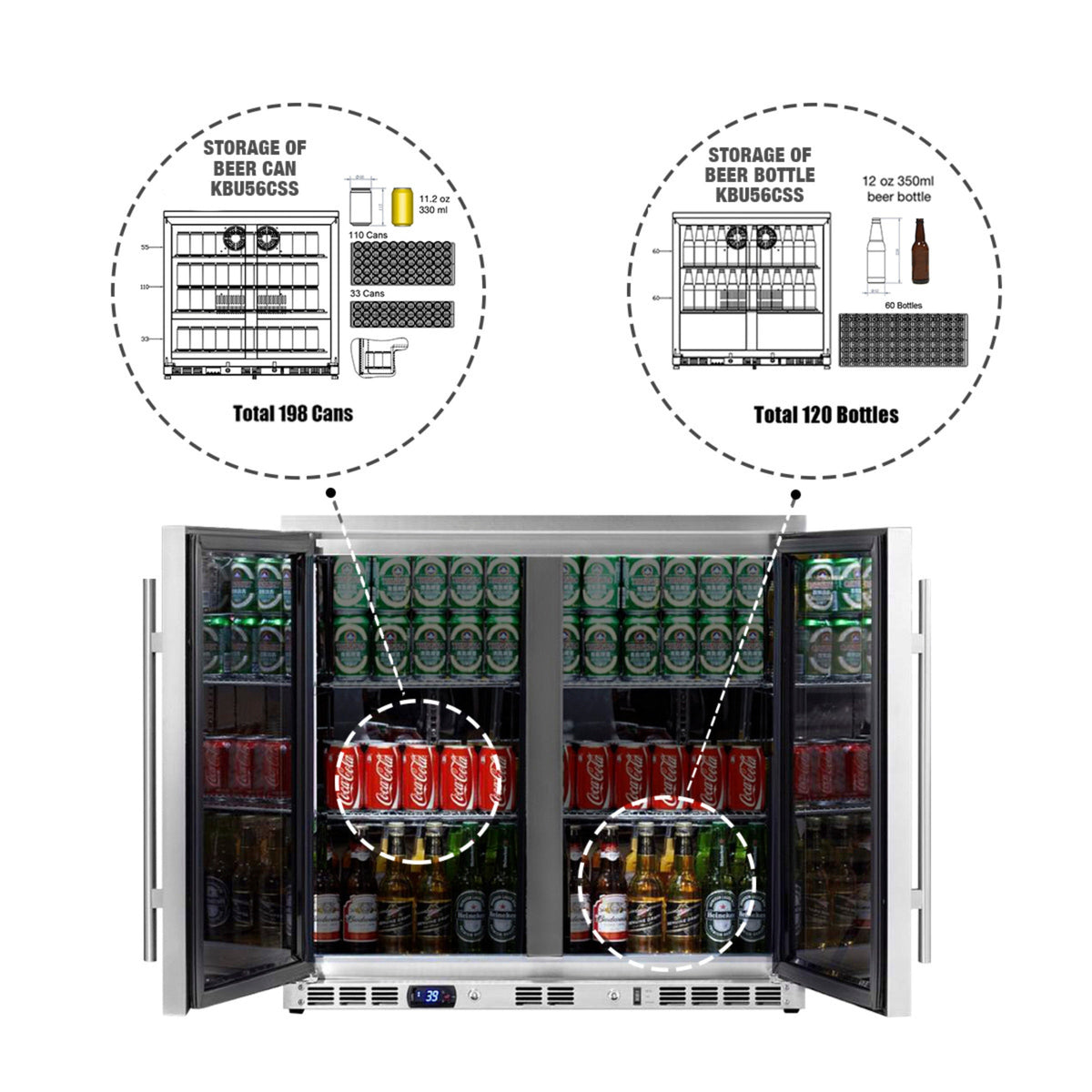

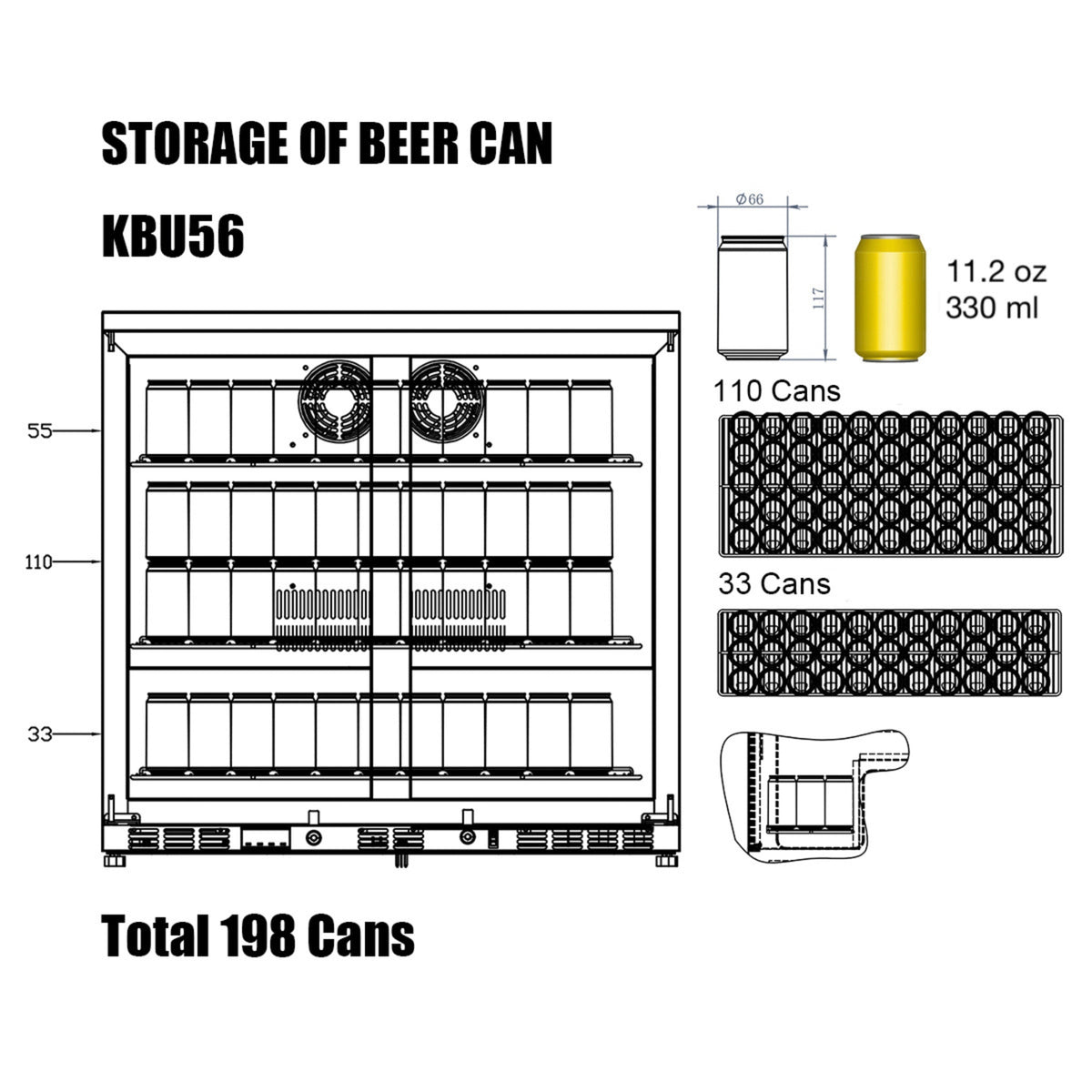

The 7.42 cu. ft. interior provides storage for up to 120 bottles or 198 cans. Actual capacity depends on beverage size and shelf configuration.

The adjustable shelving system allows the interior to be arranged around different bottles, cans, and other beverage containers.

Single-Zone Temperature Control

The refrigerator uses a single cooling zone with an adjustable temperature range of 32°F to 46°F (1°C to 8°C). This configuration provides one temperature setting throughout the refrigerated compartment.

Actual internal temperature can vary based on ambient conditions, cabinet loading, door-opening frequency, and installation conditions.

Heated Glass Door

The heated glass door incorporates a built-in heating element designed to help prevent condensation from forming on the glass. This helps maintain clearer visibility of the beverages inside, particularly in humid environments.

Built-In or Freestanding Installation

The front-venting design allows the KBU56M to be installed within suitable cabinetry without requiring rear clearance for normal operation. It can also be used as a freestanding appliance.

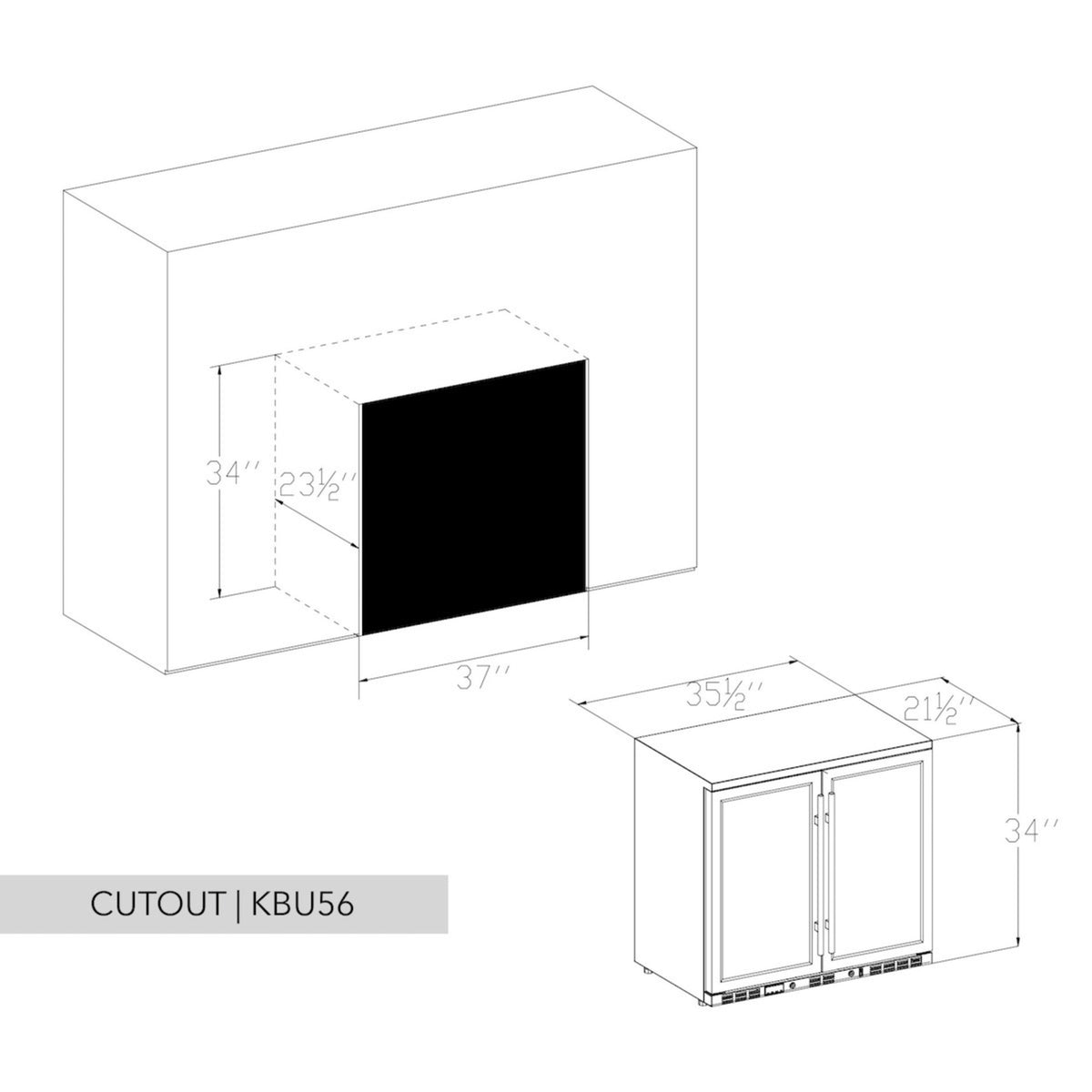

For built-in installations, follow the manufacturer's specified cutout dimensions. Additional space is recommended to facilitate installation, ventilation efficiency, maintenance access, and proper door operation.

When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.

Cooling Specifications

• Temperature Zones: Single zone
• Temperature Range: 32°F to 46°F (1°C to 8°C)
• Compressor: Embraco fixed-speed compressor
• Cooling System: Compressor cooling with forced-air convection
• Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
• Defrost: Automatic

Storage Capacity

• Total Volume: 7.42 cu. ft. / 210 L
• Bottle Capacity: Up to 120 bottles
• Can Capacity: Up to 198 cans
• Shelving: Adjustable

Construction & Features

• Door Type: Heated glass
• Interior Lighting: White LED
• Door Lock: Yes
• Installation: Built-in or freestanding
• Ventilation: Front venting
• Noise Level: 42 dB
• Weight: 75 lb

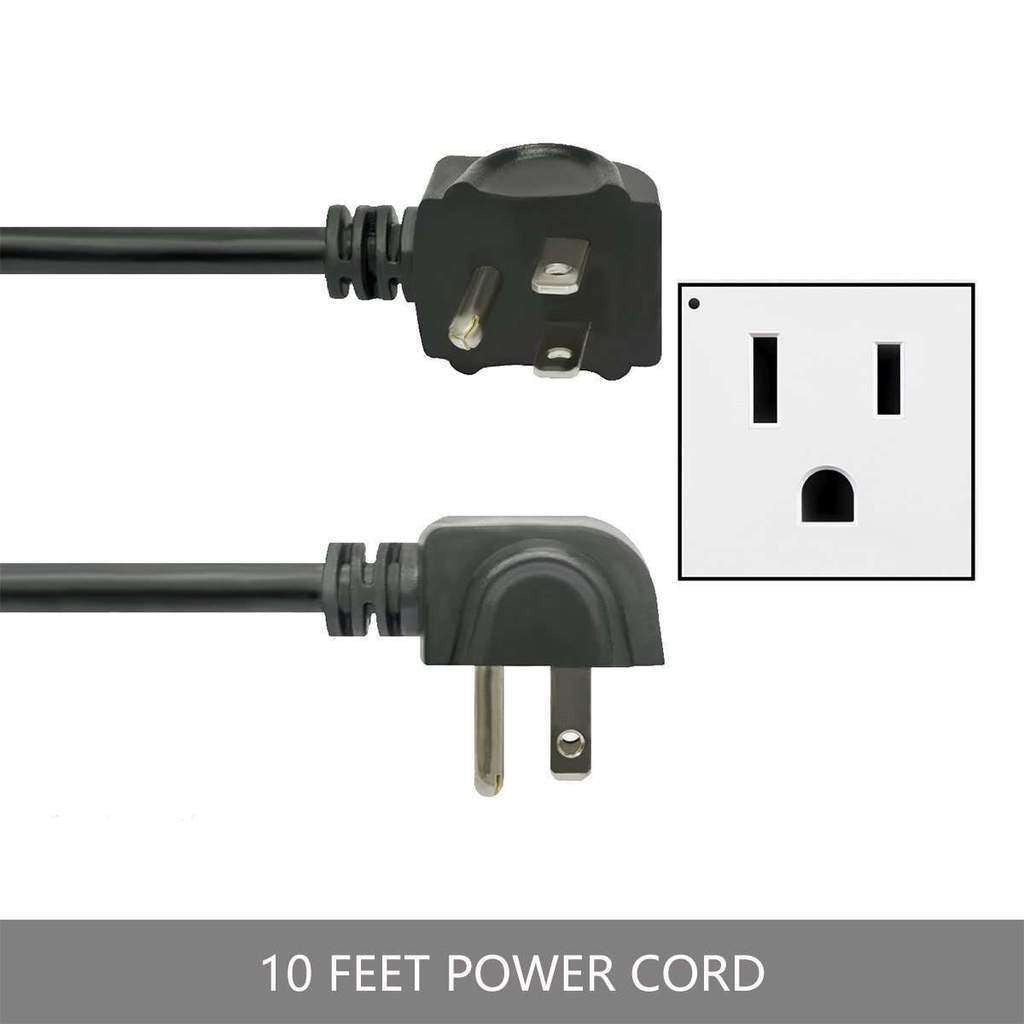

Electrical Specifications

• Electrical Requirement: 110–115V / 60Hz
• Energy Consumption: 591 kWh/year

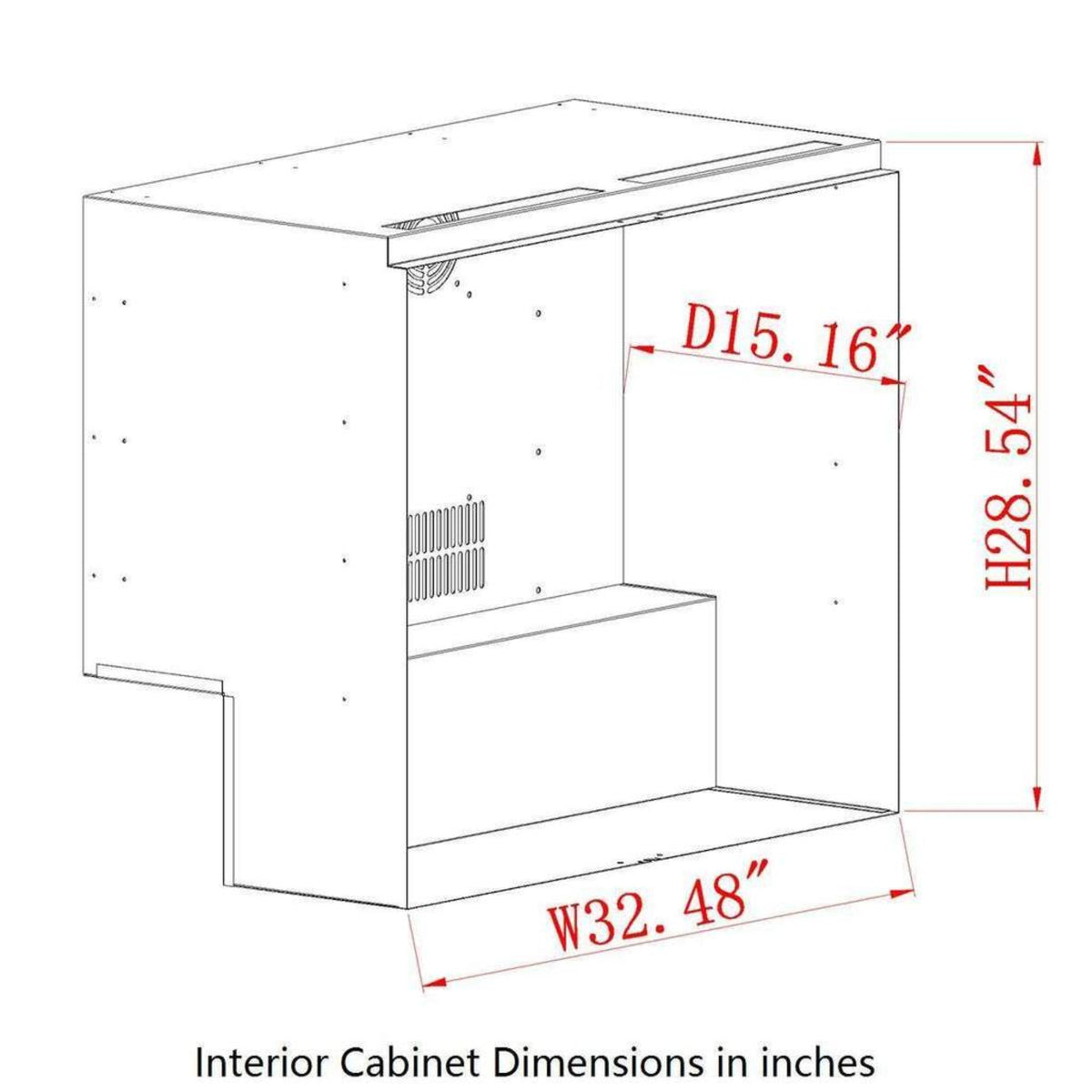

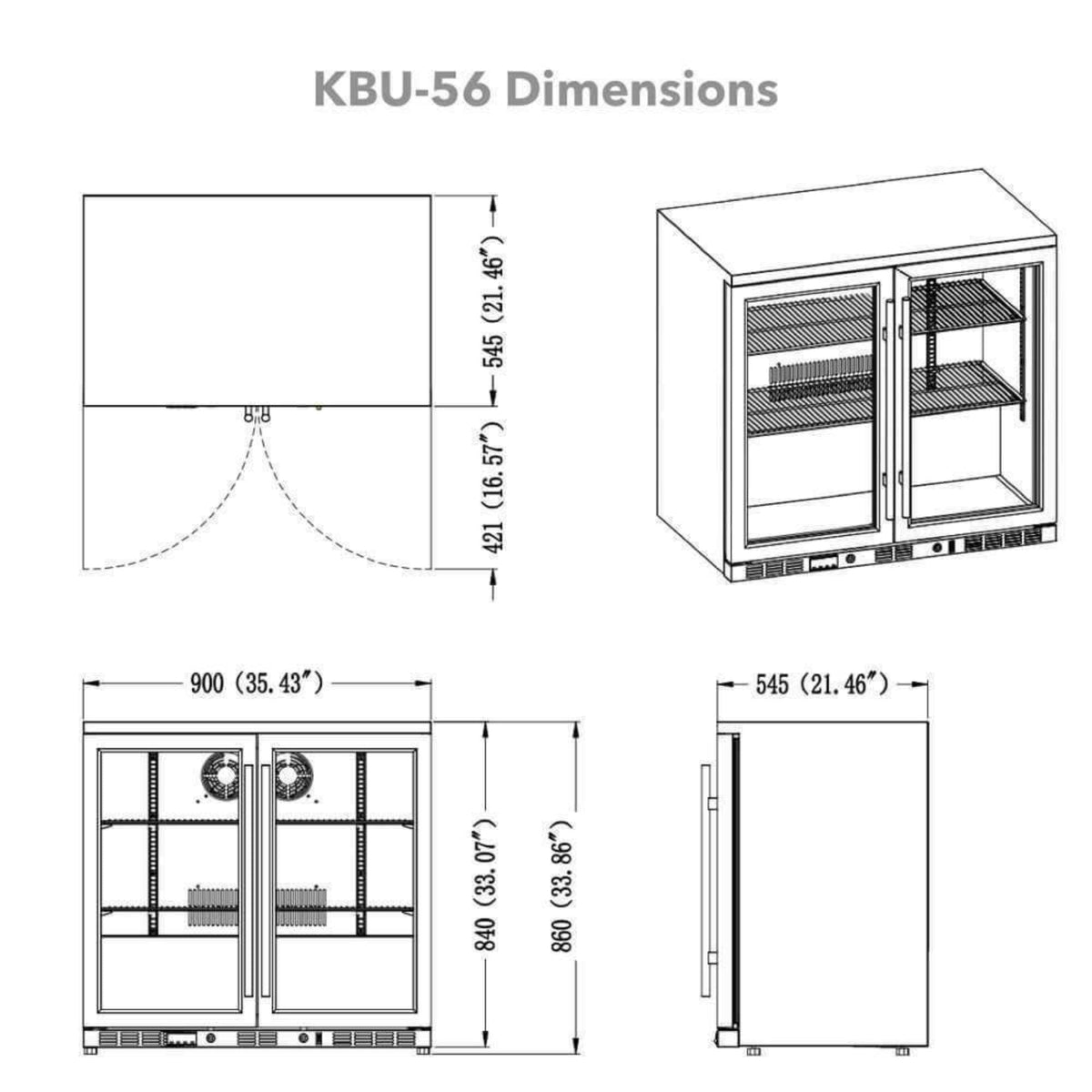

Dimensions

• Width: 35.43 inches
• Depth: 21.46 inches
• Height: 33.86 inches
• Metric Dimensions: 900 W × 545 D × 860 H mm

Installation Notes

Install the refrigerator on a level surface and position it according to the manufacturer's specified cutout dimensions. The front-venting system allows the unit to be incorporated into cabinetry without rear clearance required for operation.

Ensure adequate space for the doors to open fully and for the shelves to be accessed without obstruction. Proper alignment and spacing should be maintained for stable installation and normal operation.

Care & Maintenance

Clean the interior and exterior surfaces regularly using appropriate non-abrasive cleaning materials. Keep the front ventilation area unobstructed and follow the manufacturer's maintenance recommendations.

Avoid unnecessarily frequent or prolonged door openings to help maintain consistent internal temperatures.

Warranty

The KingsBottle KBU56M includes a 2-year KingsBottle warranty. Optional 3-year and 5-year warranty extensions are available.

What's Included

• KingsBottle KBU56M 36-Inch Beverage Refrigerator
• Adjustable shelving
• Heated glass doors
• White LED interior lighting
• Integrated temperature control
• Door lock

Product Specifications at a Glance

Model	KBU56M
Product Type	36-Inch Beverage Refrigerator
Configuration	Under-Counter, Single Zone
Total Capacity	7.42 cu. ft. / 210 L
Bottle Capacity	Up to 120 bottles
Can Capacity	Up to 198 cans
Temperature Range	32°F to 46°F (1°C to 8°C)
Temperature Zones	1
Compressor	Embraco Fixed-Speed
Cooling System	Compressor Cooling + Forced-Air Convection
Door Type	Heated Glass
Installation	Built-In or Freestanding
Ventilation	Front Venting
Dimensions	35.43" W × 21.46" D × 33.86" H
Weight	75 lb
Noise Level	42 dB
Energy Consumption	591 kWh/year
Electrical	110–115V / 60Hz
Defrost	Automatic
Warranty	2 Years
