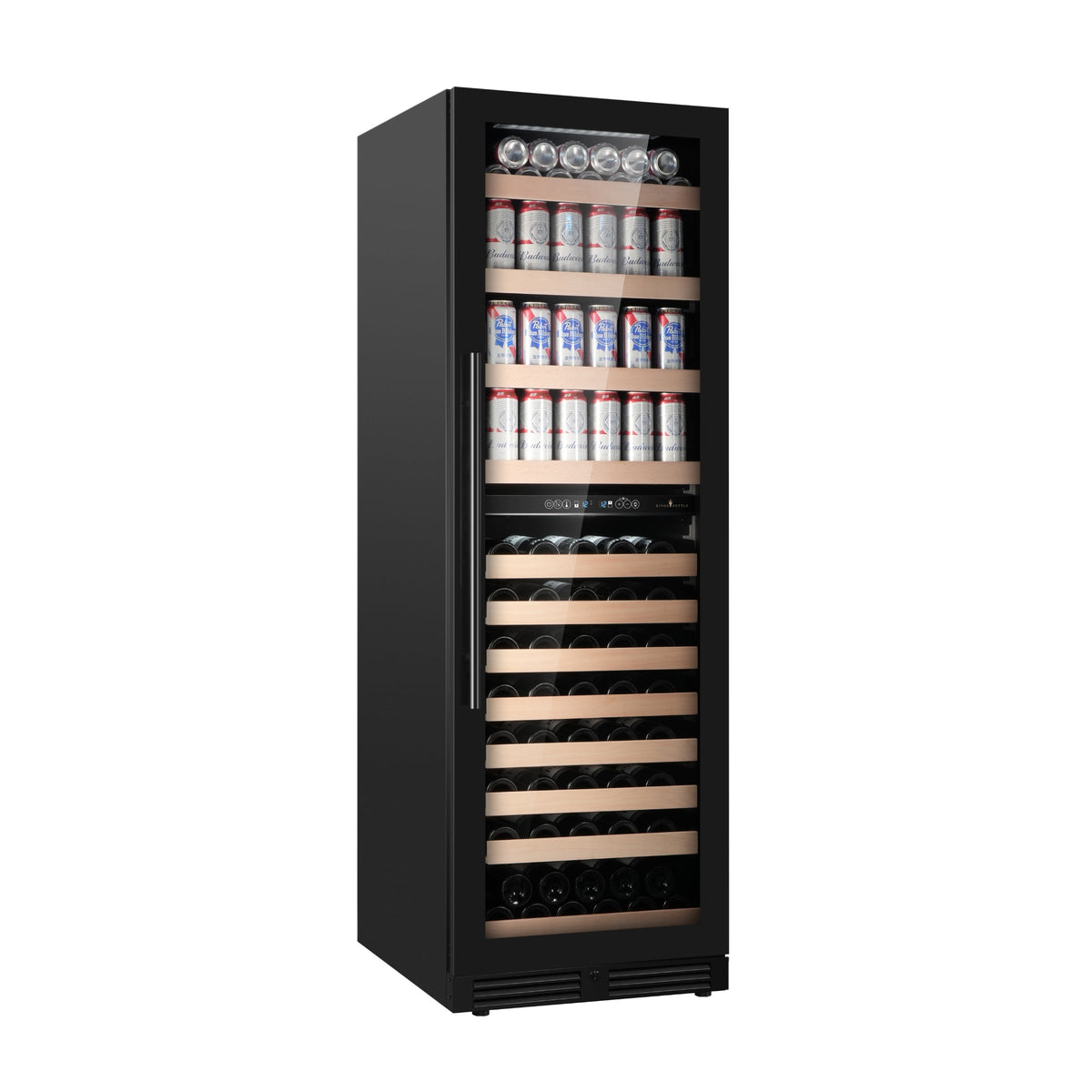

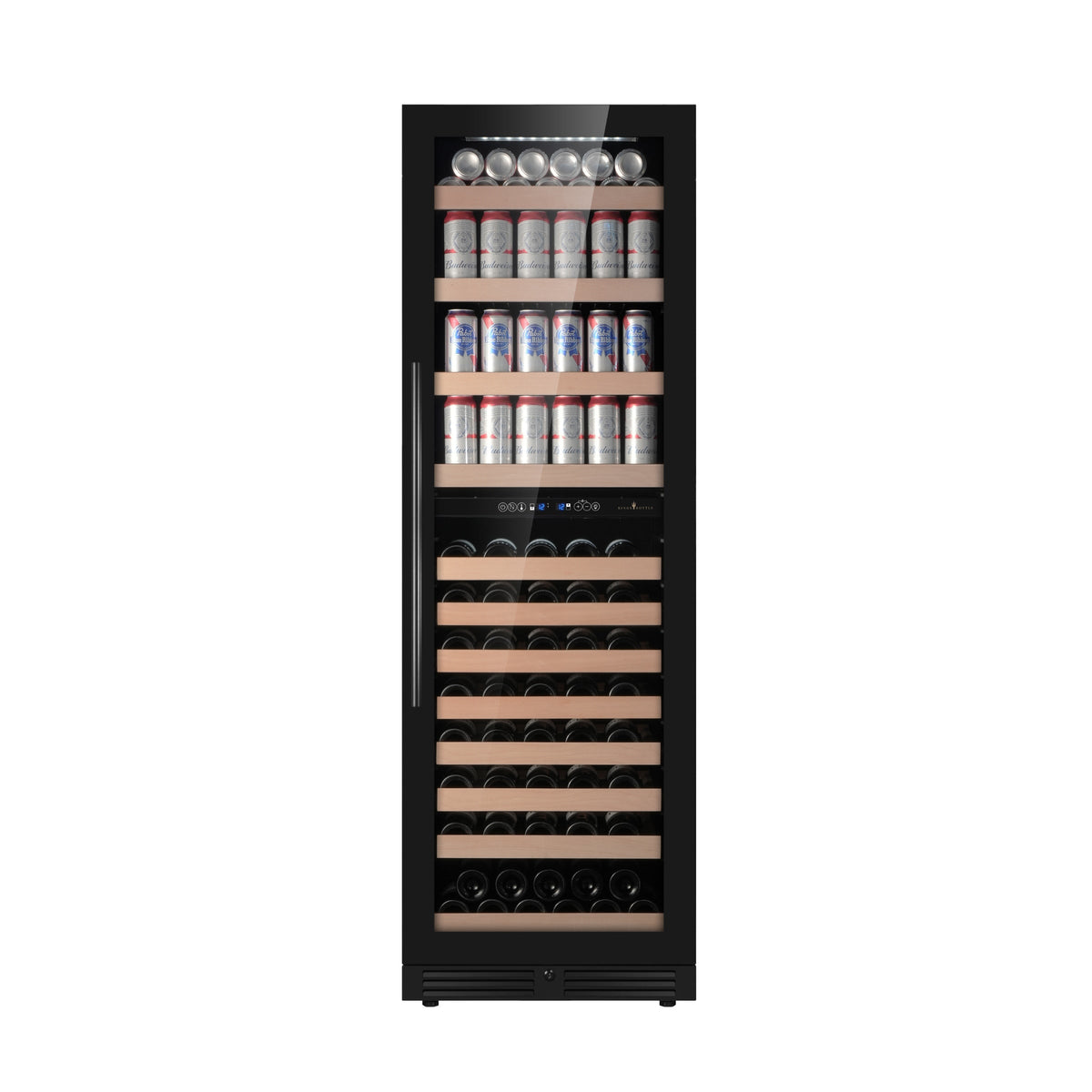

KingsBottle 72-Inch Upright Dual-Zone Wine & Beverage Center
The KingsBottle 72-Inch Upright Dual-Zone Wine & Beverage Center provides spacious, organized refrigeration for both wine and beverages in a full-height cabinet. With 15 cu. ft. of total capacity, two independently controlled temperature zones, Low-E glass, and front ventilation, it is designed for residential and light commercial spaces that need larger-capacity wine and beverage storage.
Key Features
- 15 Cu. Ft. Storage Capacity: Provides 425 liters of total refrigerated storage in a full-height upright design.
- Dual-Zone Temperature Control: Separate upper and lower zones allow wine and beverages to be stored at different temperatures.
- 81-Bottle Capacity: Designed to accommodate up to 81 wine bottles.
- 216-Can Capacity: Provides dedicated beverage storage for up to 216 cans.
- Wide Temperature Range: Upper zone adjusts from 35°F to 54°F (2°C to 12°C), while the lower zone adjusts from 54°F to 68°F (12°C to 20°C).
- Embraco Inverter Compressor: Uses inverter compressor technology with compressor cooling and forced-air convection.
- Low-E Glass Door: Helps reduce condensation while providing an unobstructed view of the stored collection.
- Front Ventilation: Allows built-in installation without rear clearance required for normal operation.

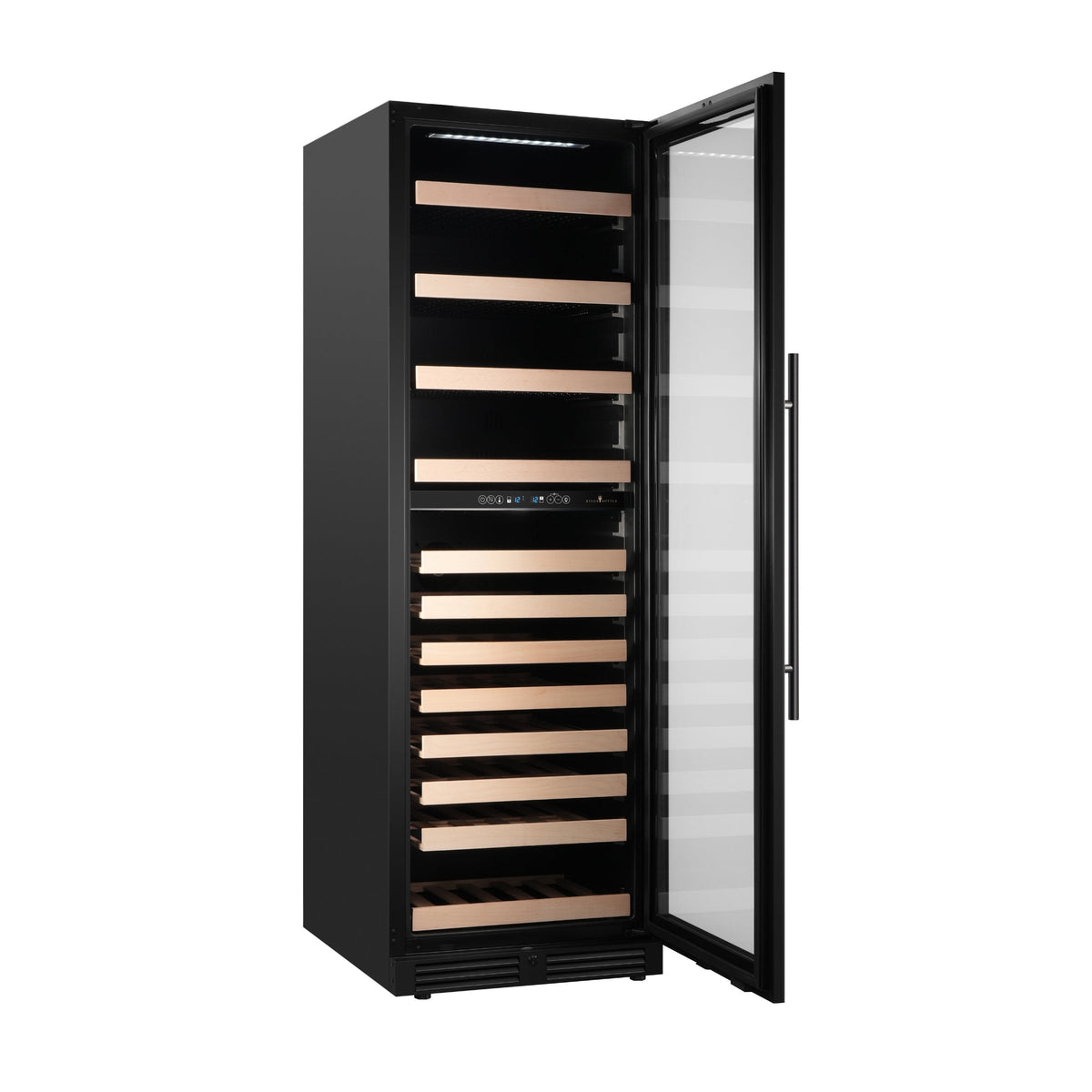

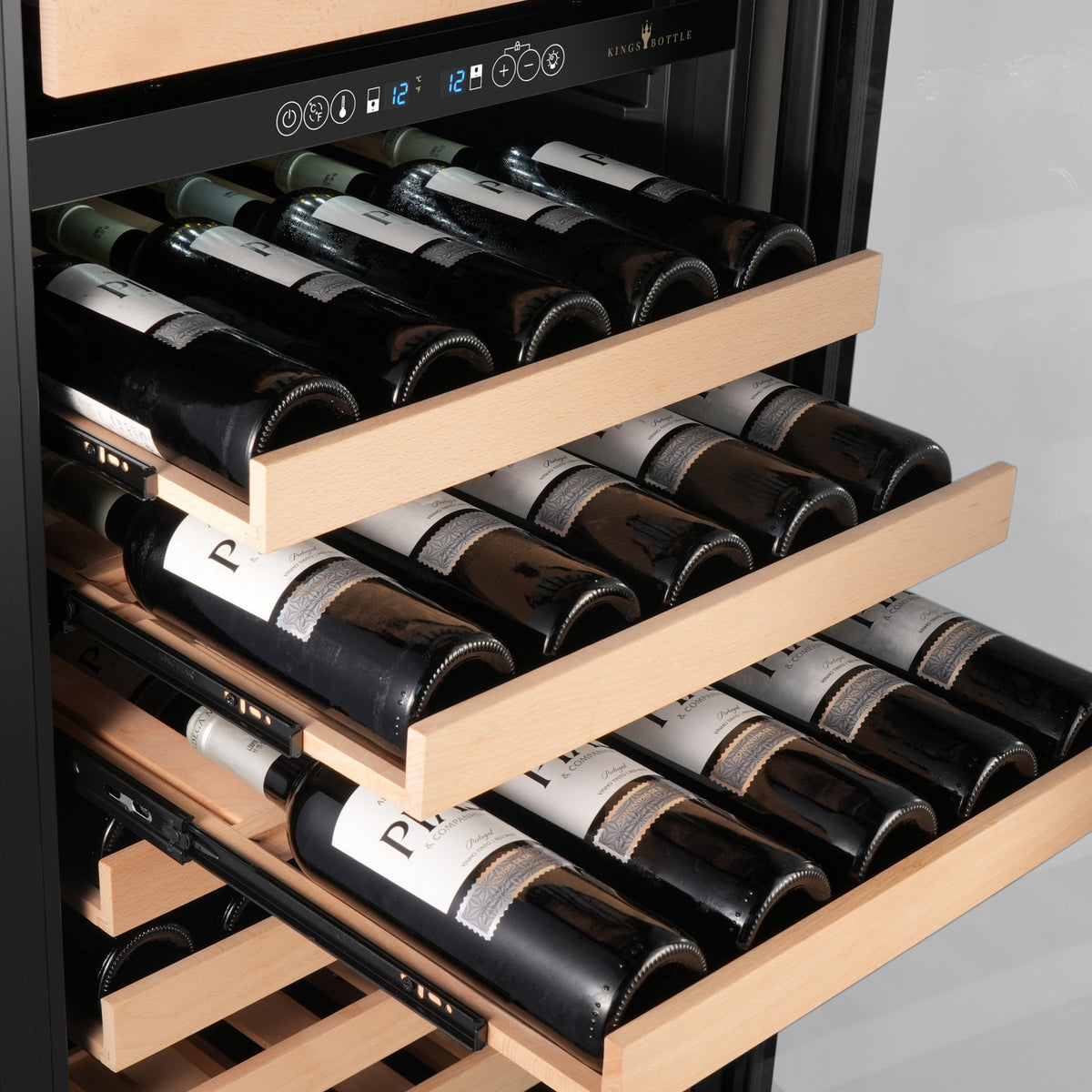

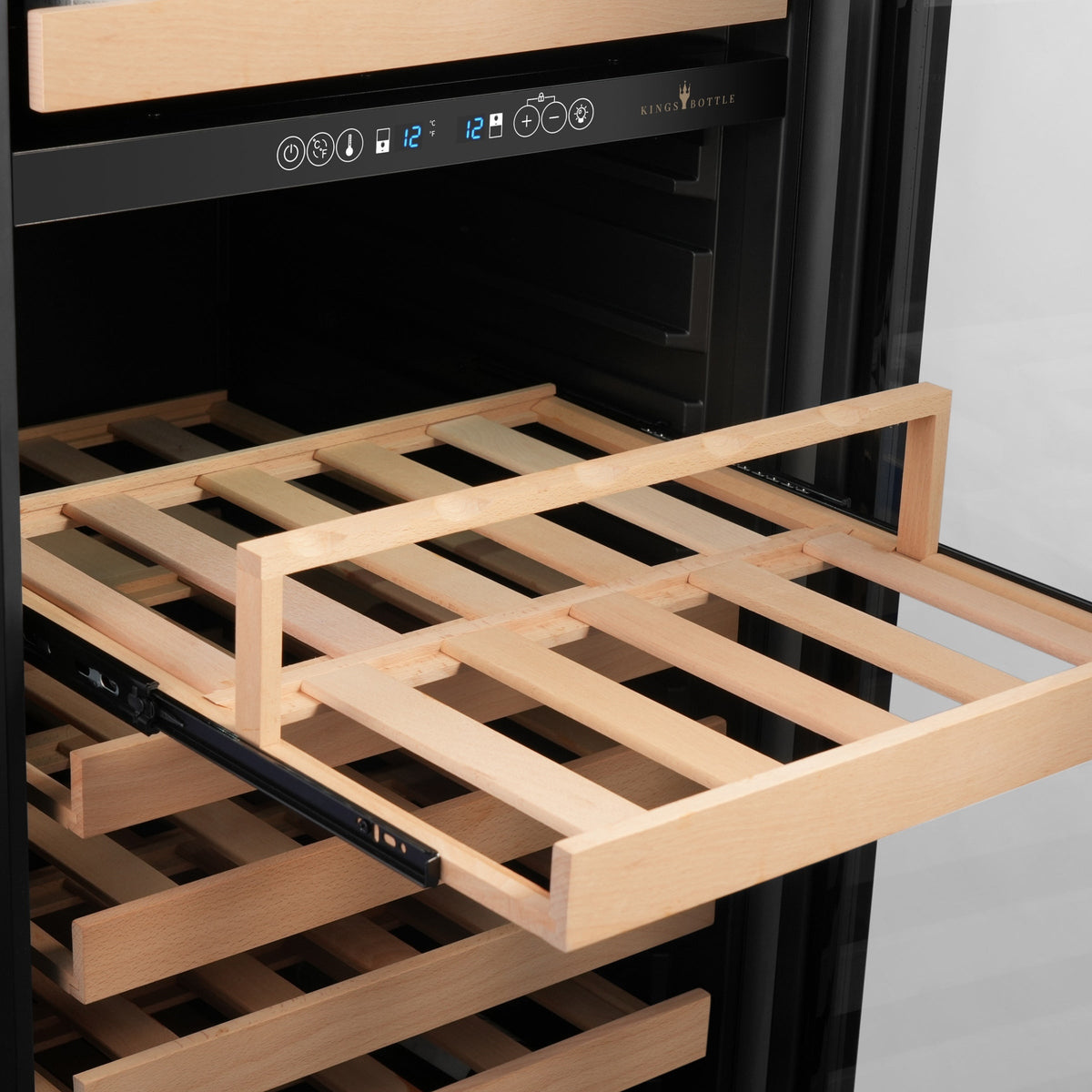

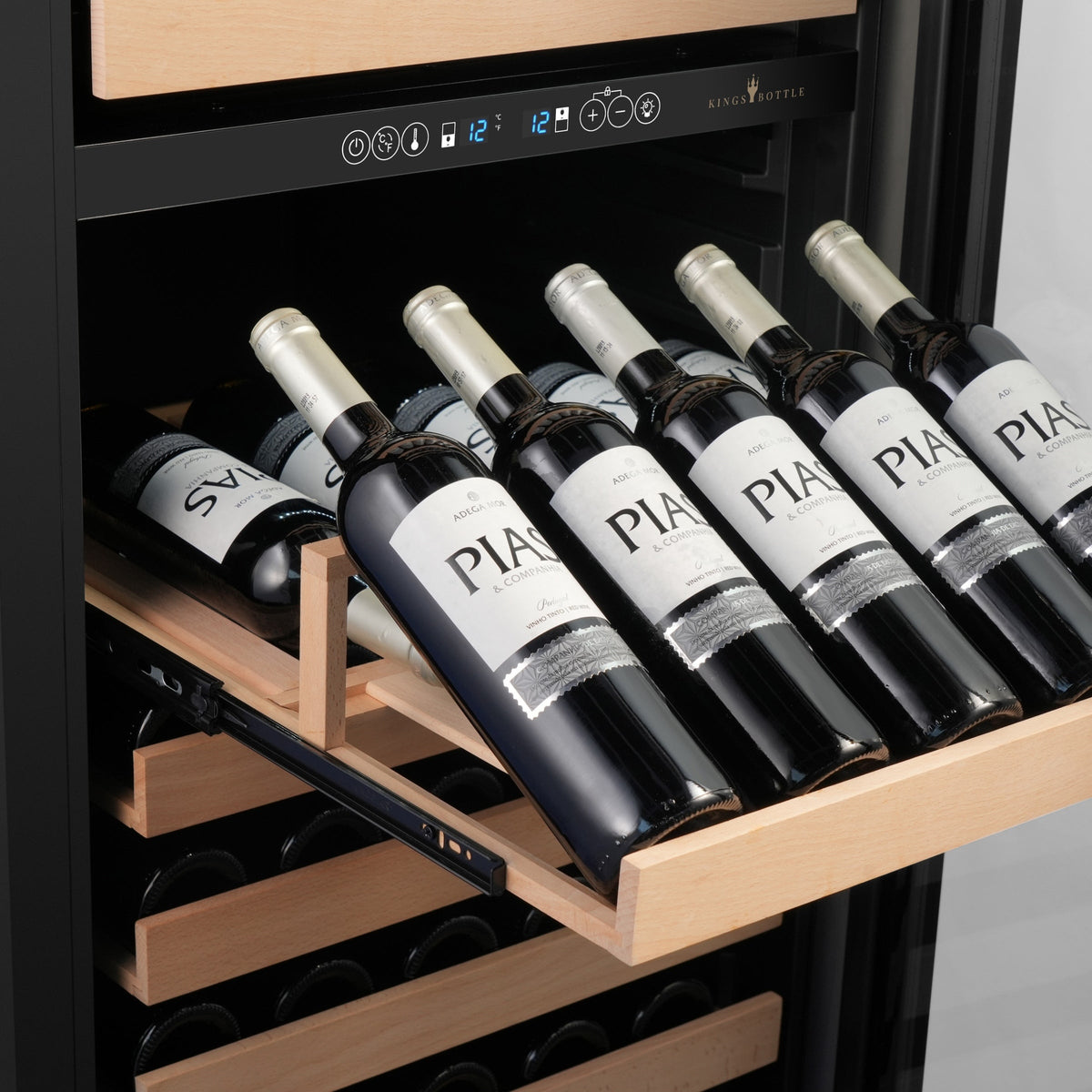

- Adjustable Shelving: Flexible shelf positioning accommodates different bottle and beverage formats.
- Automatic Defrost: Helps simplify routine maintenance.
- Built-In or Freestanding: Suitable for cabinetry integration or standalone placement.

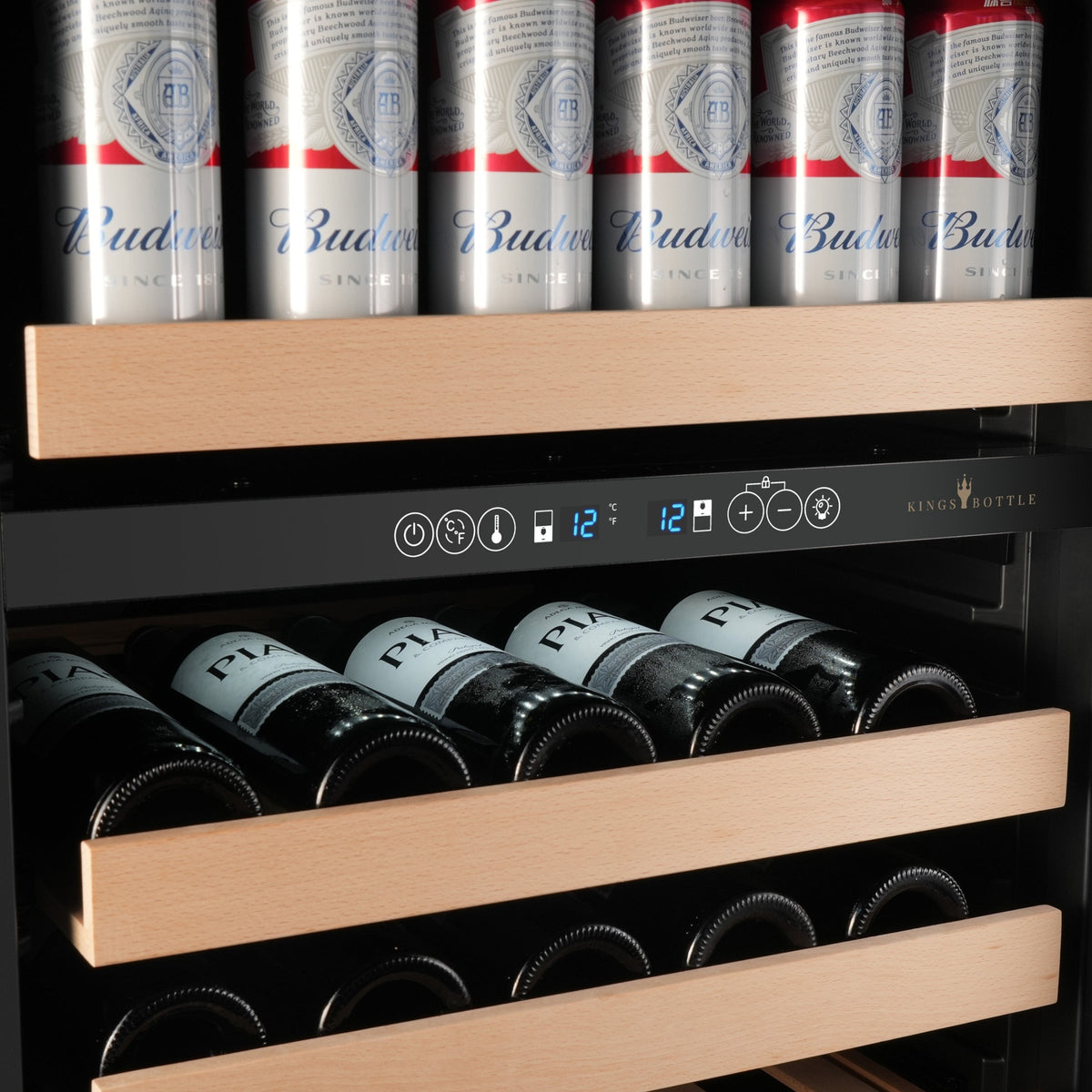

Dual-Zone Wine & Beverage Storage
The independently controlled upper and lower zones provide flexibility for storing different types of wine and beverages at separate temperatures. The upper zone operates from 35°F to 54°F (2°C to 12°C), while the lower zone operates from 54°F to 68°F (12°C to 20°C).
This configuration makes it possible to organize a larger collection by beverage type while maintaining separate temperature settings within one upright refrigerator.
Large-Capacity Storage

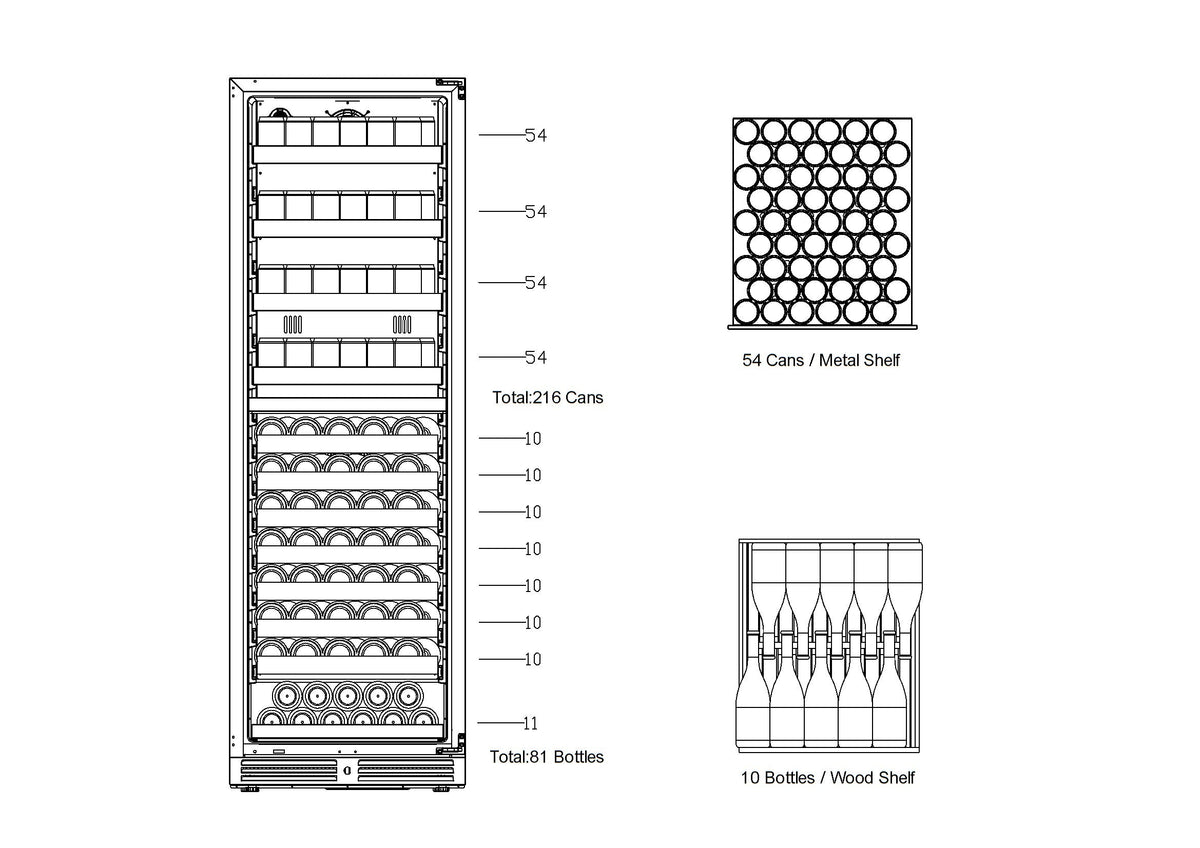

With 15 cu. ft. of total interior volume, the KBU425DX-FG HYBRID provides substantial storage in a vertical footprint. The manufacturer lists capacity for up to 81 bottles and 216 cans, giving users flexibility to combine wine storage with chilled beverages.

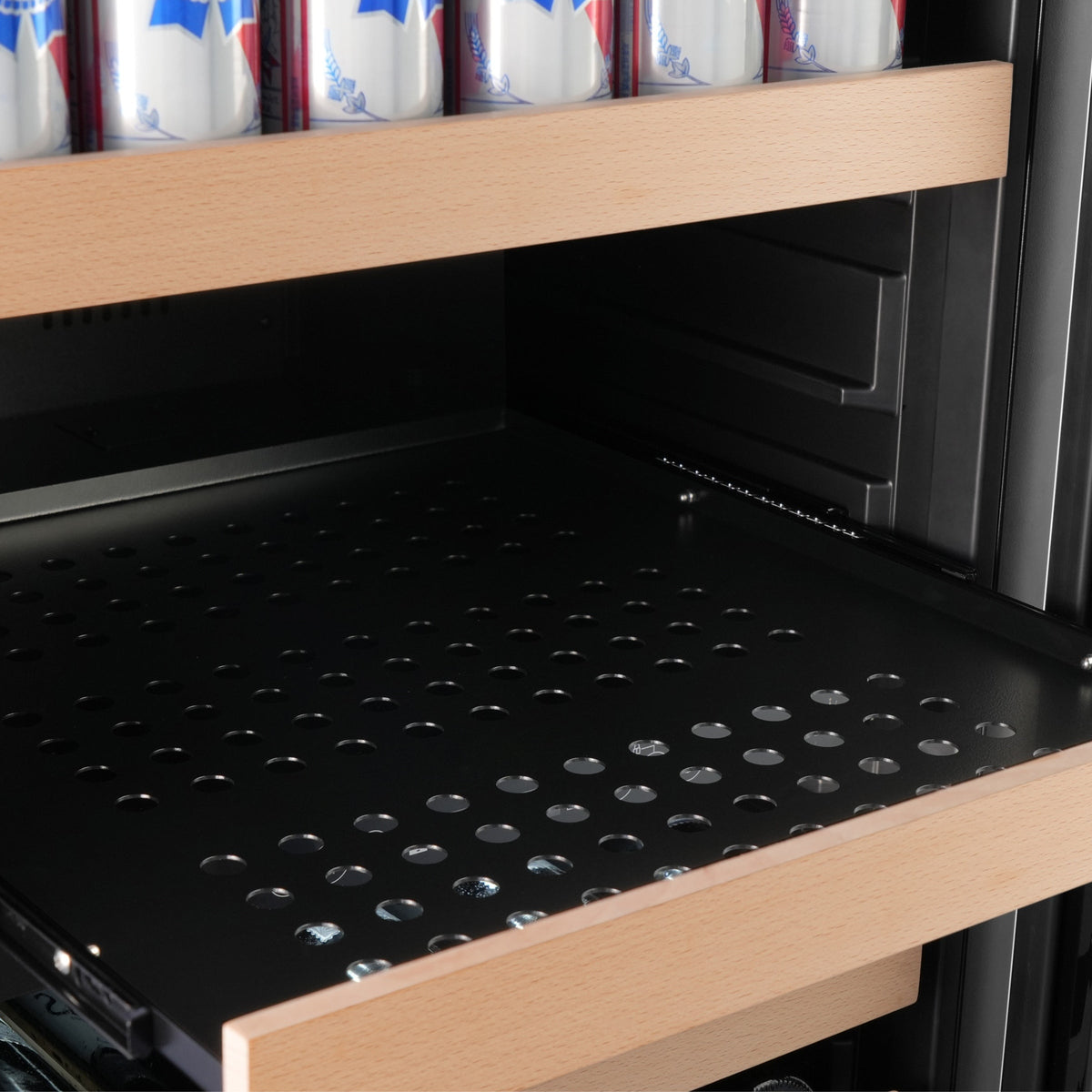

The shelving system is designed to accommodate different bottle and can sizes, including larger wine bottles up to 3.39 inches (86 mm) in diameter.
Low-E Glass Door
The Low-E glass door is designed to reduce condensation while improving insulation. It also provides visibility into the interior, making it easier to view and organize the wine and beverage collection.
Built-In or Freestanding Installation
Front ventilation allows the refrigerator to be integrated into suitable cabinetry without requiring rear clearance for normal operation. The unit can also be used as a freestanding appliance.
For built-in installation, follow the manufacturer's specified cutout dimensions and allow sufficient space for door movement, installation, ventilation efficiency, and future maintenance.
When installing between frameless cabinets, a 1/2-inch (12 mm) filler strip or side panel may be required on the hinge side to provide unobstructed door movement.
Cooling Specifications
- Temperature Zones: Dual zone
- Upper Zone: 35°F to 54°F (2°C to 12°C)
- Lower Zone: 54°F to 68°F (12°C to 20°C)
- Compressor: Embraco inverter compressor
- Cooling System: Compressor cooling with forced-air convection
- Operating Ambient Temperature: 32°F to 100°F (0°C to 38°C)
- Defrost: Automatic
Storage Capacity
- Total Capacity: 15.00 cu. ft. / 425 L
- Bottle Capacity: Up to 81 bottles
- Can Capacity: Up to 216 cans
- Maximum Large Bottle Diameter: 3.39 inches / 86 mm
Construction & Features
- Door Type: Low-E glass
- Ventilation: Front venting
- Installation: Built-in or freestanding
- Noise Level: 42 dB
- Weight: 103 lb
Electrical Specifications
- Electrical Requirement: 110–115V / 60Hz
- Energy Consumption: 230 kWh/year

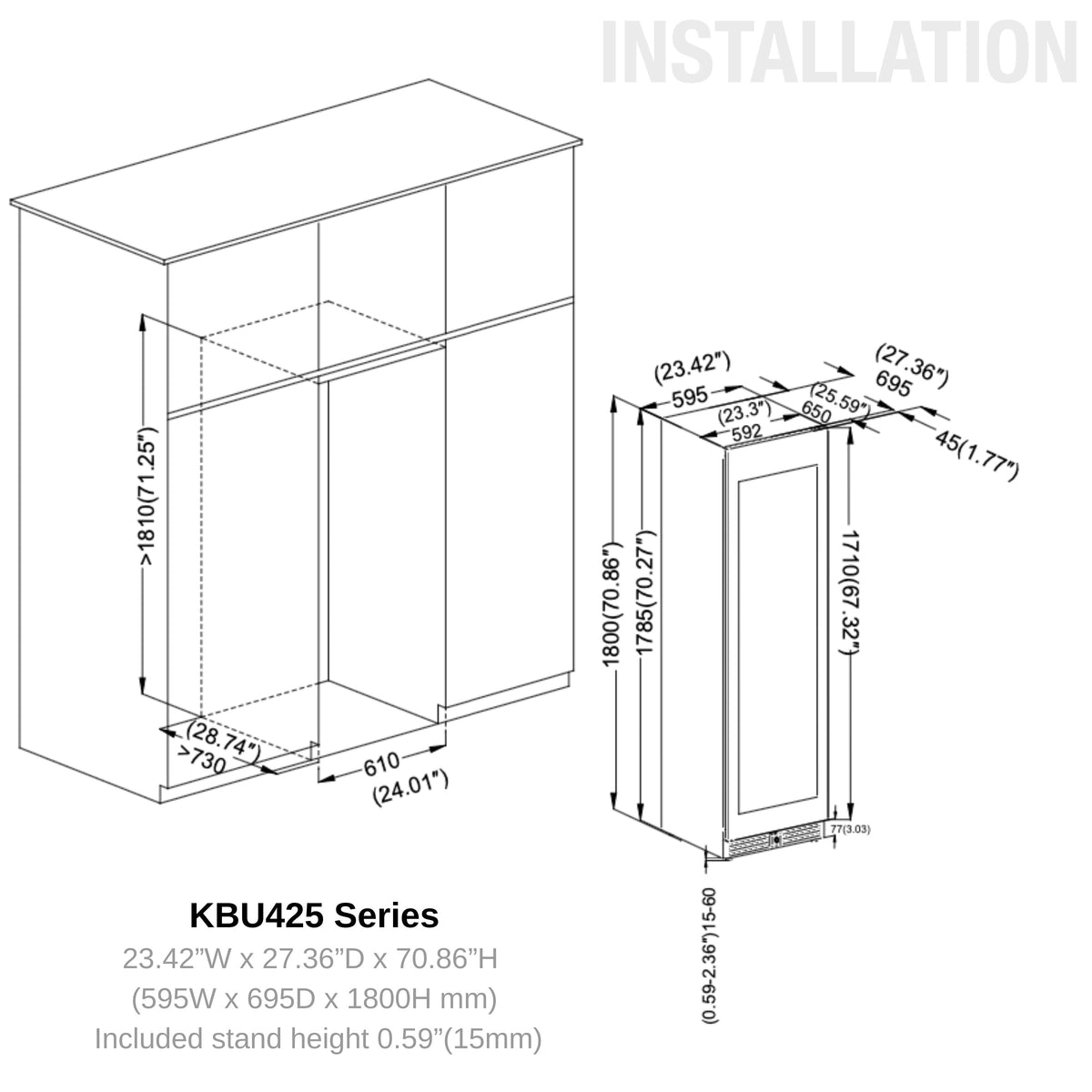

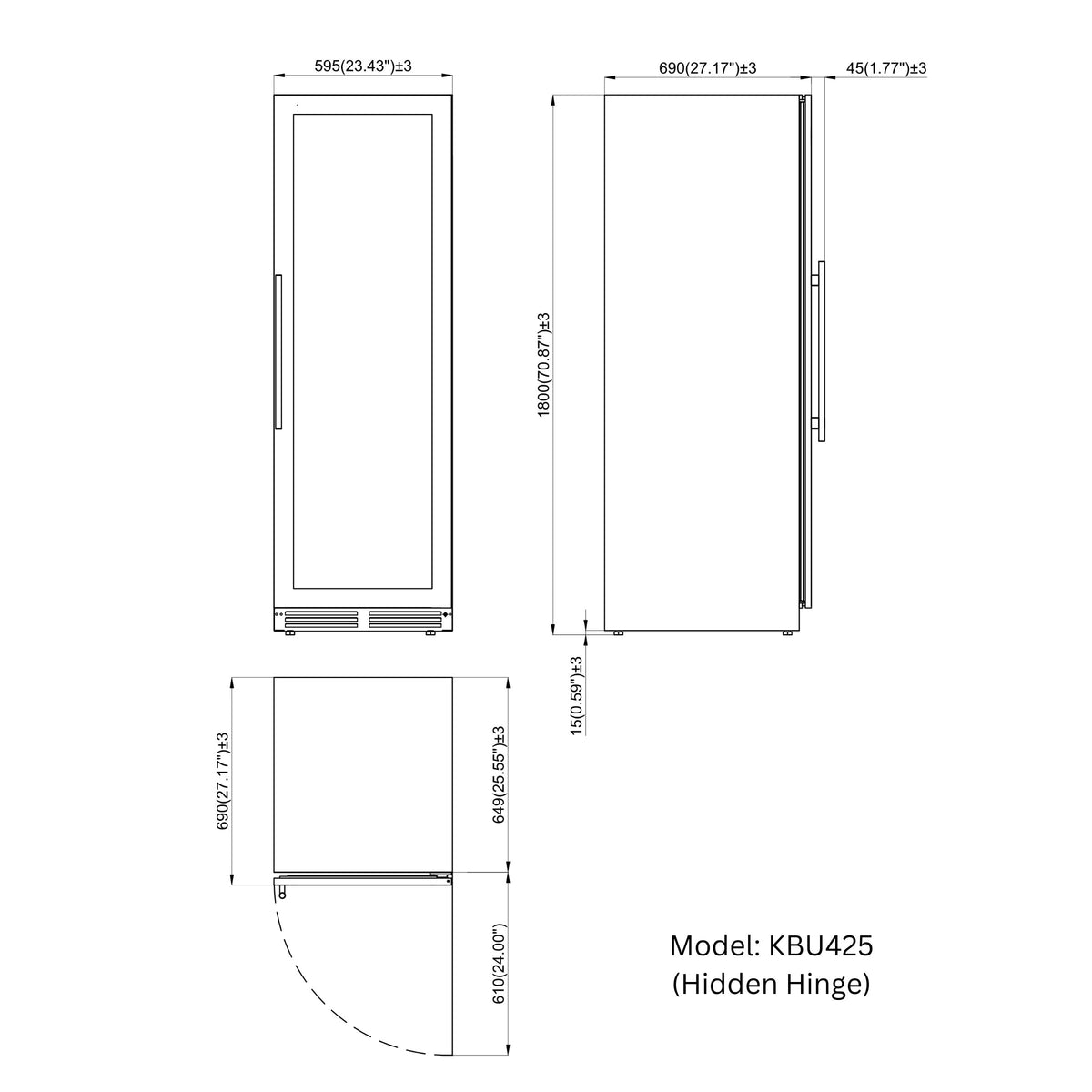

Dimensions
- Width: 23.43 inches
- Depth: 27.36 inches
- Height: 70.87 inches
- Metric Dimensions: 595 W × 695 D × 1800 H mm
Installation Notes
Install the wine and beverage center on a level surface and position it according to the manufacturer's specified dimensions. The front-venting configuration supports built-in installation without rear operating clearance, while additional space is recommended to make installation, ventilation, and maintenance easier.
Make sure the installation location provides adequate room for the door to open fully and for the pull-out shelves to be accessed without obstruction.
Care & Maintenance
Keep the interior and exterior surfaces clean using suitable non-abrasive cleaning materials. Keep ventilation areas unobstructed and follow the manufacturer's maintenance instructions.
To support stable operating temperatures, avoid unnecessarily frequent or prolonged door openings. Allow the appliance to operate under suitable ambient conditions as specified by the manufacturer.
Warranty
The KingsBottle KBU425DX-FG HYBRID includes a 2-year warranty. Optional 3-year and 5-year warranty extensions are also available.
What's Included
- KingsBottle KBU425DX-FG HYBRID 72-Inch Upright Dual-Zone Wine & Beverage Center
- Integrated dual-zone cooling system
- Adjustable storage shelving
- Low-E glass door

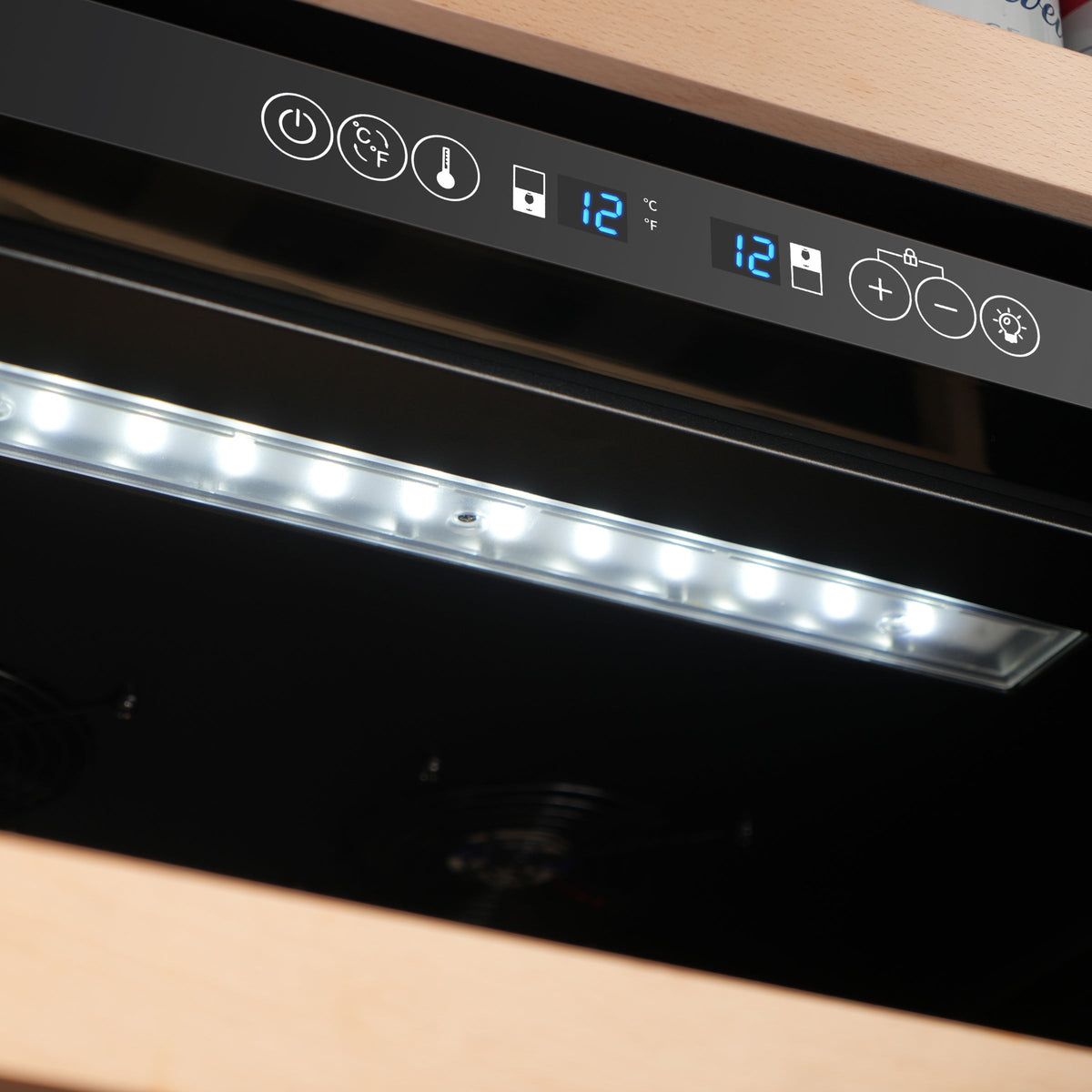

- Temperature control system
Product Specifications at a Glance
| Model | KBU425DX-FG HYBRID LHH |
| Product Type | Upright Wine & Beverage Center |
| Configuration | Full-Height, Dual Zone |
| Total Capacity | 15.00 cu. ft. / 425 L |
| Bottle Capacity | 81 bottles |
| Can Capacity | 216 cans |
| Upper Zone | 35°F to 54°F (2°C to 12°C) |
| Lower Zone | 54°F to 68°F (12°C to 20°C) |
| Compressor | Embraco Inverter |
| Door Type | Low-E Glass |
| Installation | Built-In or Freestanding |
| Ventilation | Front Venting |
| Dimensions | 23.43" W × 27.36" D × 70.87" H |
| Weight | 103 lb |
| Noise Level | 42 dB |
| Electrical | 110–115V / 60Hz |
| Energy Consumption | 230 kWh/year |
| Defrost | Automatic |
| Warranty | 2 Years |
